IslandPath Analysis: Streptococcus pneumoniae D39

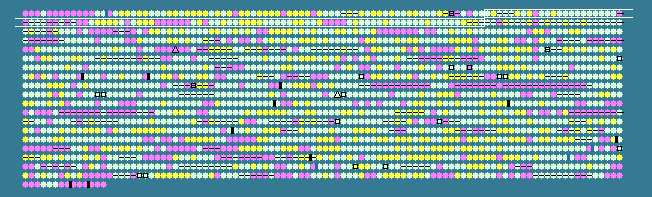

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.03 STD DEV: 4.59
Streptococcus pneumoniae D39, complete genome - 1..2046115
1914 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
78	 38.48	0	89931..91406	+	491	116516928	-	SPD_0090	-	ABC transporter, substrate-binding protein
79	 44.48	0	91678..92664	+	328	116517133	-	SPD_0091	-	hypothetical protein
80	 41.11	0	92786..93646	+	286	116516138	-	SPD_0092	-	hypothetical protein
81	 40.00	0	93718..94782	-	354	116516874	-	SPD_0093	-	hypothetical protein
82	 40.90	0	94845..95756	-	303	116515571	-	SPD_0094	-	hypothetical protein
83	 43.94	0	95749..96342	-	197	116516361	-	SPD_0095	-	hypothetical protein
84	 42.20	0	96329..96655	-	108	116515726	-	SPD_0096	-	hypothetical protein
85	 44.82	+1	96794..97960	-	388	116515559	-	SPD_0097	-	transporter, putative
86	 33.33	-1	98018..99175	+	385	116516685	-	SPD_0098	-	glycosyl transferase, group 2 family protein
87	 42.19	0	99217..101067	+	616	116517199	capD	SPD_0099	-	capsular polysaccharide biosynthesis protein
88	 43.13	0	101463..102095	-	210	116515790	-	SPD_0101	-	hydrolase, haloacid dehalogenase-like family protein
89	 48.00	+1	102117..102989	-	290	116516525	sdhA	SPD_0102	-	L-serine dehydratase, iron-sulfur-dependent, alpha subunit
90	 41.67	0	102998..103669	-	223	116516124	sdhB	SPD_0103	-	L-serine dehydratase, iron-sulfur-dependent, beta subunit
91	 40.87	0	103911..104414	+	167	116516732	-	SPD_0104	-	LysM domain-containing protein
92	 38.55	0	104537..104785	-	82	116515849	-	SPD_0105	-	hypothetical protein
93	 39.36	0	105242..105490	+	82	116517179	-	SPD_0106	-	bacteriocin, putative
94	 37.89	0	105545..107653	+	702	116516371	-	SPD_0107	-	membrnae protein, putative
95	 40.81	0	107650..108291	+	213	116516985	-	SPD_0108	-	amino acid ABC transporter, ATP-binding protein, putative
96	 39.53	0	108497..109303	+	268	116516177	-	SPD_0109	-	amino acid ABC transporter, periplasmic amino acid-binding protein, putative
97	 41.77	0	109320..110516	+	398	116515666	argG	SPD_0110	-	argininosuccinate synthase
98	 40.95	0	110545..111936	+	463	116516947	argH	SPD_0111	-	argininosuccinate lyase
99	 37.73	0	112225..113088	-	287	116515314	-	SPD_0112	-	hypothetical protein
100	 29.91	-2	115766..116233	+	155	116516334	-	SPD_0114	-	hypothetical protein
101	 34.37	-1	116230..117582	+	450	116516521	-	SPD_0115	-	hypothetical protein
102	 39.63	0	117728..118108	+	126	116515891	-	SPD_0116	-	hypothetical protein
103	 40.86	0	119688..120059	+	123	116516318	-	SPD_0117	-	hypothetical protein
104	 37.30	0	120653..120778	+	41	116515720	-	SPD_0118	-	hypothetical protein
105	 29.93	-2	121084..122142	+	352	116515480	-	SPD_0119	-	hypothetical protein
106	 28.53	-2	122456..123433	+	325	116515901	-	SPD_0120	-	hypothetical protein
107	 40.27	0	123810..124184	+	124	116516556	-	SPD_0121	-	hypothetical protein
108	 29.90	-2	124392..125294	+	300	116515445	-	SPD_0122	-	hypothetical protein
109	 39.27	0	125350..125703	+	117	116516169	-	SPD_0123	-	hypothetical protein
110	 27.01	-2	125670..126428	+	252	116516163	-	SPD_0124	-	hypothetical protein
111	 28.05	-2	127557..127802	+	81	116516979	-	SPD_0125	-	hypothetical protein
112	 42.63	0	128356..130215	+	619	116515876	pspA	SPD_0126	-	pneumococcal surface protein A
113	 48.13	+1	130616..131737	+	373	116516757	trmU	SPD_0127	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
114	 44.30	0	131878..132333	+	151	116516444	-	SPD_0128	-	MutT/nudix family protein
115	 46.34	+1	132343..134256	+	637	116515312	gidA	SPD_0129	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
116	 46.49	+1	134636..136315	-	559	116516160	-	SPD_0130	-	metallo-beta-lactamase domain-containing protein
117	 43.16	0	136317..136550	-	77	116515572	-	SPD_0131	-	hypothetical protein
118	 35.29	-1	137368..137520	-	50	116516595	-	SPD_0132	-	hypothetical protein
119	 38.17	0	137522..137707	-	61	116516791	-	SPD_0133	-	hypothetical protein
120	 45.47	+1	137885..138568	+	227	116516776	-	SPD_0134	-	hypothetical protein
121	 45.89	+1	138565..139002	+	145	116516175	rimI	SPD_0135	-	ribosomal-protein-alanine acetyltransferase
122	 48.27	+1	138992..140002	+	336	116517063	-	SPD_0136	-	O-sialoglycoprotein endopeptidase
123	 29.52	-2	142604..143809	+	401	116516328	-	SPD_0138	-	glycosyl transferase, group 1 family protein
124	 27.36	-2	143802..144755	+	317	116516905	-	SPD_0139	-	glycosyl transferase, group 2 family protein
125	 30.30	-2	144765..146381	+	538	116516697	-	SPD_0140	-	ABC transporter, ATP-binding protein
126	 24.15	-2	146691..147158	+	155	116515417	-	SPD_0141	-	hypothetical protein
127	 30.95	-1	147164..147919	+	251	116516472	-	SPD_0142	-	hypothetical protein
128	 29.16	-2	147932..149104	+	390	116515340	-	SPD_0143	-	UDP-glucose 6-dehydrogenase, putative
129	 39.35	0	149499..150362	+	287	116516617	-	SPD_0144	-	transcriptional regulator
130	 44.02	0	150653..150886	+	77	116516089	-	SPD_0145	-	hypothetical protein
131	 35.99	0	150908..151585	+	225	116516352	-	SPD_0146	-	CAAX amino terminal protease family protein
132	 37.39	0	151597..152262	+	221	116515826	-	SPD_0147	-	CAAX amino terminal protease family protein
133	 37.41	0	152334..153560	+	408	116517061	-	SPD_0148	-	transporter, major facilitator family protein
134	 45.15	+1	153893..154366	+	157	116516566	-	SPD_0149	-	hypothetical protein
135	 40.79	0	154470..155300	+	276	116517098	-	SPD_0150	-	ABC transporter, substrate-binding protein
136	 40.47	0	155454..156308	+	284	116516447	-	SPD_0151	-	lipoprotein
137	 46.22	+1	156408..157781	+	457	116515387	-	SPD_0152	-	hypothetical protein
138	 43.69	0	157774..158835	+	353	116515828	-	SPD_0153	-	ABC transporter, ATP-binding protein
139	 45.31	+1	158837..159529	+	230	116517111	-	SPD_0154	-	ABC transporter, permease protein, putative
140	 44.21	0	159559..160128	-	189	116516723	-	SPD_0155	-	hypothetical protein
141	 39.02	0	160263..160877	+	204	116515665	-	SPD_0156	-	hypothetical protein
142	 40.86	0	160879..162525	+	548	116515317	-	SPD_0157	-	sensor histidine kinase, putative
143	 40.79	0	162537..163823	+	428	116516660	-	SPD_0158	-	DNA-binding response regulator
144	 39.14	0	163875..164408	+	177	116516260	-	SPD_0159	-	hypothetical protein
145	 40.55	0	164486..164956	+	156	116516077	-	SPD_0160	-	hypothetical protein
146	 44.66	+1	165249..166511	-	420	116516889	-	SPD_0161	-	hypothetical protein
147	 46.19	+1	166821..167279	-	152	116515862	-	SPD_0162	-	hypothetical protein
148	 40.82	0	167276..167716	-	146	116516702	-	SPD_0163	-	hypothetical protein
149	 40.56	0	167832..168011	+	59	116515582	-	SPD_0164	-	hypothetical protein
150	 46.00	+1	168072..170021	+	649	116516396	mutL	SPD_0165	-	DNA mismatch repair protein
151	 35.68	0	170346..170813	-	155	116517138	ribH	SPD_0166	-	6,7-dimethyl-8-ribityllumazine synthase
152	 35.24	-1	170814..172019	-	401	116516104	ribB	SPD_0167	-	3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II
153	 33.49	-1	172039..172674	-	211	116516797	ribE	SPD_0168	-	riboflavin synthase subunit alpha
154	 36.33	0	172659..173759	-	366	116515773	ribD	SPD_0169	-	riboflavin biosynthesis protein RibD
155	 43.43	0	174163..174756	+	197	116515482	ruvA	SPD_0170	-	Holliday junction DNA helicase motor protein
156	 46.63	+1	174766..175329	+	187	116516468	tag	SPD_0171	-	DNA-3-methyladenine glycosylase I
157	 36.73	0	175326..176003	+	225	116515703	-	SPD_0172	-	hypothetical protein
158	 41.76	0	176158..177189	-	343	116516516	-	SPD_0173	-	MccC family protein
159	 43.12	0	177444..178148	-	234	116516921	-	SPD_0174	-	hypothetical protein
160	 42.33	0	178139..179083	-	314	116515813	-	SPD_0175	-	magnesium transporter, CorA family protein
161	 47.25	+1	179215..182046	+	943	116517125	uvrA	SPD_0176	-	excinuclease ABC subunit A
162	 43.50	0	182039..183100	+	353	116516135	-	SPD_0177	-	peptidase M24 family protein
163	 39.10	0	183232..183630	+	132	116516433	spxA	SPD_0178	-	transcriptional regulator Spx
164	 38.25	0	183696..184265	+	189	116515403	-	SPD_0179	-	hypothetical protein
165	 37.83	0	184352..184618	+	88	116516360	-	SPD_0180	-	hypothetical protein
166	 41.67	0	184622..185041	+	139	116515819	-	SPD_0181	-	Holliday junction resolvase-like protein
167	 38.89	0	185057..185362	+	101	116516683	-	SPD_0182	-	hypothetical protein
168	 43.91	0	185813..187069	+	418	116516494	folC	SPD_0183	-	folylpolyglutamate synthase
169	 40.97	0	187153..187584	+	143	116515524	-	SPD_0184	-	hypothetical protein
170	 38.42	0	187730..189262	+	510	116516680	-	SPD_0185	-	cardiolipin synthetase
171	 40.03	0	189520..191058	+	512	116515592	-	SPD_0186	-	competence-induced protein Ccs4
172	 43.07	0	191178..193385	+	735	116516887	nrdD	SPD_0187	-	anaerobic ribonucleoside triphosphate reductase
173	 39.72	0	193397..193537	+	46	116515859	-	SPD_0188	-	hypothetical protein
174	 43.98	0	193581..194087	+	168	116517222	-	SPD_0189	-	acetyltransferase, GNAT family protein
175	 43.65	0	194080..194670	+	196	116516445	nrdG	SPD_0190	-	anaerobic ribonucleoside-triphosphate reductase activating protein
176	 44.82	+1	194667..195284	+	205	116516988	-	SPD_0191	-	hypothetical protein
177	 42.07	0	195551..195859	+	102	116516663	rpsJ	SPD_0192	-	30S ribosomal protein S10
40.03	MEAN

4.59	STD DEV
