IslandPathversion 1.0

IslandPath Analysis: Streptococcus pneumoniae D39

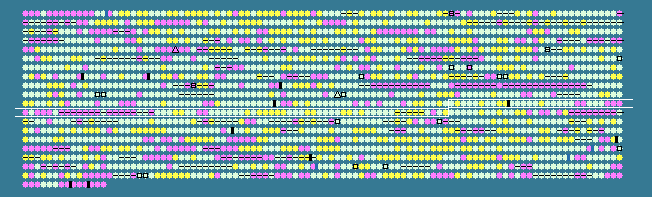

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.03 STD DEV: 4.59
Streptococcus pneumoniae D39, complete genome - 1..2046115
1914 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1072	 39.87	0	1170469..1172028	+	519	116517191	-	SPD_1137	-	ABC transporter, ATP-binding protein
1073	 44.22	0	1172177..1173076	-	299	116516057	htpX	SPD_1138	-	heat shock protein HtpX
1074	 39.22	0	1173078..1173638	-	186	116516003	lemA	SPD_1139	-	LemA protein
1075	 41.88	0	1173732..1174445	+	237	116516833	gidB	SPD_1140	-	glucose-inhibited division protein B
1076	 42.91	0	1174797..1176080	+	427	116516034	uraA	SPD_1141	-	uracil-xanthine permease
1077	 43.64	0	1176275..1177846	-	523	116515651	ffh	SPD_1142	-	signal recognition particle protein
1078	 39.04	0	1177858..1178190	-	110	116515551	-	SPD_1143	-	hypothetical protein
1079	 38.10	0	1178281..1178658	-	125	116516359	-	SPD_1144	-	hypothetical protein
1080	 44.75	+1	1178730..1180034	+	434	116516095	-	SPD_1145	-	hypothetical protein
1081	 45.11	+1	1180047..1180853	+	268	116516922	-	SPD_1146	-	Cof family protein
1082	 42.53	0	1181021..1181368	-	115	116516185	rplS	SPD_1148	-	50S ribosomal protein L19
1083	 36.67	0	1181487..1181816	-	109	116515926	crcB1	SPD_1149	-	CrcB protein
1084	 42.67	0	1181810..1182184	-	124	116516795	crcB2	SPD_1150	-	CrcB protein
1085	 37.45	0	1182181..1182447	-	88	116516649	-	SPD_1151	-	hypothetical protein
1086	 41.89	0	1182563..1183006	-	147	116516999	fld	SPD_1152	-	flavodoxin
1087	 44.44	0	1183110..1184045	+	311	116516410	-	SPD_1153	-	DHH subfamily 1 protein
1088	 41.98	0	1184141..1184383	+	80	116515764	rpmE2	SPD_1154	-	50S ribosomal protein L31 type B
1089	 39.38	0	1184440..1185018	-	192	116516672	-	SPD_1155	-	hypothetical protein
1090	 42.79	0	1184993..1185997	-	334	116516026	-	SPD_1156	-	Dyp-type peroxidase family protein
1091	 41.95	0	1186049..1186315	-	88	116516847	-	SPD_1157	-	hypothetical protein
1092	 42.91	0	1187003..1188349	+	448	116516965	gdhA	SPD_1158	-	glutamate dehydrogenase
1093	 29.24	-2	1188845..1189015	-	56	116515897	-	SPD_1159	-	hypothetical protein
1094	 32.55	-1	1189028..1189669	-	213	116516496	-	SPD_1160	-	ABC transporter, ATP-bindng protein
1095	 38.36	0	1189941..1190378	+	145	116516155	-	SPD_1161	-	hypothetical protein
1096	 42.16	0	1190669..1190872	-	67	116516734	-	SPD_1162	-	hypothetical protein
1097	 43.31	0	1190890..1191621	-	243	116515419	-	SPD_1163	-	N-acetylneuraminate lyase, putative
1098	 33.82	-1	1191839..1192246	-	135	116516518	cdd-2	SPD_1164	-	cytidine deaminase
1099	 30.67	-2	1192534..1193022	-	162	116515484	-	SPD_1165	-	hypothetical protein
1100	 34.47	-1	1193027..1194436	-	469	116515829	-	SPD_1166	-	hypothetical protein
1101	 34.44	-1	1194446..1196428	-	660	116515706	-	SPD_1167	-	ABC transporter, ATP-binding protein
1102	 36.62	0	1196441..1197292	-	283	116515771	-	SPD_1168	-	oligopeptide ABC transporter, pemease protein
1103	 32.91	-1	1197309..1198259	-	316	116516656	-	SPD_1169	-	oligopeptide ABC transporter, permease protein
1104	 30.57	-2	1198369..1199997	-	542	116515339	-	SPD_1170	-	oligopeptide ABC transporter,oligopeptide-binding protein
1105	 32.47	-1	1200079..1201002	-	307	116516633	-	SPD_1171	-	hypothetical protein
1106	 43.06	0	1201026..1201724	-	232	116516481	nanE-2	SPD_1172	-	N-acetylmannosamine-6-phosphate 2-epimerase
1107	 35.14	-1	1202617..1202838	-	73	116517215	-	SPD_1174	-	hypothetical protein
1108	 28.33	-2	1203902..1205221	-	439	116515372	-	SPD_1175	-	hypothetical protein
1109	 33.60	-1	1205224..1205964	-	246	116516042	-	SPD_1176	-	ABC transporter, ATP-binding protein
1110	 27.61	-2	1205979..1207586	-	535	116517121	-	SPD_1177	-	drug efflux ABC transporter, ATP-binding/permease protein
1111	 32.46	-1	1207583..1209523	-	646	116516607	-	SPD_1178	-	prolyl oligopeptidase family protein
1112	 32.61	-1	1209556..1212165	-	869	116515683	-	SPD_1179	-	hypothetical protein
1113	 34.01	-1	1212683..1213270	-	195	116515695	-	SPD_1180	-	CAAX amino terminal protease family protein
1114	 37.50	0	1213363..1213506	-	47	116516016	-	SPD_1181	-	hypothetical protein
1115	 32.28	-1	1213519..1213899	-	126	116516880	-	SPD_1182	-	hypothetical protein
1116	 33.33	-1	1213954..1214232	-	92	116516289	-	SPD_1183	-	hypothetical protein
1117	 35.69	0	1214240..1214494	-	84	116515907	-	SPD_1184	-	hypothetical protein
1118	 35.63	0	1214491..1214664	-	57	116516935	-	SPD_1185	-	hypothetical protein
1119	 30.60	-2	1214640..1214822	+	60	116515620	-	SPD_1186	-	hypothetical protein
1120	 40.65	0	1214852..1215220	-	122	116516621	rplL	SPD_1187	-	50S ribosomal protein L7/L12
1121	 43.11	0	1215296..1215796	-	166	116516650	rplJ	SPD_1188	-	50S ribosomal protein L10
1122	 36.44	0	1215801..1216025	+	74	116516775	-	SPD_1189	-	hypothetical protein
1123	 43.25	0	1216046..1217305	-	419	116515507	-	SPD_1190	-	chlorohydrolase
1124	 42.87	0	1217607..1219358	-	583	116516549	-	SPD_1191	-	ABC transporter, ATP-binding/permease protein
1125	 43.19	0	1219360..1221084	-	574	116516223	-	SPD_1192	-	ABC transporter, ATP-binding/permease protein
1126	 43.98	0	1221142..1222080	-	312	116516363	msrAB1	SPD_1193	-	bifunctional methionine sulfoxide reductase A/B protein
1127	 45.86	+1	1222376..1223245	-	289	116517101	thrB	SPD_1194	-	homoserine kinase
1128	 42.89	0	1223247..1224533	-	428	116516244	hom	SPD_1195	-	homoserine dehydrogenase
1129	 39.97	0	1224684..1225421	-	245	116515689	mecA	SPD_1196	-	adaptor protein
1130	 32.85	-1	1225563..1226597	-	344	116516014	-	SPD_1197	-	hypothetical protein
1131	 36.26	0	1226626..1228059	-	477	116515719	-	SPD_1198	-	hypothetical protein
1132	 36.78	0	1228075..1229061	-	328	116516760	-	SPD_1199	-	glycosyl transferase, group 2 family protein
1133	 37.06	0	1229063..1230163	-	366	116516575	-	SPD_1200	-	glycosyl transferase, group 1 family protein
1134	 40.66	0	1230156..1231001	-	281	116515753	licD3	SPD_1201	-	phosphotransferase LicD3
1135	 41.41	0	1231280..1232554	-	424	116516217	psr	SPD_1202	-	Psr protein
1136	 42.64	0	1232551..1233399	-	282	116515473	-	SPD_1203	-	prephenate dehydratase
1137	 42.56	0	1233396..1233872	-	158	116517070	aroK	SPD_1204	-	shikimate kinase
1138	 44.78	+1	1233865..1235148	-	427	116515889	aroA	SPD_1205	-	3-phosphoshikimate 1-carboxyvinyltransferase
1139	 39.23	0	1235240..1235578	-	112	116515360	-	SPD_1206	-	hypothetical protein
1140	 44.29	0	1235589..1236692	-	367	116516215	tyrA	SPD_1207	-	prephenate dehydrogenase
1141	 46.87	+1	1236702..1237868	-	388	116516017	aroC	SPD_1208	-	chorismate synthase
1142	 44.94	+1	1237878..1238945	-	355	116516860	aroB	SPD_1209	-	3-dehydroquinate synthase
1143	 43.63	0	1238964..1239818	-	284	116516036	aroE	SPD_1210	-	shikimate 5-dehydrogenase
1144	 44.10	0	1239808..1240485	-	225	116517065	aroD	SPD_1211	-	3-dehydroquinate dehydratase
1145	 41.35	0	1240482..1241654	-	390	116516182	-	SPD_1212	-	hypothetical protein
1146	 38.78	0	1242332..1243966	-	544	116516512	-	SPD_1213	-	hypothetical protein
1147	 41.73	0	1243947..1244696	-	249	116515435	-	SPD_1214	-	ABC transporter, ATP-binding protein
1148	 45.77	+1	1244874..1246328	+	484	116516517	amy	SPD_1215	-	cytoplasmic alpha-amylase
1149	 44.60	0	1246418..1249036	-	872	116515613	alaS	SPD_1216	-	alanyl-tRNA synthetase
1150	 42.18	0	1249058..1249543	-	161	116515414	-	SPD_1217	-	hypothetical protein
1151	 41.64	0	1250318..1251388	-	356	116516276	potD	SPD_1218	-	spermidine/putrescine ABC transporter, spermidine/putrescine-binding protein
1152	 42.38	0	1251385..1252158	-	257	116517092	potC	SPD_1219	-	spermidine/putrescine ABC transporter, permease protein
1153	 42.13	0	1252155..1252961	-	268	116515539	potH	SPD_1220	-	spermidine/putrescine ABC transporter, permease protein
1154	 45.08	+1	1252942..1254099	-	385	116516399	potA	SPD_1221	-	spermidine/putrescine ABC transporter, ATP-binding protein
1155	 45.11	+1	1254158..1255108	-	316	116515736	murB	SPD_1222	-	UDP-N-acetylenolpyruvoylglucosamine reductase
1156	 41.17	0	1255220..1255972	-	250	116516196	-	SPD_1223	-	hypothetical protein
1157	 45.22	+1	1255982..1256713	-	243	116516826	budA	SPD_1224	-	alpha-acetolactate decarboxylase
1158	 42.69	0	1256855..1258126	+	423	116515504	-	SPD_1225	-	hypothetical protein
1159	 39.95	0	1258146..1258961	-	271	116516603	-	SPD_1226	-	amino acid ABC transporter, amino acid-binding protein
1160	 42.05	0	1259118..1259771	-	217	116515809	-	SPD_1227	-	phosphate transport system regulatory protein PhoU, putative
1161	 43.21	0	1259783..1260541	-	252	116516421	-	SPD_1228	-	phosphate ABC transporter, ATP-binding protein, putative
1162	 41.79	0	1260554..1261357	-	267	116516038	-	SPD_1229	-	phosphate ABC transporter, ATP-binding protein, putative
1163	 44.86	+1	1261368..1262252	-	294	116516821	-	SPD_1230	-	phosphate ABC transporter, permease protein, putative
1164	 43.46	0	1262242..1263159	-	305	116516273	-	SPD_1231	-	phosphate ABC transporter, permease protein, putative
1165	 44.03	0	1263159..1264037	-	292	116517085	-	SPD_1232	-	phosphate ABC transporter, phosphate-binding protein, putative
1166	 45.52	+1	1264611..1265915	-	434	116516379	-	SPD_1233	-	NOL1/NOP2/sun family protein
1167	 43.93	0	1265916..1266689	-	257	116515379	-	SPD_1234	-	inositol monophosphatase family protein
1168	 41.94	0	1266679..1266957	-	92	116516476	-	SPD_1235	-	hypothetical protein
1169	 36.32	0	1266957..1267358	-	133	116515656	spxA	SPD_1236	-	transcriptional regulator Spx
1170	 39.81	0	1267568..1268185	-	205	116515535	-	SPD_1237	-	hypothetical protein
1171	 45.87	+1	1268175..1268948	-	257	116516703	-	SPD_1238	-	hydrolase, haloacid dehalogenase-like family protein
40.03	MEAN

4.59	STD DEV
