IslandPathversion 1.0

IslandPath Analysis: Streptococcus pneumoniae D39

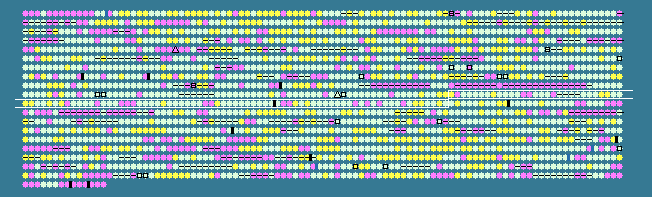

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.03 STD DEV: 4.59
Streptococcus pneumoniae D39, complete genome - 1..2046115
1914 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
972	 43.73	0	1058346..1058999	-	217	116516721	ung	SPD_1032	-	uracil-DNA glycosylase
973	 26.23	-2	1059135..1059782	-	215	116515370	-	SPD_1033	-	hypothetical protein
974	 41.04	0	1059796..1060509	-	237	116516454	-	SPD_1034	-	hydrolase, haloacid dehalogenase-like family protein
975	 37.74	0	1060967..1061125	-	52	116516248	-	SPD_1035	-	hypothetical protein
976	 38.56	0	1061195..1061347	-	50	116516920	-	SPD_1036	-	hypothetical protein
977	 41.34	0	1061769..1064303	-	844	116515840	-	SPD_1037	-	histidine triad protein
978	 39.53	0	1064461..1066911	-	816	116517004	phpA	SPD_1038	-	pneumococcal histidine triad protein A precursor
979	 43.54	0	1067166..1068899	-	577	116515883	ptsI	SPD_1039	-	phosphoenolpyruvate-protein phosphotransferase
980	 41.67	0	1068905..1069168	-	87	116516713	ptsH	SPD_1040	-	phosphocarrier protein HPr
981	 37.90	0	1069519..1069737	+	72	116516941	nrdH	SPD_1041	-	glutaredoxin-like protein NrdH
982	 41.57	0	1069818..1071977	+	719	116516073	nrdE	SPD_1042	-	ribonucleotide-diphosphate reductase subunit alpha
983	 41.02	0	1072165..1073127	+	320	116517162	nrdF	SPD_1043	-	ribonucleotide-diphosphate reductase subunit beta
984	 34.78	-1	1073309..1074070	+	253	116516466	lacR2	SPD_1044	-	lactose phosphotransferase system repressor
985	 28.49	-2	1074340..1074525	-	61	116515662	-	SPD_1045	-	hypothetical protein
986	 39.37	0	1074568..1075974	-	468	116516678	lacG-2	SPD_1046	-	6-phospho-beta-galactosidase
987	 40.54	0	1076183..1077874	-	563	116515590	lacE-2	SPD_1047	-	PTS system, lactose-specific IIBC components
988	 43.08	0	1077874..1078191	-	105	116516599	lacF-2	SPD_1048	-	PTS system, lactose-specific IIA component
989	 35.72	0	1078227..1079063	-	278	116517211	lacT	SPD_1049	-	transcription antiterminator LacT
990	 41.28	0	1079297..1080277	-	326	116516368	lacD	SPD_1050	-	tagatose 1,6-diphosphate aldolase
991	 40.75	0	1080279..1081208	-	309	116516039	lacC	SPD_1051	-	tagatose-6-phosphate kinase
992	 39.53	0	1081219..1081734	-	171	116517129	lacB	SPD_1052	-	galactose-6-phosphate isomerase subunit LacB
993	 41.31	0	1081765..1082190	-	141	116515890	lacA	SPD_1053	-	galactose-6-phosphate isomerase subunit LacA
994	 37.10	0	1082348..1082692	-	114	116516900	-	SPD_1054	-	hypothetical protein
995	 40.26	0	1083671..1083973	-	100	116516547	-	SPD_1057	-	PTS system, IIB component, putative
996	 39.22	0	1084667..1084819	+	50	116516787	-	SPD_1059	-	hypothetical protein
997	 44.19	0	1084900..1086723	-	607	116516228	lepA	SPD_1060	-	GTP-binding protein LepA
998	 43.76	0	1086802..1087530	-	242	116516467	-	SPD_1061	-	serine/threonine protein phosphatase
999	 41.73	0	1087532..1089199	-	555	116516837	recN	SPD_1062	-	DNA repair protein RecN
1000	 37.27	0	1089206..1089637	-	143	116515743	-	SPD_1063	-	transcriptional regulator of arginine metabolism expression, putative
1001	 44.61	0	1089630..1090445	-	271	116516842	-	SPD_1064	-	hemolysin A, putative
1002	 44.75	+1	1090438..1091313	-	291	116516004	ispA	SPD_1065	-	geranyltranstransferase
1003	 40.85	0	1091310..1091522	-	70	116516524	xseB	SPD_1066	-	exodeoxyribonuclease VII small subunit
1004	 43.25	0	1091500..1092840	-	446	116515460	xseA	SPD_1067	-	exodeoxyribonuclease VII large subunit
1005	 43.97	0	1092968..1093606	-	212	116516339	udk	SPD_1068	-	uridine kinase
1006	 40.92	0	1093714..1094016	-	100	116515672	-	SPD_1069	-	hypothetical protein
1007	 44.94	+1	1094257..1095135	-	292	116515728	truB	SPD_1070	-	tRNA pseudouridine synthase B
1008	 26.33	-2	1095236..1098421	-	1061	116516569	-	SPD_1071	-	hypothetical protein
1009	 41.49	0	1098433..1099707	-	424	116515946	-	SPD_1072	-	hypothetical protein
1010	 42.47	0	1099803..1100918	-	371	116516807	-	SPD_1073	-	O-acetylhomoserine aminocarboxypropyltransferase/cysteine synthase
1011	 38.21	0	1100940..1101062	-	40	116516884	-	SPD_1074	-	hypothetical protein
1012	 40.73	0	1101210..1102007	-	265	116516152	-	SPD_1075	-	transporter, FNT family protein, putative
1013	 32.53	-1	1102251..1102994	-	247	116515518	srtA	SPD_1076	-	sortase
1014	 43.09	0	1102994..1105462	-	822	116516676	gyrA	SPD_1077	-	DNA gyrase subunit A
1015	 41.84	0	1105656..1106642	+	328	116515602	ldh	SPD_1078	-	L-lactate dehydrogenase
1016	 37.54	0	1107028..1110282	-	1084	116516375	-	SPD_1079	-	type II restriction endonuclease, putative
1017	 34.99	-1	1110447..1112318	-	623	116515779	-	SPD_1080	-	type II restriction endonuclease, putative
1018	 36.47	0	1112393..1112647	-	84	116516209	-	SPD_1081	-	hypothetical protein
1019	 35.97	0	1112649..1112951	-	100	116517043	-	SPD_1082	-	hypothetical protein
1020	 42.35	0	1112982..1113791	-	269	116516804	vicX	SPD_1083	-	vicX protein
1021	 39.85	0	1113793..1115142	-	449	116515922	-	SPD_1084	-	sensory box sensor histidine kinase
1022	 41.84	0	1115135..1115839	-	234	116515650	-	SPD_1085	-	DNA-binding response regulator
1023	 42.77	0	1115894..1117069	-	391	116516670	mutY	SPD_1086	-	A/G-specific adenine glycosylase
1024	 43.93	0	1117398..1119068	-	556	116517045	fhs	SPD_1087	-	formate--tetrahydrofolate ligase
1025	 40.00	0	1119298..1119987	+	229	116516176	coaB	SPD_1088	-	phosphopantothenate--cysteine ligase
1026	 41.12	0	1119999..1120550	+	183	116516321	coaC	SPD_1089	-	phosphopantothenoylcysteine decarboxylase
1027	 38.30	0	1120534..1121097	+	187	116515509	-	SPD_1090	-	hypothetical protein
1028	 39.20	0	1121379..1121906	+	175	116515778	-	SPD_1091	-	hypothetical protein
1029	 42.64	0	1121918..1122433	+	171	116516020	-	SPD_1093	-	transcriptional regulator, biotin repressor family protein
1030	 43.38	0	1122430..1122897	-	155	116516427	-	SPD_1092	-	MutT/nudix family protein
1031	 34.97	-1	1122971..1123459	-	162	116516559	-	SPD_1094	-	acetyltransferase, GNAT family protein
1032	 32.09	-1	1123425..1123988	-	187	116517136	-	SPD_1095	-	hypothetical protein
1033	 45.15	+1	1123998..1125986	-	662	116516486	uvrB	SPD_1096	-	excinuclease ABC subunit B
1034	 39.10	0	1126063..1127016	-	317	116515798	-	SPD_1097	-	hypothetical protein
1035	 39.38	0	1127189..1129354	+	721	116516932	-	SPD_1098	-	amino acid ABC transporter, amino acid-binding protein/permease protein
1036	 42.38	0	1129354..1130094	+	246	116516532	-	SPD_1099	-	amino acid ABC transporter, ATP-binding protein
1037	 41.60	0	1130243..1131730	+	495	116515777	zwf	SPD_1100	-	glucose-6-phosphate 1-dehydrogenase
1038	 41.78	0	1131776..1133053	-	425	116516398	ftsY	SPD_1101	-	signal recognition particle-docking protein FtsY
1039	 42.25	0	1133057..1133875	-	272	116515438	-	SPD_1102	-	Cof family protein
1040	 39.87	0	1133875..1134669	-	264	116516975	-	SPD_1103	-	Cof family protein
1041	 43.02	0	1134666..1138205	-	1179	116515906	smc	SPD_1104	-	chromosome segregation protein SMC
1042	 40.34	0	1138196..1138894	-	232	116517072	rnc	SPD_1105	-	ribonuclease III
1043	 42.55	0	1139212..1140198	-	328	116516265	guaC	SPD_1107	-	guanosine 5'-monophosphate oxidoreductase
1044	 35.46	0	1140373..1141689	-	438	116516577	-	SPD_1108	-	hypothetical protein
1045	 33.07	-1	1141676..1143607	-	643	116515594	-	SPD_1109	-	endonuclease, putative
1046	 44.44	0	1143771..1143932	-	53	116516694	-	SPD_1110	-	hypothetical protein
1047	 41.38	0	1143922..1144095	-	57	116515996	-	SPD_1111	-	hypothetical protein
1048	 45.83	+1	1144195..1144338	-	47	116516497	-	SPD_1112	-	hypothetical protein
1049	 42.78	0	1144557..1144916	-	119	116515583	-	SPD_1113	-	3-isopropylmalate dehydratase small subunit, putative
1050	 42.98	0	1145014..1145127	+	37	116515939	-	SPD_1114	-	hypothetical protein
1051	 43.16	0	1145186..1146223	-	345	116516851	leuB	SPD_1115	-	3-isopropylmalate dehydrogenase
1052	 39.73	0	1147348..1148004	-	218	116515984	-	SPD_1117	-	hypothetical protein
1053	 42.97	0	1148048..1148680	-	210	116516861	cutC	SPD_1118	-	copper homeostasis protein CutC
1054	 39.17	0	1148773..1149132	-	119	116515673	-	SPD_1119	-	hypothetical protein
1055	 42.58	0	1149238..1151325	-	695	116516615	topA	SPD_1120	-	DNA topoisomerase I
1056	 34.77	-1	1151492..1152535	-	347	116515556	-	SPD_1121	-	hypothetical protein
1057	 41.11	0	1153425..1154273	-	282	116516400	-	SPD_1122	-	DNA processing protein DprA, putative
1058	 36.38	0	1154369..1155058	-	229	116515684	licC	SPD_1123	-	CTP:phosphocholine cytidylyltransferase
1059	 39.82	0	1155070..1155948	-	292	116516542	licB	SPD_1124	-	protein LicB
1060	 35.06	-1	1155938..1156807	-	289	116515546	pck	SPD_1125	-	choline kinase
1061	 40.18	0	1156824..1157846	-	340	116516315	-	SPD_1126	-	alcohol dehydrogenase, zinc-containing
1062	 38.84	0	1157851..1158558	-	235	116517103	ispD	SPD_1127	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
1063	 36.63	0	1158894..1160381	+	495	116516241	-	SPD_1128	-	polysaccharide biosynthesis protein, putative
1064	 34.08	-1	1160391..1161194	+	267	116516858	licD1	SPD_1129	-	phosphotransferase LicD1
1065	 37.41	0	1161196..1162005	+	269	116515975	licD2	SPD_1130	-	phosphotransferase LicD2
1066	 44.44	0	1162280..1165456	-	1058	116516501	carB	SPD_1131	-	carbamoyl phosphate synthase large subunit
1067	 44.17	0	1165769..1166848	-	359	116515374	carA	SPD_1132	-	carbamoyl phosphate synthase small subunit
1068	 42.64	0	1166898..1167821	-	307	116516819	pyrB	SPD_1133	-	aspartate carbamoyltransferase catalytic subunit
1069	 41.38	0	1167840..1168361	-	173	116515708	pyrR	SPD_1134	-	pyrimidine regulatory protein PyrR
1070	 44.60	0	1168572..1169201	-	209	116516035	nth	SPD_1135	-	endonuclease III
1071	 38.49	0	1169201..1169743	-	180	116516761	-	SPD_1136	-	hypothetical protein
40.03	MEAN

4.59	STD DEV
