IslandPath Analysis: Streptococcus pneumoniae R6

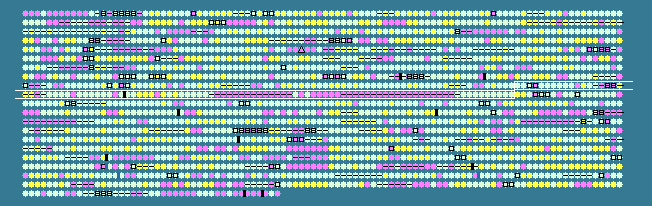

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 39.86   STD DEV: 4.53
Streptococcus pneumoniae R6, complete genome - 1..2038615
2043 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
883	 40.90	0	874443..875156	+	237	15902927	-	spr0883	-	O-methyltransferase
884	 36.94	0	875223..876164	+	313	15902928	prsA	spr0884	-	foldase protein PrsA
885	 38.68	0	876381..876623	-	80	15902929	IS861-truncation	spr0885	-	degenerate transposase (orf2)
886	 28.28	-2	876623..876820	-	65	15902930	IS861-truncation	spr0886	-	degenerate transposase (orf1)
887	 42.35	0	877383..878003	-	206	15902931	gpmB	spr0887	-	phosphoglycerate mutase family protein
888	 39.54	0	878003..878485	-	160	15902932	ebsC	spr0888	-	regulatory protein, putative
889	 41.64	0	878485..879327	-	280	15902933	-	spr0889	-	hypothetical protein
890	 38.08	0	879422..880222	-	266	15902934	-	spr0890	-	hypothetical protein
891	 41.04	0	880306..881745	+	479	15902935	gcaD	spr0891	-	UDP-N-acetylglucosamine pyrophosphorylase
892	 41.39	0	881755..882300	+	181	15902936	-	spr0892	-	hypothetical protein
893	 35.34	0	882279..882626	+	115	15902937	-	spr0893	-	hypothetical protein
894	 43.43	0	882643..883335	+	230	15902938	pfs	spr0894	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
895	 37.80	0	883412..883903	+	163	15902939	-	spr0895	-	hypothetical protein
896	 40.03	0	883965..884591	+	208	15902940	dnaQ	spr0896	-	DNA polymerase III subunit epsilon
897	 36.21	0	884594..886363	+	589	15902941	-	spr0897	-	hypothetical protein
898	 35.79	0	886559..886924	+	121	15902942	transposase_A	spr0898	-	degenerative transposase
899	 36.17	0	887083..887223	+	46	15902943	transposase_B	spr0899	-	degenerate transposase
900	 48.26	+1	887384..887584	+	66	15902944	-	spr0900	-	hypothetical protein
901	 45.34	+1	887403..888035	-	210	15902945	-	spr0901	-	hypothetical protein
902	 43.70	0	887626..888030	+	134	15902946	-	spr0902	-	hypothetical protein
903	 36.16	0	888261..888968	+	235	15902947	ccdA	spr0903	-	cytochrome c-type biogenesis protein
904	 37.85	0	888961..889536	+	191	15902948	-	spr0904	-	hypothetical protein
905	 41.10	0	889898..891301	+	467	15902949	yfnA	spr0905	-	cationic amino acid transporter
906	 38.46	0	891426..892361	+	311	15902950	lmb	spr0906	-	adhesion lipoprotein
907	 41.57	0	892369..894930	+	853	15902951	phtD	spr0907	-	pneumococcal histidine triad protein D precursor
908	 36.44	0	895140..898259	+	1039	15902952	phtE	spr0908	-	pneumococcal histidine triad protein E precursor
909	 35.46	0	899089..899229	+	46	15902953	-	spr0909	-	hypothetical protein
910	 39.16	0	899263..899811	+	182	15902954	phtE-truncation	spr0910	-	pneumococcal histidine triad protein E precursor, truncation
911	 39.35	0	899873..900088	-	71	15902955	-	spr0911	-	hypothetical protein
912	 38.25	0	900059..900688	+	209	15902956	-	spr0912	-	hypothetical protein
913	 42.34	0	900731..901951	-	406	15902957	pepT	spr0913	-	peptidase T
914	 37.81	0	902106..903200	+	364	15902958	hemH	spr0914	-	ferrochelatase
915	 37.30	0	903242..903619	-	125	15902959	mscL	spr0915	-	large conductance mechanosensitive channel protein MscL
916	 30.56	-2	903701..904132	-	143	15902960	mesH	spr0916	-	GtrA family protein
917	 37.11	0	904183..904764	+	193	15902961	ccl	spr0917	-	hypothetical protein
918	 41.41	0	905279..906355	+	358	15902962	asd	spr0918	-	aspartate-semialdehyde dehydrogenase
919	 42.95	0	906411..907346	+	311	15902963	dapA	spr0919	-	dihydrodipicolinate synthase
920	 44.61	+1	907393..908766	-	457	161410748	trmE	spr0920	-	tRNA modification GTPase TrmE
921	 46.45	+1	908903..909085	-	60	15902965	xylH	spr0921	-	4-oxalocrotonate tautomerase
922	 44.33	0	909208..909807	+	199	15902966	tdk	spr0922	-	thymidine kinase
923	 30.00	-2	909797..910276	+	159	15902967	bltD	spr0923	-	spermine/spermidine acetyltransferase
924	 45.09	+1	910286..911365	+	359	15902968	prfA	spr0924	-	peptide chain release factor 1
925	 37.98	0	911365..912204	+	279	15902969	hemK	spr0925	-	HemK protein
926	 43.79	0	912179..912790	+	203	15902970	-	spr0926	-	hypothetical protein
927	 40.76	0	912753..913223	+	156	15902971	-	spr0927	-	hypothetical protein
928	 42.56	0	913285..914541	+	418	15902972	glyA	spr0928	-	serine hydroxymethyltransferase
929	 38.00	0	914516..915523	+	335	15902973	-	spr0929	-	hypothetical protein
930	 41.63	0	915523..916137	+	204	15902974	-	spr0930	-	hypothetical protein
931	 40.51	0	916211..917185	+	324	15902975	-	spr0931	-	hypothetical protein
932	 40.75	0	917259..918890	+	543	15902976	-	spr0932	-	hypothetical protein
933	 30.14	-2	919628..919846	+	72	15902977	-	spr0933	-	hypothetical protein
934	 31.09	-1	920239..921264	+	341	15902978	ABC-SBP	spr0934	-	iron-compound ABC transporter, iron compound-binding protein
935	 33.43	-1	921242..922261	+	339	15902979	ABC-MSP	spr0935	-	iron-compound ABC transporter, permease protein
936	 30.36	-2	922261..923268	+	335	15902980	ABC-MSP	spr0936	-	iron-compound ABC transporter, permease protein
937	 33.09	-1	922743..923156	-	137	15902981	-	spr0937	-	hypothetical protein
938	 33.58	-1	923268..924062	+	264	15902982	ABC-NBD	spr0938	-	iron-compound ABC transporter, ATP-binding protein
939	 25.24	-2	924630..924839	+	69	15902983	-	spr0939	-	hypothetical protein
940	 28.85	-2	924964..925119	+	51	15902984	-	spr0940	-	hypothetical protein
941	 35.80	0	925803..925964	+	53	15902985	-	spr0941	-	hypothetical protein
942	 33.57	-1	926056..927735	+	559	15902986	ccrB	spr0942	-	low similarity to site-specific recombinase
943	 33.99	-1	927958..928569	+	203	15902987	-	spr0943	-	hypothetical protein
944	 31.31	-1	928882..929079	+	65	15902988	-	spr0944	-	hypothetical protein
945	 32.84	-1	929141..929956	+	271	15902989	-	spr0945	-	hypothetical protein
946	 40.12	0	929956..930810	+	284	15902990	-	spr0946	-	hydrolase, putative
947	 36.22	0	930871..931806	+	311	15902991	-	spr0947	-	hypothetical protein
948	 39.23	0	931945..933708	+	587	15902992	nplT	spr0948	-	neopullulanase
949	 33.65	-1	933794..934111	+	105	15902993	-	spr0949	-	hypothetical protein
950	 29.43	-2	934157..934438	+	93	15902994	-	spr0950	-	hypothetical protein
951	 31.65	-1	934826..935359	+	177	15902995	-	spr0951	-	transcriptional regulator
952	 35.96	0	935359..936120	+	253	15902996	-	spr0952	-	hypothetical protein
953	 26.38	-2	936148..936924	+	258	15902997	-	spr0953	-	hypothetical protein
954	 31.79	-1	936852..937304	+	150	15902998	-	spr0954	-	hypothetical protein
955	 35.28	-1	938136..938495	+	119	15902999	-	spr0955	-	Tn5252, ORF 10 protein
956	 34.55	-1	938505..938834	+	109	15903000	-	spr0956	-	Tn5252, ORF 9 protein
957	 34.14	-1	938857..939474	+	205	15903001	relaxase-truncation	spr0957	-	Tn5252, relaxase, truncation
958	 31.90	-1	939505..940062	+	185	15903002	relaxase-truncation	spr0958	-	Tn5252, relaxase, truncation
959	 30.49	-2	940146..940742	+	198	15903003	-	spr0959	-	hypothetical protein
960	 29.94	-2	940787..941641	-	284	15903004	mutR	spr0960	-	putative positive transcriptional regulator MutR
961	 30.40	-2	941893..943188	+	431	15903005	rffD	spr0961	-	UDP-N-acetyl-D-mannosaminuronic acid dehydrogenase
962	 31.34	-1	943148..943798	+	216	15903006	-	spr0962	-	hypothetical protein
963	 28.22	-2	943808..944590	+	260	15903007	-	spr0963	-	hypothetical protein
964	 27.36	-2	944613..946505	+	630	15903008	-	spr0964	-	hypothetical protein
965	 29.90	-2	946534..947640	+	368	15903009	-	spr0965	-	hypothetical protein
966	 29.37	-2	947648..948958	+	436	15903010	-	spr0966	-	hypothetical protein
967	 27.37	-2	948960..950183	+	407	15903011	-	spr0967	-	hypothetical protein
968	 30.81	-1	950173..951123	+	316	15903012	-	spr0968	-	hypothetical protein
969	 27.92	-2	951138..952337	+	399	15903013	nikS	spr0969	-	nikkomycin biosynthesis protein, carboxylase
970	 33.02	-1	952356..953000	+	214	15903014	-	spr0970	-	hypothetical protein
971	 30.53	-2	953383..954594	+	403	15903015	mefE	spr0971	-	ABC transporter membrane-spanning permease - macrolide efflux
972	 34.68	-1	955253..955474	+	73	15903016	-	spr0972	-	hypothetical protein
973	 39.19	0	956376..957605	+	409	15903017	ftsW	spr0973	-	cell division protein FtsW, putative
974	 38.34	0	957625..960321	+	898	15903018	ppc	spr0974	-	phosphoenolpyruvate carboxylase
975	 39.03	0	960704..961738	+	344	15903019	ABC-SBP	spr0975	-	hypothetical protein
976	 42.68	0	961807..962673	+	288	15903020	ABC-MSP	spr0976	-	ABC transporter membrane-spanning permease - unknown substrate
977	 39.26	0	962670..963428	+	252	15903021	ABC-NBD	spr0977	-	ABC transporter ATP-binding protein
978	 42.17	0	963503..965278	+	591	15903022	dnaG	spr0978	-	DNA primase
979	 43.15	0	965281..966390	+	369	15903023	rpoD	spr0979	-	RNA polymerase sigma factor RpoD
980	 40.50	0	966371..966733	+	120	15903024	-	spr0980	-	hypothetical protein
981	 39.82	0	966767..967891	+	374	15903025	cpoA	spr0981	-	glycosyl transferase CpoA
982	 41.48	0	967907..969232	+	441	15903026	-	spr0982	-	glycosyl transferase, group 1
39.86	MEAN

4.53	STD DEV
