IslandPathversion 1.0

IslandPath Analysis: Streptococcus pneumoniae R6

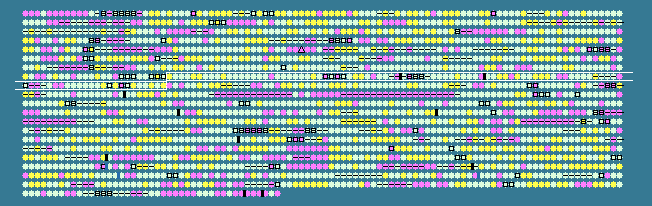

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.86 STD DEV: 4.53
Streptococcus pneumoniae R6, complete genome - 1..2038615
2043 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
725	 43.43	0	723946..726204	-	752	15902769	clpE	spr0725	-	ATP dependent protease
726	 41.56	0	726433..726663	-	76	15902770	-	spr0726	-	hypothetical protein
727	 39.28	0	726847..727536	+	229	15902771	glnP	spr0727	-	amino acid ABC transporter permease
728	 43.27	0	727536..728270	+	244	15902772	glnQ	spr0728	-	amino acid ABC transporter ATP-binding protein
729	 45.17	+1	728361..729281	+	306	15902773	folD	spr0729	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
730	 43.87	0	729423..730295	+	290	15902774	-	spr0730	-	hypothetical protein
731	 43.05	0	730520..731260	+	246	15902775	rpiA	spr0731	-	ribose-5-phosphate isomerase A
732	 42.20	0	731211..732485	+	424	15902776	deoB	spr0732	-	phosphopentomutase
733	 41.36	0	732487..732897	+	136	15902777	-	spr0733	-	hypothetical protein
734	 44.20	0	733045..733854	+	269	15902778	pnp	spr0734	-	purine nucleoside phosphorylase
735	 38.44	0	734318..735061	+	247	15902779	-	spr0735	-	hypothetical protein
736	 39.22	0	735107..735310	+	67	15902780	-	spr0736	-	hypothetical protein
737	 41.52	0	735335..735847	+	170	15902781	-	spr0737	-	hemolysin-related protein
738	 42.48	0	736505..737215	+	236	15902782	deoD	spr0738	-	purine nucleoside phosphorylase (inosine phosphorylase)
739	 38.67	0	737238..737762	-	174	15902783	flaR	spr0739	-	topology modulation protein
740	 38.40	0	737815..738051	-	78	161410750	rpsT	spr0740	-	30S ribosomal protein S20
741	 38.38	0	738119..739069	-	316	15902785	coaA	spr0741	-	pantothenate kinase
742	 33.56	-1	739237..739677	+	146	15902786	-	spr0742	-	hypothetical protein
743	 39.93	0	739884..740474	+	196	15902787	-	spr0743	-	hypothetical protein
744	 42.96	0	740471..741748	+	425	15902788	pdp	spr0744	-	pyrimidine-nucleoside phosphorylase
745	 41.63	0	741766..742428	+	220	15902789	deoC	spr0745	-	deoxyribose-phosphate aldolase
746	 41.54	0	742415..742804	+	129	15902790	cdd	spr0746	-	cytidine deaminase
747	 42.22	0	742822..743946	+	374	15902791	-	spr0747	-	hypothetical protein
748	 41.93	0	744090..745625	+	511	15902792	ABC-NBD	spr0748	-	sugar ABC transporter, ATP-binding protein
749	 44.57	+1	745591..746676	+	361	15902793	ABC-MSP	spr0749	-	sugar ABC transporter, permease protein, putative
750	 42.74	0	746679..747635	+	318	15902794	ABC-MSP	spr0750	-	sugar ABC transporter, permease protein, putative
751	 26.76	-2	747720..747932	+	70	15902795	IS861-truncation	spr0751	-	degenerate transposase (orf1)
752	 38.69	0	748068..748235	+	55	15902796	IS861-truncation	spr0752	-	degenerate transposase (orf1)
753	 36.31	0	748235..748603	+	122	15902797	IS861-truncation	spr0753	-	degenerate transposase (orf2)
754	 36.81	0	748579..749067	+	162	15902798	IS861-truncation	spr0754	-	degenerate transposase (orf2)
755	 41.43	0	749110..749751	-	213	15902799	-	spr0755	-	putative glycerol-3-phosphate acyltransferase PlsY
756	 45.16	+1	749887..751830	+	647	15902800	parE	spr0756	-	DNA topoisomerase IV subunit B
757	 43.97	0	752241..754721	+	826	15902801	parC	spr0757	-	DNA topoisomerase IV subunit A
758	 41.35	0	754851..755873	+	340	15902802	ilvE	spr0758	-	branched-chain amino acid aminotransferase
759	 36.03	0	755929..756633	+	234	15902803	ABC-SBP-internal-deletion	spr0759	-	ABC transporter substrate-binding protein - oligopeptid transport, internal deletion
760	 36.99	0	756677..757387	+	236	15902804	-	spr0760	-	hypothetical protein
761	 38.53	0	757384..758307	+	307	15902805	-	spr0761	-	hypothetical protein
762	 39.07	0	758322..758966	+	214	15902806	pcp	spr0762	-	pyrrolidone-carboxylate peptidase
763	 29.44	-2	759134..759364	+	76	15902807	-	spr0763	-	hypothetical protein
764	 40.98	0	759737..760939	+	400	15902808	rpsA	spr0764	-	30S ribosomal protein S1
765	 34.75	-1	761074..761214	-	46	15902809	IS1167-truncation	spr0765	-	degenerate transposase (orf2)
766	 36.79	0	761198..761602	-	134	15902810	IS1167-truncation	spr0766	-	degenerate transposase (orf2)
767	 38.34	0	761883..762401	-	172	15902811	IS1167	spr0767	-	transposase
768	 38.96	0	762595..763092	+	165	15902812	-	spr0768	-	hypothetical protein
769	 41.97	0	763092..764747	+	551	15902813	dnaX	spr0769	-	DNA polymerase III subunits gamma and tau
770	 36.41	0	764775..764969	+	64	15902814	-	spr0770	-	hypothetical protein
771	 41.41	0	765098..765889	+	263	15902815	ABC-NBD	spr0771	-	ABC transporter ATP-binding protein - unknown substrate
772	 42.44	0	765917..767179	+	420	15902816	-	spr0772	-	hypothetical protein
773	 44.74	+1	767190..768416	+	408	15902817	-	spr0773	-	hypothetical protein
774	 40.82	0	768403..768843	+	146	15902818	nifU	spr0774	-	NifU protein
775	 41.83	0	768897..770309	+	470	15902819	-	spr0775	-	hypothetical protein
776	 39.86	0	770508..771749	-	413	15902820	dacA	spr0776	-	D-alanyl-D-alanine carboxypeptidase
777	 33.15	-1	771852..772961	+	369	15902821	-	spr0777	-	hypothetical protein
778	 42.78	0	774386..775126	+	246	15902822	fruR	spr0778	-	lactose phosphotransferase system repressor
779	 41.01	0	775123..776034	+	303	15902823	fruB	spr0779	-	1-phosphofructokinase
780	 44.55	+1	776031..777983	+	650	15902824	fruA	spr0780	-	PTS system, fructose specific IIABC components
781	 43.71	0	778069..780372	+	767	15902825	ftsK	spr0781	-	SpoE family protein
782	 35.77	0	780417..780950	-	177	15902826	-	spr0782	-	hypothetical protein
783	 44.09	0	780983..782125	+	380	15902827	-	spr0783	-	pyridoxal-phosphate dependent aminotransferase
784	 42.96	0	782134..783348	+	404	15902828	thiI	spr0784	-	thiamine biosynthesis protein ThiI
785	 41.81	0	783459..784307	+	282	15902829	-	spr0785	-	hypothetical protein
786	 44.35	0	784329..784664	+	111	15902830	-	spr0786	-	hypothetical protein
787	 45.60	+1	784604..785035	-	143	15902831	-	spr0787	-	hypothetical protein
788	 44.85	+1	784661..785068	+	135	15902832	-	spr0788	-	hypothetical protein
789	 41.90	0	785081..786247	+	388	15902833	-	spr0789	-	hypothetical protein
790	 36.28	0	786755..788248	+	497	15902834	hsdM	spr0790	-	type I restriction-modification system M subunit
791	 32.19	-1	788261..788872	+	203	15902835	hsdS	spr0791	-	Type I restriction-modification enzyme 1, S subunit
792	 37.75	0	788951..792301	+	1116	15902836	hsdR	spr0792	-	type I restriction-modification system R subunit
793	 42.25	0	792887..793357	-	156	15902837	argR	spr0793	-	arginine repressor
794	 40.49	0	793374..795761	-	795	15902838	pepXP	spr0794	-	x-prolyl-dipeptidyl aminopeptidase
795	 39.28	0	795966..799094	+	1042	15902839	dnaE	spr0795	-	DNA polymerase III DnaE
796	 44.35	0	799177..800184	+	335	15902840	pfkA	spr0796	-	6-phosphofructokinase
797	 41.17	0	800243..801748	+	501	15902841	pykF	spr0797	-	pyruvate kinase
798	 37.65	0	802865..803119	-	84	15902842	-	spr0798	-	hypothetical protein
799	 39.40	0	803555..804427	+	290	15902843	-	spr0799	-	hypothetical protein
800	 33.94	-1	804440..804604	+	54	15902844	-	spr0800	-	hypothetical protein
801	 37.04	0	804729..804917	-	62	15902845	IS1381-truncation	spr0801	-	degenerate transposase (orf1)
802	 34.94	-1	805060..805371	+	103	15902846	-	spr0802	-	hypothetical protein
803	 34.73	-1	805375..806091	+	238	15902847	-	spr0803	-	hypothetical protein
804	 40.69	0	806221..807036	-	271	15902848	-	spr0804	-	hypothetical protein
805	 41.83	0	807033..807938	-	301	15902849	-	spr0805	-	hypothetical protein
806	 30.62	-2	808280..808648	+	122	15902850	-	spr0806	-	hypothetical protein
807	 28.46	-2	808645..809649	+	334	15902851	-	spr0807	-	hypothetical protein
808	 43.06	0	809733..811880	+	715	15902852	tex	spr0808	-	toxin expression - transcriptional accessory protein
809	 43.33	0	811867..812316	+	149	15902853	-	spr0809	-	hypothetical protein
810	 40.26	0	812345..812647	+	100	15902854	-	spr0810	-	hypothetical protein
811	 38.54	0	813001..813192	-	63	15902855	-	spr0811	-	hypothetical protein
812	 42.65	0	813563..814378	+	271	15902856	ABC-NBD	spr0812	-	ABC transporter ATP-binding protein
813	 38.46	0	814380..816368	+	662	15902857	ABC-MSD	spr0813	-	ABC transporter membrane-spanning permease - unknown substrate
814	 43.49	0	816411..817001	-	196	15902858	-	spr0814	-	hypothetical protein
815	 40.28	0	817081..818001	-	306	15902859	IS1239-truncation	spr0815	-	degenerate transposase
816	 43.83	0	818663..820138	+	491	15902860	cad	spr0816	-	lysine decarboxylase
817	 34.60	-1	820104..820340	-	78	15902861	transposase_F	spr0817	-	degenerate transposase
818	 37.31	0	820292..820819	-	175	15902862	transposase_F	spr0818	-	degenerate transposase
819	 44.60	+1	821075..821935	+	286	15902863	speE	spr0819	-	spermidine synthase
820	 41.59	0	821932..823191	+	419	15902864	-	spr0820	-	hypothetical protein
821	 42.64	0	823191..824318	+	375	15902865	nspC	spr0821	-	carboxynorspermidine decarboxylase
822	 44.11	0	824315..825400	+	361	15902866	-	spr0822	-	agmatine deiminase
823	 43.04	0	825410..826285	+	291	15902867	but	spr0823	-	Beta-alanine synthase or beta-ureidopropionase
824	 44.07	0	826466..827275	-	269	15902868	-	spr0824	-	Cof family protein
39.86	MEAN

4.53	STD DEV
