IslandPath Analysis: Streptococcus pneumoniae R6

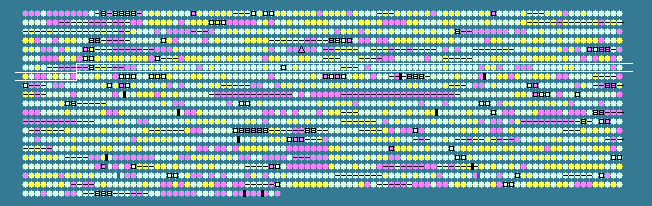

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.86 STD DEV: 4.53
Streptococcus pneumoniae R6, complete genome - 1..2038615
2043 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
610	 32.87	-1	622319..622972	+	217	15902654	ABC-NBD-truncation	spr0610	-	ABC transporter ATP-binding protein - unknown substrate, truncation
611	 32.07	-1	622965..623678	+	237	15902655	-	spr0611	-	hypothetical protein
612	 38.19	0	623952..624095	-	47	15902656	IS1239-truncation	spr0612	-	degenerate transposase
613	 45.87	+1	624413..625114	+	233	15902657	pyrF	spr0613	-	orotidine 5'-phosphate decarboxylase
614	 44.08	0	625148..625780	+	210	15902658	pyrE	spr0614	-	orotate phosphoribosyltransferase
615	 38.02	0	625960..626364	+	134	15902659	-	spr0615	-	hypothetical protein
616	 34.51	-1	626460..627224	+	254	15902660	-	spr0616	-	hypothetical protein
617	 29.10	-2	627173..627976	+	267	15902661	-	spr0617	-	hypothetical protein
618	 31.35	-1	627980..628684	+	234	15902662	-	spr0618	-	hypothetical protein
619	 31.79	-1	628681..629328	+	215	15902663	ABC-NBD	spr0619	-	ABC transporter ATP-binding protein
620	 39.89	0	629408..629956	-	182	15902664	ABC-SBP-truncation	spr0620	-	ABC transporter substrate-binding protein - unknown substrate, truncation
621	 42.39	0	630031..630273	-	80	15902665	ABC-SBP-truncation	spr0621	-	ABC transporter substrate-binding protein - unknown substrate, truncation
622	 43.35	0	630285..631043	-	252	15902666	glnQ	spr0622	-	amino acid ABC transporter ATP-binding protein
623	 41.74	0	631044..631721	-	225	15902667	glnP	spr0623	-	amino acid ABC transporter permease
624	 46.11	+1	631681..632361	-	226	15902668	glnP	spr0624	-	amino acid ABC transporter permease
625	 40.82	0	632576..632722	+	48	15902669	lctO-truncation	spr0625	-	lactate oxidase, truncation
626	 43.46	0	632850..634340	+	496	15902670	lysS	spr0626	-	lysyl-tRNA synthetase
627	 45.73	+1	634965..636101	+	378	15902671	lctO	spr0627	-	lactate oxidase
628	 40.66	0	636656..637324	+	222	15902672	-	spr0628	-	hypothetical protein
629	 36.57	0	637592..638395	+	267	15902673	thiM	spr0629	-	hydroxyethylthiazole kinase
630	 33.17	-1	638397..639026	+	209	15902674	thiE	spr0630	-	thiamine-phosphate pyrophosphorylase
631	 40.40	0	639551..640144	+	197	15902675	-	spr0631	-	hypothetical protein
632	 43.36	0	640145..641530	+	461	15902676	ABC-NBD	spr0632	-	ABC transporter ATP-binding protein
633	 40.25	0	641532..642182	+	216	15902677	-	spr0633	-	hypothetical protein
634	 39.68	0	642193..642885	+	230	15902678	tenA	spr0634	-	extracellular enzyme gene transcriptional regulator
635	 40.95	0	642890..643414	+	174	15902679	-	spr0635	-	hypothetical protein
636	 43.28	0	643414..644217	+	267	15902680	thiM	spr0636	-	hydroxyethylthiazole kinase, putative
637	 42.97	0	644210..644842	+	210	15902681	thiE	spr0637	-	thiamine-phosphate pyrophosphorylase
638	 43.06	0	645051..645842	-	263	15902682	thiD	spr0638	-	phosphomethylpyrimidine kinase
639	 40.85	0	646178..646603	+	141	15902683	copY	spr0639	-	COPAB ATPase metal-fist type repressor
640	 42.20	0	646614..646985	+	123	15902684	-	spr0640	-	hypothetical protein
641	 43.68	0	646986..649238	+	750	15902685	ctpA	spr0641	-	P-type ATPase - copper transporter
642	 43.07	0	649445..651220	+	591	15902686	spxB	spr0642	-	pyruvate oxidase
643	 37.93	0	651331..651678	+	115	15902687	-	spr0643	-	hypothetical protein
644	 39.14	0	651795..652448	-	217	15902688	transposase_C	spr0644	-	degenerate transposase
645	 41.67	0	652336..652683	-	115	15902689	-	spr0645	-	hypothetical protein
646	 44.44	+1	653116..653412	+	98	15902690	bgl-truncation	spr0646	-	phospho-beta-gluco or galactosidase, truncation
647	 43.07	0	653533..654477	+	314	15902691	pmi	spr0647	-	mannose-6-phosphate isomerase
648	 42.67	0	654580..655971	-	463	15902692	NS_transporter	spr0648	-	sodium-dependent transporter
649	 41.63	0	656131..656793	+	220	15902693	mta	spr0649	-	regulator of the multidrug efflux pump pmrA
650	 40.79	0	656822..657277	-	151	15902694	-	spr0650	-	hypothetical protein
651	 42.71	0	657297..658490	-	397	15902695	-	spr0651	-	hypothetical protein
652	 42.91	0	658531..659376	-	281	15902696	-	spr0652	-	hypothetical protein
653	 39.07	0	659501..660058	+	185	15902697	-	spr0653	-	hypothetical protein
654	 44.87	+1	660077..660544	+	155	15902698	comEB	spr0654	-	cytidine and deoxycytidylate deaminase family protein
655	 41.63	0	660612..661262	+	216	15902699	upp	spr0655	-	uracil phosphoribosyltransferase
656	 41.62	0	661436..662026	+	196	15902700	clpP	spr0656	-	ATP-dependent Clp protease proteolytic subunit
657	 36.55	0	662105..662353	+	82	15902701	-	spr0657	-	hypothetical protein
658	 34.63	-1	662219..662449	-	76	15902702	-	spr0658	-	hypothetical protein
659	 41.43	0	662455..663615	+	386	15902703	livJ	spr0659	-	branched chain amino acid ABC transporter amino acid-binding protein
660	 43.12	0	663874..664752	+	292	15902704	livH	spr0660	-	branched chain amino acid ABC transporter permease
661	 40.75	0	664756..665712	+	318	15902705	livM	spr0661	-	branched chain amino acid ABC transporter permease
662	 38.82	0	665712..666476	+	254	15902706	livG	spr0662	-	branched chain amino acid ABC transporter ATP-binding protein
663	 41.35	0	666476..667186	+	236	15902707	livF	spr0663	-	branched chain amino acid ABC transporter ATP-binding protein
664	 37.75	0	667600..668256	+	218	15902708	-	spr0664	-	acetoin utilization protein AcuB, putative
665	 42.63	0	668470..669459	+	329	15902709	prfB	spr0665	-	peptide chain release factor 2
666	 41.13	0	669477..670169	+	230	15902710	ftsE	spr0666	-	ABC transporter ATP-binding protein & cell division protein
667	 37.47	0	670099..671088	+	329	15902711	ftsX	spr0667	-	cell division ABC transporter, permease protein FtsX
668	 41.31	0	671374..673554	+	726	15902712	ptsG	spr0668	-	PTS system, IIABC components
669	 40.81	0	673606..674421	+	271	15902713	-	spr0669	-	hypothetical protein
670	 40.48	0	674561..675904	+	447	15902714	rheB	spr0670	-	ATP-dependent RNA helicase
671	 44.00	0	676119..677309	+	396	15902715	metK	spr0671	-	S-adenosylmethionine synthetase
672	 42.84	0	677862..678797	+	311	15902716	pyrDA	spr0672	-	dihydroorotate dehydrogenase 1A
673	 38.82	0	678831..679868	+	345	15902717	holA	spr0673	-	DNA polymerase III subunit delta
674	 43.23	0	680041..680646	+	201	15902718	sodA	spr0674	-	superoxide dismutase, manganese-dependent
675	 39.55	0	680803..681333	+	176	15902719	-	spr0675	-	hypothetical protein
676	 42.45	0	681354..682439	+	361	15902720	-	spr0676	-	hypothetical protein
677	 36.11	0	682441..682908	+	155	15902721	-	spr0677	-	hypothetical protein
678	 44.03	0	682910..684451	+	513	15902722	ABC-NBD	spr0678	-	ABC transporter ATP-binding protein
679	 43.41	0	684508..685311	-	267	15902723	ppiA	spr0679	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-type
680	 35.59	0	685395..685616	-	73	15902724	-	spr0680	-	hypothetical protein
681	 36.80	0	685504..685734	-	76	15902725	-	spr0681	-	hypothetical protein
682	 39.93	0	686482..686754	+	90	15902726	rpsP	spr0682	-	30S ribosomal protein S16
683	 36.25	0	686774..687013	+	79	15902727	-	spr0683	-	hypothetical protein
684	 35.15	-1	687578..688018	+	146	15902728	-	spr0684	-	hypothetical protein
685	 33.33	-1	688019..688378	+	119	15902729	-	spr0685	-	hypothetical protein
686	 40.27	0	688409..688927	+	172	15902730	rimM	spr0686	-	16S rRNA-processing protein
687	 42.92	0	688917..689636	+	239	15902731	trmD	spr0687	-	tRNA (guanine-N(1)-)-methyltransferase
688	 37.76	0	689648..689986	+	112	15902732	-	spr0688	-	hypothetical protein
689	 38.94	0	690017..690337	-	106	15902733	-	spr0689	-	hypothetical protein
690	 38.33	0	690411..690650	+	79	15902734	-	spr0690	-	hypothetical protein
691	 44.51	+1	690854..691390	-	178	15902735	bioY	spr0691	-	biotin synthase
692	 43.95	0	691587..692933	-	448	15902736	gor	spr0692	-	glutathione reductase
693	 42.50	0	693198..694397	+	399	15902737	-	spr0693	-	hypothetical protein
694	 41.45	0	694381..695082	+	233	15902738	ABC-NBD	spr0694	-	ABC transporter ATP-binding protein - unknown substrate
695	 40.00	0	695084..696343	+	419	15902739	-	spr0695	-	hypothetical protein
696	 42.29	0	696467..698464	+	665	161410751	metG	spr0696	-	methionyl-tRNA synthetase
697	 40.43	0	698792..699115	+	107	15902741	-	spr0697	-	hypothetical protein
698	 37.44	0	699119..699994	+	291	15902742	-	spr0698	-	hypothetical protein
699	 36.34	0	700006..700935	+	309	15902743	-	spr0699	-	hypothetical protein
700	 41.47	0	701014..701271	+	85	15902744	-	spr0700	-	hypothetical protein
701	 44.78	+1	701264..701962	+	232	15902745	fabG	spr0701	-	3-ketoacyl-(acyl-carrier-protein) reductase
702	 39.38	0	701973..702452	+	159	15902746	-	spr0702	-	MutT/nudix family protein
703	 32.92	-1	702460..703188	+	242	15902747	-	spr0703	-	hypothetical protein
704	 35.62	0	703224..704099	+	291	15902748	-	spr0704	-	hypothetical protein
705	 42.40	0	704074..704514	+	146	15902749	-	spr0705	-	hypothetical protein
706	 44.29	0	704637..707183	+	848	15902750	pepN	spr0706	-	aminopeptidase N
707	 37.25	0	707226..707966	+	246	15902751	ciaR	spr0707	-	DNA-binding response regulator CiaR
708	 38.50	0	707956..709290	+	444	15902752	ciaH	spr0708	-	sensor histidine kinase CiaH
709	 34.38	-1	709324..709611	-	95	15902753	-	spr0709	-	hypothetical protein
39.86	MEAN

4.53	STD DEV
