IslandPath Analysis: Streptococcus pneumoniae R6

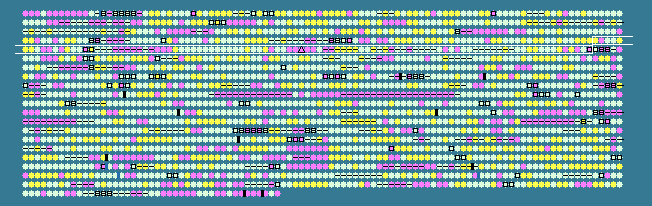

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.86 STD DEV: 4.53
Streptococcus pneumoniae R6, complete genome - 1..2038615
2043 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
396	 45.76	+1	392362..393906	+	514	15902440	prfC	spr0396	-	peptide chain release factor 3
397	 34.98	-1	394175..394660	+	161	15902441	-	spr0397	-	hypothetical protein
398	 39.15	0	394776..394964	+	62	15902442	rpmB	spr0398	-	50S ribosomal protein L28
399	 38.52	0	395121..395486	+	121	15902443	asp23	spr0399	-	hypothetical protein
400	 43.47	0	395489..397156	+	555	15902444	-	spr0400	-	hypothetical protein
401	 44.21	0	397357..399057	+	566	15902445	ilvB	spr0401	-	acetolactate synthase catalytic subunit
402	 44.51	+1	399026..399526	+	166	15902446	ilvH	spr0402	-	acetolactate synthase 3 regulatory subunit
403	 40.27	0	399592..400614	+	340	15902447	ilvC	spr0403	-	ketol-acid reductoisomerase
404	 33.71	-1	400691..400957	+	88	15902448	-	spr0404	-	hypothetical protein
405	 30.53	-2	401195..401551	+	118	15902449	-	spr0405	-	hypothetical protein
406	 41.09	0	401601..402851	+	416	15902450	ilvA	spr0406	-	threonine dehydratase
407	 35.19	-1	403586..403801	+	71	15902451	-	spr0407	-	hypothetical protein
408	 44.40	+1	403910..404650	-	246	15902452	glnQ	spr0408	-	amino acid ABC transporter ATP-binding protein
409	 42.52	0	404650..405585	-	311	15902453	glnH	spr0409	-	ABC transporter substrate binding protein - glutamine transport
410	 41.05	0	406350..408242	+	630	15902454	-	spr0410	-	hypothetical protein
411	 30.25	-2	408239..408400	-	53	15902455	transposase_F	spr0411	-	hypothetical protein
412	 43.53	0	408542..409090	-	182	15902456	transposase_F	spr0412	-	degenerate transposase
413	 40.19	0	409666..410511	+	281	15902457	uppP	spr0413	-	undecaprenyl pyrophosphate phosphatase
414	 40.90	0	410657..411727	-	356	15902458	dinP	spr0414	-	DNA polymerase IV
415	 41.68	0	412113..414437	+	774	15902459	pfl	spr0415	-	formate acetyltransferase
416	 31.61	-1	414804..415151	-	115	15902460	-	spr0416	-	hypothetical protein
417	 32.28	-1	415349..415633	-	94	15902461	-	spr0417	-	hypothetical protein
418	 28.65	-2	416025..416195	+	56	15902462	-	spr0418	-	hypothetical protein
419	 32.75	-1	416246..416416	-	56	15902463	-	spr0419	-	hypothetical protein
420	 33.82	-1	417068..418291	-	407	15902464	xylR	spr0420	-	ROK family protein
421	 39.37	0	418456..419781	+	441	15902465	PTS-EII	spr0421	-	PTS system, cellobiose-specific IIC component
422	 34.16	-1	419729..421669	+	646	15902466	-	spr0422	-	hypothetical protein
423	 36.23	0	421837..422181	+	114	15902467	PTS-EII	spr0423	-	PTS system, lactose-specific IIA component
424	 35.03	-1	422191..423603	+	470	15902468	lacG	spr0424	-	6-phospho-beta-galactosidase
425	 35.60	0	423672..425351	+	559	15902469	PTS-EII	spr0425	-	phosphotransferase system sugar-specific EII component
426	 43.68	0	425479..426918	-	479	15902470	trkH	spr0426	-	Trk transporter membrane-spanning protein - K+ transport
427	 42.74	0	426922..428271	-	449	15902471	trkA	spr0427	-	potassium transporter peripheral membrane component
428	 42.81	0	428433..429308	+	291	15902472	-	spr0428	-	hypothetical protein
429	 42.08	0	429323..429871	+	182	15902473	-	spr0429	-	hypothetical protein
430	 43.14	0	430192..431874	+	560	15902474	ABC-NBD	spr0430	-	ABC transporter ATP-binding protein
431	 41.52	0	431859..432689	+	276	15902475	ABC-MSD	spr0431	-	hypothetical protein
432	 41.25	0	432843..433385	+	180	15902476	cspR	spr0432	-	rRNA methylase
433	 40.76	0	433829..434407	+	192	15902477	-	spr0433	-	hypothetical protein
434	 42.40	0	434397..435047	+	216	15902478	-	spr0434	-	PAP2 family protein
435	 39.74	0	435075..435464	+	129	15902479	-	spr0435	-	hypothetical protein
436	 40.22	0	435469..435918	+	149	15902480	-	spr0436	-	hypothetical protein
437	 42.35	0	436046..436633	+	195	161410753	rpoE	spr0437	-	DNA-directed RNA polymerase subunit delta
438	 44.22	0	437023..438630	+	535	15902482	pyrG	spr0438	-	CTP synthetase
439	 41.73	0	439189..440820	-	543	15902483	-	spr0439	-	hypothetical protein
440	 41.53	0	441113..446092	+	1659	15902484	-	spr0440	-	endo-beta-N-acetylglucosaminidase, putative
441	 43.44	0	446182..447378	+	398	15902485	pgk	spr0441	-	phosphoglycerate kinase
442	 36.36	0	447514..448041	+	175	15902486	-	spr0442	-	hypothetical protein
443	 42.30	0	448118..448474	+	118	15902487	glnR	spr0443	-	transcriptional repressor of the glutamine synthetase gene
444	 42.46	0	448511..449857	+	448	15902488	glnA	spr0444	-	glutamine synthetase, type I
445	 29.90	-2	450637..451917	+	426	15902489	hsdS	spr0445	-	type I restriction-modification system S subunit
446	 30.67	-2	451871..452470	-	199	15902490	hsdS	spr0446	-	type I restriction-modification system S subunit
447	 30.08	-2	452481..453278	-	265	15902491	xerD	spr0447	-	integrase/recombinase
448	 33.59	-1	453335..454903	-	522	15902492	hsdS	spr0448	-	type I restriction-modification system S subunit
449	 34.63	-1	454903..456366	-	487	15902493	hsdM	spr0449	-	type I restriction-modification system, M subunit
450	 36.89	0	456379..458712	-	777	15902494	hsdR	spr0450	-	type I restriction-modification system R subunit
451	 31.34	-1	459085..459285	+	66	15902495	-	spr0451	-	hypothetical protein
452	 35.10	-1	459320..459829	+	169	15902496	-	spr0452	-	hypothetical protein
453	 43.82	0	459960..461027	+	355	15902497	hrcA	spr0453	-	heat-inducible transcription repressor
454	 43.53	0	461030..461578	+	182	15902498	grpE	spr0454	-	heat shock protein GrpE
455	 43.53	0	462058..463881	+	607	15902499	dnaK	spr0455	-	molecular chaperone DnaK
456	 46.47	+1	464641..465759	+	372	15902500	dnaJ	spr0456	-	heat-shock protein (activation of DnaK)
457	 39.24	0	466094..466381	-	95	15902501	-	spr0457	-	hypothetical protein
458	 43.07	0	466391..466801	-	136	15902502	-	spr0458	-	hypothetical protein
459	 45.08	+1	466869..467600	+	243	15902503	ABC-NBD	spr0459	-	ABC transporter ATP-binding protein
460	 42.95	0	467597..468646	+	349	15902504	ABC-MSP	spr0460	-	ABC transporter permease
461	 43.94	0	468814..469143	-	109	15902505	blpT	spr0461	-	hypothetical protein
462	 33.63	-1	469419..469757	+	112	15902506	blpS	spr0462	-	regulatory protein BlpS
463	 42.55	0	469762..470499	+	245	15902507	rr13	spr0463	-	response regulator BlpR
464	 37.51	0	470513..471853	+	446	15902508	hk13	spr0464	-	histidine kinase
465	 32.69	-1	471895..472050	-	51	15902509	ip	spr0465	-	peptide pheromone BlpC
466	 36.51	0	472107..473114	-	335	15902510	-	spr0466	-	hypothetical protein
467	 36.61	0	473133..473468	-	111	15902511	-	spr0467	-	hypothetical protein
468	 36.72	0	473479..475104	-	541	15902512	-	spr0468	-	hypothetical protein
469	 37.71	0	475049..475642	-	197	15902513	-	spr0469	-	hypothetical protein
470	 37.61	0	475926..476159	+	77	15902514	-	spr0470	-	hypothetical protein
471	 33.33	-1	476175..476354	+	59	15902515	-	spr0471	-	hypothetical protein
472	 38.84	0	476191..476880	+	229	15902516	blpY	spr0472	-	immunity protein BlpY
473	 35.47	0	476922..477155	+	77	15902517	blpZ	spr0473	-	hypothetical protein
474	 37.91	0	477306..477917	+	203	15902518	pncP	spr0474	-	ABC transporter ATP binding protein - unknown substrate
475	 41.38	0	478078..478872	+	264	15902519	-	spr0475	-	hypothetical protein
476	 42.45	0	478869..479504	+	211	15902520	trmB	spr0476	-	tRNA (guanine-N(7))-methyltransferase
477	 42.92	0	479630..480109	+	159	15902521	-	spr0477	-	hypothetical protein
478	 43.27	0	480153..481289	+	378	15902522	nusA	spr0478	-	transcription elongation factor NusA
479	 42.86	0	481311..481604	+	97	15902523	-	spr0479	-	hypothetical protein
480	 41.33	0	481597..481896	+	99	15902524	-	spr0480	-	hypothetical protein
481	 44.83	+1	481913..484705	+	930	15902525	infB	spr0481	-	translation initiation factor IF-2
482	 41.53	0	484929..485306	+	125	15902526	rbfA	spr0482	-	ribosome-binding factor A
483	 38.60	0	485549..486364	+	271	15902527	-	spr0483	-	hypothetical protein
484	 38.80	0	486366..486548	+	60	15902528	-	spr0484	-	hypothetical protein
485	 43.90	0	486986..487231	+	81	15902529	-	spr0485	-	hypothetical protein
486	 45.84	+1	487231..488565	+	444	15902530	-	spr0486	-	hypothetical protein
487	 41.18	0	488575..488829	+	84	15902531	-	spr0487	-	hypothetical protein
488	 40.66	0	488925..489320	+	131	15902532	-	spr0488	-	hypothetical protein
489	 42.22	0	489732..490181	+	149	15902533	-	spr0489	-	hypothetical protein
490	 46.59	+1	490168..490725	+	185	15902534	-	spr0490	-	hypothetical protein
491	 28.56	-2	490727..491689	+	320	15902535	-	spr0491	-	hypothetical protein
492	 46.27	+1	491701..494352	+	883	15902536	valS	spr0492	-	valyl-tRNA synthetase
493	 33.72	-1	494407..495177	+	256	15902537	-	spr0493	-	hypothetical protein
494	 38.43	0	495460..496263	+	267	15902538	-	spr0494	-	cell filamentation protein Fic-related protein
495	 31.48	-1	496379..496486	-	35	15902539	IS861-truncation	spr0495	-	degenerate transposase (orf2)
39.86	MEAN

4.53	STD DEV
