IslandPath Analysis: Streptococcus pneumoniae R6

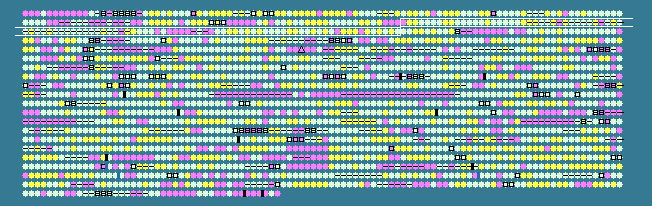

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.86 STD DEV: 4.53
Streptococcus pneumoniae R6, complete genome - 1..2038615
2043 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
164	 36.33	0	172659..173759	-	366	15902208	ribD	spr0164	-	riboflavin biosynthesis protein RibD
165	 43.43	0	174163..174756	+	197	15902209	ruvA	spr0165	-	Holliday junction DNA helicase motor protein
166	 46.63	+1	174766..175329	+	187	15902210	tag	spr0166	-	DNA-3-methyladenine glycosylase I
167	 36.73	0	175326..176003	+	225	15902211	-	spr0167	-	hypothetical protein
168	 41.76	0	176158..177189	-	343	15902212	-	spr0168	-	MccC family protein
169	 42.98	0	177444..178148	-	234	15902213	-	spr0169	-	hypothetical protein
170	 42.33	0	178139..179083	-	314	15902214	corA	spr0170	-	magnesium/cobalt transporter CorA
171	 47.28	+1	179215..182046	+	943	15902215	uvrA	spr0171	-	excinuclease ABC subunit A
172	 43.50	0	182039..183100	+	353	15902216	pepP	spr0172	-	peptidase M24 family protein
173	 39.10	0	183232..183630	+	132	15902217	spxA	spr0173	-	transcriptional regulator Spx
174	 38.25	0	183696..184265	+	189	15902218	-	spr0174	-	hypothetical protein
175	 37.83	0	184352..184618	+	88	15902219	-	spr0175	-	hypothetical protein
176	 41.67	0	184622..185041	+	139	15902220	-	spr0176	-	Holliday junction resolvase-like protein
177	 38.89	0	185057..185362	+	101	15902221	-	spr0177	-	hypothetical protein
178	 43.91	0	185813..187069	+	418	15902222	folC	spr0178	-	dihydrofolate:folylpolyglutamate synthetase
179	 40.08	0	187066..187584	+	172	15902223	-	spr0179	-	hypothetical protein
180	 38.42	0	187730..189262	+	510	15902224	cls	spr0180	-	cardiolipin synthetase
181	 37.50	0	189340..189483	+	47	15902225	orf47	spr0181	-	hypothetical protein
182	 40.01	0	189502..191058	+	518	15902226	-	spr0182	-	competence-induced protein Ccs4
183	 43.09	0	191172..193385	+	737	15902227	nrdD	spr0183	-	anaerobic ribonucleoside triphosphate reductase
184	 43.98	0	193581..194087	+	168	15902228	-	spr0184	-	hypothetical protein
185	 43.65	0	194080..194670	+	196	15902229	nrdG	spr0185	-	anaerobic ribonucleoside-triphosphate reductase activating protein
186	 44.82	+1	194667..195284	+	205	15902230	-	spr0186	-	hypothetical protein
187	 42.07	0	195551..195859	+	102	15902231	rpsJ	spr0187	-	30S ribosomal protein S10
188	 43.06	0	196076..196702	+	208	15902232	rplC	spr0188	-	50S ribosomal protein L3
189	 43.43	0	196727..197350	+	207	15902233	rplD	spr0189	-	50S ribosomal protein L4
190	 36.36	0	197350..197646	+	98	15902234	rplW	spr0190	-	50S ribosomal protein L23
191	 44.60	+1	197664..198497	+	277	15902235	rplB	spr0191	-	50S ribosomal protein L2
192	 40.07	0	198601..198882	+	93	15902236	rpsS	spr0192	-	30S ribosomal protein S19
193	 41.67	0	198743..199198	-	151	15902237	-	spr0193	-	hypothetical protein
194	 41.45	0	198894..199238	+	114	15902238	rplV	spr0194	-	50S ribosomal protein L22
195	 42.97	0	199251..199904	+	217	15902239	rpsC	spr0195	-	30S ribosomal protein S3
196	 44.44	+1	199908..200321	+	137	15902240	rplP	spr0196	-	50S ribosomal protein L16
197	 35.27	-1	200331..200537	+	68	15902241	rpmC	spr0197	-	50S ribosomal protein L29
198	 38.70	0	200562..200822	+	86	15902242	rpsQ	spr0198	-	30S ribosomal protein S17
199	 44.17	0	200848..201216	+	122	15902243	rplN	spr0199	-	50S ribosomal protein L14
200	 39.54	0	201294..201599	+	101	15902244	rplX	spr0200	-	50S ribosomal protein L24
201	 40.70	0	201623..202165	+	180	15902245	rplE	spr0201	-	50S ribosomal protein L5
202	 44.07	0	202183..202452	+	89	15902246	rpsN	spr0202	-	30S ribosomal protein S14
203	 39.10	0	202737..203135	+	132	15902247	rpsH	spr0203	-	30S ribosomal protein S8
204	 40.41	0	203327..203863	+	178	15902248	rplF	spr0204	-	50S ribosomal protein L6
205	 45.66	+1	203947..204303	+	118	15902249	rplR	spr0205	-	50S ribosomal protein L18
206	 43.03	0	204321..204815	+	164	15902250	rpsE	spr0206	-	30S ribosomal protein S5
207	 37.16	0	204829..205011	+	60	15902251	rpmD	spr0207	-	50S ribosomal protein L30
208	 41.50	0	205156..205596	+	146	15902252	rplO	spr0208	-	50S ribosomal protein L15
209	 38.90	0	205609..206919	+	436	15902253	secY	spr0209	-	preprotein translocase subunit SecY
210	 39.44	0	207070..207708	+	212	15902254	adk	spr0210	-	adenylate kinase
211	 38.46	0	207771..208043	+	90	15902255	infA	spr0211	-	translation initiation factor IF-1
212	 37.61	0	208068..208184	+	38	15902256	rpmJ	spr0212	-	50S ribosomal protein L36
213	 41.80	0	208202..208567	+	121	15902257	rpsM	spr0213	-	30S ribosomal protein S13
214	 43.75	0	208585..208968	+	127	15902258	rpsK	spr0214	-	30S ribosomal protein S11
215	 37.93	0	209011..209946	+	311	15902259	rpoA	spr0215	-	DNA-directed RNA polymerase subunit alpha
216	 41.60	0	209958..210344	+	128	15902260	rplQ	spr0216	-	50S ribosomal protein L17
217	 32.21	-1	210609..210875	+	88	161410756	-	spr0217	-	hypothetical protein
218	 44.84	+1	210885..212222	+	445	15902262	-	spr0218	-	hypothetical protein
219	 44.80	+1	212409..213158	+	249	15902263	gpmB	spr0219	-	phosphoglycerate mutase family protein
220	 37.58	0	213261..214295	-	344	15902264	ABC-MSP	spr0220	-	ABC transporter membrane-spanning permease - iron transport
221	 39.23	0	214280..214906	-	208	15902265	ABC-MSP	spr0221	-	ABC transporter membrane-spanning permease - iron transport
222	 40.75	0	214896..215987	-	363	15902266	ABC-NBD	spr0222	-	ABC transporter ATP-binding protein
223	 33.06	-1	216000..216368	-	122	15902267	ABC-SBP-truncation	spr0223	-	ABC transporter solute-binding protein - iron transport, truncation
224	 37.44	0	216513..216707	-	64	15902268	ABC-SBP-truncation	spr0224	-	ABC transporter substrate-binding protein - iron transport, truncation
225	 33.33	-1	217339..217536	-	65	15902269	-	spr0225	-	hypothetical protein
226	 30.76	-2	217611..218387	-	258	15902270	pflE	spr0226	-	pyruvate formate-lyase 3
227	 31.32	-1	218461..219255	+	264	15902271	deoR	spr0227	-	DEOR-type transcriptional regulator
228	 30.48	-2	219268..220248	+	326	15902272	-	spr0228	-	hypothetical protein
229	 32.40	-1	220443..220763	+	106	15902273	PTS-EIIA	spr0229	-	PTS system, IIA component
230	 36.89	0	220809..221117	+	102	15902274	PTS-EIIB	spr0230	-	PTS system, IIB component
231	 35.90	0	221110..222432	+	440	15902275	PTS-EIIC	spr0231	-	PTS system, IIC component
232	 36.36	0	222574..225021	+	815	15902276	pflF	spr0232	-	formate acetyltransferase 3
233	 36.77	0	225040..225708	+	222	15902277	talC	spr0233	-	fructose-6-phosphate aldolase
234	 36.55	0	225726..226814	+	362	15902278	gldA	spr0234	-	glycerol dehydrogenase
235	 44.60	+1	227269..229770	+	833	15902279	leuS	spr0235	-	leucyl-tRNA synthetase
236	 44.68	+1	229964..230659	+	231	15902280	-	spr0236	-	hypothetical protein
237	 39.57	0	230671..231087	+	138	15902281	-	spr0237	-	hypothetical protein
238	 45.75	+1	232128..233126	+	332	15902282	ruvB	spr0238	-	Holliday junction DNA helicase B
239	 37.17	0	233107..233679	+	190	15902283	-	spr0239	-	hypothetical protein
240	 43.63	0	233892..234668	+	258	15902284	uppS	spr0240	-	undecaprenyl diphosphate synthase
241	 41.67	0	234677..235480	+	267	15902285	cdsA	spr0241	-	phosphatidate cytidylyltransferase
242	 42.54	0	235502..236761	+	419	15902286	eep	spr0242	-	determinant for enhanced expression of pheromone
243	 43.04	0	236774..238627	+	617	15902287	proS	spr0243	-	prolyl-tRNA synthetase
244	 42.97	0	238727..240106	+	459	15902288	bglA	spr0244	-	6-phospho-beta-glucosidase
245	 44.50	+1	240298..242106	+	602	15902289	glmS	spr0245	-	D-fructose-6-phosphate amidotransferase
246	 46.19	+1	242225..243274	+	349	15902290	-	spr0246	-	hypothetical protein
247	 43.12	0	243374..247144	-	1256	15902291	pulA	spr0247	-	alkaline amylopullulanase
248	 43.24	0	247561..247974	+	137	15902292	rpsL	spr0248	-	30S ribosomal protein S12
249	 44.37	0	247994..248464	+	156	15902293	rpsG	spr0249	-	30S ribosomal protein S7
250	 43.28	0	248889..250970	+	693	15902294	fusA	spr0250	-	elongation factor G
251	 44.47	+1	251074..255465	+	1463	15902295	polC	spr0251	-	DNA polymerase III PolC
252	 39.77	0	255567..255830	+	87	15902296	-	spr0252	-	hypothetical protein
253	 35.84	0	255823..256101	+	92	15902297	-	spr0253	-	hypothetical protein
254	 46.62	+1	256296..257537	+	413	15902298	pepS	spr0254	-	aminopeptidase PepS
255	 43.72	0	257547..257777	+	76	15902299	-	spr0255	-	hypothetical protein
256	 44.67	+1	258090..258812	+	240	15902300	rsuA	spr0256	-	ribosomal small subunit pseudouridine synthase A
257	 34.55	-1	258893..259057	+	54	15902301	-	spr0257	-	hypothetical protein
258	 43.67	0	259029..260363	+	444	15902302	pepC	spr0258	-	aminopeptidase C
259	 41.12	0	260419..261330	-	303	15902303	manN	spr0259	-	phosphotransferase system, mannose-specific EIID
260	 47.64	+1	261354..262157	-	267	15902304	manM	spr0260	-	PTS system, mannose-specific IIC component
261	 42.44	0	262185..263183	-	332	15902305	manL	spr0261	-	PTS system, mannose-specific IIAB components
262	 45.98	+1	263358..264377	-	339	15902306	adhP	spr0262	-	alcohol dehydrogenase
263	 40.47	0	264716..265528	-	270	15902307	-	spr0263	-	Cof family protein
39.86	MEAN

4.53	STD DEV
