IslandPath Analysis: Streptococcus pneumoniae R6

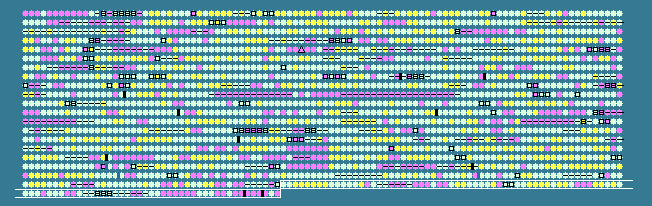

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.86 STD DEV: 4.53
Streptococcus pneumoniae R6, complete genome - 1..2038615
2043 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1944	 37.69	0	1928807..1929196	+	129	15903988	IS1381	spr1947	-	tranposase (orf2)
1945	 37.92	0	1929248..1929574	-	108	15903989	-	spr1948	-	hypothetical protein
1946	 46.15	+1	1929900..1931780	-	626	15903990	-	spr1949	-	glycosyl hydrolase-related protein
1947	 46.71	+1	1931774..1932655	-	293	15903991	-	spr1950	-	ROK family protein
1948	 44.83	+1	1932727..1935387	-	886	15903992	-	spr1951	-	hypothetical protein
1949	 46.05	+1	1935463..1936767	-	434	15903993	-	spr1952	-	hypothetical protein
1950	 46.81	+1	1936914..1938998	+	694	15903994	-	spr1953	-	hypothetical protein
1951	 46.46	+1	1939038..1940789	-	583	15903995	-	spr1954	-	hypothetical protein
1952	 42.20	0	1941478..1942221	+	247	15903996	arcA-truncation	spr1955	-	arginine deiminase, truncation
1953	 43.11	0	1942262..1942711	+	149	15903997	arcA-truncation	spr1956	-	arginine deiminase, truncation
1954	 42.28	0	1942769..1943785	+	338	15903998	arcB	spr1957	-	ornithine carbamoyltransferase
1955	 41.67	0	1943950..1944897	+	315	15903999	arcC	spr1958	-	carbamate kinase
1956	 42.72	0	1945106..1946617	+	503	15904000	-	spr1959	-	hypothetical protein
1957	 44.82	+1	1946639..1947970	+	443	15904001	-	spr1960	-	hypothetical protein
1958	 30.93	-1	1948375..1948665	-	96	15904002	-	spr1961	-	hypothetical protein
1959	 42.44	0	1949304..1950203	-	299	15904003	-	spr1962	-	hypothetical protein
1960	 41.23	0	1950333..1951484	-	383	15904004	adh2	spr1963	-	iron-containing alcohol dehydrogenase
1961	 42.22	0	1951630..1953396	-	588	15904005	fucI	spr1964	-	L-fucose isomerase
1962	 34.10	-1	1953453..1956569	-	1038	15904006	-	spr1965	-	fucolectin-related protein
1963	 33.42	-1	1956579..1958873	-	764	15904007	-	spr1966	-	hypothetical protein
1964	 34.71	-1	1958932..1959732	-	266	15904008	PTS-EII	spr1967	-	PTS system, IID component
1965	 37.34	0	1959729..1960502	-	257	15904009	PTS-EII	spr1968	-	PTS system, IIC component
1966	 32.06	-1	1960527..1960997	-	156	15904010	PTS-EII	spr1969	-	PTS system, IIB component
1967	 32.89	-1	1960988..1961434	-	148	15904011	PTS-EII	spr1970	-	PTS system, IIA component
1968	 32.65	-1	1961412..1961852	-	146	15904012	fucU	spr1971	-	fucose pathway protein, function unknown
1969	 37.16	0	1961864..1962517	-	217	15904013	fucA	spr1972	-	L-fuculose phosphate aldolase
1970	 35.68	0	1962617..1964065	-	482	15904014	fcsK	spr1973	-	fucose kinase
1971	 33.98	-1	1964196..1964969	+	257	15904015	fcsR	spr1974	-	fucose operon repressor, putative
1972	 42.63	0	1966098..1967603	-	501	15904016	adcA	spr1975	-	zinc ABC transporter zinc-binding protein
1973	 43.61	0	1967613..1968449	-	278	15904017	adcB	spr1976	-	zinc ABC transporter permease
1974	 45.11	+1	1968412..1969116	-	234	15904018	adcC	spr1977	-	ABC transporter ATPase
1975	 40.72	0	1969116..1969616	-	166	15904019	adcR	spr1978	-	adc operon repressor AdcR
1976	 40.50	0	1969711..1970994	-	427	15904020	dltD	spr1979	-	D-alanine transfer from undecaprenol-phosphate to the poly(glycerophosphate) chain
1977	 37.50	0	1970972..1971211	-	79	15904021	dltC	spr1980	-	D-alanine--poly(phosphoribitol) ligase subunit 2
1978	 41.12	0	1971225..1972469	-	414	15904022	dltB	spr1981	-	D-alanine transfer from Dcp to undecaprenol-phosphate
1979	 44.51	+1	1972466..1973932	-	488	15904023	dltA	spr1982	-	D-alanine--D-alanyl carrier protein ligase
1980	 33.67	-1	1974482..1975660	-	392	15904024	-	spr1983	-	hypothetical protein
1981	 39.48	0	1976116..1977108	-	330	15904025	transposase_H	spr1984	-	hypothetical protein
1982	 37.94	0	1977112..1977393	-	93	15904026	transposase_H	spr1985	-	hypothetical protein
1983	 37.24	0	1978504..1979091	+	195	15904027	-	spr1986	-	hypothetical protein
1984	 42.65	0	1979178..1979381	-	67	15904028	-	spr1987	-	hypothetical protein
1985	 46.10	+1	1979572..1980276	-	234	15904029	glpF	spr1988	-	glycerol uptake facilitator protein
1986	 44.18	0	1980346..1980843	-	165	15904030	glpD-truncation	spr1989	-	glycerol-3-phosphate dehydrogenase, truncation
1987	 44.81	+1	1980789..1982174	-	461	15904031	glpD-truncation	spr1990	-	glycerol-3-phosphate dehydrogenase, truncation
1988	 44.14	0	1982216..1983724	-	502	15904032	glpK	spr1991	-	glycerol kinase
1989	 40.97	0	1983883..1985310	-	475	15904033	-	spr1992	-	hypothetical protein
1990	 45.36	+1	1985475..1986347	+	290	15904034	hslO	spr1993	-	Hsp33-like chaperonin
1991	 48.27	+1	1986304..1987314	+	336	15904035	-	spr1994	-	hypothetical protein
1992	 41.26	0	1987544..1989649	-	701	15904036	pspC	spr1995	-	choline binding protein A
1993	 33.52	-1	1989728..1990255	-	175	15904037	-	spr1996	-	hypothetical protein
1994	 34.38	-1	1990338..1991669	-	443	15904038	hk06	spr1997	-	histidine kinase
1995	 36.09	0	1991666..1992319	-	217	15904039	rr06	spr1998	-	response regulator
1996	 45.14	+1	1992961..1993104	-	47	15904040	clpC-truncation	spr1999	-	class III stress response-related ATPase, truncation
1997	 45.48	+1	1993105..1995393	-	762	15904041	clpC-truncation	spr2000	-	ATP-dependent Clp protease, ATP-binding subunit
1998	 42.15	0	1995395..1995916	-	173	15904042	ctsR	spr2001	-	transcriptional regulator CtsR
1999	 45.68	+1	1995972..1996700	-	242	15904043	ABC-NBD	spr2002	-	ABC transporter ATP-binding protein
2000	 39.88	0	1996700..1997707	-	335	15904044	-	spr2003	-	ABC transporter substrate-binding protein
2001	 42.39	0	1997745..1998506	-	253	15904045	ABC-MSP	spr2004	-	ABC transporter permease
2002	 42.27	0	1998466..1998756	-	96	15904046	-	spr2005	-	hypothetical protein
2003	 38.90	0	1999012..2000358	-	448	15904047	cbpD	spr2006	-	choline binding protein D
2004	 34.46	-1	2000447..2000713	-	88	15904048	-	spr2007	-	hypothetical protein
2005	 41.46	0	2000715..2002067	-	450	15904049	dnaC	spr2008	-	replicative DNA helicase
2006	 36.42	0	2002111..2002563	-	150	15904050	rplI	spr2009	-	50S ribosomal protein L9
2007	 37.89	0	2002560..2004533	-	657	15904051	-	spr2010	-	DHH subfamily 1 protein
2008	 34.06	-1	2004669..2005217	-	182	15904052	-	spr2011	-	ribosomal subunit interface protein
2009	 36.20	0	2005297..2005959	-	220	15904053	comFC	spr2012	-	competence protein ComF, putative
2010	 40.11	0	2005956..2007254	-	432	15904054	comFA	spr2013	-	helicase, putative
2011	 39.94	0	2007310..2007945	+	211	15904055	-	spr2014	-	hypothetical protein
2012	 41.15	0	2008230..2009150	+	306	15904056	cycK	spr2015	-	cysteine synthase, O-acetylserine sulfhydrylase
2013	 39.26	0	2009347..2009616	-	89	15904057	transposase_G	spr2016	-	hypothetical protein
2014	 36.67	0	2009766..2009945	+	59	15904058	transposase_D	spr2017	-	degenerate transposase
2015	 40.28	0	2010201..2010488	-	95	15904059	transposase_E	spr2018	-	degenerate transposase
2016	 41.11	0	2010734..2011774	-	346	15904060	tsf	spr2019	-	elongation factor Ts
2017	 41.92	0	2011840..2012619	-	259	15904061	rpsB	spr2020	-	30S ribosomal protein S2
2018	 39.61	0	2012843..2014021	-	392	15904062	gsp-781	spr2021	-	general stress protein GSP-781
2019	 32.93	-1	2014115..2014609	-	164	15904063	mreD	spr2022	-	rod shpae-determining protein MreD, putative
2020	 35.65	0	2014609..2015427	-	272	15904064	mreC	spr2023	-	rod shape-determining protein MreC
2021	 37.99	0	2015486..2016280	-	264	15904065	ABC-MSP	spr2024	-	ABC transporter membrane-spanning permease - unknown substrate
2022	 40.48	0	2016273..2017112	-	279	15904066	ABC-NBP	spr2025	-	cobalt transporter ATP-binding subunit
2023	 39.01	0	2017097..2017924	-	275	15904067	stpA	spr2026	-	cobalt transporter ATP-binding subunit
2024	 34.80	-1	2017921..2018466	-	181	15904068	pgsA	spr2027	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
2025	 35.14	-1	2018477..2019307	-	276	15904069	-	spr2028	-	hypothetical protein
2026	 34.50	-1	2019340..2020623	-	427	15904070	-	spr2029	-	hypothetical protein
2027	 34.37	-1	2020620..2021870	-	416	15904071	-	spr2030	-	hypothetical protein
2028	 36.31	0	2022029..2022397	+	122	15904072	-	spr2031	-	hypothetical protein
2029	 34.34	-1	2022400..2023497	+	365	15904073	recF	spr2032	-	recombination protein F
2030	 41.18	0	2023548..2025026	-	492	15904074	imdH	spr2033	-	inositol-5-monophosphate dehydrogenase
2031	 38.79	0	2025178..2026203	-	341	15904075	trpS	spr2034	-	tryptophanyl-tRNA synthetase II
2032	 38.69	0	2026409..2028031	+	540	15904076	ABC-NBD	spr2035	-	ABC transporter ATP-binding protein
2033	 32.82	-1	2028093..2030645	+	850	15904077	-	spr2036	-	ABC transporter permease
2034	 35.87	0	2030746..2031060	-	104	15904078	-	spr2037	-	hypothetical protein
2035	 37.76	0	2031088..2031426	-	112	15904079	-	spr2038	-	hypothetical protein
2036	 35.03	-1	2031511..2032278	-	255	15904080	-	spr2039	-	hypothetical protein
2037	 32.78	-1	2032457..2032999	+	180	15904081	-	spr2040	-	hypothetical protein
2038	 30.68	-2	2033242..2033994	-	250	15904082	comE	spr2041	-	response regulator
2039	 32.13	-1	2033991..2035316	-	441	15904083	comD	spr2042	-	putative sensor histidine kinase ComD
2040	 30.16	-2	2035337..2035462	-	41	15904084	comC	spr2043	-	competence stimulating peptide precursor (csp)
2041	 33.33	-1	2035744..2036223	-	159	15904085	-	spr2044	-	SPOUT methyltransferase superfamily protein
2042	 36.60	0	2036394..2037587	+	397	15904086	sphtra	spr2045	-	serine protease
2043	 35.05	-1	2037645..2038403	+	252	15904087	spo0J	spr2046	-	chromosome segregation protein
39.86	MEAN

4.53	STD DEV
