IslandPathversion 1.0

IslandPath Analysis: Streptococcus pneumoniae R6

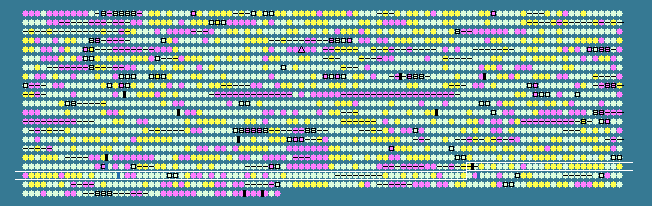

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.86 STD DEV: 4.53
Streptococcus pneumoniae R6, complete genome - 1..2038615
2043 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1775	 44.51	+1	1748021..1751671	-	1216	15903819	rpoB	spr1777	-	DNA-directed RNA polymerase subunit beta
1776	 40.17	0	1752316..1753647	-	443	15903820	hlyX	spr1778	-	hemolysin
1777	 43.64	0	1753876..1754700	-	274	15903821	endA	spr1779	-	DNA-entry nuclease
1778	 38.65	0	1754739..1754945	-	68	15903822	epuA	spr1780	-	hypothetical protein
1779	 46.81	+1	1754920..1756203	-	427	15903823	murA	spr1781	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1780	 41.71	0	1756515..1757552	-	345	15903824	-	spr1782	-	hypothetical protein
1781	 39.47	0	1757536..1758024	-	162	15903825	coaD	spr1783	-	phosphopantetheine adenylyltransferase
1782	 45.00	+1	1758014..1758553	-	179	15903826	-	spr1784	-	type II DNA modification (methyltransferase
1783	 43.34	0	1758618..1759616	-	332	15903827	asnA	spr1785	-	asparagine synthetase AsnA
1784	 29.01	-2	1759587..1759748	+	53	15903828	-	spr1786	-	hypothetical protein
1785	 42.80	0	1759722..1760429	-	235	15903829	-	spr1787	-	hypothetical protein
1786	 41.50	0	1760461..1761219	-	252	15903830	yjfA	spr1788	-	rRNA/tRNA methylase
1787	 43.01	0	1761235..1761513	+	92	15903831	acyP	spr1789	-	acylphosphate phosphohydrolase
1788	 44.23	0	1761591..1762517	+	308	15903832	-	spr1790	-	OxaA-like protein precursor
1789	 44.15	0	1762592..1763386	-	264	15903833	pflC	spr1791	-	pyruvate-formate lyase activating enzyme
1790	 45.16	+1	1763512..1764762	-	416	15903834	lysA	spr1792	-	diaminopimelate decarboxylase
1791	 42.27	0	1764829..1765656	-	275	15903835	purR	spr1793	-	purine operon repressor
1792	 44.78	+1	1765923..1766927	-	334	15903836	cbf1	spr1794	-	cmp-binding-factor 1
1793	 45.88	+1	1766854..1768152	-	432	15903837	-	spr1795	-	hypothetical protein
1794	 44.88	+1	1768112..1768795	-	227	15903838	-	spr1796	-	hypothetical protein
1795	 44.90	+1	1768737..1769393	-	218	15903839	rpe	spr1797	-	ribulose-phosphate 3-epimerase
1796	 43.57	0	1769404..1770282	-	292	15903840	-	spr1798	-	ribosome-associated GTPase
1797	 46.39	+1	1770284..1771156	-	290	15903841	ksgA	spr1799	-	dimethyladenosine transferase
1798	 40.00	0	1771287..1771601	-	104	15903842	-	spr1800	-	hypothetical protein
1799	 39.41	0	1771588..1772229	-	213	15903843	ABC-NBD	spr1801	-	ABC transporter ATP-binding protein - unknown substrate
1800	 43.37	0	1772231..1774273	-	680	15903844	-	spr1802	-	hypothetical protein
1801	 33.56	-1	1774530..1775429	-	299	15903845	plcR	spr1803	-	transcriptional regulator PlcR, putative
1802	 47.06	+1	1775501..1776061	-	186	15903846	-	spr1804	-	primase-related protein
1803	 45.48	+1	1776061..1776834	-	257	15903847	-	spr1805	-	hypothetical protein
1804	 43.99	0	1777140..1777805	-	221	15903848	-	spr1806	-	cell wall surface anchor family protein
1805	 46.67	+1	1778068..1778202	-	44	15903849	rpmH	spr1807	-	50S ribosomal protein L34
1806	 44.61	+1	1778347..1779561	-	404	15903850	aspC	spr1808	-	aminotransferase AlaT
1807	 34.63	-1	1779717..1780025	-	102	15903851	-	spr1809	-	hypothetical protein
1808	 43.80	0	1780109..1780624	+	171	15903852	-	spr1810	-	hypothetical protein
1809	 43.69	0	1780659..1782077	-	472	15903853	-	spr1811	-	Cof family protein
1810	 45.79	+1	1782113..1783075	+	320	15903854	ansB	spr1812	-	L-asparaginase, putative
1811	 40.63	0	1783327..1784367	-	346	15903855	ccpA	spr1813	-	catabolite control protein A
1812	 45.00	+1	1784762..1785361	-	199	15903856	rr11	spr1814	-	DNA-binding response regulator
1813	 38.52	0	1785363..1786460	-	365	15903857	hk11	spr1815	-	sensor histidine kinase, putative
1814	 39.58	0	1786460..1787227	-	255	15903858	-	spr1816	-	hypothetical protein
1815	 39.10	0	1787199..1788083	-	294	15903859	ABC-NBD	spr1817	-	ABC transporter ATP-binding protein
1816	 38.16	0	1788261..1788467	-	68	15903860	-	spr1818	-	hypothetical protein
1817	 37.29	0	1795146..1795625	-	159	15903861	comX2	spr1819	-	competence-specific global transcription modulator
1818	 33.70	-1	1795747..1796298	-	183	15903862	nusG	spr1820	-	transcription antitermination protein NusG
1819	 32.20	-1	1796338..1796514	-	58	15903863	secE	spr1821	-	preprotein translocase subunit SecE
1820	 41.18	0	1796524..1796676	-	50	15903864	rpmG	spr1822	-	50S ribosomal protein L33
1821	 41.39	0	1796729..1798924	-	731	15903865	pbp2a	spr1823	-	penicillin-binding protein 2A
1822	 39.61	0	1799011..1799886	+	291	15903866	rluD	spr1824	-	ribosomal large subunit pseudouridine synthase D
1823	 41.39	0	1799954..1801033	-	359	15903867	gapA	spr1825	-	glyceraldehyde-3-phosphate dehydrogenase
1824	 37.72	0	1801138..1802118	-	326	15903868	-	spr1826	-	hypothetical protein
1825	 38.27	0	1802161..1802484	-	107	15903869	transposase_B	spr1827	-	transposase
1826	 36.78	0	1802664..1803011	-	115	15903870	transposase_A	spr1828	-	transposase
1827	 41.56	0	1803124..1804023	-	299	15903871	nadC	spr1829	-	nicotinate-nucleotide pyrophosphorylase
1828	 43.71	0	1804233..1805543	+	436	15903872	-	spr1830	-	hypothetical protein
1829	 31.28	-1	1805909..1806103	-	64	15903873	-	spr1831	-	hypothetical protein
1830	 35.12	-1	1806563..1807291	-	242	15903874	-	spr1832	-	hypothetical protein
1831	 38.36	0	1807407..1808858	+	483	15903875	bgl2	spr1833	-	Beta-glucosidase
1832	 34.88	-1	1808876..1810171	+	431	15903876	ptcC	spr1834	-	PTS system, IIC component
1833	 36.57	0	1810176..1810484	+	102	15903877	ptcB	spr1835	-	PTS system, IIB component
1834	 36.09	0	1810463..1810789	+	108	15903878	ptcA	spr1836	-	PTS system, IIA component
1835	 42.46	0	1811697..1814369	-	890	15903879	adhE	spr1837	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
1836	 38.69	0	1814648..1815058	-	136	15903880	-	spr1838	-	hypothetical protein
1837	 38.69	0	1815060..1815488	-	142	15903881	-	spr1839	-	phosphotyrosine protein phosphatase
1838	 36.00	0	1815535..1815834	-	99	15903882	yajC	spr1840	-	preprotein translocase subunit YajC
1839	 44.31	0	1815951..1817927	-	658	15903883	tktA	spr1841	-	transketolase
1840	 40.57	0	1818041..1819132	-	363	15903884	-	spr1842	-	putative L-ascorbate 6-phosphate lactonase
1841	 33.15	-1	1819244..1820917	-	557	15903885	-	spr1843	-	hypothetical protein
1842	 42.84	0	1821096..1821800	-	234	15903886	araD	spr1844	-	L-ribulose-5-phosphate 4-epimerase
1843	 40.16	0	1821802..1822665	-	287	15903887	sga	spr1845	-	putative L-xylulose 5-phosphate 3-epimerase
1844	 43.39	0	1822669..1823334	-	221	161410737	ulaD	spr1846	-	3-keto-L-gulonate-6-phosphate decarboxylase
1845	 39.92	0	1823351..1823836	-	161	15903889	PTS-EII	spr1847	-	PTS system, IIA component
1846	 37.94	0	1823913..1824194	-	93	15903890	PTS-EII	spr1848	-	PTS system, IIB component
1847	 39.92	0	1824217..1825674	-	485	161410736	ulaA	spr1849	-	ascorbate-specific PTS system enzyme IIC
1848	 42.31	0	1825805..1826428	-	207	15903892	-	spr1850	-	hypothetical protein
1849	 39.51	0	1826479..1827465	-	328	15903893	-	spr1851	-	hypothetical protein
1850	 41.52	0	1827484..1828314	-	276	15903894	-	spr1852	-	SpoIIIJ family protein
1851	 37.90	0	1828283..1828654	-	123	15903895	rnpA	spr1853	-	ribonuclease P
1852	 40.39	0	1828803..1829993	-	396	15903896	ackA	spr1854	-	acetate kinase
1853	 41.51	0	1830044..1830997	-	317	15903897	-	spr1855	-	hypothetical protein
1854	 39.63	0	1831058..1831438	-	126	15903898	-	spr1856	-	hypothetical protein
1855	 42.08	0	1831470..1831652	-	60	15903899	-	spr1857	-	hypothetical protein
1856	 38.41	0	1831789..1832202	-	137	15903900	-	spr1858	-	hypothetical protein
1857	 42.80	0	1832180..1832686	-	168	15903901	-	spr1859	-	hypothetical protein
1858	 41.61	0	1832869..1833351	-	160	15903902	cglD	spr1861	-	competence protein CglD
1859	 37.61	0	1833266..1833592	-	108	15903903	cglC	spr1862	-	competence protein CglC
1860	 41.39	0	1833594..1834685	-	363	15903904	cglB	spr1863	-	competence protein CglB
1861	 44.90	+1	1834558..1835499	-	313	15903905	cglA	spr1864	-	competence protein CglA
1862	 38.44	0	1835575..1835946	-	123	15903906	-	spr1865	-	hypothetical protein
1863	 40.98	0	1836091..1837149	-	352	15903907	adh	spr1866	-	zinc-containing alcohol dehydrogenase
1864	 44.53	+1	1837312..1838463	-	383	15903908	nagA	spr1867	-	N-acetylglucosamine-6-phosphate deacetylase
1865	 41.64	0	1838616..1840433	-	605	15903909	-	spr1868	-	hypothetical protein
1866	 44.62	+1	1840531..1841673	-	380	15903910	tgt	spr1869	-	queuine tRNA-ribosyltransferase
1867	 40.09	0	1841803..1842660	+	285	15903911	-	spr1870	-	hypothetical protein
1868	 41.20	0	1842688..1842903	-	71	15903912	pcp-truncation	spr1871	-	pyrrolidone carboxyl peptidase, truncation
1869	 45.08	+1	1842900..1843214	-	104	15903913	pcp-truncation	spr1872	-	pyrrolidone carboxyl peptidase, truncation
1870	 33.00	-1	1843471..1843770	-	99	15903914	-	spr1873	-	hypothetical protein
1871	 41.00	0	1843781..1844119	-	112	15903915	marR	spr1874	-	MarR family transcriptional regulator
1872	 42.78	0	1844525..1845667	-	380	15903916	-	spr1875	-	hypothetical protein
1873	 42.03	0	1845833..1846453	-	206	15903917	-	spr1876	-	hypothetical protein
1874	 44.11	0	1846457..1847737	-	426	15903918	MATE_transporter	spr1877	-	MATE family transporter
39.86	MEAN

4.53	STD DEV
