IslandPath Analysis: Streptococcus pneumoniae R6

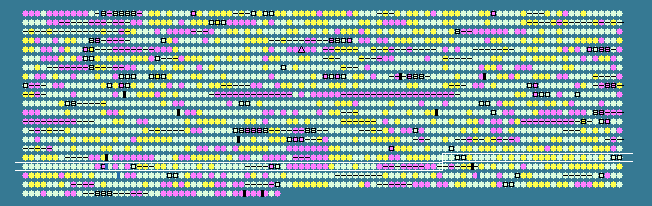

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.86 STD DEV: 4.53
Streptococcus pneumoniae R6, complete genome - 1..2038615
2043 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1671	 42.46	0	1645644..1646180	+	178	15903715	-	spr1673	-	hypothetical protein
1672	 41.85	0	1646347..1647156	-	269	15903716	-	spr1674	-	hypothetical protein
1673	 38.73	0	1647556..1648074	+	172	15903717	IS1167	spr1675	-	transposase
1674	 37.19	0	1648355..1648873	+	172	15903718	IS1167-truncation	spr1676	-	degenerate transposase (orf2)
1675	 43.46	0	1648982..1650502	-	506	15903719	proWX	spr1677	-	ABC transporter membrane-spanning permease - choline transporter
1676	 42.11	0	1650495..1651223	-	242	15903720	proV	spr1678	-	choline transporter
1677	 41.83	0	1651238..1652002	-	254	15903721	-	spr1679	-	hypothetical protein
1678	 40.32	0	1652006..1652449	-	147	15903722	-	spr1680	-	hypothetical protein
1679	 43.14	0	1653131..1653436	-	101	15903723	-	spr1681	-	hypothetical protein
1680	 46.01	+1	1653449..1654513	-	354	15903724	pepA	spr1682	-	glutamyl aminopeptidase
1681	 40.74	0	1654914..1655615	+	233	15903725	galE-truncation	spr1683	-	NAD-dependent epimerase/dehydratase family protein
1682	 46.15	+1	1656023..1656997	+	324	15903726	fatD	spr1684	-	iron-compound ABC transporter, permease protein
1683	 43.26	0	1656987..1657943	+	318	15903727	fatC	spr1685	-	iron-compound ABC transporter, permease protein
1684	 44.89	+1	1657940..1658692	+	250	15903728	fecE	spr1686	-	iron-compound ABC transporter, ATP-binding protein
1685	 42.65	0	1658788..1659753	+	321	15903729	fatB	spr1687	-	iron-compound ABC transporter, iron-compound-binding protein
1686	 43.62	0	1659978..1660220	-	80	15903730	-	spr1688	-	hypothetical protein
1687	 45.64	+1	1660220..1660942	-	240	15903731	rluB	spr1689	-	ribosomal large subunit pseudouridine synthase B
1688	 44.74	+1	1660929..1661498	-	189	15903732	scpB	spr1690	-	segregation and condensation protein B
1689	 45.40	+1	1661517..1662245	-	242	15903733	scpA	spr1691	-	segregation and condensation protein A
1690	 42.65	0	1662245..1662985	-	246	15903734	xerD	spr1692	-	site-specific tyrosine recombinase XerD-like protein
1691	 45.45	+1	1662976..1663437	-	153	15903735	-	spr1693	-	CBS domain protein
1692	 47.13	+1	1663434..1663955	-	173	15903736	-	spr1694	-	hypothetical protein
1693	 42.59	0	1663931..1664902	-	323	161410739	-	spr1695	-	fused deoxyribonucleotide triphosphate pyrophosphatase/unknown domain-containing protein
1694	 48.30	+1	1664899..1665693	-	264	15903738	murI	spr1696	-	glutamate racemase
1695	 38.28	0	1665900..1666202	-	100	15903739	-	spr1697	-	hypothetical protein
1696	 41.45	0	1666290..1667915	-	541	15903740	dexS	spr1698	-	dextran glucosidase
1697	 43.39	0	1668093..1670210	-	705	15903741	treP	spr1699	-	phosphotransferase system, trehalose-specific IIBC component
1698	 41.77	0	1670245..1670955	+	236	15903742	treR	spr1700	-	trehalose operon transcriptional repressor
1699	 38.06	0	1671111..1671893	+	260	15903743	IS1167-truncation	spr1701	-	degenerate transposase (orf1)
1700	 36.74	0	1671890..1672417	+	175	15903744	IS1167-truncation	spr1702	-	degenerate transposase (orf2)
1701	 41.15	0	1672492..1673463	-	323	15903745	amiF	spr1703	-	oligopeptide ABC transporter, ATP-binding protein AmiF
1702	 42.51	0	1673429..1674496	-	355	15903746	amiE	spr1704	-	oligopeptide ABC transporter, ATP-binding protein AmiE
1703	 39.91	0	1674505..1675431	-	308	15903747	amiD	spr1705	-	oligopeptide ABC transporter, permease protein AmiD
1704	 39.28	0	1675431..1676927	-	498	15903748	amiC	spr1706	-	oligopeptide ABC transporter, permease protein AmiC
1705	 39.04	0	1676994..1678973	-	659	15903749	amiA	spr1707	-	ABC transporter substrate-binding protein - oligopeptide transport
1706	 37.86	0	1679660..1680853	-	397	15903750	-	spr1708	-	hypothetical protein
1707	 38.12	0	1680991..1682433	-	480	15903751	gtfA	spr1709	-	sucrose phosphorylase
1708	 42.57	0	1682791..1683624	-	277	15903752	msmG	spr1710	-	sugar ABC transporter, permease protein
1709	 41.98	0	1683638..1684528	-	296	15903753	msmF	spr1711	-	sugar ABC transporter, permease protein
1710	 43.17	0	1684518..1685777	-	419	15903754	msmE	spr1712	-	sugar ABC transporter, sugar-binding protein
1711	 37.26	0	1685869..1688031	-	720	15903755	aga	spr1713	-	Alpha-galactosidase (melibiase)
1712	 36.70	0	1688139..1688999	+	286	15903756	msmR	spr1714	-	MSM (multiple sugar metabolism) operon regulatory protein
1713	 36.11	0	1688996..1689931	+	311	15903757	birA	spr1715	-	biotin--protein ligase
1714	 35.62	0	1690139..1690576	+	145	15903758	IS1167-truncation	spr1716	-	degenerate transposase (fusion of orf1 and orf2)
1715	 37.83	0	1697564..1698919	-	451	15903759	-	spr1717	-	hypothetical protein
1716	 35.52	0	1698957..1699733	+	258	161410738	recX	spr1718	-	recombination regulator RecX
1717	 38.01	0	1699822..1700355	+	177	15903761	-	spr1719	-	hypothetical protein
1718	 22.22	-2	1700709..1700915	-	68	15903762	-	spr1720	-	hypothetical protein
1719	 37.24	0	1701075..1702304	+	409	15903763	IS1167-truncation	spr1721	-	degenerate transposase (fusion of orf1 and orf2)
1720	 44.42	+1	1702403..1704025	-	540	15903764	groEL	spr1722	-	chaperonin GroEL
1721	 44.56	+1	1704041..1704325	-	94	15903765	groES	spr1723	-	co-chaperonin GroES
1722	 42.93	0	1704481..1704876	-	131	15903766	ssbB	spr1724	-	single-strand DNA-binding protein
1723	 45.14	+1	1704954..1705715	-	253	15903767	ydfG	spr1725	-	oxidoreductase
1724	 44.50	+1	1705748..1706374	-	208	15903768	-	spr1726	-	hypothetical protein
1725	 41.19	0	1706390..1706707	-	105	15903769	-	spr1727	-	hypothetical protein
1726	 44.33	0	1706704..1707003	-	99	15903770	-	spr1728	-	hypothetical protein
1727	 36.57	0	1707340..1707555	-	71	15903771	-	spr1729	-	hypothetical protein
1728	 40.44	0	1707692..1708366	-	224	15903772	-	spr1730	-	hypothetical protein
1729	 42.89	0	1708372..1708821	-	149	15903773	-	spr1731	-	hypothetical protein
1730	 44.44	+1	1708932..1709435	-	167	15903774	-	spr1732	-	PAP2 family protein
1731	 41.87	0	1709432..1709794	-	120	15903775	-	spr1733	-	hypothetical protein
1732	 43.90	0	1709860..1710891	-	343	15903776	ABC-NBD-truncation	spr1734	-	ABC transporter ATP-binding protein
1733	 43.27	0	1710898..1711068	-	56	15903777	ABC-NBD-truncation	spr1735	-	ABC transporter ATP-binding protein - unknown substrate, truncation
1734	 41.98	0	1711072..1711719	-	215	15903778	ABC-NBD-truncation	spr1736	-	ABC transporter ATP-binding protein - unknown substrate, truncation
1735	 42.90	0	1711861..1712205	-	114	15903779	-	spr1737	-	hypothetical protein
1736	 42.68	0	1712329..1713045	-	238	15903780	-	spr1738	-	hypothetical protein
1737	 42.02	0	1713926..1715341	-	471	15903781	ply	spr1739	-	pneumolysin
1738	 38.93	0	1715352..1715762	-	136	15903782	-	spr1740	-	hypothetical protein
1739	 40.39	0	1715755..1716363	-	202	15903783	-	spr1741	-	hypothetical protein
1740	 41.41	0	1716369..1716851	-	160	15903784	-	spr1742	-	hypothetical protein
1741	 41.90	0	1716376..1716585	-	69	15903785	-	spr1743	-	hypothetical protein
1742	 35.61	0	1716958..1717089	+	43	15903786	IS1381-truncation	spr1744	-	degenerate transposase (orf1)
1743	 37.88	0	1717094..1717357	+	87	15903787	IS1381-truncation	spr1745	-	degenerate transposase (orf2)
1744	 37.16	0	1718122..1718382	-	86	15903788	-	spr1746	-	hypothetical protein
1745	 34.77	-1	1718441..1718995	-	184	15903789	-	spr1747	-	hypothetical protein
1746	 32.83	-1	1718982..1719179	-	65	15903790	-	spr1748	-	hypothetical protein
1747	 33.84	-1	1719183..1719977	-	264	15903791	-	spr1749	-	hypothetical protein
1748	 33.10	-1	1720385..1720810	-	141	15903792	-	spr1750	-	hypothetical protein
1749	 32.78	-1	1720939..1721298	-	119	15903793	-	spr1751	-	hypothetical protein
1750	 34.98	-1	1721344..1721586	-	80	15903794	-	spr1752	-	hypothetical protein
1751	 27.59	-2	1721537..1721710	-	57	15903795	-	spr1753	-	hypothetical protein
1752	 46.39	+1	1722069..1723025	-	318	15903796	lytA	spr1754	-	N-acetylmuramoyl-L-alanine amidase
1753	 38.10	0	1723091..1723153	-	20	15903797	-	spr1755	-	hypothetical protein
1754	 41.72	0	1723401..1724771	-	456	15903798	dinF	spr1756	-	MATE efflux family protein DinF
1755	 41.82	0	1725078..1726244	-	388	15903799	recA	spr1757	-	recombinase A
1756	 45.11	+1	1726299..1727555	-	418	15903800	cinA	spr1758	-	competence damage-inducible protein A
1757	 38.35	0	1727640..1728656	-	338	15903801	lytR	spr1759	-	transcriptional regulator
1758	 41.43	0	1728664..1729182	-	172	15903802	-	spr1760	-	hypothetical protein
1759	 39.86	0	1729172..1729615	-	147	15903803	-	spr1761	-	hypothetical protein
1760	 35.27	-1	1729701..1730321	-	206	15903804	-	spr1762	-	hypothetical protein
1761	 33.10	-1	1730704..1731567	-	287	15903805	plcR	spr1763	-	transcriptional activator
1762	 32.75	-1	1731759..1731929	+	56	15903806	-	spr1764	-	hypothetical protein
1763	 38.22	0	1732032..1732256	+	74	15903807	-	spr1765	-	hypothetical protein
1764	 34.39	-1	1732263..1732451	+	62	15903808	-	spr1766	-	hypothetical protein
1765	 29.09	-2	1732567..1735557	+	996	15903809	cylM	spr1767	-	bacteriocin formation protein, putative
1766	 31.06	-1	1735907..1736611	+	234	15903810	-	spr1768	-	hypothetical protein
1767	 27.20	-2	1736592..1737521	+	309	15903811	-	spr1769	-	hypothetical protein
1768	 28.31	-2	1737518..1739626	+	702	15903812	clyB	spr1770	-	toxin secretion ABC transporter, ATP-binding/permease protein
1769	 29.48	-2	1739650..1741389	+	579	15903813	nisP	spr1771	-	subtilisin-like serine protease
1770	 39.58	0	1741440..1742207	+	255	15903814	-	spr1772	-	hypothetical protein
39.86	MEAN

4.53	STD DEV
