IslandPath Analysis: Streptococcus pneumoniae R6

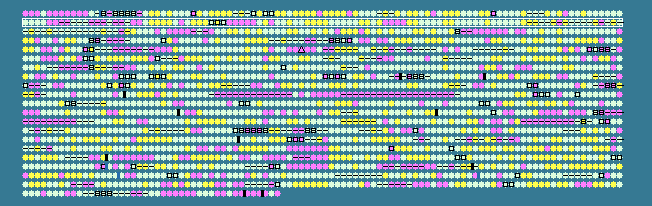

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.86 STD DEV: 4.53
Streptococcus pneumoniae R6, complete genome - 1..2038615
2043 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
101	 39.72	0	108506..109303	+	265	15902145	ABC-SBP	spr0101	-	amino acid ABC transporter periplasmic amino acid-binding protein
102	 41.51	0	109269..110516	+	415	15902146	argG	spr0102	-	argininosuccinate synthase
103	 40.95	0	110545..111936	+	463	15902147	argH	spr0103	-	argininosuccinate lyase
104	 37.33	0	112225..113124	-	299	15902148	-	spr0104	-	hypothetical protein
105	 35.47	0	113542..113775	+	77	15902149	Transporter-truncation	spr0105	-	transporter, truncation
106	 33.95	-1	113839..115773	+	644	15902150	Transporter-truncation	spr0106	-	transporter, truncation
107	 29.91	-2	115766..116233	+	155	15902151	-	spr0107	-	hypothetical protein
108	 34.37	-1	116230..117582	+	450	15902152	-	spr0108	-	hypothetical protein
109	 39.63	0	117728..118108	+	126	15902153	-	spr0109	-	hypothetical protein
110	 37.69	0	118611..118931	-	106	15902154	-	spr0110	-	hypothetical protein
111	 40.86	0	119688..120059	+	123	15902155	-	spr0111	-	hypothetical protein
112	 23.47	-2	120067..120279	+	70	15902156	-	spr0112	-	hypothetical protein
113	 29.93	-2	121084..122142	+	352	15902157	-	spr0113	-	hypothetical protein
114	 28.60	-2	122441..123433	+	330	15902158	-	spr0114	-	hypothetical protein
115	 40.27	0	123810..124184	+	124	15902159	-	spr0115	-	hypothetical protein
116	 21.31	-2	124191..124373	+	60	15902160	-	spr0116	-	hypothetical protein
117	 29.90	-2	124392..125294	+	300	15902161	-	spr0117	-	hypothetical protein
118	 38.50	0	125317..125703	+	128	15902162	-	spr0118	-	hypothetical protein
119	 27.01	-2	125670..126428	+	252	15902163	-	spr0119	-	hypothetical protein
120	 30.33	-2	127503..127802	+	99	15902164	-	spr0120	-	hypothetical protein
121	 42.58	0	128356..130215	+	619	15902165	pspA	spr0121	-	surface protein pspA precursor
122	 47.96	+1	130562..131737	+	391	15902166	trmU	spr0122	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
123	 44.10	0	131851..132333	+	160	15902167	-	spr0123	-	MutT/nudix family protein
124	 46.34	+1	132343..134256	+	637	15902168	gidA	spr0124	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
125	 46.32	+1	134636..136468	-	610	15902169	-	spr0125	-	hypothetical protein
126	 43.16	0	136317..136550	-	77	15902170	-	spr0126	-	hypothetical protein
127	 35.29	-1	137368..137520	-	50	15902171	orf51	spr0127	-	hypothetical protein
128	 38.17	0	137522..137707	-	61	15902172	-	spr0128	-	hypothetical protein
129	 45.47	+1	137885..138568	+	227	15902173	-	spr0129	-	hypothetical protein
130	 45.89	+1	138565..139002	+	145	15902174	rimI	spr0130	-	ribosomal protein alanine acetyltransferase
131	 48.27	+1	138992..140002	+	336	15902175	gcp	spr0131	-	O-sialoglycoprotein endopeptidase
132	 38.24	0	140042..140428	-	128	15902176	IS1167-truncation	spr0132	-	degenerate transposase (orf2)
133	 46.56	+1	140419..140970	-	183	15902177	IS1167-truncation	spr0133	-	degenerate transposase (orf2)
134	 37.83	0	142041..142307	-	88	15902178	transposase_A	spr0134	-	degenerative transposase
135	 29.55	-2	142595..143809	+	404	15902179	epsG	spr0135	-	glycosyltransferase involved exopolysaccharide (EPS) synthesis
136	 27.36	-2	143802..144755	+	317	15902180	glycosyltransferase	spr0136	-	glycosyl transferase family protein
137	 30.30	-2	144765..146381	+	538	15902181	ABC-NP	spr0137	-	ABC transporter ATP-binding protein
138	 30.95	-1	147164..147919	+	251	15902182	-	spr0138	-	hypothetical protein
139	 29.16	-2	147932..149104	+	390	15902183	ugd	spr0139	-	UDP-glucose dehydrogenase
140	 39.35	0	149499..150362	+	287	15902184	mutR	spr0140	-	transcriptional regulator
141	 44.02	0	150653..150886	+	77	15902185	-	spr0141	-	hypothetical protein
142	 35.99	0	150908..151585	+	225	15902186	-	spr0142	-	hypothetical protein
143	 37.39	0	151597..152262	+	221	15902187	-	spr0143	-	hypothetical protein
144	 37.48	0	152331..153560	+	409	15902188	-	spr0144	-	hypothetical protein
145	 44.89	+1	153770..154366	+	198	15902189	-	spr0145	-	hypothetical protein
146	 40.79	0	154470..155300	+	276	15902190	ABC-SBP	spr0146	-	ABC transporter substrate-binding protein - amino acid transport
147	 40.47	0	155454..156308	+	284	15902191	ABC-SBP	spr0147	-	lipoprotein
148	 46.22	+1	156408..157781	+	457	15902192	dapE	spr0148	-	hypothetical protein
149	 43.69	0	157774..158835	+	353	15902193	ABC-NBD	spr0149	-	ABC transporter ATP-binding protein
150	 45.31	+1	158837..159529	+	230	15902194	ABC-MSD	spr0150	-	ABC transporter permease
151	 44.21	0	159559..160128	-	189	15902195	-	spr0151	-	hypothetical protein
152	 39.02	0	160263..160877	+	204	15902196	-	spr0152	-	hypothetical protein
153	 40.95	0	161830..162525	+	231	15902197	hk07	spr0153	-	histidine kinase
154	 40.79	0	162537..163823	+	428	15902198	rr07	spr0154	-	DNA-binding response regulator
155	 38.49	0	163827..164408	+	193	15902199	-	spr0155	-	hypothetical protein
156	 39.47	0	164354..164956	+	200	15902200	-	spr0156	-	hypothetical protein
157	 44.66	+1	165249..166511	-	420	15902201	-	spr0157	-	hypothetical protein
158	 46.19	+1	166821..167279	-	152	15902202	-	spr0158	-	hypothetical protein
159	 38.51	0	167276..167797	-	173	15902203	-	spr0159	-	hypothetical protein
160	 46.00	+1	168072..170021	+	649	15902204	mutL	spr0160	-	DNA mismatch repair protein
161	 35.68	0	170346..170813	-	155	15902205	ribE	spr0161	-	riboflavin synthase beta chain
162	 35.24	-1	170814..172019	-	401	15902206	ribA	spr0162	-	3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II
163	 33.65	-1	172039..172674	-	211	15902207	ribC	spr0163	-	riboflavin synthase subunit alpha
164	 36.33	0	172659..173759	-	366	15902208	ribD	spr0164	-	riboflavin biosynthesis protein RibD
165	 43.43	0	174163..174756	+	197	15902209	ruvA	spr0165	-	Holliday junction DNA helicase motor protein
166	 46.63	+1	174766..175329	+	187	15902210	tag	spr0166	-	DNA-3-methyladenine glycosylase I
167	 36.73	0	175326..176003	+	225	15902211	-	spr0167	-	hypothetical protein
168	 41.76	0	176158..177189	-	343	15902212	-	spr0168	-	MccC family protein
169	 42.98	0	177444..178148	-	234	15902213	-	spr0169	-	hypothetical protein
170	 42.33	0	178139..179083	-	314	15902214	corA	spr0170	-	magnesium/cobalt transporter CorA
171	 47.28	+1	179215..182046	+	943	15902215	uvrA	spr0171	-	excinuclease ABC subunit A
172	 43.50	0	182039..183100	+	353	15902216	pepP	spr0172	-	peptidase M24 family protein
173	 39.10	0	183232..183630	+	132	15902217	spxA	spr0173	-	transcriptional regulator Spx
174	 38.25	0	183696..184265	+	189	15902218	-	spr0174	-	hypothetical protein
175	 37.83	0	184352..184618	+	88	15902219	-	spr0175	-	hypothetical protein
176	 41.67	0	184622..185041	+	139	15902220	-	spr0176	-	Holliday junction resolvase-like protein
177	 38.89	0	185057..185362	+	101	15902221	-	spr0177	-	hypothetical protein
178	 43.91	0	185813..187069	+	418	15902222	folC	spr0178	-	dihydrofolate:folylpolyglutamate synthetase
179	 40.08	0	187066..187584	+	172	15902223	-	spr0179	-	hypothetical protein
180	 38.42	0	187730..189262	+	510	15902224	cls	spr0180	-	cardiolipin synthetase
181	 37.50	0	189340..189483	+	47	15902225	orf47	spr0181	-	hypothetical protein
182	 40.01	0	189502..191058	+	518	15902226	-	spr0182	-	competence-induced protein Ccs4
183	 43.09	0	191172..193385	+	737	15902227	nrdD	spr0183	-	anaerobic ribonucleoside triphosphate reductase
184	 43.98	0	193581..194087	+	168	15902228	-	spr0184	-	hypothetical protein
185	 43.65	0	194080..194670	+	196	15902229	nrdG	spr0185	-	anaerobic ribonucleoside-triphosphate reductase activating protein
186	 44.82	+1	194667..195284	+	205	15902230	-	spr0186	-	hypothetical protein
187	 42.07	0	195551..195859	+	102	15902231	rpsJ	spr0187	-	30S ribosomal protein S10
188	 43.06	0	196076..196702	+	208	15902232	rplC	spr0188	-	50S ribosomal protein L3
189	 43.43	0	196727..197350	+	207	15902233	rplD	spr0189	-	50S ribosomal protein L4
190	 36.36	0	197350..197646	+	98	15902234	rplW	spr0190	-	50S ribosomal protein L23
191	 44.60	+1	197664..198497	+	277	15902235	rplB	spr0191	-	50S ribosomal protein L2
192	 40.07	0	198601..198882	+	93	15902236	rpsS	spr0192	-	30S ribosomal protein S19
193	 41.67	0	198743..199198	-	151	15902237	-	spr0193	-	hypothetical protein
194	 41.45	0	198894..199238	+	114	15902238	rplV	spr0194	-	50S ribosomal protein L22
195	 42.97	0	199251..199904	+	217	15902239	rpsC	spr0195	-	30S ribosomal protein S3
196	 44.44	+1	199908..200321	+	137	15902240	rplP	spr0196	-	50S ribosomal protein L16
197	 35.27	-1	200331..200537	+	68	15902241	rpmC	spr0197	-	50S ribosomal protein L29
198	 38.70	0	200562..200822	+	86	15902242	rpsQ	spr0198	-	30S ribosomal protein S17
199	 44.17	0	200848..201216	+	122	15902243	rplN	spr0199	-	50S ribosomal protein L14
200	 39.54	0	201294..201599	+	101	15902244	rplX	spr0200	-	50S ribosomal protein L24
39.86	MEAN

4.53	STD DEV
