IslandPath Analysis: Streptococcus pneumoniae R6

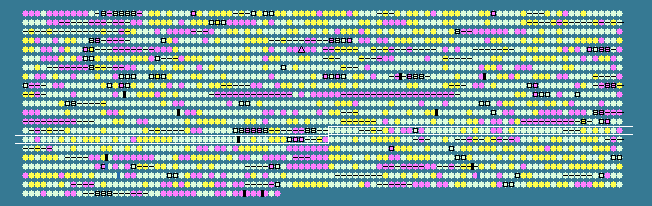

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.86 STD DEV: 4.53
Streptococcus pneumoniae R6, complete genome - 1..2038615
2043 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1352	 37.16	0	1336103..1336939	-	278	15903396	glnH	spr1353	-	amino acid ABC transporter amino acid-binding protein
1353	 42.22	0	1336952..1337581	-	209	15903397	glnQ	spr1354	-	amino acid ABC transporter ATP-binding protein
1354	 40.63	0	1337591..1338289	-	232	15903398	glnP	spr1355	-	amino acid ABC transporter permease
1355	 40.64	0	1338378..1339622	-	414	15903399	-	spr1356	-	TPR domain protein
1356	 38.39	0	1339597..1340763	-	388	15903400	-	spr1357	-	hypothetical protein
1357	 42.70	0	1340907..1341920	+	337	15903401	-	spr1358	-	hypothetical protein
1358	 43.10	0	1341965..1342384	-	139	15903402	atpC	spr1359	-	F0F1 ATP synthase subunit epsilon
1359	 44.85	+1	1342395..1343801	-	468	15903403	atpD	spr1360	-	F0F1 ATP synthase subunit beta
1360	 41.52	0	1343887..1344765	-	292	15903404	atpG	spr1361	-	F0F1 ATP synthase subunit gamma
1361	 44.42	+1	1344781..1346286	-	501	15903405	atpA	spr1362	-	F0F1 ATP synthase subunit alpha
1362	 34.82	-1	1346301..1346837	-	178	15903406	atpH	spr1363	-	F0F1 ATP synthase subunit delta
1363	 36.97	0	1346837..1347331	-	164	15903407	atpF	spr1364	-	F0F1 ATP synthase subunit B
1364	 35.84	0	1347345..1348061	-	238	15903408	atpB	spr1365	-	F0F1 ATP synthase subunit A
1365	 34.33	-1	1348096..1348296	-	66	15903409	atpE	spr1366	-	F0F1 ATP synthase subunit C
1366	 39.98	0	1348371..1349378	-	335	15903410	IS1239	spr1367	-	transposase
1367	 35.40	0	1349823..1350305	-	160	15903411	-	spr1368	-	hypothetical protein
1368	 41.67	0	1350774..1351265	-	163	15903412	greA	spr1369	-	transcription elongation factor GreA
1369	 41.18	0	1351327..1352982	-	551	15903413	-	spr1370	-	hypothetical protein
1370	 41.62	0	1353063..1353557	-	164	15903414	-	spr1371	-	hypothetical protein
1371	 41.51	0	1353554..1354018	-	154	15903415	-	spr1372	-	hypothetical protein
1372	 41.50	0	1354028..1355362	-	444	15903416	murC	spr1373	-	UDP-N-acetylmuramate--L-alanine ligase
1373	 40.45	0	1355373..1355990	-	205	15903417	-	spr1374	-	hypothetical protein
1374	 44.08	0	1356038..1359136	-	1032	15903418	snf	spr1375	-	Snf2 family protein
1375	 41.65	0	1359229..1360395	-	388	15903419	patB	spr1376	-	aminotransferase, class II
1376	 44.47	+1	1360403..1361497	-	364	15903420	metB	spr1377	-	cystathionine gamma-synthase
1377	 39.87	0	1361655..1361807	-	50	15903421	ABC-MSP-truncation	spr1378	-	ABC transporter, truncation
1378	 37.53	0	1361926..1362378	-	150	15903422	ABC-MSP-truncation	spr1379	-	ABC transporter, truncation
1379	 35.58	0	1362403..1363026	-	207	15903423	ABC-MSP-truncation	spr1380	-	ABC transporter, truncation
1380	 32.34	-1	1363036..1363338	-	100	15903424	ABC-MSP-truncation	spr1381	-	ABC transporter, truncation
1381	 38.44	0	1363510..1365468	-	652	15903425	aliB	spr1382	-	ABC transporter substrate-binding protein - oligopeptide transport
1382	 44.18	0	1365671..1367293	-	540	15903426	PST_transporter	spr1383	-	polysaccharide biosynthesis protein
1383	 42.67	0	1367399..1368844	+	481	15903427	murE	spr1384	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1384	 39.49	0	1368890..1369084	-	64	15903428	-	spr1385	-	hypothetical protein
1385	 36.49	0	1369185..1369469	-	94	15903429	-	spr1386	-	hypothetical protein
1386	 40.00	0	1369466..1369780	-	104	15903430	-	spr1387	-	hypothetical protein
1387	 42.50	0	1369817..1370329	-	170	15903431	-	spr1388	-	hypothetical protein
1388	 42.74	0	1370416..1371351	-	311	15903432	ppaC	spr1389	-	putative manganese-dependent inorganic pyrophosphatase
1389	 42.00	0	1371422..1371721	-	99	15903433	-	spr1390	-	hypothetical protein
1390	 41.60	0	1371711..1372460	-	249	15903434	-	spr1391	-	hypothetical protein
1391	 42.89	0	1372514..1372900	-	128	15903435	-	spr1392	-	hypothetical protein
1392	 41.18	0	1372875..1374275	-	466	15903436	-	spr1393	-	Cof family protein/peptidyl-prolyl cis-trans isomerase, cyclophilin type
1393	 41.25	0	1374570..1374809	-	79	15903437	rpsR	spr1394	-	30S ribosomal protein S18
1394	 43.52	0	1374841..1375311	-	156	15903438	ssbA	spr1395	-	single-strand DNA-binding protein
1395	 38.49	0	1375323..1375613	-	96	15903439	rpsF	spr1396	-	30S ribosomal protein S6
1396	 43.82	0	1375766..1377109	-	447	15903440	asnC	spr1397	-	asparaginyl-tRNA synthetase
1397	 39.52	0	1377128..1377499	-	123	15903441	-	spr1398	-	hypothetical protein
1398	 46.72	+1	1377486..1378673	-	395	15903442	aspB	spr1399	-	aspartate aminotransferase
1399	 38.65	0	1378670..1379158	-	162	15903443	-	spr1400	-	hypothetical protein
1400	 33.33	-1	1379194..1379388	+	64	15903444	-	spr1401	-	hypothetical protein
1401	 43.02	0	1379398..1380027	+	209	15903445	-	spr1402	-	hypothetical protein
1402	 42.32	0	1380265..1387920	-	2551	15903446	-	spr1403	-	hypothetical protein
1403	 33.86	-1	1388112..1389620	+	502	15903447	-	spr1404	-	hypothetical protein
1404	 41.98	0	1389671..1390399	-	242	15903448	-	spr1405	-	hypothetical protein
1405	 39.44	0	1390478..1390657	-	59	15903449	-	spr1406	-	hypothetical protein
1406	 42.61	0	1390809..1392404	-	531	15903450	-	spr1407	-	hypothetical protein
1407	 45.50	+1	1392416..1392826	-	136	15903451	def	spr1408	-	peptide deformylase
1408	 39.90	0	1392942..1393733	-	263	15903452	-	spr1409	-	putative glutathione S-transferase YghU
1409	 44.20	0	1393746..1396442	-	898	15903453	pacL	spr1410	-	P-type ATPase - calcium transporter
1410	 42.11	0	1396746..1397930	+	394	15903454	-	spr1411	-	cation efflux family protein
1411	 43.64	0	1398073..1399944	-	623	15903455	ABC-NBD	spr1412	-	ABC transporter ATP-binding protein
1412	 43.92	0	1399941..1401140	-	399	15903456	cca	spr1413	-	tRNA CCA-pyrophosphorylase
1413	 45.83	+1	1401137..1401904	-	255	15903457	dapB	spr1414	-	dihydrodipicolinate reductase
1414	 42.17	0	1402181..1403029	-	282	15903458	-	spr1415	-	hypothetical protein
1415	 36.69	0	1403031..1403417	-	128	15903459	-	spr1416	-	hypothetical protein
1416	 44.35	0	1403479..1404831	-	450	15903460	glmM	spr1417	-	phosphoglucomutase/phosphomannomutase family protein
1417	 39.62	0	1404855..1405634	-	259	15903461	-	spr1418	-	hypothetical protein
1418	 39.70	0	1405621..1406499	-	292	15903462	-	spr1419	-	hypothetical protein
1419	 36.21	0	1406396..1406569	-	57	15903463	-	spr1420	-	hypothetical protein
1420	 44.69	+1	1406614..1407582	+	322	15903464	trxB	spr1421	-	pyridine nucleotide-disulphide oxidoreductase family protein
1421	 45.18	+1	1407616..1408527	-	303	15903465	-	spr1422	-	hypothetical protein
1422	 45.40	+1	1408524..1409501	-	325	15903466	-	spr1423	-	hypothetical protein
1423	 44.11	0	1409498..1410388	-	296	15903467	-	spr1424	-	hypothetical protein
1424	 43.57	0	1410440..1410820	-	126	15903468	aldR	spr1425	-	endoribonuclease L-PSP
1425	 44.11	0	1410831..1411424	-	197	15903469	-	spr1426	-	GTPase EngB
1426	 43.15	0	1411427..1412659	-	410	15903470	clpX	spr1427	-	ATP-dependent protease ATP-binding subunit
1427	 39.77	0	1412691..1412861	-	56	15903471	-	spr1428	-	hypothetical protein
1428	 42.80	0	1412861..1413367	-	168	15903472	dfr	spr1429	-	dihydrofolate reductase
1429	 40.97	0	1413497..1414033	-	178	15903473	dpr	spr1430	-	non-heme iron-containing ferritin
1430	 39.04	0	1414511..1416016	-	501	15903474	lytC	spr1431	-	1,4-beta-N-acetylmuramidase
1431	 42.44	0	1416054..1416833	-	259	15903475	tpiA	spr1432	-	triosephosphate isomerase
1432	 43.07	0	1416910..1417587	-	225	15903476	-	spr1433	-	hypothetical protein
1433	 41.48	0	1417596..1418540	-	314	15903477	metA	spr1434	-	homoserine O-succinyltransferase
1434	 41.24	0	1418722..1419252	-	176	15903478	apt	spr1435	-	adenine phosphoribosyltransferase
1435	 36.50	0	1419322..1420080	-	252	15903479	-	spr1436	-	hypothetical protein
1436	 41.03	0	1420581..1421711	-	376	15903480	msmK	spr1437	-	sugar ABC transporter, ATP-binding protein
1437	 39.76	0	1422161..1422736	-	191	15903481	entB	spr1438	-	isochorismatase family protein
1438	 40.30	0	1422736..1423524	-	262	15903482	codY	spr1439	-	transcriptional repressor CodY
1439	 43.56	0	1423788..1425362	-	524	15903483	-	spr1440	-	ATP-dependent RNA helicase, putative
1440	 40.59	0	1425561..1426787	-	408	15903484	oxlT	spr1441	-	oxalate:formate antiporter
1441	 41.61	0	1426977..1428293	+	438	15903485	merA	spr1442	-	pyridine nucleotide-disulfide oxidoreductase
1442	 44.27	0	1428392..1429735	+	447	15903486	-	spr1443	-	hypothetical protein
1443	 44.32	0	1429735..1430517	+	260	15903487	cobQ	spr1444	-	hypothetical protein
1444	 43.95	0	1430643..1431725	+	360	15903488	pepQ	spr1445	-	dipeptidase
1445	 37.83	0	1432048..1432536	-	162	15903489	IS861-truncation	spr1446	-	degenerate transposase (orf2)
1446	 34.07	-1	1432598..1432870	-	90	15903490	IS861-truncation	spr1447	-	degenerate transposase (orf2)
1447	 28.57	-2	1433096..1433368	-	90	15903491	IS861-truncation	spr1448	-	degenerate transposase (orf1)
1448	 41.34	0	1433540..1434001	-	153	15903492	-	spr1449	-	hypothetical protein
1449	 42.51	0	1433979..1434752	-	257	15903493	pdxK	spr1450	-	phosphomethylpyrimidine kinase
1450	 43.87	0	1434742..1435491	-	249	15903494	truA	spr1451	-	tRNA pseudouridine synthase A
1451	 29.63	-2	1435671..1435832	+	53	15903495	-	spr1452	-	hypothetical protein
39.86	MEAN

4.53	STD DEV
