IslandPath Analysis: Streptococcus pneumoniae R6

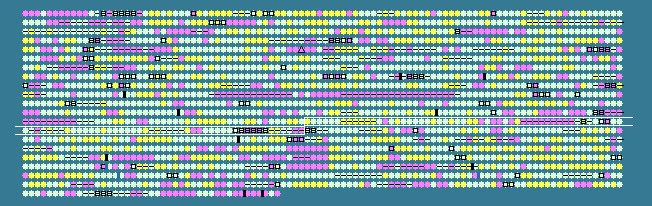

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 39.86   STD DEV: 4.53
Streptococcus pneumoniae R6, complete genome - 1..2038615
2043 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1248	 45.22	+1	1248451..1249182	-	243	15903292	aldB	spr1249	-	alpha-acetolactate decarboxylase
1249	 42.69	0	1249324..1250595	+	423	15903293	-	spr1250	-	hypothetical protein
1250	 39.95	0	1250615..1251430	-	271	15903294	glnH	spr1251	-	amino acid ABC transporter amino acid-binding protein
1251	 42.05	0	1251587..1252240	-	217	15903295	phoU	spr1252	-	phosphate transporter PhoU
1252	 43.21	0	1252252..1253010	-	252	15903296	pstB	spr1253	-	phosphate ABC transporter ATP-binding protein
1253	 41.79	0	1253023..1253826	-	267	15903297	pstB	spr1254	-	phosphate ABC transporter ATP-binding protein
1254	 44.86	+1	1253837..1254721	-	294	15903298	pstA	spr1255	-	phosphate ABC transporter permease
1255	 43.46	0	1254711..1255628	-	305	15903299	pstC	spr1256	-	phosphate ABC transporter permease
1256	 44.03	0	1255628..1256506	-	292	15903300	pstS	spr1257	-	phosphate ABC transporter phosphate-binding protein
1257	 44.44	+1	1257080..1257475	-	131	15903301	-	spr1258	-	hypothetical protein
1258	 46.02	+1	1257581..1258384	-	267	15903302	-	spr1259	-	hypothetical protein
1259	 43.93	0	1258385..1259233	-	282	15903303	-	spr1260	-	inositol monophosphatase family protein
1260	 41.94	0	1259148..1259426	-	92	15903304	-	spr1261	-	hypothetical protein
1261	 36.32	0	1259426..1259827	-	133	15903305	spxA	spr1262	-	transcriptional regulator Spx
1262	 40.25	0	1260037..1260687	-	216	15903306	-	spr1263	-	hypothetical protein
1263	 45.87	+1	1260644..1261417	-	257	15903307	nagD	spr1264	-	N-acetyl-glucosamine matabolism
1264	 41.46	0	1261428..1262165	-	245	15903308	-	spr1265	-	acyl-ACP thioesterase, putative
1265	 42.62	0	1262170..1263300	-	376	15903309	hemN	spr1266	-	coproporphyrinogen III oxidase
1266	 38.46	0	1263384..1263773	-	129	15903310	-	spr1267	-	hypothetical protein
1267	 40.10	0	1263789..1264172	-	127	15903311	-	spr1268	-	hypothetical protein
1268	 41.32	0	1264173..1264973	-	266	15903312	lgt	spr1269	-	prolipoprotein diacylglyceryl transferase
1269	 43.64	0	1264954..1265904	-	316	15903313	hprK	spr1270	-	HPr kinase/phosphorylase
1270	 36.82	0	1266019..1266219	-	66	15903314	rpsU	spr1271	-	30S ribosomal protein S21
1271	 41.77	0	1266335..1267057	-	240	15903315	nagB	spr1272	-	glucosamine-6-phosphate isomerase
1272	 47.36	+1	1267181..1268221	+	346	15903316	queA	spr1273	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1273	 39.74	0	1268770..1269159	-	129	15903317	spsA-truncation	spr1274	-	choline binding protein
1274	 41.49	0	1270613..1271164	-	183	15903318	-	spr1275	-	hypothetical protein
1275	 47.27	+1	1271411..1272235	-	274	15903319	nadE	spr1276	-	NAD synthetase
1276	 46.20	+1	1272232..1273692	-	486	15903320	-	spr1277	-	nicotinate phosphoribosyltransferase
1277	 34.97	-1	1273808..1274296	-	162	15903321	-	spr1278	-	hypothetical protein
1278	 42.08	0	1274286..1274525	-	79	15903322	-	spr1279	-	transcriptional repressor, putative
1279	 29.08	-2	1274880..1275608	-	242	15903323	-	spr1280	-	hypothetical protein
1280	 28.77	-2	1275624..1276346	-	240	15903324	ABC-NBD	spr1281	-	ABC transporter ATP-binding protein
1281	 42.42	0	1276851..1277576	-	241	15903325	-	spr1282	-	hypothetical protein
1282	 31.55	-1	1277743..1277910	+	55	15903326	-	spr1283	-	hypothetical protein
1283	 43.98	0	1278165..1279469	-	434	15903327	-	spr1284	-	protease
1284	 27.87	-2	1280075..1280257	+	60	15903328	spnIR-truncation	spr1285	-	Type II restriction endonuclease, uncharacterized, truncation
1285	 31.25	-1	1280441..1280632	+	63	15903329	spnIR-truncation	spr1286	-	Type II restriction endonuclease, uncharacterized, truncation
1286	 27.40	-2	1280629..1281807	+	392	15903330	spnIM	spr1287	-	type II DNA modification (methyltransferase
1287	 29.10	-2	1282334..1283326	-	330	15903331	-	spr1288	-	hypothetical protein
1288	 31.91	-1	1283480..1285240	+	586	15903332	ABC-N/P	spr1289	-	ABC transporter permease/ATP-binding protein
1289	 31.73	-1	1285200..1286945	+	581	15903333	ABC-N/P	spr1290	-	ABC transporter ATP-binding protein
1290	 32.31	-1	1286956..1287540	+	194	15903334	-	spr1291	-	hypothetical protein
1291	 33.19	-1	1287540..1288235	+	231	15903335	-	spr1292	-	hypothetical protein
1292	 29.60	-2	1288223..1289587	+	454	15903336	ABC-NBD	spr1293	-	ABC transporter ATP-binding protein
1293	 41.99	0	1290375..1290836	-	153	15903337	-	spr1294	-	hypothetical protein
1294	 45.54	+1	1290909..1291121	-	70	15903338	transposase_G	spr1295	-	hypothetical protein
1295	 38.75	0	1291130..1291498	-	122	15903339	-	spr1296	-	hypothetical protein
1296	 39.49	0	1291422..1291616	-	64	15903340	-	spr1297	-	hypothetical protein
1297	 41.60	0	1291786..1292136	-	116	15903341	transposase_E	spr1298	-	degenerate transposase
1298	 33.75	-1	1292117..1292356	-	79	15903342	IS1381-truncation	spr1299	-	degenerate transposase (orf1)
1299	 42.16	0	1292606..1294168	-	520	15903343	guaA	spr1300	-	bifunctional GMP synthase/glutamine amidotransferase protein
1300	 41.53	0	1294301..1295008	+	235	15903344	-	spr1301	-	hypothetical protein
1301	 42.63	0	1295051..1296007	-	318	15903345	-	spr1302	-	hypothetical protein
1302	 40.68	0	1295956..1296894	-	312	15903346	-	spr1303	-	hypothetical protein
1303	 35.63	0	1296891..1297631	-	246	15903347	cppA	spr1304	-	C3-degrading proteinase
1304	 39.31	0	1297700..1298335	-	211	15903348	-	spr1305	-	hypothetical protein
1305	 43.96	0	1298337..1299164	-	275	15903349	-	spr1306	-	Cof family protein
1306	 39.88	0	1299186..1299521	-	111	15903350	-	spr1307	-	hypothetical protein
1307	 39.18	0	1299522..1300034	-	170	15903351	-	spr1308	-	hypothetical protein
1308	 43.98	0	1300224..1300439	+	71	15903352	-	spr1309	-	hypothetical protein
1309	 42.97	0	1300763..1301374	+	203	15903353	def	spr1310	-	peptide deformylase
1310	 42.91	0	1301386..1302147	+	253	15903354	trmH	spr1311	-	tRNA (guanosine-2'-O-)-methyltransferase
1311	 42.43	0	1302186..1303097	-	303	15903355	trxB	spr1312	-	thioredoxin reductase
1312	 38.82	0	1303163..1303399	-	78	15903356	-	spr1313	-	hypothetical protein
1313	 42.07	0	1303465..1304208	-	247	15903357	ABC-NDB	spr1314	-	amino acid ABC transporter ATP-binding protein
1314	 44.32	0	1304208..1305008	-	266	15903358	ABC-MSP	spr1315	-	amino acid ABC transporter permease
1315	 36.69	0	1305166..1305522	-	118	15903359	-	spr1316	-	hypothetical protein
1316	 42.56	0	1305516..1306046	-	176	15903360	ogt	spr1317	-	methylated-DNA--protein-cysteine S-methyltransferase
1317	 42.63	0	1306046..1306540	-	164	15903361	-	spr1318	-	hypothetical protein
1318	 40.40	0	1306669..1307121	+	150	15903362	-	spr1319	-	hypothetical protein
1319	 41.36	0	1307118..1307765	+	215	15903363	-	spr1320	-	hemolysin
1320	 42.27	0	1307786..1308367	-	193	15903364	-	spr1321	-	glutamine amidotransferase subunit PdxT
1321	 44.07	0	1308368..1309261	-	297	15903365	pdx1	spr1322	-	pyridoxine biosynthesis protein
1322	 40.87	0	1309395..1310774	-	459	15903366	nox	spr1323	-	NADH oxidase
1323	 43.94	0	1311068..1311991	+	307	15903367	apbE	spr1324	-	thiamine biosynthesis protein ApbE, putative
1324	 39.60	0	1312051..1312656	+	201	15903368	-	spr1325	-	hypothetical protein
1325	 43.13	0	1312674..1313918	+	414	15903369	-	spr1326	-	oxidoreductase, putative
1326	 40.31	0	1314035..1314292	-	85	15903370	-	spr1327	-	hypothetical protein
1327	 41.92	0	1314334..1316370	-	678	15903371	glyS	spr1328	-	glycyl-tRNA synthetase subunit beta
1328	 43.68	0	1316630..1317547	-	305	15903372	glyQ	spr1329	-	glycyl-tRNA synthetase subunit alpha
1329	 32.56	-1	1317741..1318130	-	129	15903373	-	spr1330	-	hypothetical protein
1330	 36.03	0	1318112..1318519	-	135	15903374	-	spr1331	-	hypothetical protein
1331	 42.59	0	1318774..1319616	-	280	15903375	-	spr1332	-	hypothetical protein
1332	 39.01	0	1319730..1321121	-	463	15903376	pgdA	spr1333	-	peptidoglycan GlcNAc deacetylase
1333	 37.40	0	1321356..1321601	-	81	15903377	-	spr1334	-	hypothetical protein
1334	 41.15	0	1321864..1322925	+	353	15903378	mocA	spr1335	-	oxidoreductase
1335	 40.90	0	1322922..1324004	+	360	15903379	DEAD/H	spr1336	-	DEAD RNA helicase
1336	 38.27	0	1324068..1324229	-	53	15903380	transposase_D	spr1337	-	degenerate transposase
1337	 38.61	0	1324163..1324579	-	138	15903381	transposase_D	spr1338	-	degenerate transposase
1338	 36.20	0	1324655..1325143	-	162	15903382	IS861-truncation	spr1339	-	degenerate transposase (orf2)
1339	 36.31	0	1325119..1325487	-	122	15903383	IS861-truncation	spr1340	-	degenerate transposase (orf2)
1340	 28.89	-2	1325713..1325982	-	89	15903384	IS861-truncation	spr1341	-	degenerate transposase (orf1)
1341	 43.07	0	1325979..1326317	-	112	15903385	transposase_C	spr1342	-	degenerate transposase
1342	 44.28	0	1326964..1328160	-	398	15903386	tuf	spr1343	-	elongation factor Tu
1343	 44.25	0	1329082..1329951	-	289	15903387	glpF	spr1344	-	glycerol uptake facilitator protein, putative
1344	 41.05	0	1330175..1330783	-	202	15903388	-	spr1345	-	cell wall surface anchor family protein
1345	 37.74	0	1330741..1331853	-	370	15903389	-	spr1346	-	hypothetical protein
1346	 36.08	0	1331958..1332212	-	84	15903390	-	spr1347	-	hypothetical protein
1347	 30.45	-2	1332206..1332448	-	80	15903391	-	spr1348	-	hypothetical protein
39.86	MEAN

4.53	STD DEV
