IslandPath Analysis: Streptococcus pneumoniae R6

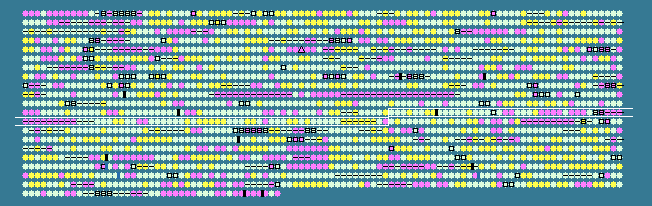

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.86 STD DEV: 4.53
Streptococcus pneumoniae R6, complete genome - 1..2038615
2043 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1162	 39.22	0	1165547..1166107	-	186	15903206	lemA	spr1163	-	cytoplasmic membrane protein
1163	 41.33	0	1166177..1166914	+	245	15903207	gidB	spr1164	-	glucose-inhibited division protein B
1164	 42.88	0	1167230..1168549	+	439	15903208	pyrP	spr1165	-	Uracil permease
1165	 43.64	0	1168744..1170315	-	523	15903209	ffh	spr1166	-	signal recognition particle protein
1166	 39.04	0	1170327..1170659	-	110	15903210	-	spr1167	-	hypothetical protein
1167	 38.10	0	1170750..1171127	-	125	15903211	-	spr1168	-	hypothetical protein
1168	 44.33	0	1171103..1172503	+	466	15903212	-	spr1169	-	hypothetical protein
1169	 45.11	+1	1172516..1173322	+	268	15903213	-	spr1170	-	Cof family protein
1170	 42.53	0	1173490..1173837	-	115	15903214	rplS	spr1171	-	50S ribosomal protein L19
1171	 36.67	0	1173956..1174285	-	109	15903215	crcB	spr1172	-	CrcB protein
1172	 42.67	0	1174279..1174653	-	124	15903216	crcB	spr1173	-	CrcB protein
1173	 37.45	0	1174650..1174916	-	88	15903217	-	spr1174	-	hypothetical protein
1174	 41.89	0	1175032..1175475	-	147	15903218	flaV	spr1175	-	flavodoxin
1175	 44.20	0	1175567..1176514	+	315	15903219	-	spr1176	-	DHH subfamily 1 protein
1176	 41.98	0	1176610..1176852	+	80	15903220	rpmE2	spr1177	-	50S ribosomal protein L31 type B
1177	 39.38	0	1176909..1177487	-	192	15903221	-	spr1178	-	hypothetical protein
1178	 42.79	0	1177462..1178466	-	334	15903222	-	spr1179	-	hypothetical protein
1179	 41.95	0	1178518..1178784	-	88	15903223	transposase_C	spr1180	-	degenerate transposase
1180	 42.91	0	1179472..1180818	+	448	15903224	gdhA	spr1181	-	glutamate dehydrogenase
1181	 29.24	-2	1181314..1181484	-	56	15903225	-	spr1182	-	hypothetical protein
1182	 32.55	-1	1181497..1182138	-	213	15903226	ABC-NBD-truncation	spr1183	-	ABC transporter ATP-binding protein
1183	 38.36	0	1182410..1182847	+	145	15903227	-	spr1184	-	hypothetical protein
1184	 42.16	0	1183138..1183341	-	67	15903228	-	spr1185	-	hypothetical protein
1185	 43.31	0	1183359..1184090	-	243	15903229	npl-truncation	spr1186	-	N-acetylneuraminate lyase subunit, truncation
1186	 44.79	+1	1184181..1184276	-	31	15903230	npl-truncation	spr1187	-	N-acetylneuraminate lyase subunit, truncation
1187	 33.82	-1	1184308..1184715	-	135	15903231	cdd	spr1188	-	cytidine deaminase
1188	 30.67	-2	1185003..1185491	-	162	15903232	-	spr1189	-	hypothetical protein
1189	 34.46	-1	1185496..1186914	-	472	15903233	-	spr1190	-	hypothetical protein
1190	 34.44	-1	1186915..1188897	-	660	15903234	appD	spr1191	-	ABC transporter ATP-binding protein - oligopeptide transport
1191	 36.62	0	1188910..1189761	-	283	15903235	appC	spr1192	-	ABC transporter membrane-spanning permease - oligopeptide transport
1192	 32.73	-1	1189778..1190773	-	331	15903236	appB	spr1193	-	ABC transporter membrane-spanning permease - oligopeptide transport
1193	 30.57	-2	1190838..1192466	-	542	15903237	appA	spr1194	-	ABC transporter substrate-binding protein - oligopeptide transport
1194	 32.47	-1	1192548..1193471	-	307	15903238	-	spr1195	-	hypothetical protein
1195	 43.06	0	1193495..1194193	-	232	15903239	nanE	spr1196	-	N-acetylmannosamine-6-phosphate 2-epimerase
1196	 37.50	0	1194240..1194503	-	87	15903240	IS1381-truncation	spr1197	-	degenerate transposase (orf2)
1197	 36.19	0	1194544..1194648	+	34	15903241	transposase_D	spr1198	-	degenerate transposase
1198	 35.14	-1	1195086..1195307	-	73	15903242	-	spr1199	-	hypothetical protein
1199	 34.44	-1	1195742..1195921	-	59	15903243	-	spr1200	-	hypothetical protein
1200	 28.33	-2	1196371..1197690	-	439	15903244	-	spr1201	-	hypothetical protein
1201	 33.86	-1	1197693..1198451	-	252	15903245	ABC-NDB	spr1202	-	ABC transporter ATP-binding protein
1202	 27.61	-2	1198448..1200055	-	535	15903246	ABC-NP	spr1203	-	drug efflux ABC transporter, ATP-binding/permease protein
1203	 32.46	-1	1200052..1201992	-	646	15903247	ptrB	spr1204	-	prolyl oligopeptidase family protein
1204	 32.50	-1	1202025..1204661	-	878	15903248	-	spr1205	-	hypothetical protein
1205	 34.01	-1	1205152..1205739	-	195	15903249	-	spr1206	-	hypothetical protein
1206	 32.28	-1	1205988..1206368	-	126	15903250	-	spr1207	-	hypothetical protein
1207	 33.33	-1	1206423..1206701	-	92	15903251	-	spr1208	-	hypothetical protein
1208	 35.69	0	1206709..1206963	-	84	15903252	-	spr1209	-	hypothetical protein
1209	 34.27	-1	1206960..1207172	-	70	15903253	-	spr1210	-	hypothetical protein
1210	 40.65	0	1207321..1207689	-	122	161410745	rplL	spr1211	-	50S ribosomal protein L7/L12
1211	 43.11	0	1207765..1208265	-	166	15903255	rplJ	spr1212	-	50S ribosomal protein L10
1212	 39.25	0	1208270..1208455	+	61	15903256	-	spr1213	-	hypothetical protein
1213	 42.98	0	1208515..1209831	-	438	161410744	trzA	spr1214	-	chlorohydrolase
1214	 42.88	0	1210076..1211866	-	596	15903258	ABC-N/P	spr1215	-	ABC transporter permease/ATP-binding protein
1215	 43.19	0	1211829..1213553	-	574	15903259	ABC-N/P	spr1216	-	ABC transporter permease/ATP-binding protein
1216	 43.98	0	1213611..1214549	-	312	15903260	msrA	spr1217	-	bifunctional methionine sulfoxide reductase A/B protein
1217	 45.86	+1	1214845..1215714	-	289	15903261	thrB	spr1218	-	homoserine kinase
1218	 42.58	0	1215716..1217035	-	439	15903262	hom	spr1219	-	homoserine dehydrogenase
1219	 39.97	0	1217153..1217890	-	245	15903263	mecA	spr1220	-	adaptor protein
1220	 32.85	-1	1218032..1219066	-	344	15903264	-	spr1221	-	hypothetical protein
1221	 36.26	0	1219095..1220528	-	477	15903265	-	spr1222	-	hypothetical protein
1222	 36.78	0	1220544..1221530	-	328	15903266	cps23FU	spr1223	-	galactosyl transferase paralog
1223	 36.87	0	1221532..1222689	-	385	15903267	-	spr1224	-	hypothetical protein
1224	 40.66	0	1222625..1223470	-	281	15903268	licD1	spr1225	-	LicD1 paralog
1225	 41.41	0	1223749..1225023	-	424	15903269	-	spr1226	-	hypothetical protein
1226	 42.64	0	1225020..1225868	-	282	15903270	pheA	spr1227	-	prephenate dehydratase
1227	 42.56	0	1225865..1226341	-	158	15903271	aroK	spr1228	-	shikimate kinase
1228	 44.83	+1	1226334..1227629	-	431	15903272	aroA	spr1229	-	3-phosphoshikimate 1-carboxyvinyltransferase
1229	 39.23	0	1227709..1228047	-	112	15903273	-	spr1230	-	hypothetical protein
1230	 44.29	0	1228058..1229161	-	367	15903274	tyrA	spr1231	-	prephenate dehydrogenase
1231	 46.87	+1	1229171..1230337	-	388	15903275	aroC	spr1232	-	chorismate synthase
1232	 44.94	+1	1230347..1231414	-	355	15903276	aroB	spr1233	-	3-dehydroquinate synthase
1233	 43.63	0	1231433..1232287	-	284	15903277	aroE	spr1234	-	shikimate 5-dehydrogenase
1234	 44.10	0	1232277..1232954	-	225	15903278	aroD	spr1235	-	3-dehydroquinate dehydratase
1235	 41.35	0	1232951..1234123	-	390	15903279	-	spr1236	-	hypothetical protein
1236	 38.99	0	1234801..1236462	-	553	15903280	-	spr1237	-	hypothetical protein
1237	 40.89	0	1236416..1237222	-	268	15903281	ABC-NBD	spr1238	-	ABC transporter ATP-binding protein
1238	 45.77	+1	1237343..1238797	+	484	15903282	amy	spr1239	-	cytoplasmic alpha-amylase
1239	 44.60	+1	1238887..1241505	-	872	15903283	alaS	spr1240	-	alanyl-tRNA synthetase
1240	 42.37	0	1241527..1242024	-	165	15903284	-	spr1241	-	hypothetical protein
1241	 30.42	-2	1242287..1242526	-	79	15903285	-	spr1242	-	hypothetical protein
1242	 41.64	0	1242787..1243857	-	356	15903286	potD	spr1243	-	spermidine/putrescine ABC transporter spermidine/putrescine-binding protein
1243	 42.38	0	1243854..1244627	-	257	15903287	potC	spr1244	-	spermidine/putrescine ABC transporter permease
1244	 42.39	0	1244624..1245451	-	275	15903288	potB	spr1245	-	spermidine/putrescine ABC transporter permease
1245	 45.08	+1	1245411..1246568	-	385	15903289	potA	spr1246	-	spermidine/putrescine ABC transporter ATP-binding protein
1246	 45.11	+1	1246627..1247577	-	316	15903290	murB	spr1247	-	UDP-N-acetylenolpyruvoylglucosamine reductase
1247	 41.17	0	1247689..1248441	-	250	15903291	-	spr1248	-	hypothetical protein
1248	 45.22	+1	1248451..1249182	-	243	15903292	aldB	spr1249	-	alpha-acetolactate decarboxylase
1249	 42.69	0	1249324..1250595	+	423	15903293	-	spr1250	-	hypothetical protein
1250	 39.95	0	1250615..1251430	-	271	15903294	glnH	spr1251	-	amino acid ABC transporter amino acid-binding protein
1251	 42.05	0	1251587..1252240	-	217	15903295	phoU	spr1252	-	phosphate transporter PhoU
1252	 43.21	0	1252252..1253010	-	252	15903296	pstB	spr1253	-	phosphate ABC transporter ATP-binding protein
1253	 41.79	0	1253023..1253826	-	267	15903297	pstB	spr1254	-	phosphate ABC transporter ATP-binding protein
1254	 44.86	+1	1253837..1254721	-	294	15903298	pstA	spr1255	-	phosphate ABC transporter permease
1255	 43.46	0	1254711..1255628	-	305	15903299	pstC	spr1256	-	phosphate ABC transporter permease
1256	 44.03	0	1255628..1256506	-	292	15903300	pstS	spr1257	-	phosphate ABC transporter phosphate-binding protein
1257	 44.44	+1	1257080..1257475	-	131	15903301	-	spr1258	-	hypothetical protein
1258	 46.02	+1	1257581..1258384	-	267	15903302	-	spr1259	-	hypothetical protein
1259	 43.93	0	1258385..1259233	-	282	15903303	-	spr1260	-	inositol monophosphatase family protein
1260	 41.94	0	1259148..1259426	-	92	15903304	-	spr1261	-	hypothetical protein
1261	 36.32	0	1259426..1259827	-	133	15903305	spxA	spr1262	-	transcriptional regulator Spx
39.86	MEAN

4.53	STD DEV
