IslandPathversion 1.0

IslandPath Analysis: Streptococcus pneumoniae R6

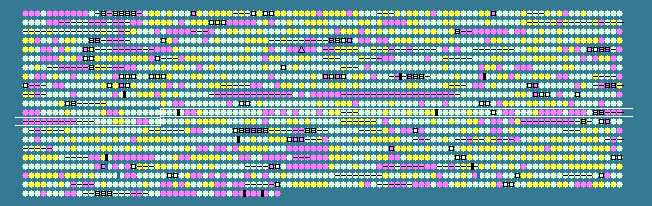

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.86 STD DEV: 4.53
Streptococcus pneumoniae R6, complete genome - 1..2038615
2043 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1124	 39.87	0	1126344..1127138	-	264	15903168	-	spr1125	-	Cof family protein
1125	 43.02	0	1127135..1130674	-	1179	15903169	smc	spr1126	-	chromosome condensation and segregation SMC protein
1126	 40.34	0	1130665..1131363	-	232	15903170	rnc	spr1127	-	ribonuclease III
1127	 42.55	0	1131681..1132667	-	328	15903171	guaC	spr1128	-	guanosine 5'-monophosphate oxidoreductase
1128	 35.49	0	1132842..1134185	-	447	15903172	-	spr1129	-	hypothetical protein
1129	 33.07	-1	1134145..1136079	-	644	15903173	-	spr1130	-	endonuclease, putative
1130	 44.44	+1	1136240..1136410	-	56	15903174	-	spr1131	-	hypothetical protein
1131	 41.38	0	1136391..1136564	-	57	15903175	-	spr1132	-	hypothetical protein
1132	 42.78	0	1137026..1137385	-	119	15903176	leuD-truncation	spr1133	-	3-isopropylmalate dehydratase small subunit, truncation
1133	 37.41	0	1137389..1137658	-	89	15903177	-	spr1134	-	hypothetical protein
1134	 43.16	0	1137655..1138692	-	345	15903178	leuB	spr1135	-	3-isopropylmalate dehydrogenase
1135	 41.84	0	1138704..1139138	-	144	15903179	leuA-truncation	spr1136	-	2-isopropylmalate synthase, truncation
1136	 41.55	0	1139166..1139798	-	210	15903180	leuA-truncation	spr1137	-	2-isopropylmalate synthase, truncation
1137	 39.73	0	1139817..1140473	-	218	15903181	-	spr1138	-	hypothetical protein
1138	 42.97	0	1140517..1141149	-	210	15903182	cutC	spr1139	-	copper homeostasis protein CutC
1139	 39.17	0	1141242..1141601	-	119	15903183	-	spr1140	-	hypothetical protein
1140	 42.50	0	1141707..1143812	-	701	15903184	topA	spr1141	-	DNA topoisomerase I
1141	 34.77	-1	1143961..1145004	-	347	15903185	-	spr1142	-	hypothetical protein
1142	 29.57	-2	1145198..1145383	-	61	15903186	-	spr1143	-	hypothetical protein
1143	 40.88	0	1145894..1146754	-	286	15903187	smf	spr1144	-	DNA processing protein DprA, putative
1144	 36.38	0	1146838..1147527	-	229	15903188	licC	spr1145	-	hypothetical protein
1145	 39.96	0	1147539..1148429	-	296	15903189	licB	spr1146	-	hypothetical protein
1146	 35.06	-1	1148407..1149276	-	289	15903190	pck	spr1147	-	choline kinase
1147	 39.96	0	1149293..1150333	-	346	15903191	-	spr1148	-	zinc-containing alcohol dehydrogenase
1148	 38.84	0	1150320..1151027	-	235	15903192	ispD	spr1149	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
1149	 36.63	0	1151363..1152850	+	495	15903193	-	spr1150	-	polysaccharide biosynthesis protein, putative
1150	 34.08	-1	1152860..1153663	+	267	15903194	licD1	spr1151	-	required for phosphorylcholine incorporation in teichoic and lipoteichoic acids
1151	 37.41	0	1153665..1154474	+	269	15903195	licD2	spr1152	-	licD protein
1152	 44.41	+1	1154749..1157925	-	1058	15903196	carB	spr1153	-	carbamoyl phosphate synthase large subunit
1153	 43.98	0	1158238..1159317	-	359	15903197	carA	spr1154	-	carbamoyl phosphate synthase small subunit
1154	 42.64	0	1159367..1160290	-	307	15903198	pyrB	spr1155	-	aspartate carbamoyltransferase catalytic subunit
1155	 41.38	0	1160309..1160830	-	173	15903199	pyrR	spr1156	-	pyrimidine regulatory protein PyrR
1156	 44.60	+1	1161041..1161670	-	209	15903200	nth	spr1157	-	endonuclease III
1157	 38.49	0	1161670..1162212	-	180	15903201	-	spr1158	-	hypothetical protein
1158	 38.62	0	1162334..1162522	+	62	15903202	-	spr1159	-	hypothetical protein
1159	 38.89	0	1162519..1162698	+	59	15903203	-	spr1160	-	hypothetical protein
1160	 40.01	0	1162971..1164497	+	508	15903204	ABC-NBD	spr1161	-	ABC transporter ATP-binding protein
1161	 44.22	0	1164646..1165554	-	302	15903205	htpX	spr1162	-	heat shock protein HtpX
1162	 39.22	0	1165547..1166107	-	186	15903206	lemA	spr1163	-	cytoplasmic membrane protein
1163	 41.33	0	1166177..1166914	+	245	15903207	gidB	spr1164	-	glucose-inhibited division protein B
1164	 42.88	0	1167230..1168549	+	439	15903208	pyrP	spr1165	-	Uracil permease
1165	 43.64	0	1168744..1170315	-	523	15903209	ffh	spr1166	-	signal recognition particle protein
1166	 39.04	0	1170327..1170659	-	110	15903210	-	spr1167	-	hypothetical protein
1167	 38.10	0	1170750..1171127	-	125	15903211	-	spr1168	-	hypothetical protein
1168	 44.33	0	1171103..1172503	+	466	15903212	-	spr1169	-	hypothetical protein
1169	 45.11	+1	1172516..1173322	+	268	15903213	-	spr1170	-	Cof family protein
1170	 42.53	0	1173490..1173837	-	115	15903214	rplS	spr1171	-	50S ribosomal protein L19
1171	 36.67	0	1173956..1174285	-	109	15903215	crcB	spr1172	-	CrcB protein
1172	 42.67	0	1174279..1174653	-	124	15903216	crcB	spr1173	-	CrcB protein
1173	 37.45	0	1174650..1174916	-	88	15903217	-	spr1174	-	hypothetical protein
1174	 41.89	0	1175032..1175475	-	147	15903218	flaV	spr1175	-	flavodoxin
1175	 44.20	0	1175567..1176514	+	315	15903219	-	spr1176	-	DHH subfamily 1 protein
1176	 41.98	0	1176610..1176852	+	80	15903220	rpmE2	spr1177	-	50S ribosomal protein L31 type B
1177	 39.38	0	1176909..1177487	-	192	15903221	-	spr1178	-	hypothetical protein
1178	 42.79	0	1177462..1178466	-	334	15903222	-	spr1179	-	hypothetical protein
1179	 41.95	0	1178518..1178784	-	88	15903223	transposase_C	spr1180	-	degenerate transposase
1180	 42.91	0	1179472..1180818	+	448	15903224	gdhA	spr1181	-	glutamate dehydrogenase
1181	 29.24	-2	1181314..1181484	-	56	15903225	-	spr1182	-	hypothetical protein
1182	 32.55	-1	1181497..1182138	-	213	15903226	ABC-NBD-truncation	spr1183	-	ABC transporter ATP-binding protein
1183	 38.36	0	1182410..1182847	+	145	15903227	-	spr1184	-	hypothetical protein
1184	 42.16	0	1183138..1183341	-	67	15903228	-	spr1185	-	hypothetical protein
1185	 43.31	0	1183359..1184090	-	243	15903229	npl-truncation	spr1186	-	N-acetylneuraminate lyase subunit, truncation
1186	 44.79	+1	1184181..1184276	-	31	15903230	npl-truncation	spr1187	-	N-acetylneuraminate lyase subunit, truncation
1187	 33.82	-1	1184308..1184715	-	135	15903231	cdd	spr1188	-	cytidine deaminase
1188	 30.67	-2	1185003..1185491	-	162	15903232	-	spr1189	-	hypothetical protein
1189	 34.46	-1	1185496..1186914	-	472	15903233	-	spr1190	-	hypothetical protein
1190	 34.44	-1	1186915..1188897	-	660	15903234	appD	spr1191	-	ABC transporter ATP-binding protein - oligopeptide transport
1191	 36.62	0	1188910..1189761	-	283	15903235	appC	spr1192	-	ABC transporter membrane-spanning permease - oligopeptide transport
1192	 32.73	-1	1189778..1190773	-	331	15903236	appB	spr1193	-	ABC transporter membrane-spanning permease - oligopeptide transport
1193	 30.57	-2	1190838..1192466	-	542	15903237	appA	spr1194	-	ABC transporter substrate-binding protein - oligopeptide transport
1194	 32.47	-1	1192548..1193471	-	307	15903238	-	spr1195	-	hypothetical protein
1195	 43.06	0	1193495..1194193	-	232	15903239	nanE	spr1196	-	N-acetylmannosamine-6-phosphate 2-epimerase
1196	 37.50	0	1194240..1194503	-	87	15903240	IS1381-truncation	spr1197	-	degenerate transposase (orf2)
1197	 36.19	0	1194544..1194648	+	34	15903241	transposase_D	spr1198	-	degenerate transposase
1198	 35.14	-1	1195086..1195307	-	73	15903242	-	spr1199	-	hypothetical protein
1199	 34.44	-1	1195742..1195921	-	59	15903243	-	spr1200	-	hypothetical protein
1200	 28.33	-2	1196371..1197690	-	439	15903244	-	spr1201	-	hypothetical protein
1201	 33.86	-1	1197693..1198451	-	252	15903245	ABC-NDB	spr1202	-	ABC transporter ATP-binding protein
1202	 27.61	-2	1198448..1200055	-	535	15903246	ABC-NP	spr1203	-	drug efflux ABC transporter, ATP-binding/permease protein
1203	 32.46	-1	1200052..1201992	-	646	15903247	ptrB	spr1204	-	prolyl oligopeptidase family protein
1204	 32.50	-1	1202025..1204661	-	878	15903248	-	spr1205	-	hypothetical protein
1205	 34.01	-1	1205152..1205739	-	195	15903249	-	spr1206	-	hypothetical protein
1206	 32.28	-1	1205988..1206368	-	126	15903250	-	spr1207	-	hypothetical protein
1207	 33.33	-1	1206423..1206701	-	92	15903251	-	spr1208	-	hypothetical protein
1208	 35.69	0	1206709..1206963	-	84	15903252	-	spr1209	-	hypothetical protein
1209	 34.27	-1	1206960..1207172	-	70	15903253	-	spr1210	-	hypothetical protein
1210	 40.65	0	1207321..1207689	-	122	161410745	rplL	spr1211	-	50S ribosomal protein L7/L12
1211	 43.11	0	1207765..1208265	-	166	15903255	rplJ	spr1212	-	50S ribosomal protein L10
1212	 39.25	0	1208270..1208455	+	61	15903256	-	spr1213	-	hypothetical protein
1213	 42.98	0	1208515..1209831	-	438	161410744	trzA	spr1214	-	chlorohydrolase
1214	 42.88	0	1210076..1211866	-	596	15903258	ABC-N/P	spr1215	-	ABC transporter permease/ATP-binding protein
1215	 43.19	0	1211829..1213553	-	574	15903259	ABC-N/P	spr1216	-	ABC transporter permease/ATP-binding protein
1216	 43.98	0	1213611..1214549	-	312	15903260	msrA	spr1217	-	bifunctional methionine sulfoxide reductase A/B protein
1217	 45.86	+1	1214845..1215714	-	289	15903261	thrB	spr1218	-	homoserine kinase
1218	 42.58	0	1215716..1217035	-	439	15903262	hom	spr1219	-	homoserine dehydrogenase
1219	 39.97	0	1217153..1217890	-	245	15903263	mecA	spr1220	-	adaptor protein
1220	 32.85	-1	1218032..1219066	-	344	15903264	-	spr1221	-	hypothetical protein
1221	 36.26	0	1219095..1220528	-	477	15903265	-	spr1222	-	hypothetical protein
1222	 36.78	0	1220544..1221530	-	328	15903266	cps23FU	spr1223	-	galactosyl transferase paralog
1223	 36.87	0	1221532..1222689	-	385	15903267	-	spr1224	-	hypothetical protein
39.86	MEAN

4.53	STD DEV
