IslandPath Analysis: Streptococcus pneumoniae R6

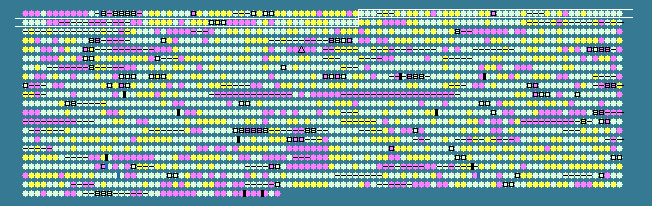

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 39.86   STD DEV: 4.53
Streptococcus pneumoniae R6, complete genome - 1..2038615
2043 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
57	 42.14	0	60528..64466	-	1312	15902101	strH	spr0057	-	beta-N-acetylhexosaminidase
58	 37.15	0	64781..65539	-	252	15902102	-	spr0058	-	hypothetical protein
59	 41.95	0	65845..67632	+	595	15902103	bgaC	spr0059	-	Beta-galactosidase 3
60	 41.09	0	67629..68105	+	158	15902104	PTS-EIIB	spr0060	-	PTS system, IIB component
61	 44.37	0	68133..69038	+	301	15902105	PTS-EIIC	spr0061	-	PTS system, IIC component
62	 40.43	0	69010..69840	+	276	15902106	PTS-EIID	spr0062	-	PTS system, IID component
63	 43.95	0	69847..70251	+	134	15902107	PTS-EII	spr0063	-	PTS system, IIA component
64	 42.25	0	70549..71715	+	388	15902108	agaS	spr0064	-	sugar isomerase domain protein AgaS
65	 45.47	+1	71831..72868	+	345	15902109	galM	spr0065	-	aldose 1-epimerase
66	 44.33	0	73075..73929	+	284	15902110	-	spr0066	-	hypothetical protein
67	 39.53	0	74079..74336	+	85	15902111	-	spr0067	-	hypothetical protein
68	 48.63	+1	75311..76075	+	254	15902112	-	spr0068	-	hypothetical protein
69	 32.08	-1	76547..76705	+	52	15902113	-	spr0069	-	hypothetical protein
70	 41.45	0	76686..78065	+	459	15902114	trkH	spr0070	-	Trk transporter membrane-spanning protein - K+ transport
71	 43.52	0	78058..78744	+	228	15902115	trkA	spr0071	-	Trk transporter NAD+ binding protein - K+ transport
72	 44.63	+1	79054..79593	+	179	15902116	-	spr0072	-	hypothetical protein
73	 44.74	+1	79471..80040	-	189	15902117	-	spr0073	-	hypothetical protein
74	 42.34	0	79660..80070	+	136	15902118	-	spr0074	-	hypothetical protein
75	 42.94	0	80186..83671	+	1161	15902119	-	spr0075	-	cell wall surface anchor family protein
76	 41.77	0	83838..84536	+	232	15902120	rr08	spr0076	-	DNA-binding response regulator
77	 43.97	0	84533..85585	+	350	15902121	hk08	spr0077	-	sensor histidine kinase
78	 43.63	0	85780..86391	+	203	15902122	rpsD	spr0078	-	30S ribosomal protein S4
79	 35.03	-1	86559..86735	+	58	15902123	transposase_A	spr0079	-	degenerative transposase
80	 42.22	0	87044..87313	+	89	15902124	-	spr0080	-	hypothetical protein
81	 40.83	0	87777..88736	+	319	15902125	ABC-MSP	spr0081	-	ABC transporter permease
82	 42.21	0	88750..89673	+	307	15902126	ABC-MSP	spr0082	-	ABC transporter permease
83	 37.61	0	89862..91406	+	514	15902127	ABC-SBP	spr0083	-	ABC transporter substrate-binding protein
84	 44.48	+1	91678..92664	+	328	15902128	-	spr0084	-	hypothetical protein
85	 40.34	0	92633..93646	+	337	15902129	-	spr0085	-	hypothetical protein
86	 40.00	0	93718..94782	-	354	15902130	-	spr0086	-	hypothetical protein
87	 40.60	0	94845..95807	-	320	15902131	-	spr0087	-	hypothetical protein
88	 43.94	0	95749..96342	-	197	15902132	-	spr0088	-	hypothetical protein
89	 42.20	0	96329..96655	-	108	15902133	-	spr0089	-	hypothetical protein
90	 44.82	+1	96794..97960	-	388	15902134	-	spr0090	-	transporter, putative
91	 33.33	-1	98018..99175	+	385	15902135	-	spr0091	-	hypothetical protein
92	 42.19	0	99217..101067	+	616	15902136	capD	spr0092	-	CapD protein, required for the biosynthesis of type 1 capsular polysaccharide
93	 43.13	0	101463..102095	-	210	15902137	gph	spr0093	-	phosphoglycolate phosphatase
94	 48.00	+1	102117..102989	-	290	15902138	sdaA	spr0094	-	L-serine dehydratase, iron-sulfur-dependent, alpha subunit
95	 41.67	0	102998..103669	-	223	15902139	sdaB	spr0095	-	L-serine dehydratase, iron-sulfur-dependent, beta subunit
96	 40.87	0	103911..104414	+	167	15902140	-	spr0096	-	LysM domain protein
97	 38.55	0	104537..104785	-	82	15902141	-	spr0097	-	hypothetical protein
98	 39.36	0	105242..105490	+	82	15902142	-	spr0098	-	bacteriocin, putative
99	 37.89	0	105545..107653	+	702	15902143	ABC-MSP	spr0099	-	ABC transporter membrane-spanning permease - amino acid transport
100	 40.81	0	107650..108291	+	213	15902144	ABC-NBD	spr0100	-	amino acid ABC transporter ATP-binding protein
101	 39.72	0	108506..109303	+	265	15902145	ABC-SBP	spr0101	-	amino acid ABC transporter periplasmic amino acid-binding protein
102	 41.51	0	109269..110516	+	415	15902146	argG	spr0102	-	argininosuccinate synthase
103	 40.95	0	110545..111936	+	463	15902147	argH	spr0103	-	argininosuccinate lyase
104	 37.33	0	112225..113124	-	299	15902148	-	spr0104	-	hypothetical protein
105	 35.47	0	113542..113775	+	77	15902149	Transporter-truncation	spr0105	-	transporter, truncation
106	 33.95	-1	113839..115773	+	644	15902150	Transporter-truncation	spr0106	-	transporter, truncation
107	 29.91	-2	115766..116233	+	155	15902151	-	spr0107	-	hypothetical protein
108	 34.37	-1	116230..117582	+	450	15902152	-	spr0108	-	hypothetical protein
109	 39.63	0	117728..118108	+	126	15902153	-	spr0109	-	hypothetical protein
110	 37.69	0	118611..118931	-	106	15902154	-	spr0110	-	hypothetical protein
111	 40.86	0	119688..120059	+	123	15902155	-	spr0111	-	hypothetical protein
112	 23.47	-2	120067..120279	+	70	15902156	-	spr0112	-	hypothetical protein
113	 29.93	-2	121084..122142	+	352	15902157	-	spr0113	-	hypothetical protein
114	 28.60	-2	122441..123433	+	330	15902158	-	spr0114	-	hypothetical protein
115	 40.27	0	123810..124184	+	124	15902159	-	spr0115	-	hypothetical protein
116	 21.31	-2	124191..124373	+	60	15902160	-	spr0116	-	hypothetical protein
117	 29.90	-2	124392..125294	+	300	15902161	-	spr0117	-	hypothetical protein
118	 38.50	0	125317..125703	+	128	15902162	-	spr0118	-	hypothetical protein
119	 27.01	-2	125670..126428	+	252	15902163	-	spr0119	-	hypothetical protein
120	 30.33	-2	127503..127802	+	99	15902164	-	spr0120	-	hypothetical protein
121	 42.58	0	128356..130215	+	619	15902165	pspA	spr0121	-	surface protein pspA precursor
122	 47.96	+1	130562..131737	+	391	15902166	trmU	spr0122	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
123	 44.10	0	131851..132333	+	160	15902167	-	spr0123	-	MutT/nudix family protein
124	 46.34	+1	132343..134256	+	637	15902168	gidA	spr0124	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
125	 46.32	+1	134636..136468	-	610	15902169	-	spr0125	-	hypothetical protein
126	 43.16	0	136317..136550	-	77	15902170	-	spr0126	-	hypothetical protein
127	 35.29	-1	137368..137520	-	50	15902171	orf51	spr0127	-	hypothetical protein
128	 38.17	0	137522..137707	-	61	15902172	-	spr0128	-	hypothetical protein
129	 45.47	+1	137885..138568	+	227	15902173	-	spr0129	-	hypothetical protein
130	 45.89	+1	138565..139002	+	145	15902174	rimI	spr0130	-	ribosomal protein alanine acetyltransferase
131	 48.27	+1	138992..140002	+	336	15902175	gcp	spr0131	-	O-sialoglycoprotein endopeptidase
132	 38.24	0	140042..140428	-	128	15902176	IS1167-truncation	spr0132	-	degenerate transposase (orf2)
133	 46.56	+1	140419..140970	-	183	15902177	IS1167-truncation	spr0133	-	degenerate transposase (orf2)
134	 37.83	0	142041..142307	-	88	15902178	transposase_A	spr0134	-	degenerative transposase
135	 29.55	-2	142595..143809	+	404	15902179	epsG	spr0135	-	glycosyltransferase involved exopolysaccharide (EPS) synthesis
136	 27.36	-2	143802..144755	+	317	15902180	glycosyltransferase	spr0136	-	glycosyl transferase family protein
137	 30.30	-2	144765..146381	+	538	15902181	ABC-NP	spr0137	-	ABC transporter ATP-binding protein
138	 30.95	-1	147164..147919	+	251	15902182	-	spr0138	-	hypothetical protein
139	 29.16	-2	147932..149104	+	390	15902183	ugd	spr0139	-	UDP-glucose dehydrogenase
140	 39.35	0	149499..150362	+	287	15902184	mutR	spr0140	-	transcriptional regulator
141	 44.02	0	150653..150886	+	77	15902185	-	spr0141	-	hypothetical protein
142	 35.99	0	150908..151585	+	225	15902186	-	spr0142	-	hypothetical protein
143	 37.39	0	151597..152262	+	221	15902187	-	spr0143	-	hypothetical protein
144	 37.48	0	152331..153560	+	409	15902188	-	spr0144	-	hypothetical protein
145	 44.89	+1	153770..154366	+	198	15902189	-	spr0145	-	hypothetical protein
146	 40.79	0	154470..155300	+	276	15902190	ABC-SBP	spr0146	-	ABC transporter substrate-binding protein - amino acid transport
147	 40.47	0	155454..156308	+	284	15902191	ABC-SBP	spr0147	-	lipoprotein
148	 46.22	+1	156408..157781	+	457	15902192	dapE	spr0148	-	hypothetical protein
149	 43.69	0	157774..158835	+	353	15902193	ABC-NBD	spr0149	-	ABC transporter ATP-binding protein
150	 45.31	+1	158837..159529	+	230	15902194	ABC-MSD	spr0150	-	ABC transporter permease
151	 44.21	0	159559..160128	-	189	15902195	-	spr0151	-	hypothetical protein
152	 39.02	0	160263..160877	+	204	15902196	-	spr0152	-	hypothetical protein
153	 40.95	0	161830..162525	+	231	15902197	hk07	spr0153	-	histidine kinase
154	 40.79	0	162537..163823	+	428	15902198	rr07	spr0154	-	DNA-binding response regulator
155	 38.49	0	163827..164408	+	193	15902199	-	spr0155	-	hypothetical protein
156	 39.47	0	164354..164956	+	200	15902200	-	spr0156	-	hypothetical protein
39.86	MEAN

4.53	STD DEV
