IslandPath Analysis: Staphylothermus marinus F1

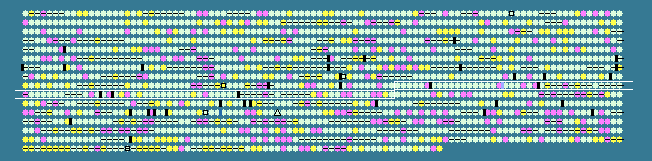

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.91 STD DEV: 3.41
Staphylothermus marinus F1, complete genome - 1..1570485
1570 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
863	 34.60	0	858808..859596	-	262	126465776	-	Smar_0877	-	tRNA (adenine-57, 58-N(1)-) methyltransferase
864	 35.67	0	859736..860206	+	156	126465777	-	Smar_0878	-	hypothetical protein
865	 32.77	0	860213..860389	-	58	126465778	-	Smar_0879	-	CopG/Arc/MetJ family transcriptional regulator
866	 32.46	-1	860444..861127	-	227	126465779	-	Smar_0880	-	tRNA-binding domain-containing protein
867	 33.61	0	861170..862621	-	483	126465780	-	Smar_0881	-	glycosyl transferase family protein
868	 30.93	-1	862758..864128	+	456	126465781	-	Smar_0882	-	hypothetical protein
869	 37.41	0	864320..865300	+	326	126465782	-	Smar_0883	-	hypothetical protein
870	 35.39	0	865320..866387	+	355	126465783	-	Smar_0884	-	L-threonine synthase
871	 35.59	0	866748..867812	-	354	126465784	-	Smar_0885	-	peptidase M50
872	 36.39	0	867917..868636	+	239	126465785	-	Smar_0886	-	DNA polymerase beta subunit
873	 34.45	0	868633..869703	-	356	126465786	-	Smar_0887	-	cell division protein pelota
874	 36.49	0	869780..872185	+	801	126465787	-	Smar_0888	-	DNA polymerase II
875	 36.94	0	872194..873468	-	424	126465788	-	Smar_0889	-	DNA primase
876	 36.46	0	873845..874933	-	362	126465789	-	Smar_0890	-	tyrosyl-tRNA synthetase
877	 38.72	0	875355..876041	-	228	126465790	-	Smar_0891	-	beta-lactamase domain-containing protein
878	 37.64	0	876286..877191	+	301	126465791	-	Smar_0892	-	methionine aminopeptidase
879	 37.61	0	877285..878382	+	365	126465792	-	Smar_0893	-	hypothetical protein
880	 31.50	-1	878379..878651	+	90	126465793	-	Smar_0894	-	hypothetical protein
881	 33.00	0	879048..879350	-	100	126465794	-	Smar_0895	-	hypothetical protein
882	 34.08	0	879366..879632	-	88	126465795	-	Smar_0896	-	hypothetical protein
883	 35.92	0	879722..880030	+	102	126465796	-	Smar_0897	-	hypothetical protein
884	 30.65	-1	880068..880328	+	86	126465797	-	Smar_0898	-	hypothetical protein
885	 35.60	0	880343..881752	+	469	126465798	-	Smar_0899	-	pyruvate kinase
886	 30.35	-1	881835..883343	+	502	126465799	-	Smar_0900	-	hypothetical protein
887	 38.32	0	883545..884246	-	233	126465800	-	Smar_0901	-	triosephosphate isomerase
888	 41.86	+1	884310..885482	-	390	126465801	-	Smar_0902	-	D-fructose 1,6-bisphosphatase
889	 37.76	0	885647..887452	-	601	126465802	-	Smar_0903	-	putative ATPase RIL
890	 39.24	0	887627..887914	-	95	126465803	-	Smar_0904	-	DNA-directed RNA polymerase, subunit M
891	 27.85	-2	888202..888693	-	163	126465804	-	Smar_0905	-	hypothetical protein
892	 32.85	0	888758..888964	-	68	126465805	rps17E	Smar_0906	-	30S ribosomal protein S17e
893	 40.77	+1	889149..890789	+	546	126465806	-	Smar_0907	-	thermosome subunit
894	 34.97	0	892298..892663	-	121	126465807	-	Smar_0909	-	hypothetical protein
895	 36.22	0	892759..893208	+	149	126465808	-	Smar_0910	-	like-Sm ribonucleoprotein, core
896	 34.05	0	893215..894753	+	512	126465809	-	Smar_0911	-	7-cyano-7-deazaguanine tRNA-ribosyltransferase
897	 37.72	0	894716..895468	-	250	126465810	-	Smar_0912	-	hypothetical protein
898	 36.83	0	895473..895958	-	161	126465811	-	Smar_0913	-	PUA domain-containing protein
899	 36.89	0	896050..897258	-	402	126465812	-	Smar_0914	-	proteasome-activating nucleotidase
900	 38.24	0	897362..897871	+	169	126465813	-	Smar_0915	-	XRE family transcriptional regulator
901	 32.34	-1	897897..899003	+	368	126465814	-	Smar_0916	-	small GTP-binding protein
902	 38.15	0	898957..899517	+	186	126465815	-	Smar_0917	-	hypothetical protein
903	 34.39	0	899567..900037	+	156	126465816	-	Smar_0918	-	transcription factor IIE (TFIIE), alpha subunit
904	 36.63	0	900040..901011	+	323	126465817	-	Smar_0919	-	DNA-cytosine methyltransferase
905	 35.39	0	901014..901451	+	145	126465818	-	Smar_0920	-	hypothetical protein
906	 36.46	0	901432..902391	-	319	126465819	-	Smar_0921	-	aldo/keto reductase
907	 36.00	0	902580..903593	-	337	126465820	-	Smar_0922	-	phosphate uptake regulator, PhoU
908	 38.57	0	903769..904914	+	381	126465821	-	Smar_0923	-	phosphate ABC transporter, periplasmic phosphate-binding protein
909	 33.12	0	904931..905872	+	313	126465822	-	Smar_0924	-	phosphate ABC transporter, inner membrane subunit PstC
910	 35.68	0	905859..906710	+	283	126465823	-	Smar_0925	-	phosphate ABC transporter, inner membrane subunit PstA
911	 36.12	0	906707..907459	+	250	126465824	-	Smar_0926	-	ABC transporter related
912	 29.19	-1	907461..908087	+	208	126465825	-	Smar_0927	-	phosphate uptake regulator, PhoU
913	 39.02	0	908208..909209	+	333	126465826	-	Smar_0928	-	thioredoxin reductase (NADPH)
914	 37.86	0	909720..910979	-	419	126465827	-	Smar_0929	-	adenosylhomocysteinase
915	 32.35	-1	911059..911568	+	169	126465828	-	Smar_0930	-	hypothetical protein
916	 37.75	0	911934..912590	-	218	126465829	-	Smar_0931	-	endonuclease V
917	 40.65	+1	912590..913231	-	213	126465830	-	Smar_0932	-	20S proteasome, A and B subunits
918	 31.33	-1	913443..914042	+	199	126465831	-	Smar_0933	-	zinc finger TFIIB-type domain-containing protein
919	 32.49	-1	914185..915249	+	354	126465832	-	Smar_0934	-	small GTP-binding protein
920	 41.39	+1	915218..916297	-	359	126465833	-	Smar_0935	-	RNA 3'-terminal phosphate cyclase
921	 37.69	0	916272..916799	-	175	126465834	-	Smar_0936	-	nicotinamide-nucleotide adenylyltransferase
922	 38.59	0	916849..918807	-	652	126465835	-	Smar_0937	-	beta-lactamase domain-containing protein
923	 38.60	0	919086..919712	-	208	126465836	-	Smar_0938	-	20S proteasome, A and B subunits
924	 38.48	0	919827..920894	+	355	126465837	-	Smar_0939	-	3-dehydroquinate synthase
925	 38.43	0	920907..921710	-	267	126465838	-	Smar_0940	-	peptidylprolyl isomerase, FKBP-type
926	 33.98	0	922082..922390	+	102	126465839	-	Smar_0941	-	hypothetical protein
927	 38.89	0	922385..922870	-	161	126465840	-	Smar_0942	-	RNA-binding protein
928	 37.72	0	923035..923262	+	75	126465841	-	Smar_0943	-	LSM family small nuclear ribonucleoprotein
929	 40.21	+1	923303..923491	+	62	126465842	rpl37e	Smar_0944	-	50S ribosomal protein L37e
930	 33.14	0	923506..925035	-	509	126465843	-	Smar_0945	-	hypothetical protein
931	 30.94	-1	925090..926637	-	515	126465844	-	Smar_0946	-	type I phosphodiesterase/nucleotide pyrophosphatase
932	 33.16	0	926977..928101	+	374	126465845	-	Smar_0947	-	glycosyl transferase, group 1
933	 35.83	0	928208..929767	+	519	126465846	-	Smar_0948	-	type I phosphodiesterase/nucleotide pyrophosphatase
934	 32.46	-1	929772..930911	-	379	126465847	-	Smar_0949	-	glycosyl transferase, group 1
935	 32.83	0	930915..931913	-	332	126465848	-	Smar_0950	-	hypothetical protein
936	 38.30	0	932153..932776	+	207	126465849	-	Smar_0951	-	nitroreductase
937	 32.93	0	933108..933842	+	244	126465850	-	Smar_0952	-	hypothetical protein
938	 35.26	0	933844..934725	+	293	126465851	-	Smar_0953	-	MscS mechanosensitive ion channel
939	 38.89	0	934749..935000	-	83	126465852	-	Smar_0954	-	AsnC family transcriptional regulator
940	 34.86	0	935049..935636	+	195	126465853	-	Smar_0955	-	hypothetical protein
941	 28.66	-2	935712..936032	+	106	126465854	-	Smar_0956	-	hypothetical protein
942	 32.52	0	937298..937786	-	162	126465855	-	Smar_0957	-	hypothetical protein
943	 37.71	0	937868..938644	-	258	126465856	-	Smar_0958	-	hypothetical protein
944	 36.98	0	938687..939097	-	136	126465857	-	Smar_0959	-	hypothetical protein
945	 32.72	0	939224..940033	-	269	126465858	-	Smar_0960	-	phosphoribosyltransferase
946	 36.34	0	940184..940615	+	143	126465859	-	Smar_0961	-	hypothetical protein
947	 36.31	0	940638..942284	+	548	126465860	-	Smar_0962	-	DNA repair helicase RAD25
948	 32.75	0	942296..942976	-	226	126465861	-	Smar_0963	-	hypothetical protein
949	 42.08	+1	943055..943420	+	121	126465862	-	Smar_0964	-	hypothetical protein
950	 31.07	-1	943432..943740	+	102	126465863	-	Smar_0965	-	hypothetical protein
951	 41.41	+1	943808..944104	-	98	126465864	-	Smar_0966	-	chromatin protein
952	 34.53	0	944265..947927	+	1220	126465865	-	Smar_0967	-	DNA topoisomerase type IA central domain-containing protein
953	 32.96	0	947924..948193	-	89	126465866	-	Smar_0968	-	Alba, DNA/RNA-binding protein
954	 31.46	-1	948630..948896	-	88	126465867	-	Smar_0969	-	hypothetical protein
955	 32.26	-1	948974..949627	-	217	126465868	-	Smar_0970	-	hypothetical protein
956	 32.51	0	949791..950519	+	242	126465869	-	Smar_0971	-	membrane protein-like protein
957	 36.90	0	950491..950742	+	83	126465870	-	Smar_0972	-	hypothetical protein
958	 36.85	0	951116..951598	-	160	126465871	-	Smar_0973	-	histidine triad (HIT) protein
959	 28.27	-2	951602..951976	-	124	126465872	-	Smar_0974	-	hypothetical protein
960	 30.10	-1	951987..952790	+	267	126465873	-	Smar_0975	-	peptidase A24A, prepilin type IV
961	 40.94	+1	952808..953767	-	319	126465874	radA	Smar_0976	-	DNA repair and recombination protein RadA
962	 37.32	0	953922..954347	+	141	126465875	-	Smar_0977	-	hypothetical protein
35.91	MEAN

3.41	STD DEV
