IslandPath Analysis: Staphylothermus marinus F1

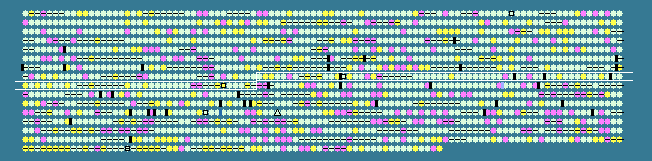

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.91   STD DEV: 3.41
Staphylothermus marinus F1, complete genome - 1..1570485
1570 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
740	 32.97	0	754176..754454	-	92	126465653	-	Smar_0753	-	hypothetical protein
741	 42.63	+1	754496..755065	-	189	126465654	-	Smar_0754	-	hypothetical protein
742	 41.21	+1	755226..755555	+	109	126465655	-	Smar_0755	-	hypothetical protein
743	 32.58	0	755579..756244	+	221	126465656	-	Smar_0756	-	hypothetical protein
744	 36.87	0	756237..756689	+	150	126465657	-	Smar_0757	-	hypothetical protein
745	 32.32	-1	756710..757102	+	130	126465658	-	Smar_0758	-	PadR family transcriptional regulator
746	 34.87	0	757107..757628	+	173	126465659	-	Smar_0759	-	hypothetical protein
747	 35.42	0	757817..758248	+	143	126465660	-	Smar_0760	-	DNA polymerase beta subunit
748	 39.97	+1	759298..761016	+	572	126465661	-	Smar_0761	-	N-6 DNA methylase
749	 34.77	0	761024..762415	+	463	126465662	-	Smar_0762	-	restriction modification system DNA specificity subunit
750	 41.30	+1	762399..765461	+	1020	126465663	-	Smar_0763	-	HsdR family type I site-specific deoxyribonuclease
751	 34.77	0	765445..766002	+	185	126465664	-	Smar_0764	-	hypothetical protein
752	 37.35	0	766150..766398	+	82	126465665	-	Smar_0765	-	hypothetical protein
753	 39.76	+1	766738..767157	+	139	126465666	-	Smar_0766	-	Ferritin, Dps family protein
754	 37.00	0	767892..769118	+	408	126465667	-	Smar_0767	-	IS605 family transposase OrfB
755	 40.63	+1	769389..769799	+	136	126465668	-	Smar_0768	-	HEPN domain-containing protein
756	 34.57	0	769783..770187	+	134	126465669	-	Smar_0769	-	DNA polymerase beta subunit
757	 36.87	0	770330..771205	-	291	126465670	-	Smar_0770	-	hypothetical protein
758	 31.86	-1	772067..772405	+	112	126465671	-	Smar_0771	-	hypothetical protein
759	 41.40	+1	772516..773841	+	441	126465672	-	Smar_0772	-	signal recognition particle subunit FFH/SRP54 (srp54)
760	 31.77	-1	773838..774413	+	191	126465673	-	Smar_0773	-	hypothetical protein
761	 35.76	0	774415..775692	+	425	126465674	-	Smar_0774	-	hypothetical protein
762	 36.00	0	775816..776115	+	99	126465675	-	Smar_0775	-	50S ribosomal protein L21e
763	 34.71	0	776165..776527	+	120	126465676	-	Smar_0776	-	DNA-directed RNA polymerase, subunit F
764	 37.85	0	776652..777293	+	213	126465677	-	Smar_0777	-	hypothetical protein
765	 34.57	0	777327..778133	+	268	126465678	-	Smar_0778	-	dimethyladenosine transferase
766	 32.62	0	778181..778741	+	186	126465679	-	Smar_0779	-	methyltransferase small
767	 37.93	0	778726..779421	+	231	126465680	-	Smar_0780	-	RNA methyltransferase
768	 33.19	0	779427..780101	-	224	126465681	-	Smar_0781	-	uridylate kinase, putative
769	 36.70	0	780219..782057	+	612	126465682	-	Smar_0782	-	D-fructose-6-phosphate amidotransferase
770	 32.84	0	782123..783340	+	405	126465683	-	Smar_0783	-	nucleotidyl transferase
771	 35.22	0	784165..785013	-	282	126465684	-	Smar_0784	-	MscS mechanosensitive ion channel
772	 39.72	+1	785014..785154	-	46	126465685	-	Smar_0785	-	hypothetical protein
773	 36.08	0	785264..785737	-	157	126465686	-	Smar_0786	-	hypothetical protein
774	 33.80	0	785859..786074	+	71	126465687	-	Smar_0787	-	thiamineS protein
775	 34.81	0	786094..786363	+	89	126465688	-	Smar_0788	-	thiamineS protein
776	 35.49	0	786370..787110	-	246	126465689	-	Smar_0789	-	UBA/THIF-type NAD/FAD binding protein
777	 38.08	0	787168..787968	-	266	126465690	-	Smar_0790	-	GTP-binding protein YlqF
778	 34.36	0	787971..788555	-	194	126465691	-	Smar_0791	-	hypothetical protein
779	 36.75	0	788616..789638	+	340	126465692	-	Smar_0792	-	hypothetical protein
780	 33.25	0	789655..790911	-	418	126465693	-	Smar_0793	-	phosphoadenosine phosphosulfate reductase
781	 30.82	-1	791076..791393	+	105	126465694	-	Smar_0794	-	hypothetical protein
782	 36.52	0	791515..793209	+	564	126465695	-	Smar_0795	-	radical SAM domain-containing protein
783	 33.16	0	793605..794180	-	191	126465696	-	Smar_0796	-	hypothetical protein
784	 37.99	0	794177..795358	-	393	126465697	-	Smar_0797	-	ORC complex protein Cdc6/Orc1
785	 30.34	-1	795497..796165	+	222	126465698	-	Smar_0798	-	HAD family hydrolase
786	 35.81	0	796181..797107	+	308	126465699	-	Smar_0799	-	hypothetical protein
787	 35.93	0	797095..798210	+	371	126465700	-	Smar_0800	-	O-succinylbenzoate synthase
788	 39.13	0	798567..798842	+	91	126465701	rpoH	Smar_0801	-	DNA-directed RNA polymerase subunit H
789	 39.35	+1	798850..802320	+	1156	126465702	-	Smar_0802	-	DNA-directed RNA polymerase subunit beta
790	 39.87	+1	802334..804994	+	886	126465703	-	Smar_0803	-	DNA-directed RNA polymerase subunit alpha
791	 36.65	0	804991..806256	+	421	126465704	-	Smar_0804	-	DNA-directed RNA polymerase, subunit A"
792	 37.04	0	806264..806587	+	107	126465705	-	Smar_0805	-	50S ribosomal protein L30E
793	 37.09	0	806584..807036	+	150	126465706	-	Smar_0806	-	NusA family protein
794	 39.41	+1	807116..807559	+	147	126465707	rps12P	Smar_0807	-	30S ribosomal protein S12P
795	 32.76	0	807596..808120	-	174	126465708	-	Smar_0808	-	hypothetical protein
796	 37.21	0	808288..808881	+	197	126465709	-	Smar_0809	-	30S ribosomal protein S7P
797	 42.29	+1	809084..810400	+	438	126465710	-	Smar_0810	-	elongation factor 1-alpha
798	 36.54	0	810508..810819	+	103	126465711	-	Smar_0811	-	SSU ribosomal protein S10P
799	 37.28	0	811335..811790	+	151	126465712	rps13p	Smar_0812	-	30S ribosomal protein S13P
800	 38.86	0	811804..812310	+	168	126465713	rps4p	Smar_0813	-	30S ribosomal protein S4
801	 47.01	+2	812340..812741	+	133	126465714	rps11p	Smar_0814	-	30S ribosomal protein S11P
802	 34.28	0	812772..813614	+	280	126465715	-	Smar_0815	-	DNA-directed RNA polymerase, subunit D
803	 39.67	+1	813611..813973	+	120	126465716	-	Smar_0816	-	50S ribosomal protein L18AE
804	 38.19	0	813979..814431	+	150	126465717	-	Smar_0817	-	50S ribosomal protein L13P
805	 42.51	+1	814428..814841	+	137	126465718	rps9p	Smar_0818	-	30S ribosomal protein S9P
806	 34.83	0	814863..815063	+	66	126465719	-	Smar_0819	-	DNA-directed RNA polymerase subunit N
807	 37.86	0	815086..815748	+	220	126465720	rps2P	Smar_0820	-	30S ribosomal protein S2
808	 39.89	+1	815757..816626	+	289	126465721	-	Smar_0821	-	hypothetical protein
809	 34.93	0	816716..817840	+	374	126465722	-	Smar_0822	-	isopentenyl pyrophosphate isomerase
810	 32.95	0	817843..818361	+	172	126465723	-	Smar_0823	-	hypothetical protein
811	 35.27	0	818381..820081	+	566	126465724	-	Smar_0824	-	glutamyl-tRNA synthetase
812	 41.09	+1	820158..820544	+	128	126465725	rpl7ae	Smar_0825	-	50S ribosomal protein L7Ae
813	 37.78	0	820690..820959	-	89	126465726	rps28e	Smar_0826	-	30S ribosomal protein S28e
814	 35.98	0	821146..821334	+	62	126465727	-	Smar_0827	-	50S ribosomal protein L24E
815	 37.09	0	821356..821781	+	141	126465728	-	Smar_0828	-	nucleoside diphosphate kinase
816	 37.89	0	821792..823612	-	606	126465729	-	Smar_0829	-	translation initiation factor IF-2
817	 36.71	0	823915..824565	+	216	126465730	-	Smar_0830	-	30S ribosomal protein S6e
818	 41.87	+1	824649..825902	+	417	126465731	-	Smar_0831	-	translation initiation factor IF-2 subunit gamma
819	 33.09	0	825922..826332	+	136	126465732	-	Smar_0832	-	SSU processome protein Utp24
820	 36.38	0	826446..827003	+	185	126465733	-	Smar_0833	-	DNA-directed RNA polymerase subunit E'
821	 39.61	+1	827009..827215	+	68	126465734	-	Smar_0834	-	DNA-directed RNA polymerase, subunit E''
822	 32.71	0	827225..827707	+	160	126465735	-	Smar_0835	-	hypothetical protein
823	 36.41	0	827754..828110	+	118	126465736	-	Smar_0836	-	SSU ribosomal protein S24E
824	 38.79	0	828116..828280	+	54	126465737	-	Smar_0837	-	ribosomal protein S27a
825	 38.94	0	828374..829390	+	338	126465738	-	Smar_0838	-	metalloendopeptidase glycoprotease family
826	 32.75	0	829375..830055	+	226	126465739	-	Smar_0839	-	Mn2+-dependent serine/threonine protein kinase
827	 33.16	0	830048..830629	+	193	126465740	-	Smar_0840	-	RdgB/HAM1 family non-canonical purine NTP pyrophosphatase
828	 39.14	0	830697..831161	+	154	126465741	rps15p	Smar_0841	-	30S ribosomal protein S15P
829	 30.34	-1	831238..832407	+	389	126465742	-	Smar_0842	-	hypothetical protein
830	 29.59	-1	832385..832651	+	88	126465743	-	Smar_0843	-	hypothetical protein
831	 34.74	0	832711..833349	+	212	126465744	-	Smar_0844	-	30S ribosomal protein S3Ae
832	 33.54	0	833556..834044	+	162	126465745	-	Smar_0845	-	THUMP domain-containing protein
833	 41.67	+1	834041..834208	+	55	126465746	-	Smar_0846	-	hypothetical protein
834	 42.81	+2	834223..835488	+	421	126465747	-	Smar_0847	-	IS605 family transposase OrfB
835	 36.22	0	836037..837317	+	426	126465748	-	Smar_0849	-	nucleotidyl transferase
836	 36.24	0	837363..837740	+	125	126465749	-	Smar_0850	-	hypothetical protein
837	 38.37	0	837709..838938	-	409	126465750	-	Smar_0851	-	translation-associated GTPase
838	 40.72	+1	839081..839743	+	220	126465751	-	Smar_0852	-	50S ribosomal protein L15e
839	 33.33	0	839749..840192	+	147	126465752	-	Smar_0853	-	hypothetical protein
35.91	MEAN

3.41	STD DEV
