IslandPath Analysis: Staphylothermus marinus F1

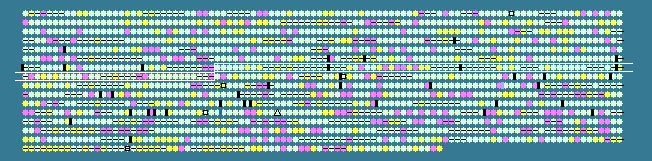

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.91 STD DEV: 3.41
Staphylothermus marinus F1, complete genome - 1..1570485
1570 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
633	 33.83	0	652917..653321	-	134	126465546	-	Smar_0641	-	hypothetical protein
634	 34.26	0	653462..655516	+	684	126465547	-	Smar_0642	-	hypothetical protein
635	 37.06	0	655544..656347	+	267	126465548	-	Smar_0643	-	translation initiation factor IF-2 subunit alpha
636	 36.82	0	656344..656544	+	66	126465549	-	Smar_0644	-	nucleolar RNA-binding protein Nop10p
637	 36.27	0	656688..658286	+	532	126465550	-	Smar_0645	-	putative monovalent cation/H+ antiporter subunit D
638	 42.78	+2	658292..658831	+	179	126465551	-	Smar_0646	-	NADH-quinone oxidoreductase, B subunit
639	 37.84	0	658834..659388	+	184	126465552	-	Smar_0647	-	NADH dehydrogenase (ubiquinone), 30 kDa subunit
640	 41.40	+1	659385..660512	+	375	126465553	-	Smar_0648	-	membrane bound protein complex subunit mbxL
641	 38.31	0	660518..660979	+	153	126465554	-	Smar_0649	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
642	 36.73	0	660991..661284	+	97	126465555	-	Smar_0650	-	multiple resistance and pH regulation protein F
643	 40.66	+1	661287..661682	+	131	126465556	-	Smar_0651	-	monovalent cation/proton antiporter, MnhG/PhaG subunit
644	 37.33	0	661679..661978	+	99	126465557	-	Smar_0652	-	hypothetical protein
645	 39.55	+1	661978..662814	+	278	126465558	-	Smar_0653	-	Na+/H+ antiporter MnhB subunit-related protein
646	 38.97	0	662811..663236	+	141	126465559	-	Smar_0654	-	membrane bound protein complex subunit mbxG
647	 34.72	0	663229..663732	+	167	126465560	-	Smar_0655	-	membrane bound hydrogenase subunit mbhA
648	 37.32	0	663747..664097	+	116	126465561	-	Smar_0656	-	hypothetical protein
649	 36.86	0	664104..665096	+	330	126465562	-	Smar_0657	-	respiratory-chain NADH dehydrogenase, subunit 1
650	 35.31	0	665154..666470	-	438	126465563	-	Smar_0658	-	citrate transporter
651	 38.21	0	666481..667773	-	430	126465564	-	Smar_0659	-	sodium/hydrogen exchanger
652	 37.47	0	668624..669349	-	241	126465565	-	Smar_0660	-	hypothetical protein
653	 38.01	0	669711..670202	+	163	126465566	-	Smar_0661	-	ACR3 family arsenite efflux pump
654	 34.21	0	670398..670739	+	113	126465567	-	Smar_0662	-	hypothetical protein
655	 40.83	+1	670849..672369	-	506	126465568	-	Smar_0663	-	radical SAM domain-containing protein
656	 38.11	0	672369..673793	-	474	126465569	-	Smar_0664	-	radical SAM domain-containing protein
657	 31.40	-1	673916..674845	-	309	126465570	-	Smar_0665	-	hypothetical protein
658	 36.17	0	674976..675257	-	93	126465571	-	Smar_0666	-	MoaD family protein
659	 35.64	0	675254..676378	-	374	126465572	-	Smar_0667	-	radical SAM domain-containing protein
660	 44.27	+2	676581..678473	+	630	126465573	-	Smar_0668	-	aldehyde ferredoxin oxidoreductase
661	 31.09	-1	678610..679011	+	133	126465574	-	Smar_0669	-	hypothetical protein
662	 40.32	+1	679173..680345	+	390	126465575	-	Smar_0670	-	phosphate transporter
663	 32.30	-1	680521..680907	+	128	126465576	-	Smar_0671	-	HEPN domain-containing protein
664	 26.79	-2	680891..681211	+	106	126465577	-	Smar_0672	-	DNA polymerase beta subunit
665	 42.50	+1	681685..681924	+	79	126465578	-	Smar_0673	-	hypothetical protein
666	 32.00	-1	681912..682361	+	149	126465579	-	Smar_0674	-	hypothetical protein
667	 39.41	+1	685001..685807	-	268	126465580	-	Smar_0676	-	glutamine amidotransferase, class-II
668	 41.77	+1	685885..686631	-	248	126465581	-	Smar_0677	-	3-oxoacyl-[acyl-carrier-protein] reductase
669	 37.51	0	686847..687923	-	358	126465582	-	Smar_0678	-	hypothetical protein
670	 36.47	0	688419..688832	-	137	126465583	-	Smar_0680	-	HEPN domain-containing protein
671	 35.13	0	690520..691467	+	315	126465584	-	Smar_0681	-	cysteine synthase
672	 34.66	0	691478..691855	-	125	126465585	-	Smar_0682	-	transcriptional regulator-like protein
673	 36.60	0	692226..693482	-	418	126465586	-	Smar_0683	-	aminotransferase, class V
674	 37.14	0	693937..694566	+	209	126465587	-	Smar_0684	-	pyrrolidone-carboxylate peptidase (N-terminal pyroglutamyl peptidase)-like protein
675	 33.89	0	694571..695290	-	239	126465588	-	Smar_0685	-	glycerophosphoryl diester phosphodiesterase
676	 38.89	0	695404..695565	-	53	126465589	rpl40e	Smar_0686	-	50S ribosomal protein L40e
677	 38.13	0	695636..696844	-	402	126465590	-	Smar_0687	-	Na+/solute symporter
678	 38.68	0	696847..697089	-	80	126465591	-	Smar_0688	-	hypothetical protein
679	 36.96	0	697091..697366	-	91	126465592	-	Smar_0689	-	hypothetical protein
680	 40.76	+1	697400..697951	-	183	126465593	-	Smar_0690	-	hypothetical protein
681	 36.20	0	698291..699337	+	348	126465594	-	Smar_0691	-	radical SAM domain-containing protein
682	 39.69	+1	699370..700722	+	450	126465595	-	Smar_0692	-	basic membrane lipoprotein
683	 37.57	0	700862..702373	+	503	126465596	-	Smar_0693	-	ABC transporter related
684	 39.11	0	702366..703403	+	345	126465597	-	Smar_0694	-	inner-membrane translocator
685	 37.86	0	703400..704326	+	308	126465598	-	Smar_0695	-	inner-membrane translocator
686	 38.62	0	704337..705338	-	333	126465599	-	Smar_0696	-	alcohol dehydrogenase
687	 38.35	0	705423..706139	+	238	126465600	-	Smar_0697	-	purine-nucleoside phosphorylase
688	 39.55	+1	706303..707541	+	412	126465601	-	Smar_0698	-	major facilitator transporter
689	 36.95	0	707626..708786	+	386	126465602	-	Smar_0699	-	peptidase M20
690	 36.37	0	708767..709621	-	284	126465603	-	Smar_0700	-	hypothetical protein
691	 33.95	0	709632..710279	-	215	126465604	-	Smar_0701	-	glycerophosphoryl diester phosphodiesterase
692	 33.83	0	710422..710823	+	133	126465605	-	Smar_0702	-	hypothetical protein
693	 38.18	0	711745..712734	+	329	126465606	-	Smar_0704	-	cobyrinic acid a,c-diamide synthase
694	 35.15	0	712752..713081	+	109	126465607	-	Smar_0705	-	dinitrogenase iron-molybdenum cofactor biosynthesis
695	 37.31	0	713205..714587	+	460	126465608	-	Smar_0706	-	glycoside hydrolase family protein
696	 33.23	0	714604..715548	+	314	126465609	-	Smar_0707	-	hypothetical protein
697	 35.18	0	715545..716735	-	396	126465610	-	Smar_0708	-	hyaluronidase
698	 37.99	0	716744..717559	-	271	126465611	-	Smar_0709	-	LmbE family protein
699	 37.44	0	717588..718877	-	429	126465612	-	Smar_0710	-	major facilitator transporter
700	 41.16	+1	719389..720372	-	327	126465613	-	Smar_0711	-	hypothetical protein
701	 36.75	0	720979..721476	+	165	126465614	-	Smar_0712	-	hypothetical protein
702	 30.90	-1	721463..722365	-	300	126465615	-	Smar_0713	-	hypothetical protein
703	 38.52	0	722581..722946	-	121	126465616	-	Smar_0714	-	peptidyl-tRNA hydrolase
704	 40.99	+1	723042..723263	+	73	126465617	-	Smar_0715	-	hypothetical protein
705	 38.10	0	723276..723548	+	90	126465618	ef1B	Smar_0716	-	elongation factor 1-beta
706	 39.83	+1	723740..725956	+	738	126465619	-	Smar_0717	-	AAA family ATPase, CDC48 subfamily protein
707	 34.52	0	726033..726284	+	83	126465620	-	Smar_0718	-	hypothetical protein
708	 36.94	0	726329..727381	+	350	126465621	-	Smar_0719	-	flap endonuclease-1
709	 38.50	0	727394..728071	-	225	126465622	-	Smar_0720	-	protein-L-isoaspartate O-methyltransferase
710	 34.18	0	728147..728617	+	156	126465623	-	Smar_0721	-	hypothetical protein
711	 29.99	-1	728564..729550	-	328	126465624	-	Smar_0722	-	methyltransferase
712	 34.20	0	729662..730465	+	267	126465625	-	Smar_0723	-	ATP-NAD/AcoX kinase
713	 33.33	0	730437..730985	+	182	126465626	-	Smar_0724	-	nucleotide binding protein, PINc
714	 35.93	0	730987..732141	-	384	126465627	-	Smar_0725	-	Fmu (Sun) domain-containing protein
715	 33.79	0	732138..732788	-	216	126465628	-	Smar_0726	-	methyltransferase type 11
716	 39.88	+1	732892..733212	+	106	126465629	-	Smar_0727	-	hypothetical protein
717	 34.62	0	733252..733485	+	77	126465630	-	Smar_0728	-	hypothetical protein
718	 32.76	0	733491..733841	-	116	126465631	-	Smar_0729	-	hypothetical protein
719	 32.67	0	733825..734124	-	99	126465632	-	Smar_0730	-	response regulator receiver protein
720	 31.99	-1	734172..735065	+	297	126465633	-	Smar_0731	-	N-glycosylase/DNA lyase
721	 31.01	-1	735120..735809	+	229	126465634	-	Smar_0732	-	hypothetical protein
722	 37.82	0	738155..738778	+	207	126465635	-	Smar_0734	-	maf protein
723	 34.56	0	738753..739889	+	378	126465636	-	Smar_0735	-	radical SAM domain-containing protein
724	 33.56	0	739917..740348	+	143	126465637	-	Smar_0736	-	hypothetical protein
725	 38.28	0	740321..741493	-	390	126465638	-	Smar_0737	-	MOFRL domain-containing protein
726	 38.32	0	741776..744223	+	815	126465639	valS	Smar_0738	-	valyl-tRNA synthetase
727	 36.24	0	744252..744938	-	228	126465640	-	Smar_0739	-	phosphotransferase domain-containing protein
728	 37.08	0	745160..745399	-	79	126465641	-	Smar_0741	-	hypothetical protein
729	 35.35	0	745489..746232	+	247	126465642	-	Smar_0742	-	metallophosphoesterase
730	 38.28	0	746240..747028	+	262	126465643	-	Smar_0743	-	rhomboid family protein
731	 35.17	0	747034..747906	-	290	126465644	-	Smar_0744	-	hypothetical protein
732	 29.29	-1	747991..748608	+	205	126465645	-	Smar_0745	-	hypothetical protein
35.91	MEAN

3.41	STD DEV
