IslandPath Analysis: Staphylothermus marinus F1

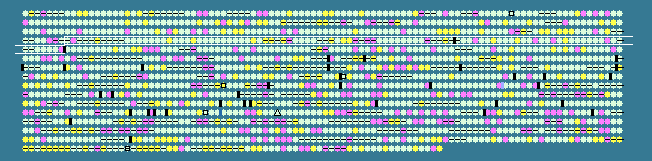

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.91 STD DEV: 3.41
Staphylothermus marinus F1, complete genome - 1..1570485
1570 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
308	 32.57	0	324445..325488	+	347	126465221	-	Smar_0309	-	hypothetical protein
309	 29.89	-1	325506..326696	+	396	126465222	-	Smar_0310	-	CRISPR-associated RAMP Csm5 family protein
310	 34.50	0	326714..329536	+	940	126465223	-	Smar_0311	-	CRISPR-associated Csm1 family protein
311	 35.11	0	329761..330042	+	93	126465224	-	Smar_0312	-	hypothetical protein
312	 35.72	0	331337..332299	-	320	126465225	-	Smar_0313	-	hypothetical protein
313	 39.86	+1	333712..334737	+	341	126465226	-	Smar_0314	-	CRISPR-associated Cas1 family protein
314	 39.12	0	334746..335678	+	310	126465227	-	Smar_0315	-	CRISPR-associated RAMP Csa1 family protein
315	 38.20	0	335685..335951	+	88	126465228	-	Smar_0316	-	CRISPR-associated Cas2 family protein
316	 33.69	0	335938..336501	+	187	126465229	-	Smar_0317	-	CRISPR-associated exonuclease Cas4 family protein
317	 33.78	0	337613..338503	-	296	126465230	-	Smar_0318	-	hypothetical protein
318	 37.24	0	338532..339197	-	221	126465231	-	Smar_0319	-	CRISPR-associated Csa3 family protein
319	 36.22	0	339367..339747	+	126	126465232	-	Smar_0320	-	CRISPR-associated RAMP Csa5 family protein
320	 36.85	0	339747..340742	+	331	126465233	-	Smar_0321	-	CRISPR-associated autoregulator Csa2 family protein
321	 33.45	0	340763..341641	+	292	126465234	-	Smar_0322	-	CRISPR-associated Cas5a family protein
322	 35.17	0	341629..342882	+	417	126465235	-	Smar_0323	-	hypothetical protein
323	 35.52	0	342909..344642	+	577	126465236	-	Smar_0324	-	CRISPR-associated helicase Cas3 family protein protein
324	 33.57	0	344649..345509	+	286	126465237	-	Smar_0325	-	CRISPR-associated helicase Cas3 family protein protein
325	 40.08	+1	346095..346346	+	83	126465238	-	Smar_0326	-	AbrB family transcriptional regulator
326	 34.29	0	346791..347000	+	69	126465239	-	Smar_0328	-	hypothetical protein
327	 36.00	0	347514..348413	-	299	126465240	-	Smar_0329	-	hypothetical protein
328	 35.64	0	348508..349635	-	375	126465241	-	Smar_0330	-	hypothetical protein
329	 39.41	+1	349874..350581	-	235	126465242	-	Smar_0331	-	deoxyribose-phosphate aldolase
330	 39.25	0	351338..352621	-	427	126465243	-	Smar_0332	-	phosphoglycerate mutase
331	 37.16	0	352986..354239	+	417	126465244	-	Smar_0333	-	aspartate-ammonia ligase
332	 37.35	0	354248..354994	-	248	126465245	-	Smar_0334	-	metallophosphoesterase
333	 39.27	0	355195..356289	+	364	126465246	-	Smar_0335	-	sodium/sulphate symporter
334	 37.84	0	356286..356507	-	73	126465247	-	Smar_0336	-	CopG/DNA-binding domain-containing protein
335	 38.99	0	356565..357713	-	382	126465248	sat	Smar_0337	-	sulfate adenylyltransferase
336	 33.33	0	357737..357967	-	76	126465249	-	Smar_0338	-	hypothetical protein
337	 39.01	0	358195..358740	+	181	126465250	-	Smar_0339	-	adenylylsulfate kinase
338	 38.56	0	358865..360223	+	452	126465251	-	Smar_0340	-	type I phosphodiesterase/nucleotide pyrophosphatase
339	 39.60	+1	360248..362017	+	589	126465252	-	Smar_0341	-	pyruvate carboxylase subunit B
340	 37.65	0	362020..362991	-	323	126465253	-	Smar_0342	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
341	 39.41	+1	362994..364013	-	339	126465254	-	Smar_0343	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
342	 40.10	+1	364010..365176	-	388	126465255	-	Smar_0344	-	binding-protein-dependent transport systems inner membrane component
343	 38.04	0	365194..366192	-	332	126465256	-	Smar_0345	-	binding-protein-dependent transport systems inner membrane component
344	 39.74	+1	366284..368530	-	748	126465257	-	Smar_0346	-	extracellular solute-binding protein
345	 30.37	-1	368628..369167	+	179	126465258	-	Smar_0347	-	hypothetical protein
346	 38.40	0	369388..370986	-	532	126465259	-	Smar_0348	-	hypothetical protein
347	 33.82	0	371275..372099	-	274	126465260	-	Smar_0349	-	radical SAM domain-containing protein
348	 37.12	0	372104..373369	-	421	126465261	-	Smar_0350	-	hypothetical protein
349	 33.03	0	373512..374813	-	433	126465262	-	Smar_0351	-	regulatory protein, ArsR
350	 38.62	0	374956..375201	-	81	126465263	-	Smar_0352	-	ferredoxin
351	 37.40	0	375393..375884	+	163	126465264	-	Smar_0353	-	hypothetical protein
352	 41.30	+1	375943..376959	-	338	126465265	-	Smar_0354	-	cysteine synthase
353	 38.39	0	377361..378131	+	256	126465266	-	Smar_0355	-	molybdopterin dehydrogenase, FAD-binding
354	 41.44	+1	378137..378679	+	180	126465267	-	Smar_0356	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
355	 41.20	+1	378687..381101	+	804	126465268	-	Smar_0357	-	aldehyde oxidase and xanthine dehydrogenase, molybdopterin binding
356	 32.33	-1	381189..381986	-	265	126465269	-	Smar_0358	-	hypothetical protein
357	 35.42	0	382025..382312	-	95	126465270	-	Smar_0359	-	hypothetical protein
358	 31.24	-1	382291..383484	-	397	126465271	-	Smar_0360	-	hypothetical protein
359	 30.54	-1	383497..384033	-	178	126465272	-	Smar_0361	-	hypothetical protein
360	 35.00	0	384177..385259	+	360	126465273	-	Smar_0362	-	hypothetical protein
361	 36.71	0	385263..386033	-	256	126465274	-	Smar_0363	-	ABC transporter related
362	 33.24	0	386116..387156	+	346	126465275	-	Smar_0364	-	periplasmic solute binding protein
363	 33.68	0	387153..388019	+	288	126465276	-	Smar_0365	-	ABC-3 protein
364	 35.52	0	388016..388426	+	136	126465277	-	Smar_0366	-	CopG family transcriptional regulator
365	 37.77	0	388429..389307	+	292	126465278	-	Smar_0367	-	methyltransferase-like protein
366	 35.92	0	389304..389651	-	115	126465279	-	Smar_0368	-	hypothetical protein
367	 36.05	0	389678..390634	-	318	126465280	-	Smar_0369	-	hypothetical protein
368	 32.35	-1	390755..391264	+	169	126465281	-	Smar_0370	-	hypothetical protein
369	 38.26	0	391322..392113	-	263	126465282	-	Smar_0371	-	hypothetical protein
370	 32.74	0	392263..392601	-	112	126465283	-	Smar_0372	-	hypothetical protein
371	 39.53	+1	392695..393420	+	241	126465284	-	Smar_0373	-	PA14 domain-containing protein
372	 33.22	0	393443..394339	+	298	126465285	-	Smar_0374	-	auxin efflux carrier
373	 35.50	0	396159..396620	+	153	126465286	-	Smar_0375	-	hypothetical protein
374	 38.52	0	396812..398161	-	449	126465287	-	Smar_0376	-	Fmu (Sun) domain-containing protein
375	 37.04	0	398349..399158	+	269	126465288	-	Smar_0377	-	polysaccharide deacetylase
376	 32.29	-1	399166..399642	-	158	126465289	-	Smar_0378	-	hypothetical protein
377	 38.14	0	399717..400985	+	422	126465290	-	Smar_0379	-	cysteine desulfurase
378	 39.18	0	401047..401217	-	56	126465291	-	Smar_0380	-	paREP4
379	 40.04	+1	401555..402955	-	466	126465292	-	Smar_0381	-	amidohydrolase
380	 36.91	0	403103..404920	+	605	126465293	-	Smar_0382	-	adenine deaminase
381	 38.00	0	404980..405558	-	192	126465294	-	Smar_0383	-	ZPR1-related zinc finger protein
382	 35.56	0	405663..406562	+	299	126465295	-	Smar_0384	-	radical SAM domain-containing protein
383	 39.90	+1	406735..407343	+	202	126465296	-	Smar_0385	-	hexulose-6-phosphate isomerase
384	 35.43	0	407477..407857	+	126	126465297	-	Smar_0386	-	hypothetical protein
385	 39.15	0	407936..408382	+	148	126465298	-	Smar_0387	-	hypothetical protein
386	 23.97	-2	408386..408652	+	88	126465299	-	Smar_0388	-	hypothetical protein
387	 38.01	0	408793..409284	+	163	126465300	-	Smar_0389	-	hypothetical protein
388	 37.22	0	409291..410010	+	239	126465301	-	Smar_0390	-	ABC transporter related
389	 32.12	-1	409994..410569	+	191	126465302	-	Smar_0391	-	hypothetical protein
390	 34.64	0	410576..411034	-	152	126465303	-	Smar_0392	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
391	 39.50	+1	411039..412157	-	372	126465304	-	Smar_0393	-	peptidase M29, aminopeptidase II
392	 32.53	0	412317..414299	+	660	126465305	-	Smar_0394	-	hypothetical protein
393	 34.59	0	414417..415370	+	317	126465306	-	Smar_0395	-	triphosphoribosyl-dephospho-CoA protein
394	 35.80	0	415447..416379	+	310	126465307	-	Smar_0396	-	PP-loop domain-containing protein
395	 33.41	0	416391..417764	-	457	126465308	-	Smar_0397	-	hypothetical protein
396	 34.51	0	417862..418542	-	226	126465309	-	Smar_0398	-	adenylate kinase
397	 34.04	0	418655..418939	+	94	126465310	-	Smar_0399	-	hypothetical protein
398	 32.05	-1	418940..419485	-	181	126465311	-	Smar_0400	-	AsnC family transcriptional regulator
399	 36.09	0	419533..420258	-	241	126465312	-	Smar_0401	-	hypothetical protein
400	 32.65	0	420340..421356	-	338	126465313	-	Smar_0402	-	hypothetical protein
401	 38.42	0	421467..422135	-	222	126465314	-	Smar_0403	-	hypothetical protein
402	 34.92	0	422140..422895	-	251	126465315	-	Smar_0404	-	ABC transporter related
403	 35.45	0	422912..423430	-	172	126465316	-	Smar_0405	-	hypothetical protein
404	 33.51	0	423500..424054	+	184	126465317	-	Smar_0406	-	hypothetical protein
405	 37.83	0	424099..425232	+	377	126465318	-	Smar_0407	-	radical SAM domain-containing protein
406	 39.31	0	425345..426097	+	250	126465319	-	Smar_0408	-	hypothetical protein
407	 29.92	-1	426119..426382	+	87	126465320	-	Smar_0409	-	hypothetical protein
35.91	MEAN

3.41	STD DEV
