IslandPath Analysis: Staphylothermus marinus F1

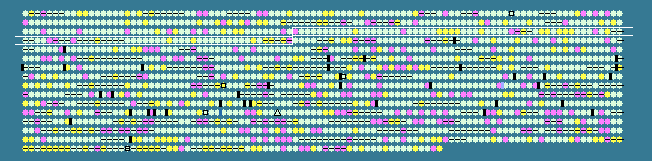

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.91 STD DEV: 3.41
Staphylothermus marinus F1, complete genome - 1..1570485
1570 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
246	 31.57	-1	259863..260429	+	188	126465159	-	Smar_0247	-	isochorismatase hydrolase
247	 34.72	0	260454..261533	+	359	126465160	-	Smar_0248	-	SufBD protein
248	 36.94	0	261675..263309	+	544	126465161	-	Smar_0249	-	aminopeptidases-like protein
249	 35.24	0	263395..265071	+	558	126465162	pheT	Smar_0250	-	phenylalanyl-tRNA synthetase subunit beta
250	 34.87	0	265142..266314	-	390	126465163	-	Smar_0251	-	sodium/hydrogen exchanger
251	 37.38	0	266322..267458	-	378	126465164	-	Smar_0252	-	hypothetical protein
252	 35.52	0	267574..269535	+	653	126465165	-	Smar_0253	-	hypothetical protein
253	 32.57	0	269737..270651	-	304	126465166	-	Smar_0254	-	radical SAM domain-containing protein
254	 34.05	0	270717..271964	-	415	126465167	-	Smar_0255	-	Fmu (Sun) domain-containing protein
255	 38.64	0	271967..272626	-	219	126465168	-	Smar_0256	-	hypothetical protein
256	 39.49	+1	272657..274216	-	519	126465169	pheS	Smar_0257	-	phenylalanyl-tRNA synthetase subunit alpha
257	 36.38	0	274482..275960	+	492	126465170	-	Smar_0258	-	FAD dependent oxidoreductase
258	 38.36	0	275967..277220	+	417	126465171	-	Smar_0259	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
259	 34.67	0	277217..277591	+	124	126465172	-	Smar_0260	-	hypothetical protein
260	 34.05	0	277609..278304	-	231	126465173	-	Smar_0261	-	glycerophosphoryl diester phosphodiesterase
261	 35.30	0	278398..279312	+	304	126465174	-	Smar_0262	-	peptidase S15
262	 37.22	0	279309..280595	+	428	126465175	-	Smar_0263	-	major facilitator transporter
263	 39.11	0	280629..282203	-	524	126465176	-	Smar_0264	-	glycerol kinase
264	 31.01	-1	282330..282716	-	128	126465177	-	Smar_0265	-	hypothetical protein
265	 33.26	0	282721..284043	-	440	126465178	-	Smar_0266	-	hypothetical protein
266	 35.90	0	284129..286075	-	648	126465179	-	Smar_0267	-	DNA polymerase B region
267	 38.67	0	286072..286296	-	74	126465180	-	Smar_0268	-	hypothetical protein
268	 38.84	0	286257..286928	-	223	126465181	-	Smar_0269	-	hypothetical protein
269	 36.59	0	287113..287910	-	265	126465182	-	Smar_0270	-	ABC transporter related
270	 39.40	+1	287907..288878	-	323	126465183	-	Smar_0271	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
271	 40.48	+1	288869..289777	-	302	126465184	-	Smar_0272	-	binding-protein-dependent transport systems inner membrane component
272	 39.84	+1	289774..290802	-	342	126465185	-	Smar_0273	-	binding-protein-dependent transport systems inner membrane component
273	 39.74	+1	290808..292445	-	545	126465186	-	Smar_0274	-	extracellular solute-binding protein
274	 33.44	0	292589..293485	+	298	126465187	-	Smar_0275	-	hypothetical protein
275	 38.70	0	293565..294794	-	409	126465188	-	Smar_0276	-	aspartate aminotransferase
276	 35.78	0	295090..295293	+	67	126465189	-	Smar_0277	-	hypothetical protein
277	 41.86	+1	295517..296572	+	351	126465190	-	Smar_0278	-	ornithine carbamoyltransferase
278	 35.98	0	296725..297783	+	352	126465191	-	Smar_0279	-	molybdate metabolism transcriptional regulator
279	 35.32	0	297843..298901	+	352	126465192	-	Smar_0280	-	tungstate/molybdate binding protein
280	 33.08	0	298882..299682	+	266	126465193	-	Smar_0281	-	tungstate/molybdate transport system permease protein
281	 36.96	0	299679..300395	+	238	126465194	-	Smar_0282	-	ABC transporter related
282	 28.26	-2	300410..301060	-	216	126465195	-	Smar_0283	-	hypothetical protein
283	 31.39	-1	301102..301821	-	239	126465196	-	Smar_0284	-	hypothetical protein
284	 40.09	+1	301935..303518	-	527	126465197	-	Smar_0285	-	sodium:neurotransmitter symporter
285	 33.33	0	303803..304174	-	123	126465198	-	Smar_0286	-	hypothetical protein
286	 34.01	0	304309..304899	-	196	126465199	-	Smar_0287	-	multiple antibiotic resistance (MarC)-related proteins
287	 49.82	+2	305592..305870	+	92	126465200	-	Smar_0288	-	hypothetical protein
288	 41.73	+1	306001..306369	+	122	126465201	-	Smar_0289	-	hypothetical protein
289	 38.11	0	306507..307469	-	320	126465202	-	Smar_0290	-	NAD-dependent epimerase/dehydratase
290	 40.46	+1	307565..308167	-	200	126465203	-	Smar_0291	-	pyruvate ferredoxin/flavodoxin oxidoreductase
291	 40.11	+1	308185..310059	-	624	126465204	-	Smar_0292	-	indolepyruvate ferredoxin oxidoreductase, subunit iorA
292	 44.26	+2	310324..310680	+	118	126465205	-	Smar_0293	-	hypothetical protein
293	 35.52	0	310738..311559	-	273	126465206	-	Smar_0294	-	hypothetical protein
294	 38.83	0	311668..311940	-	90	126465207	-	Smar_0295	-	50S ribosomal protein L35Ae
295	 37.23	0	312428..313684	+	418	126465208	-	Smar_0296	-	aspartyl-tRNA synthetase
296	 30.38	-1	313754..314125	+	123	126465209	-	Smar_0297	-	PadR family transcriptional regulator
297	 35.88	0	314180..315316	+	378	126465210	-	Smar_0298	-	L-myo-inositol-1-phosphate synthase
298	 43.84	+2	315573..316904	+	443	126465211	-	Smar_0299	-	extracellular solute-binding protein
299	 37.88	0	317047..317925	+	292	126465212	-	Smar_0300	-	binding-protein-dependent transport systems inner membrane component
300	 37.01	0	317931..318773	+	280	126465213	-	Smar_0301	-	binding-protein-dependent transport systems inner membrane component
301	 37.97	0	318788..319888	+	366	126465214	-	Smar_0302	-	ABC transporter related
302	 37.65	0	320557..321042	+	161	126465215	-	Smar_0303	-	molybdenum cofactor synthesis domain-containing protein
303	 34.45	0	321046..321582	-	178	126465216	-	Smar_0304	-	hypothetical protein
304	 35.14	0	321708..322040	+	110	126465217	-	Smar_0305	-	hypothetical protein
305	 27.29	-2	322161..322805	-	214	126465218	-	Smar_0306	-	hypothetical protein
306	 29.31	-1	323022..323444	+	140	126465219	-	Smar_0307	-	hypothetical protein
307	 34.81	0	323463..324413	+	316	126465220	-	Smar_0308	-	CRISPR-associated RAMP Csm3 family protein
308	 32.57	0	324445..325488	+	347	126465221	-	Smar_0309	-	hypothetical protein
309	 29.89	-1	325506..326696	+	396	126465222	-	Smar_0310	-	CRISPR-associated RAMP Csm5 family protein
310	 34.50	0	326714..329536	+	940	126465223	-	Smar_0311	-	CRISPR-associated Csm1 family protein
311	 35.11	0	329761..330042	+	93	126465224	-	Smar_0312	-	hypothetical protein
312	 35.72	0	331337..332299	-	320	126465225	-	Smar_0313	-	hypothetical protein
313	 39.86	+1	333712..334737	+	341	126465226	-	Smar_0314	-	CRISPR-associated Cas1 family protein
314	 39.12	0	334746..335678	+	310	126465227	-	Smar_0315	-	CRISPR-associated RAMP Csa1 family protein
315	 38.20	0	335685..335951	+	88	126465228	-	Smar_0316	-	CRISPR-associated Cas2 family protein
316	 33.69	0	335938..336501	+	187	126465229	-	Smar_0317	-	CRISPR-associated exonuclease Cas4 family protein
317	 33.78	0	337613..338503	-	296	126465230	-	Smar_0318	-	hypothetical protein
318	 37.24	0	338532..339197	-	221	126465231	-	Smar_0319	-	CRISPR-associated Csa3 family protein
319	 36.22	0	339367..339747	+	126	126465232	-	Smar_0320	-	CRISPR-associated RAMP Csa5 family protein
320	 36.85	0	339747..340742	+	331	126465233	-	Smar_0321	-	CRISPR-associated autoregulator Csa2 family protein
321	 33.45	0	340763..341641	+	292	126465234	-	Smar_0322	-	CRISPR-associated Cas5a family protein
322	 35.17	0	341629..342882	+	417	126465235	-	Smar_0323	-	hypothetical protein
323	 35.52	0	342909..344642	+	577	126465236	-	Smar_0324	-	CRISPR-associated helicase Cas3 family protein protein
324	 33.57	0	344649..345509	+	286	126465237	-	Smar_0325	-	CRISPR-associated helicase Cas3 family protein protein
325	 40.08	+1	346095..346346	+	83	126465238	-	Smar_0326	-	AbrB family transcriptional regulator
326	 34.29	0	346791..347000	+	69	126465239	-	Smar_0328	-	hypothetical protein
327	 36.00	0	347514..348413	-	299	126465240	-	Smar_0329	-	hypothetical protein
328	 35.64	0	348508..349635	-	375	126465241	-	Smar_0330	-	hypothetical protein
329	 39.41	+1	349874..350581	-	235	126465242	-	Smar_0331	-	deoxyribose-phosphate aldolase
330	 39.25	0	351338..352621	-	427	126465243	-	Smar_0332	-	phosphoglycerate mutase
331	 37.16	0	352986..354239	+	417	126465244	-	Smar_0333	-	aspartate-ammonia ligase
332	 37.35	0	354248..354994	-	248	126465245	-	Smar_0334	-	metallophosphoesterase
333	 39.27	0	355195..356289	+	364	126465246	-	Smar_0335	-	sodium/sulphate symporter
334	 37.84	0	356286..356507	-	73	126465247	-	Smar_0336	-	CopG/DNA-binding domain-containing protein
335	 38.99	0	356565..357713	-	382	126465248	sat	Smar_0337	-	sulfate adenylyltransferase
336	 33.33	0	357737..357967	-	76	126465249	-	Smar_0338	-	hypothetical protein
337	 39.01	0	358195..358740	+	181	126465250	-	Smar_0339	-	adenylylsulfate kinase
338	 38.56	0	358865..360223	+	452	126465251	-	Smar_0340	-	type I phosphodiesterase/nucleotide pyrophosphatase
339	 39.60	+1	360248..362017	+	589	126465252	-	Smar_0341	-	pyruvate carboxylase subunit B
340	 37.65	0	362020..362991	-	323	126465253	-	Smar_0342	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
341	 39.41	+1	362994..364013	-	339	126465254	-	Smar_0343	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
342	 40.10	+1	364010..365176	-	388	126465255	-	Smar_0344	-	binding-protein-dependent transport systems inner membrane component
343	 38.04	0	365194..366192	-	332	126465256	-	Smar_0345	-	binding-protein-dependent transport systems inner membrane component
344	 39.74	+1	366284..368530	-	748	126465257	-	Smar_0346	-	extracellular solute-binding protein
345	 30.37	-1	368628..369167	+	179	126465258	-	Smar_0347	-	hypothetical protein
35.91	MEAN

3.41	STD DEV
