IslandPath Analysis: Staphylothermus marinus F1

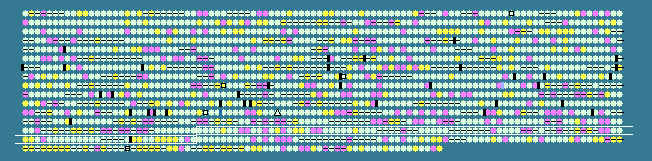

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.91 STD DEV: 3.41
Staphylothermus marinus F1, complete genome - 1..1570485
1570 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1330	 34.87	0	1314261..1314650	-	129	126466243	-	Smar_1353	-	hypothetical protein
1331	 37.17	0	1314777..1316156	-	459	126466244	-	Smar_1354	-	seryl-tRNA synthetase
1332	 36.91	0	1316248..1316610	-	120	126466245	-	Smar_1355	-	hypothetical protein
1333	 33.33	0	1316784..1317122	-	112	126466246	-	Smar_1356	-	hypothetical protein
1334	 40.08	+1	1317127..1318119	-	330	126466247	-	Smar_1357	-	translation initiation factor IF-2B subunit delta
1335	 37.94	0	1318126..1319058	-	310	126466248	-	Smar_1358	-	initiation factor 2B related
1336	 32.88	0	1319095..1319985	-	296	126466249	-	Smar_1359	-	hypothetical protein
1337	 31.59	-1	1320125..1321849	+	574	126466250	-	Smar_1360	-	hypothetical protein
1338	 29.26	-1	1321836..1322351	-	171	126466251	-	Smar_1361	-	membrane-bound metal-dependent hydrolase
1339	 36.88	0	1322463..1323842	-	459	126466252	-	Smar_1362	-	hypothetical protein
1340	 37.87	0	1323846..1324838	-	330	126466253	-	Smar_1363	-	putative deoxyhypusine synthase
1341	 32.12	-1	1325108..1325767	+	219	126466254	-	Smar_1364	-	hypothetical protein
1342	 36.59	0	1325860..1326597	+	245	126466255	-	Smar_1365	-	DNA polymerase sliding clamp subunit A
1343	 40.72	+1	1326826..1329060	+	744	126466256	-	Smar_1366	-	type I phosphodiesterase/nucleotide pyrophosphatase
1344	 30.03	-1	1329324..1329929	+	201	126466257	-	Smar_1367	-	hypothetical protein
1345	 39.20	0	1330013..1331155	+	380	126466258	-	Smar_1368	-	PhoH family protein
1346	 41.95	+1	1331174..1331440	+	88	126466259	-	Smar_1369	-	hypothetical protein
1347	 39.89	+1	1331709..1333019	+	436	126466260	asnC	Smar_1370	-	asparaginyl-tRNA synthetase
1348	 34.93	0	1333032..1333718	+	228	126466261	-	Smar_1371	-	HhH-GPD family protein
1349	 31.42	-1	1334207..1334467	+	86	126466262	-	Smar_1372	-	hypothetical protein
1350	 31.91	-1	1334878..1335300	+	140	126466263	-	Smar_1373	-	hypothetical protein
1351	 34.57	0	1335274..1336245	-	323	126466264	-	Smar_1374	-	oxidoreductase, molybdopterin binding
1352	 34.60	0	1336364..1337551	+	395	126466265	-	Smar_1375	-	major facilitator transporter
1353	 35.42	0	1337570..1338430	+	286	126466266	-	Smar_1376	-	methyltransferase
1354	 37.33	0	1338651..1339226	-	191	126466267	-	Smar_1377	-	SSU ribosomal protein S18P alanine acetyltransferase
1355	 37.10	0	1339455..1340675	+	406	126466268	-	Smar_1378	-	phosphopantothenoylcysteine decarboxylase / phosphopantothenate-cysteine ligase
1356	 41.15	+1	1340672..1341451	-	259	126466269	-	Smar_1379	-	hypothetical protein
1357	 34.52	0	1341435..1342277	-	280	126466270	-	Smar_1380	-	pantothenate kinase
1358	 38.11	0	1342278..1343093	-	271	126466271	-	Smar_1381	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
1359	 33.01	0	1343132..1344067	-	311	126466272	-	Smar_1382	-	2-dehydropantoate 2-reductase
1360	 35.52	0	1344141..1345010	-	289	126466273	-	Smar_1383	-	Fis family transcriptional regulator
1361	 37.24	0	1345028..1345693	-	221	126466274	-	Smar_1384	-	hypothetical protein
1362	 34.69	0	1345812..1346549	+	245	126466275	-	Smar_1385	-	ABC transporter related
1363	 34.68	0	1346546..1347808	+	420	126466276	-	Smar_1386	-	ABC-2 type transporter
1364	 30.54	-1	1347979..1348479	+	166	126466277	-	Smar_1387	-	regulatory protein, MarR
1365	 34.65	0	1348503..1349945	+	480	126466278	-	Smar_1388	-	hypothetical protein
1366	 37.78	0	1350001..1351551	+	516	126466279	-	Smar_1389	-	glycoside hydrolase family protein
1367	 37.93	0	1351638..1352963	+	441	126466280	-	Smar_1390	-	major facilitator transporter
1368	 33.57	0	1352969..1354234	-	421	126466281	-	Smar_1391	-	glycoside hydrolase family protein
1369	 38.04	0	1354425..1356356	+	643	126466282	-	Smar_1392	-	glycoside hydrolase family protein
1370	 34.35	0	1356378..1358042	+	554	126466283	-	Smar_1393	-	glycosyl transferase, group 1
1371	 33.59	0	1358023..1358406	+	127	126466284	-	Smar_1394	-	hypothetical protein
1372	 34.28	0	1358420..1359268	+	282	126466285	-	Smar_1395	-	hypothetical protein
1373	 33.61	0	1359258..1359620	+	120	126466286	-	Smar_1396	-	hypothetical protein
1374	 38.82	0	1359723..1361546	+	607	126466287	-	Smar_1397	-	hypothetical protein
1375	 36.15	0	1361656..1366086	+	1476	126466288	-	Smar_1398	-	hypothetical protein
1376	 39.39	+1	1366192..1368222	+	676	126466289	-	Smar_1399	-	hypothetical protein
1377	 39.21	0	1368378..1370333	+	651	126466290	-	Smar_1400	-	oligopeptide transporter OPT superfamily protein
1378	 36.40	0	1370431..1372944	+	837	126466291	-	Smar_1401	-	glycoside hydrolase family protein
1379	 31.88	-1	1372970..1373521	+	183	126466292	-	Smar_1402	-	hypothetical protein
1380	 35.93	0	1373505..1374236	-	243	126466293	-	Smar_1403	-	ABC transporter related
1381	 38.56	0	1374236..1375000	-	254	126466294	-	Smar_1404	-	ABC transporter related
1382	 35.92	0	1375759..1376145	+	128	126466295	-	Smar_1406	-	hypothetical protein
1383	 34.48	0	1376161..1378080	+	639	126466296	-	Smar_1407	-	glycoside hydrolase family protein
1384	 26.48	-2	1378222..1378965	+	247	126466297	-	Smar_1408	-	hypothetical protein
1385	 29.27	-1	1379149..1379616	+	155	126466298	-	Smar_1409	-	LexA DNA-binding domain-containing protein
1386	 35.56	0	1379663..1380604	+	313	126466299	-	Smar_1410	-	hypothetical protein
1387	 38.98	0	1380843..1384880	+	1345	126466300	-	Smar_1411	-	subtilisin-like protein
1388	 35.02	0	1385014..1385487	+	157	126466301	-	Smar_1412	-	small multidrug export protein (QacE)
1389	 32.96	0	1385573..1386109	+	178	126466302	-	Smar_1413	-	hypothetical protein
1390	 29.81	-1	1386280..1387158	+	292	126466303	-	Smar_1414	-	hypothetical protein
1391	 33.71	0	1387136..1388467	-	443	126466304	-	Smar_1415	-	von Willebrand factor, type A
1392	 36.13	0	1388481..1389626	-	381	126466305	-	Smar_1416	-	ATPase
1393	 39.67	+1	1389784..1390083	-	99	126466306	-	Smar_1417	-	hypothetical protein
1394	 32.03	-1	1390165..1390623	+	152	126466307	-	Smar_1418	-	hypothetical protein
1395	 40.69	+1	1390720..1391181	+	153	126466308	-	Smar_1419	-	single-strand DNA-binding protein
1396	 36.36	0	1391203..1391532	+	109	126466309	-	Smar_1420	-	hypothetical protein
1397	 30.91	-1	1391723..1393084	+	453	126466310	-	Smar_1421	-	hypothetical protein
1398	 32.27	-1	1393084..1393740	+	218	126466311	-	Smar_1422	-	hypothetical protein
1399	 32.89	0	1393792..1394928	+	378	126466312	-	Smar_1423	-	hypothetical protein
1400	 36.11	0	1394977..1395300	-	107	126466313	-	Smar_1424	-	hypothetical protein
1401	 42.54	+1	1395422..1396594	+	390	126466314	-	Smar_1425	-	thiolase
1402	 39.40	+1	1396682..1398247	+	521	126466315	-	Smar_1426	-	propionyl-CoA carboxylase carboxyltransferase subunit alpha / propionyl-CoA carboxylase carboxyltransferase subunit beta
1403	 33.15	0	1398257..1398793	-	178	126466316	-	Smar_1427	-	biotin/lipoyl attachment domain-containing protein
1404	 30.96	-1	1398955..1399671	+	238	126466317	-	Smar_1428	-	hypothetical protein
1405	 33.33	0	1399673..1400269	+	198	126466318	-	Smar_1429	-	hypothetical protein
1406	 35.61	0	1400266..1401453	+	395	126466319	-	Smar_1430	-	sodium/hydrogen exchanger
1407	 32.75	0	1401524..1402039	-	171	126466320	-	Smar_1431	-	hypothetical protein
1408	 36.14	0	1402039..1403073	-	344	126466321	-	Smar_1432	-	ribosomal RNA methyltransferase NOP2
1409	 34.75	0	1403093..1403797	-	234	126466322	-	Smar_1433	-	hypothetical protein
1410	 32.57	0	1403915..1404568	-	217	126466323	-	Smar_1434	-	hypothetical protein
1411	 34.14	0	1404653..1404901	-	82	126466324	-	Smar_1435	-	hypothetical protein
1412	 33.94	0	1404918..1406063	-	381	126466325	-	Smar_1436	-	ATP dependent DNA ligase
1413	 35.31	0	1406168..1407028	+	286	126466326	-	Smar_1437	-	spermine synthase / spermidine synthase
1414	 35.56	0	1407050..1407769	+	239	126466327	-	Smar_1438	-	ABC transporter related
1415	 33.20	0	1407846..1412504	+	1552	126466328	-	Smar_1439	-	hypothetical protein
1416	 36.85	0	1412510..1413733	+	407	126466329	-	Smar_1440	-	hypothetical protein
1417	 34.93	0	1413742..1415121	-	459	126466330	-	Smar_1441	-	MATE efflux family protein
1418	 32.85	0	1415220..1415636	+	138	126466331	-	Smar_1442	-	transcriptional regulator PadR family protein
1419	 40.61	+1	1415823..1416701	-	292	126466332	-	Smar_1443	-	2-oxoacid ferredoxin oxidoreductase subunit beta
1420	 40.41	+1	1416723..1418489	-	588	126466333	-	Smar_1444	-	pyruvate flavodoxin/ferredoxin oxidoreductase domain-containing protein
1421	 34.29	0	1418513..1418824	-	103	126466334	-	Smar_1445	-	hypothetical protein
1422	 36.90	0	1419150..1419485	+	111	126466335	-	Smar_1446	-	HTH DNA binding domain-containing protein
1423	 40.14	+1	1419712..1420269	+	185	126466336	-	Smar_1447	-	pyruvate ferredoxin oxidoreductase, gamma subunit
1424	 43.99	+2	1420275..1420565	+	96	126466337	-	Smar_1448	-	pyruvate ferredoxin oxidoreductase, delta subunit
1425	 41.19	+1	1420580..1421839	+	419	126466338	-	Smar_1449	-	pyruvate ferredoxin oxidoreductase, alpha subunit
1426	 42.78	+2	1421856..1422914	+	352	126466339	-	Smar_1450	-	pyruvate ferredoxin oxidoreductase, beta subunit
1427	 32.72	0	1423034..1423357	+	107	126466340	-	Smar_1451	-	AsnC family transcriptional regulator
1428	 29.73	-1	1423382..1423909	+	175	126466341	-	Smar_1452	-	hydrogenase maturation protease
1429	 35.23	0	1423890..1424999	-	369	126466342	-	Smar_1453	-	hypothetical protein
35.91	MEAN

3.41	STD DEV
