IslandPath Analysis: Staphylococcus epidermidis RP62A

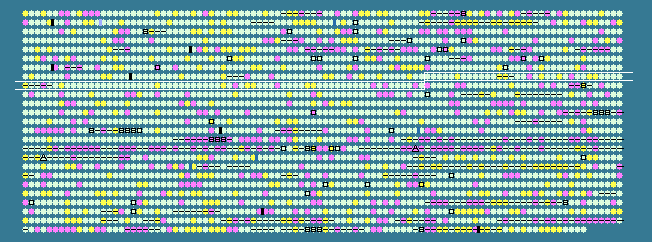

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.10 STD DEV: 3.66
Staphylococcus epidermidis RP62A, complete genome - 1..2616530
2494 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
768	 35.48	0	784583..785326	+	247	57866757	-	SERP0785	-	protein phosphatase 2C domain-containing protein
769	 31.33	0	785323..787323	+	666	57866758	-	SERP0786	-	serine/threonine protein kinase, putative
770	 32.76	0	787632..788507	+	291	57866767	-	SERP0787	-	hypothetical protein
771	 32.40	0	788508..789152	+	214	57866768	rpe	SERP0788	-	ribulose-phosphate 3-epimerase
772	 32.23	0	789157..789792	+	211	57866769	-	SERP0789	-	hypothetical protein
773	 38.62	+1	789876..790064	-	62	57866770	rpmB	SERP0790	-	50S ribosomal protein L28
774	 32.53	0	790422..790796	+	124	57866771	-	SERP0791	-	hypothetical protein
775	 34.36	0	790811..792469	+	552	57866772	-	SERP0792	-	DAK2 domain-containing protein
776	 33.33	0	792673..794721	+	682	57866670	recG	SERP0793	-	ATP-dependent DNA helicase RecG
777	 32.64	0	794867..795442	+	191	57866671	-	SERP0794	-	fatty acid biosynthesis transcriptional regulator
778	 35.48	0	795444..796421	+	325	57866672	plsX	SERP0795	-	putative glycerol-3-phosphate acyltransferase PlsX
779	 34.52	0	796423..797352	+	309	57866673	fabD	SERP0796	-	malonyl CoA-acyl carrier protein transacylase
780	 35.92	+1	797345..798079	+	244	57866682	fabG	SERP0797	-	3-oxoacyl-(acyl-carrier-protein) reductase
781	 36.75	+1	798242..798475	+	77	57866683	acpP	SERP0798	-	acyl carrier protein
782	 33.20	0	798590..799327	+	245	57866684	rnc	SERP0799	-	ribonuclease III
783	 32.10	0	799454..803023	+	1189	57866685	-	SERP0800	-	chromosome segregation SMC protein, putative
784	 34.23	0	803020..804246	+	408	57866686	ftsY	SERP0801	-	cell division protein FtsY
785	 27.03	-1	804248..804580	+	110	57866687	-	SERP0802	-	hypothetical protein
786	 35.09	0	804611..805978	+	455	57866688	ffh	SERP0803	-	signal recognition particle protein
787	 35.87	+1	806285..806560	+	91	57866689	rpsP	SERP0804	-	30S ribosomal protein S16
788	 31.55	0	806687..807190	+	167	57866698	rimM	SERP0805	-	16S rRNA processing protein RimM
789	 35.09	0	807190..807927	+	245	57866699	trmD	SERP0806	-	tRNA (guanine-N1)-methyltransferase
790	 37.89	+1	808032..808382	+	116	57866700	rplS	SERP0807	-	50S ribosomal protein L19
791	 28.64	0	811159..813759	-	866	57866701	-	SERP0809	-	hypothetical protein
792	 21.82	-2	813903..814067	+	54	57866702	-	SERP0810	-	hypothetical protein
793	 32.18	0	814088..814951	+	287	57866703	rbgA	SERP0811	-	ribosomal biogenesis GTPase
794	 33.33	0	814956..815726	+	256	57866704	rnhB	SERP0812	-	ribonuclease HII
795	 35.90	+1	815834..817000	+	388	57866713	sucC	SERP0813	-	succinyl-CoA synthetase subunit beta
796	 38.50	+1	817022..817930	+	302	57866714	sucD	SERP0814	-	succinyl-CoA synthetase subunit alpha
797	 33.10	0	818735..819607	+	290	57866715	-	SERP0815	-	DNA processing protein DprA, putative
798	 34.83	0	819790..821859	+	689	57866716	topA	SERP0816	-	DNA topoisomerase I
799	 35.40	0	821884..823191	+	435	57866717	-	SERP0817	-	tRNA (uracil-5-)-methyltransferase Gid
800	 30.19	0	823416..824306	+	296	57866718	xerC	SERP0818	-	tyrosine recombinase XerC
801	 38.67	+1	824310..824852	+	180	57866719	hslV	SERP0819	-	ATP-dependent protease peptidase subunit
802	 34.05	0	824921..826324	+	467	57866720	hslU	SERP0820	-	ATP-dependent protease ATP-binding subunit
803	 31.91	0	826348..827118	+	256	57866728	codY	SERP0821	-	transcriptional repressor CodY
804	 25.00	-1	827327..827422	+	31	57866729	-	SERP0822	-	hypothetical protein
805	 35.11	0	827481..828269	+	262	57866730	rpsB	SERP0823	-	30S ribosomal protein S2
806	 35.49	0	828421..829299	+	292	57866731	tsf	SERP0824	-	elongation factor Ts
807	 36.51	+1	829440..830162	+	240	57866732	pyrH	SERP0825	-	uridylate kinase
808	 33.87	0	830179..830733	+	184	57866733	frr	SERP0826	-	ribosome recycling factor
809	 31.78	0	830954..831724	+	256	57866734	uppS	SERP0827	-	undecaprenyl diphosphate synthase
810	 31.67	0	831728..832510	+	260	57866735	cdsA	SERP0828	-	phosphatidate cytidylyltransferase
811	 32.87	0	832744..834030	+	428	57866744	-	SERP0829	-	membrane-associated zinc metalloprotease, putative
812	 34.39	0	834049..835752	+	567	57866745	proS	SERP0830	-	prolyl-tRNA synthetase
813	 34.01	0	836002..840312	+	1436	57866746	-	SERP0831	-	DNA polymerase III PolC
814	 29.70	0	840491..840958	+	155	57866747	-	SERP0832	-	hypothetical protein
815	 35.54	0	840979..842202	+	407	57866748	nusA	SERP0833	-	transcription elongation factor NusA
816	 30.88	0	842220..842504	+	94	57866749	-	SERP0834	-	hypothetical protein
817	 29.56	0	842504..842821	+	105	57866750	-	SERP0835	-	30S ribosomal protein L7Ae, putative
818	 34.03	0	842826..844988	+	720	57866759	infB	SERP0836	-	translation initiation factor IF-2
819	 31.34	0	845291..845641	+	116	57866760	rbfA	SERP0837	-	ribosome-binding factor A
820	 31.05	0	845779..846696	+	305	57866761	truB	SERP0838	-	tRNA pseudouridine synthase B
821	 34.05	0	846712..847683	+	323	57866762	ribF	SERP0839	-	riboflavin biosynthesis protein RibF
822	 35.19	0	847803..848072	+	89	57866763	rpsO	SERP0840	-	30S ribosomal protein S15
823	 37.32	+1	848204..850309	+	701	57866764	pnp	SERP0841	-	polynucleotide phosphorylase/polyadenylase
824	 34.39	0	850644..852350	+	568	57866765	-	SERP0842	-	metallo-beta-lactamase family protein
825	 32.66	0	852616..855009	+	797	57866766	-	SERP0843	-	FtsK/SpoIIIE family protein
826	 31.79	0	855012..855725	+	237	57866775	-	SERP0844	-	transcriptional regulator, putative
827	 29.40	0	855756..857027	+	423	57866776	-	SERP0845	-	hypothetical protein
828	 31.78	0	857027..858316	+	429	57866777	-	SERP0846	-	M16 family peptidase
829	 34.04	0	858313..859017	+	234	57866778	-	SERP0847	-	short chain dehydrogenase/reductase family protein
830	 33.21	0	859170..859997	+	275	57866779	-	SERP0848	-	ACT domain-containing protein
831	 31.81	0	860016..860408	+	130	57866780	-	SERP0849	-	Cro/CI family transcriptional regulator
832	 31.62	0	860437..861018	+	193	57866781	pgsA	SERP0850	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
833	 30.98	0	861468..862616	+	382	57866789	-	SERP0851	-	competence/damage-inducible protein CinA, putative
834	 36.67	+1	862787..863836	+	349	57866790	recA	SERP0852	-	recombinase A
835	 34.94	0	864062..865621	+	519	57866791	-	SERP0853	-	phosphodiesterase
836	 26.85	-1	865710..865925	-	71	57866792	-	SERP0854	-	hypothetical protein
837	 34.34	0	866089..866883	+	264	57866793	-	SERP0855	-	hypothetical protein
838	 35.89	+1	866996..868756	+	586	57866794	-	SERP0856	-	pyruvate ferredoxin oxidoreductase, alpha subunit
839	 35.64	0	868757..869623	+	288	57866795	-	SERP0857	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
840	 35.28	0	870209..870826	+	205	57866796	-	SERP0858	-	hypothetical protein
841	 30.58	0	870883..871173	+	96	57866804	-	SERP0859	-	hypothetical protein
842	 33.07	0	871516..873060	+	514	57866805	miaB	SERP0860	-	tRNA-i(6)A37 modification enzyme MiaB
843	 27.60	-1	873062..873427	+	121	57866806	-	SERP0861	-	hypothetical protein
844	 31.72	0	873451..873945	+	164	57866807	-	SERP0862	-	hypothetical protein
845	 32.27	0	874143..876764	+	873	57866808	hexA	SERP0863	-	DNA mismatch repair protein
846	 32.09	0	876779..878716	+	645	57866809	hexB	SERP0864	-	DNA mismatch repair protein HexB
847	 31.65	0	878730..879263	+	177	57866818	glpP	SERP0865	-	glycerol uptake operon antiterminator regulatory protein
848	 36.36	+1	879638..880462	+	274	57866819	glpF	SERP0866	-	glycerol uptake facilitator protein
849	 35.93	+1	880616..882115	+	499	57866820	glpK	SERP0867	-	glycerol kinase
850	 34.71	0	882292..883965	+	557	57866821	glpD	SERP0868	-	aerobic glycerol-3-phosphate dehydrogenase
851	 32.25	0	884189..885115	+	308	57866822	-	SERP0869	-	alpha/beta fold family hydrolase
852	 31.63	0	885127..886125	+	332	57866823	miaA	SERP0870	-	tRNA delta(2)-isopentenylpyrophosphate transferase
853	 32.92	0	886079..886318	+	79	57866824	-	SERP0871	-	host factor-I protein, putative
854	 32.49	0	886540..887016	-	158	57866833	gpxA-1	SERP0872	-	glutathione peroxidase
855	 33.33	0	887117..888367	+	416	57866834	-	SERP0873	-	GTP-binding protein, putative
856	 34.79	0	888383..889621	+	412	57866835	-	SERP0874	-	hypothetical protein
857	 33.61	0	890102..890467	+	121	57866836	glnR	SERP0875	-	glutamine synthetase repressor
858	 35.12	0	890486..891826	+	446	57866837	femC	SERP0876	-	glutamine synthetase FemC
859	 27.92	-1	892406..892645	+	79	57866773	-	SERP0878	-	portal protein, truncation
860	 30.88	0	892710..894056	+	448	57866774	-	SERP0879	-	hypothetical protein
861	 21.88	-2	894062..894253	+	63	57866782	-	SERP0880	-	hypothetical protein
862	 29.24	0	895252..895935	-	227	57866783	-	SERP0882	-	surface lipoprotein-related protein
863	 34.50	0	896005..897030	-	341	57866784	-	SERP0883	-	hypothetical protein
864	 30.81	0	897344..897541	+	65	57866785	-	SERP0884	-	hypothetical protein
865	 31.09	0	897599..899071	+	490	57866786	cls-1	SERP0885	-	cardiolipin synthetase
866	 26.83	-1	899249..900124	+	291	57866787	-	SERP0886	-	ABC transporter, ATP-binding protein
867	 29.51	0	900121..900852	+	243	57866788	-	SERP0887	-	ABC transporter, permease protein
32.10	MEAN

3.66	STD DEV
