IslandPathversion 1.0

IslandPath Analysis: Staphylococcus epidermidis RP62A

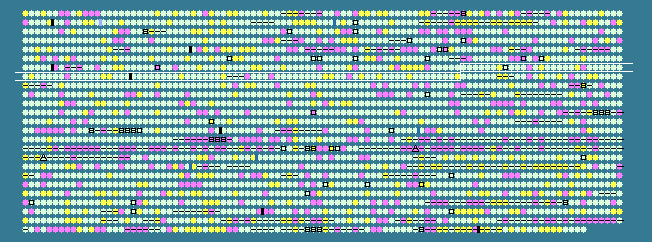

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.10 STD DEV: 3.66
Staphylococcus epidermidis RP62A, complete genome - 1..2616530
2494 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
674	 30.82	0	685561..686712	+	383	57866631	-	SERP0690	-	hypothetical protein
675	 30.91	0	687017..687553	+	178	57866632	-	SERP0691	-	hypothetical protein
676	 33.33	0	687766..689127	-	453	57866633	-	SERP0692	-	Mn2+/Fe2+ transporter
677	 31.21	0	689242..689853	-	203	57866634	-	SERP0693	-	hypothetical protein
678	 34.55	0	690030..690851	+	273	57866635	-	SERP0694	-	inositol monophosphatase family protein
679	 29.69	0	691405..691596	-	63	57866636	-	SERP0695	-	hypothetical protein
680	 36.96	+1	691695..693542	+	615	57866637	-	SERP0696	-	GTP-binding protein TypA
681	 33.23	0	693996..695009	+	337	57866638	-	SERP0697	-	ISSep1-like transposase
682	 32.69	0	696078..696233	-	51	57866646	-	SERP0699	-	hypothetical protein
683	 31.68	0	696235..696717	-	160	57866647	-	SERP0700	-	hypothetical protein
684	 30.43	0	696862..697137	+	91	57866648	-	SERP0701	-	hypothetical protein
685	 22.96	-2	697382..697516	-	44	57866649	-	SERP0702	-	hypothetical protein
686	 32.19	0	697539..698762	+	407	57866650	-	SERP0703	-	cell cycle protein FtsW
687	 35.80	+1	699164..702607	+	1147	57866651	pyc	SERP0704	-	pyruvate carboxylase
688	 32.89	0	702756..703664	-	302	57866652	ctaA	SERP0705	-	cytochrome oxidase assembly protein
689	 34.32	0	703965..704876	+	303	57866667	ctaB	SERP0706	-	protoheme IX farnesyltransferase
690	 33.77	0	704902..705363	+	153	57866668	-	SERP0707	-	hypothetical protein
691	 31.15	0	705805..706857	+	350	57866669	-	SERP0708	-	hypothetical protein
692	 34.02	0	706878..707312	+	144	57866615	-	SERP0709	-	hypothetical protein
693	 35.81	+1	707827..708753	-	308	57866616	-	SERP0710	-	glycerophosphoryl diester phosphodiesterase, putative
694	 28.33	-1	708783..708902	+	39	57866623	-	SERP0711	-	hypothetical protein
695	 28.97	0	708974..709225	+	83	57866624	-	SERP0712	-	hypothetical protein
696	 32.56	0	709235..709624	-	129	57866625	-	SERP0713	-	hypothetical protein
697	 32.41	0	709691..710233	+	180	57866626	-	SERP0714	-	hypothetical protein
698	 33.74	0	710235..710720	+	161	57866627	coaD	SERP0715	-	pantetheine-phosphate adenylyltransferase
699	 32.54	0	711124..712257	-	377	57866628	-	SERP0716	-	hypothetical protein
700	 33.15	0	712384..712938	+	184	57866629	-	SERP0717	-	hypothetical protein
701	 35.06	0	713016..713189	+	57	57866630	rpmF	SERP0718	-	50S ribosomal protein L32
702	 41.41	+2	713669..716143	-	824	57866639	-	SERP0719	-	cell wall surface anchor family protein
703	 34.41	0	716482..717222	+	246	57866640	-	SERP0720	-	RNA methyltransferase
704	 34.47	0	717590..718648	+	352	57866641	pheS	SERP0721	-	phenylalanyl-tRNA synthetase subunit alpha
705	 34.91	0	718648..721050	+	800	57866642	pheT	SERP0722	-	phenylalanyl-tRNA synthetase, beta subunit
706	 32.79	0	721102..722028	-	308	57866643	rnhC	SERP0723	-	ribonuclease HIII
707	 29.96	0	722287..722553	+	88	57866644	-	SERP0724	-	hypothetical protein
708	 27.59	-1	722554..723075	+	173	57866645	-	SERP0725	-	bacteriocin production protein, putative
709	 33.74	0	723150..724859	+	569	57866653	-	SERP0726	-	hypothetical protein
710	 33.89	0	724869..727217	+	782	57866654	-	SERP0727	-	recombination and DNA strand exchange inhibitor protein
711	 33.97	0	727476..727790	+	104	57866655	trxA	SERP0728	-	thioredoxin
712	 33.45	0	727888..729672	+	594	57866656	uvrC	SERP0729	-	excinuclease ABC subunit C
713	 32.68	0	730038..730652	+	204	57866657	sdhC	SERP0730	-	succinate dehydrogenase, cytochrome b558 subunit
714	 37.86	+1	730806..732572	+	588	57866658	sdhA	SERP0731	-	succinate dehydrogenase flavoprotein subunit
715	 36.06	+1	732572..733414	+	280	57866659	sdhB	SERP0732	-	succinate dehydrogenase iron-sulfur subunit
716	 34.95	0	733577..734380	+	267	57866660	murI	SERP0733	-	glutamate racemase
717	 33.67	0	734395..734982	+	195	57866661	-	SERP0734	-	Ham1 family protein
718	 32.16	0	734975..735484	+	169	57866662	-	SERP0735	-	phosphoesterase, putative
719	 33.33	0	736115..736279	+	54	57866663	-	SERP0736	-	phenol soluble modulin beta 1
720	 33.33	0	736335..736469	+	44	57866664	-	SERP0737	-	phenol soluble modulin beta 1
721	 35.56	0	736521..736655	+	44	57866665	-	SERP0738	-	phenol soluble modulin beta 1
722	 35.56	0	736711..736845	+	44	57866666	-	SERP0739	-	phenol soluble modulin beta 1
723	 31.00	0	736952..737638	+	228	57866674	-	SERP0740	-	HAD superfamily hydrolase
724	 31.97	0	737745..738185	-	146	57866675	-	SERP0741	-	hypothetical protein
725	 31.54	0	738368..739981	+	537	57866676	-	SERP0742	-	hypothetical protein
726	 32.87	0	740125..740556	+	143	57866677	mraZ	SERP0743	-	cell division protein MraZ
727	 35.90	+1	740571..741506	+	311	57866678	mraW	SERP0744	-	S-adenosyl-methyltransferase MraW
728	 33.33	0	741519..741920	+	133	57866679	ftsL	SERP0745	-	cell division protein FtsL
729	 34.36	0	741901..744228	+	775	57866680	pbp1	SERP0746	-	penicillin-binding protein 1
730	 31.88	0	744417..745382	+	321	57866681	mraY	SERP0747	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
731	 33.19	0	745384..746733	+	449	57866690	murD	SERP0748	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
732	 29.81	0	746749..748140	+	463	57866691	-	SERP0749	-	cell division protein FtsQ, putative
733	 33.48	0	748246..749640	+	464	57866692	ftsA	SERP0750	-	cell division protein FtsA
734	 38.57	+1	749673..750857	+	394	57866693	ftsZ	SERP0751	-	cell division protein FtsZ
735	 31.69	0	751273..752064	+	263	57866694	-	SERP0752	-	hypothetical protein
736	 31.69	0	752090..752758	+	222	57866695	-	SERP0753	-	hypothetical protein
737	 34.85	0	752772..753365	+	197	57866696	ylmF	SERP0754	-	ylmF protein
738	 27.15	-1	753377..753667	+	96	57866697	ylmG	SERP0755	-	ylmG protein
739	 32.88	0	753923..754585	+	220	57866705	ylmH	SERP0756	-	ylmH protein
740	 33.49	0	754608..755264	+	218	57866706	-	SERP0757	-	cell-division initiation protein, putative
741	 34.46	0	755578..758328	+	916	57866707	ileS	SERP0758	-	isoleucyl-tRNA synthetase
742	 26.04	-1	758955..759050	+	31	57866708	-	SERP0759	-	hypothetical protein
743	 30.70	0	759097..759894	+	265	57866709	-	SERP0760	-	glyoxalase family protein
744	 30.57	0	759899..760369	+	156	57866710	-	SERP0761	-	LysM domain-containing protein
745	 29.84	0	760458..760943	+	161	57866711	lspA	SERP0762	-	lipoprotein signal peptidase
746	 33.22	0	760946..761863	+	305	57866712	-	SERP0763	-	ribosomal large subunit pseudouridine synthase D
747	 34.85	0	762165..762692	+	175	57866721	pyrR	SERP0764	-	pyrimidine regulatory protein PyrR
748	 34.34	0	762940..764232	+	430	57866722	uraA	SERP0765	-	uracil permease
749	 32.99	0	764258..765139	+	293	57866723	pyrB	SERP0766	-	aspartate carbamoyltransferase catalytic subunit
750	 34.66	0	765157..766434	+	425	57866724	pyrC	SERP0767	-	dihydroorotase
751	 37.51	+1	766435..767535	+	366	57866725	carA	SERP0768	-	carbamoyl phosphate synthase small subunit
752	 36.23	+1	767528..770701	+	1057	57866726	carB	SERP0769	-	carbamoyl phosphate synthase large subunit
753	 34.78	0	770736..771428	+	230	57866727	pyrF	SERP0770	-	orotidine 5'-phosphate decarboxylase
754	 35.13	0	771429..772040	+	203	57866736	pyrE	SERP0771	-	orotate phosphoribosyltransferase
755	 22.71	-2	772066..772272	+	68	57866737	-	SERP0772	-	hypothetical protein
756	 28.89	0	772548..772682	-	44	57866738	-	SERP0773	-	hypothetical protein
757	 37.50	+1	772813..773220	+	135	57866739	-	SERP0774	-	hypothetical protein
758	 33.45	0	773283..774980	-	565	57866740	fbe	SERP0775	-	fibronectin/fibrinogen binding protein
759	 35.58	0	775250..775873	+	207	57866741	gmk	SERP0776	-	guanylate kinase
760	 37.09	+1	775873..776085	+	70	57866742	rpoZ	SERP0777	-	DNA-directed RNA polymerase, omega subunit
761	 34.67	0	776624..777823	+	399	57866743	coaBC	SERP0778	-	phosphopantothenoylcysteine decarboxylase/phosphopantothenate--cysteine ligase
762	 33.50	0	777823..780231	+	802	57866751	priA	SERP0779	-	primosomal protein N'
763	 33.33	0	780337..780540	-	67	57866752	-	SERP0780	-	hypothetical protein
764	 33.13	0	780762..781250	+	162	57866753	def-2	SERP0781	-	polypeptide deformylase
765	 36.76	+1	781243..782175	+	310	57866754	fmt	SERP0782	-	methionyl-tRNA formyltransferase
766	 30.89	0	782172..783479	+	435	57866755	sun	SERP0783	-	sun protein
767	 33.33	0	783482..784576	+	364	57866756	-	SERP0784	-	radical SAM protein
768	 35.48	0	784583..785326	+	247	57866757	-	SERP0785	-	protein phosphatase 2C domain-containing protein
769	 31.33	0	785323..787323	+	666	57866758	-	SERP0786	-	serine/threonine protein kinase, putative
770	 32.76	0	787632..788507	+	291	57866767	-	SERP0787	-	hypothetical protein
771	 32.40	0	788508..789152	+	214	57866768	rpe	SERP0788	-	ribulose-phosphate 3-epimerase
772	 32.23	0	789157..789792	+	211	57866769	-	SERP0789	-	hypothetical protein
773	 38.62	+1	789876..790064	-	62	57866770	rpmB	SERP0790	-	50S ribosomal protein L28
32.10	MEAN

3.66	STD DEV
