IslandPath Analysis: Staphylococcus epidermidis RP62A

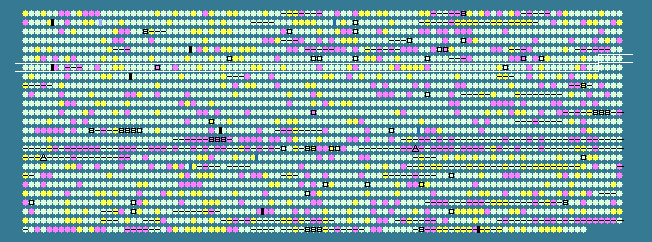

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.10 STD DEV: 3.66
Staphylococcus epidermidis RP62A, complete genome - 1..2616530
2494 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
597	 34.82	0	603719..604525	+	268	57866597	-	SERP0610	-	TerC family integral membrane protein
598	 32.42	0	604736..606493	+	585	57866598	-	SERP0611	-	serine protease, putative
599	 32.30	0	606511..607869	+	452	57866599	-	SERP0612	-	sodium transport family protein
600	 31.47	0	608008..609513	+	501	57866600	-	SERP0613	-	5' nucleotidase family protein
601	 29.19	0	609616..610218	-	200	57866601	-	SERP0614	-	abortive infection family protein
602	 30.65	0	610224..610409	-	61	57866602	-	SERP0615	-	hypothetical protein
603	 29.99	0	610614..611600	+	328	57866603	-	SERP0616	-	lipoate-protein ligase A family protein
604	 32.42	0	611678..611896	-	72	57866604	-	SERP0617	-	hypothetical protein
605	 31.42	0	612111..612686	+	191	57866610	-	SERP0618	-	ComK family protein
606	 27.19	-1	614935..615276	+	113	57866611	-	SERP0620	-	hypothetical protein
607	 28.93	0	615966..616124	-	52	57866612	-	SERP0622	-	hypothetical protein
608	 20.37	-2	616295..616402	+	35	57866613	-	SERP0623	-	hypothetical protein
609	 32.87	0	616775..616990	-	71	57866614	-	SERP0624	-	hypothetical protein
610	 17.20	-2	617006..617098	+	30	57866497	-	SERP0625	-	hypothetical protein
611	 33.87	0	617221..617778	+	185	57866498	-	SERP0626	-	acetyltransferase
612	 35.57	0	618425..619363	-	312	57866499	menA	SERP0627	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
613	 28.12	-1	619362..619457	+	31	57866507	-	SERP0628	-	hypothetical protein
614	 32.60	0	619533..620903	+	456	57866508	-	SERP0629	-	isochorismate synthase family protein
615	 34.35	0	620890..622563	+	557	57866509	menD	SERP0630	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylic acid synthase/2-oxoglutarate decarboxylase
616	 35.82	+1	622550..623353	+	267	57866510	-	SERP0631	-	alpha/beta fold family hydrolase
617	 37.61	+1	623346..624164	+	272	57866511	menB	SERP0632	-	naphthoate synthase
618	 33.50	0	624509..625693	-	394	57866512	-	SERP0633	-	aminotransferase, class I
619	 30.06	0	625836..626843	-	335	57866513	-	SERP0634	-	hypothetical protein
620	 30.24	0	626997..627416	+	139	57866521	-	SERP0635	-	MarR family transcriptional regulator
621	 33.73	0	627656..631663	-	1335	57866522	atlE	SERP0636	-	bifunctional autolysin
622	 31.21	0	631904..632326	-	140	57866523	-	SERP0637	-	acetyltransferase
623	 28.03	-1	632421..632552	-	43	57866524	-	SERP0638	-	truncated IS1272 transposase
624	 33.12	0	632900..633370	-	156	57866525	-	SERP0639	-	hypothetical protein
625	 31.15	0	633418..634656	-	412	57866526	-	SERP0640	-	transcriptional regulator, putative
626	 27.43	-1	635463..636665	+	400	57866527	-	SERP0641	-	fmt protein
627	 33.55	0	636822..637730	-	302	57866528	-	SERP0642	-	ribonucleoside hydrolase RihC
628	 32.99	0	637917..638207	-	96	57866535	qoxD	SERP0643	-	quinol oxidase, subunit IV
629	 35.31	0	638204..638809	-	201	57866536	qoxC	SERP0644	-	quinol oxidase, subunit III
630	 37.31	+1	638799..640787	-	662	57866537	qoxA	SERP0645	-	quinol oxidase, subunit I
631	 34.40	0	640787..641911	-	374	57866538	qoxB	SERP0646	-	quinol oxidase, subunit II
632	 31.76	0	642450..642767	-	105	57866539	-	SERP0647	-	chitinase-related protein
633	 32.29	0	643140..644000	-	286	57866540	folD	SERP0648	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
634	 38.10	+1	644205..644687	+	160	57866541	purE	SERP0649	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
635	 33.24	0	644674..645801	+	375	57866550	purK	SERP0650	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
636	 30.50	0	645802..646506	+	234	57866551	purC	SERP0651	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
637	 32.95	0	646506..646766	+	86	57866552	purS	SERP0652	-	phosphoribosylformylglycinamidine synthase, PurS protein
638	 35.12	0	646768..647439	+	223	57866553	purQ	SERP0653	-	phosphoribosylformylglycinamidine synthase I
639	 35.84	+1	647432..649621	+	729	57866554	purL	SERP0654	-	phosphoribosylformylglycinamidine synthase II
640	 36.23	+1	649600..651084	+	494	57866555	purF	SERP0655	-	amidophosphoribosyltransferase
641	 34.88	0	651077..652108	+	343	57866563	purM	SERP0656	-	phosphoribosylaminoimidazole synthetase
642	 33.16	0	652108..652674	+	188	57866564	purN	SERP0657	-	phosphoribosylglycinamide formyltransferase
643	 34.42	0	652691..654169	+	492	57866565	purH	SERP0658	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
644	 35.83	+1	654195..655436	+	413	57866566	purD	SERP0659	-	phosphoribosylamine--glycine ligase
645	 29.76	0	655569..656408	-	279	57866567	-	SERP0660	-	cobalt transport family protein
646	 33.05	0	656368..657771	-	467	57866568	-	SERP0661	-	ABC transporter, ATP-binding protein
647	 34.55	0	657785..658360	-	191	57866573	-	SERP0662	-	hypothetical protein
648	 33.39	0	658883..660658	+	591	57866574	-	SERP0663	-	67 kDa Myosin-crossreactive antigen
649	 29.03	0	660702..660794	+	30	57866575	-	SERP0664	-	hypothetical protein
650	 26.67	-1	661070..661204	-	44	57866576	-	SERP0665	-	hypothetical protein
651	 28.69	0	661356..662648	+	430	57866577	-	SERP0666	-	hypothetical protein
652	 30.43	0	662954..664126	+	390	57866578	-	SERP0667	-	hypothetical protein
653	 33.52	0	664186..664725	+	179	57866579	-	SERP0668	-	hypothetical protein
654	 34.46	0	664881..665147	+	88	57866580	ptsH	SERP0669	-	phosphocarrier protein HPr
655	 35.83	+1	665150..666868	+	572	57866581	ptsI	SERP0670	-	phosphoenolpyruvate-protein phosphotransferase
656	 24.89	-1	667143..667379	-	78	57866590	-	SERP0671	-	hypothetical protein
657	 33.78	0	667579..668934	+	451	57866591	cydA	SERP0672	-	cytochrome d ubiquinol oxidase, subunit I
658	 30.19	0	668931..669947	+	338	57866592	cydB	SERP0673	-	cytochrome d ubiquinol oxidase, subunit II
659	 33.79	0	670003..670662	+	219	57866593	-	SERP0674	-	potassium uptake protein TrkA
660	 34.76	0	671644..673326	-	560	57866594	-	SERP0676	-	metallo-beta-lactamase family protein
661	 30.14	0	673326..673544	-	72	57866595	-	SERP0677	-	hypothetical protein
662	 35.69	0	673977..674528	-	183	57866596	def	SERP0678	-	peptide deformylase
663	 27.59	-1	674711..675337	+	208	57866605	-	SERP0679	-	hypothetical protein
664	 37.11	+1	675508..676620	+	370	57866606	pdhA	SERP0680	-	pyruvate dehydrogenase complex E1 component, alpha subunit
665	 38.55	+1	676624..677601	+	325	57866607	pdhB	SERP0681	-	pyruvate dehydrogenase complex E1 component, beta subunit
666	 36.79	+1	677732..679033	+	433	57866608	pdhC	SERP0682	-	branched-chain alpha-keto acid dehydrogenase subunit E2
667	 36.89	+1	679038..680444	+	468	57866609	pdhD	SERP0683	-	dihydrolipoamide dehydrogenase
668	 23.66	-2	680746..681024	+	92	57866617	-	SERP0684	-	hypothetical protein
669	 29.81	0	681163..681702	+	179	57866618	-	SERP0685	-	Cro/CI family transcriptional regulator
670	 31.69	0	681714..682808	+	364	57866619	potA	SERP0686	-	spermidine/putrescine ABC transporter, ATP-binding protein
671	 30.35	0	682801..683604	+	267	57866620	potB	SERP0687	-	spermidine/putrescine ABC transporter, permease protein PotB
672	 32.23	0	683610..684422	+	270	57866621	potC	SERP0688	-	spermidine/putrescine ABC transporter, permease protein PotC
673	 32.12	0	684419..685492	+	357	57866622	potD	SERP0689	-	spermidine/putrescine ABC transporter, spermidine/putrescine-binding protein
674	 30.82	0	685561..686712	+	383	57866631	-	SERP0690	-	hypothetical protein
675	 30.91	0	687017..687553	+	178	57866632	-	SERP0691	-	hypothetical protein
676	 33.33	0	687766..689127	-	453	57866633	-	SERP0692	-	Mn2+/Fe2+ transporter
677	 31.21	0	689242..689853	-	203	57866634	-	SERP0693	-	hypothetical protein
678	 34.55	0	690030..690851	+	273	57866635	-	SERP0694	-	inositol monophosphatase family protein
679	 29.69	0	691405..691596	-	63	57866636	-	SERP0695	-	hypothetical protein
680	 36.96	+1	691695..693542	+	615	57866637	-	SERP0696	-	GTP-binding protein TypA
681	 33.23	0	693996..695009	+	337	57866638	-	SERP0697	-	ISSep1-like transposase
682	 32.69	0	696078..696233	-	51	57866646	-	SERP0699	-	hypothetical protein
683	 31.68	0	696235..696717	-	160	57866647	-	SERP0700	-	hypothetical protein
684	 30.43	0	696862..697137	+	91	57866648	-	SERP0701	-	hypothetical protein
685	 22.96	-2	697382..697516	-	44	57866649	-	SERP0702	-	hypothetical protein
686	 32.19	0	697539..698762	+	407	57866650	-	SERP0703	-	cell cycle protein FtsW
687	 35.80	+1	699164..702607	+	1147	57866651	pyc	SERP0704	-	pyruvate carboxylase
688	 32.89	0	702756..703664	-	302	57866652	ctaA	SERP0705	-	cytochrome oxidase assembly protein
689	 34.32	0	703965..704876	+	303	57866667	ctaB	SERP0706	-	protoheme IX farnesyltransferase
690	 33.77	0	704902..705363	+	153	57866668	-	SERP0707	-	hypothetical protein
691	 31.15	0	705805..706857	+	350	57866669	-	SERP0708	-	hypothetical protein
692	 34.02	0	706878..707312	+	144	57866615	-	SERP0709	-	hypothetical protein
693	 35.81	+1	707827..708753	-	308	57866616	-	SERP0710	-	glycerophosphoryl diester phosphodiesterase, putative
694	 28.33	-1	708783..708902	+	39	57866623	-	SERP0711	-	hypothetical protein
695	 28.97	0	708974..709225	+	83	57866624	-	SERP0712	-	hypothetical protein
696	 32.56	0	709235..709624	-	129	57866625	-	SERP0713	-	hypothetical protein
32.10	MEAN

3.66	STD DEV
