IslandPath Analysis: Staphylococcus epidermidis RP62A

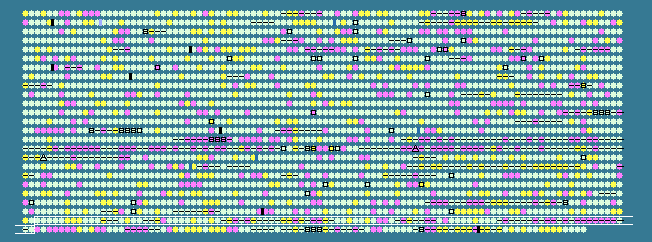

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.10 STD DEV: 3.66
Staphylococcus epidermidis RP62A, complete genome - 1..2616530
2494 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2303	 35.19	0	2401241..2401888	-	215	57865706	-	SERP2355	-	amino acid ABC transporter, permease protein
2304	 35.10	0	2401891..2402850	-	319	57865715	-	SERP2356	-	amino acid ABC transporter, amino acid-binding protein
2305	 33.49	0	2402869..2403504	-	211	57865716	-	SERP2357	-	amino acid ABC transporter, permease protein
2306	 35.19	0	2403501..2404688	-	395	57865717	-	SERP2358	-	amino acid ABC transporter, ATP-binding protein
2307	 33.54	0	2404823..2405311	-	162	57865718	-	SERP2359	-	hypothetical protein
2308	 37.89	+1	2405308..2406273	-	321	57865719	-	SERP2360	-	3-hydroxyacyl-CoA dehydrogenase family protein
2309	 38.46	+1	2406273..2407169	-	298	57865720	-	SERP2361	-	hypothetical protein
2310	 36.11	+1	2407305..2407844	-	179	57865721	-	SERP2362	-	TetR family transcriptional regulator
2311	 33.92	0	2408310..2409668	-	452	57865730	brnQ-2	SERP2363	-	branched-chain amino acid transport system II carrier protein
2312	 35.06	0	2410022..2411239	+	405	57865731	-	SERP2364	-	succinyl-diaminopimelate desuccinylase
2313	 34.92	0	2411378..2412133	-	251	57865732	pflA	SERP2365	-	pyruvate formate-lyase-activating enzyme
2314	 35.96	+1	2412155..2414401	-	748	57865733	pflB	SERP2366	-	formate acetyltransferase
2315	 35.26	0	2415142..2416332	-	396	57865734	-	SERP2367	-	transporter, putative
2316	 34.53	0	2416344..2417093	-	249	57865735	-	SERP2368	-	peptide ABC transporter, ATP-binding protein
2317	 34.80	0	2417086..2417901	-	271	57865736	-	SERP2369	-	peptide ABC transporter, ATP-binding protein
2318	 37.43	+1	2417888..2418766	-	292	57865744	-	SERP2370	-	peptide ABC transporter, permease protein
2319	 35.47	0	2418763..2419698	-	311	57865745	-	SERP2371	-	peptide ABC transporter, permease protein, putative
2320	 34.15	0	2419711..2421309	-	532	57865746	-	SERP2372	-	peptide ABC transporter, peptide-binding protein
2321	 34.88	0	2421360..2422652	-	430	57865747	-	SERP2373	-	hypothetical protein
2322	 35.29	0	2422645..2423460	-	271	57865748	-	SERP2374	-	hypothetical protein
2323	 36.19	+1	2423457..2424296	-	279	57865749	-	SERP2375	-	diaminopimelate epimerase family protein
2324	 23.53	-2	2424381..2424482	+	33	57865750	-	SERP2376	-	hypothetical protein
2325	 30.20	0	2424484..2424930	+	148	57865751	-	SERP2377	-	hypothetical protein
2326	 31.01	0	2424945..2425634	+	229	57865759	-	SERP2378	-	ABC transporter, ATP-binding protein
2327	 35.27	0	2425762..2426535	-	257	57865760	-	SERP2379	-	short chain dehydrogenase/reductase family oxidoreductase
2328	 34.20	0	2426704..2428080	-	458	57865761	-	SERP2380	-	drug transporter, putative
2329	 37.21	+1	2428109..2431126	-	1005	57865762	-	SERP2381	-	NADH:flavin oxidoreductase/fumarate reductase, flavoprotein subunit, putative
2330	 33.99	0	2431209..2432126	-	305	57865763	-	SERP2382	-	ApbE family protein
2331	 30.72	0	2432528..2433523	-	331	57865764	-	SERP2383	-	ABC transporter, substrate-binding protein
2332	 36.13	+1	2433780..2434886	+	368	57865765	-	SERP2384	-	hypothetical protein
2333	 34.49	0	2434880..2436262	+	460	57865773	-	SERP2385	-	hypothetical protein
2334	 35.03	0	2436232..2437113	+	293	57865774	-	SERP2386	-	cobalamin synthesis protein, putative
2335	 35.87	+1	2438258..2440189	-	643	57865775	geh-2	SERP2388	-	lipase
2336	 27.50	-1	2440410..2440529	+	39	57865776	-	SERP2389	-	hypothetical protein
2337	 33.00	0	2440678..2441865	+	395	57865777	sspB	SERP2390	-	cysteine protease precursor SspB
2338	 27.36	-1	2441883..2442200	+	105	57865778	sspC	SERP2391	-	SspC protein
2339	 37.76	+1	2442370..2449578	-	2402	57865779	bhp	SERP2392	-	cell wall associated biofilm protein
2340	 31.73	0	2449900..2450586	-	228	57865788	bioW	SERP2393	-	6-carboxyhexanoate--CoA ligase
2341	 31.57	0	2450579..2451712	-	377	57865789	-	SERP2394	-	aminotransferase, class II
2342	 34.07	0	2451723..2453078	-	451	57865790	bioA	SERP2395	-	adenosylmethionine--8-amino-7-oxononanoate aminotransferase
2343	 34.82	0	2453071..2453742	-	223	57865791	bioD	SERP2396	-	dethiobiotin synthase
2344	 39.87	+2	2454081..2454233	-	50	57865792	-	SERP2397	-	phenol soluble modulin beta 1
2345	 41.17	+2	2454490..2461683	-	2397	57865793	aap	SERP2398	-	accumulation associated protein
2346	 12.12	-2	2461814..2461912	+	32	57865794	-	SERP2399	-	hypothetical protein
2347	 39.22	+1	2462102..2462254	-	50	57865795	-	SERP2400	-	phenol soluble modulin beta 1
2348	 33.20	0	2462460..2463194	-	244	57865802	-	SERP2401	-	serine protease
2349	 19.14	-2	2463271..2463432	+	53	57865803	-	SERP2402	-	hypothetical protein
2350	 23.68	-2	2463875..2464216	+	113	57865804	-	SERP2403	-	hypothetical protein
2351	 36.21	+1	2464409..2465383	+	324	57865805	-	SERP2404	-	iron compound ABC transporter, iron compound-binding protein, putative
2352	 34.57	0	2465380..2466918	+	512	57865806	-	SERP2405	-	sensor histidine kinase
2353	 33.47	0	2466930..2467685	+	251	57865807	-	SERP2406	-	AraC family DNA-binding response regulator
2354	 30.51	0	2469380..2469874	+	164	57865808	-	SERP2408	-	hypothetical protein
2355	 37.96	+1	2471339..2471446	-	35	57865818	-	SERP2410	-	hypothetical protein
2356	 35.42	0	2471753..2472520	-	255	57865819	-	SERP2411	-	short chain dehydrogenase/reductase family oxidoreductase
2357	 33.87	0	2473294..2474778	-	494	57865820	mqo-4	SERP2412	-	malate:quinone oxidoreductase
2358	 40.57	+2	2474977..2475957	+	326	57865821	-	SERP2413	-	hypothetical protein
2359	 30.00	0	2476275..2476634	+	119	57865822	-	SERP2414	-	putative lipoprotein
2360	 28.12	-1	2476845..2476940	+	31	57865823	-	SERP2415	-	hypothetical protein
2361	 26.50	-1	2477064..2477180	-	38	57865824	-	SERP2416	-	hypothetical protein
2362	 30.07	0	2477247..2478104	-	285	57865812	-	SERP2417	-	putative lipoprotein
2363	 29.93	0	2478690..2479100	+	136	57865813	-	SERP2418	-	hypothetical protein
2364	 25.27	-1	2479343..2479528	-	61	57865814	-	SERP2419	-	hypothetical protein
2365	 36.18	+1	2479838..2480083	-	81	57865815	-	SERP2420	-	hypothetical protein
2366	 31.08	0	2480169..2481056	-	295	57865816	-	SERP2421	-	hypothetical protein
2367	 28.75	0	2481410..2482195	-	261	57865817	-	SERP2422	-	putative lipoprotein
2368	 27.31	-1	2482536..2483315	-	259	57865825	-	SERP2423	-	putative lipoprotein
2369	 27.13	-1	2483570..2483698	-	42	57865826	-	SERP2424	-	hypothetical protein
2370	 31.64	0	2483712..2484596	-	294	57865827	-	SERP2425	-	hypothetical protein
2371	 25.85	-1	2484684..2484977	-	97	57865828	-	SERP2426	-	ArsR family transcriptional regulator
2372	 31.90	0	2485525..2485872	+	115	57865829	arsD	SERP2427	-	arsenical resistance operon trans-acting repressor
2373	 30.09	0	2485886..2487583	+	565	57865830	arsA	SERP2428	-	arsenical pump-driving ATPase
2374	 30.16	0	2487733..2488047	+	104	57865831	arsR-2	SERP2429	-	arsenical resistance operon repressor
2375	 32.48	0	2488050..2489339	+	429	57865832	arsB	SERP2430	-	arsenical pump membrane protein
2376	 35.61	0	2489358..2489753	+	131	57865842	arsC-2	SERP2431	-	arsenate reductase
2377	 29.78	0	2489814..2490572	-	252	57865843	-	SERP2432	-	hypothetical protein
2378	 28.74	0	2490569..2490829	-	86	57865844	-	SERP2433	-	hypothetical protein
2379	 31.19	0	2490968..2492038	+	356	57865845	-	SERP2434	-	rhodanese-like domain-containing protein
2380	 33.18	0	2492057..2493385	+	442	57865846	-	SERP2435	-	metallo-beta-lactamase family protein
2381	 23.08	-2	2493466..2493582	-	38	57865847	-	SERP2436	-	hypothetical protein
2382	 32.05	0	2493858..2494403	-	181	57865848	-	SERP2437	-	putative lipoprotein
2383	 33.91	0	2494421..2496484	-	687	57865849	-	SERP2438	-	cation transporter E1-E2 family ATPase
2384	 31.31	0	2496907..2497350	-	147	57865850	-	SERP2439	-	hypothetical protein
2385	 32.89	0	2497936..2499297	-	453	57865858	-	SERP2441	-	transporter, putative
2386	 28.10	-1	2499425..2499577	+	50	57865859	-	SERP2442	-	hypothetical protein
2387	 29.79	0	2499631..2500392	-	253	57865860	-	SERP2443	-	putative lipoprotein
2388	 25.81	-1	2500623..2500715	-	30	57865861	-	SERP2444	-	hypothetical protein
2389	 27.23	-1	2500712..2501497	-	261	57865862	-	SERP2445	-	putative lipoprotein
2390	 29.60	0	2501711..2502058	-	115	57865863	-	SERP2446	-	PenN domain-containing protein
2391	 27.17	-1	2502065..2502826	-	253	57865864	-	SERP2447	-	putative lipoprotein
2392	 30.82	0	2502918..2503196	-	92	57865865	-	SERP2448	-	hypothetical protein
2393	 25.99	-1	2503206..2503532	-	108	57865873	-	SERP2449	-	hypothetical protein
2394	 27.08	-1	2504912..2505694	-	260	57865874	-	SERP2451	-	putative lipoprotein
2395	 27.42	-1	2505920..2506105	-	61	57865875	-	SERP2452	-	hypothetical protein
2396	 28.33	-1	2506108..2506887	-	259	57865876	-	SERP2453	-	putative lipoprotein
2397	 27.04	-1	2507320..2508177	-	285	57865877	-	SERP2454	-	hypothetical protein
2398	 26.39	-1	2509031..2509765	-	244	57865878	-	SERP2455	-	hypothetical protein
2399	 26.79	-1	2509762..2511030	-	422	57865879	-	SERP2456	-	hypothetical protein
2400	 28.93	0	2511030..2512052	-	340	57865880	-	SERP2457	-	CRISPR-associated Csm5 family protein
2401	 30.49	0	2512055..2512969	-	304	57865881	-	SERP2458	-	CRISPR-associated Csm4 family protein
2402	 33.80	0	2512974..2513618	-	214	57865882	-	SERP2459	-	CRISPR-associated Cmr4 family protein
32.10	MEAN

3.66	STD DEV
