IslandPathversion 1.0

IslandPath Analysis: Staphylococcus epidermidis RP62A

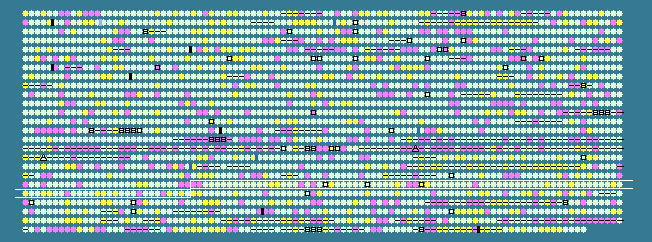

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.10 STD DEV: 3.66
Staphylococcus epidermidis RP62A, complete genome - 1..2616530
2494 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1929	 28.37	-1	1992431..1992853	+	140	57865432	-	SERP1973	-	general stress protein 26, putative
1930	 28.49	0	1993044..1993394	+	116	57865433	-	SERP1974	-	hypothetical protein
1931	 29.27	0	1993479..1993601	-	40	57865434	-	SERP1975	-	hypothetical protein
1932	 31.85	0	1993677..1994957	-	426	57865435	gltT	SERP1976	-	proton/sodium-glutamate symport protein
1933	 28.96	0	1995122..1995487	-	121	57865436	-	SERP1977	-	hypothetical protein
1934	 33.17	0	1995611..1996240	-	209	57865437	-	SERP1978	-	nitroreductase family protein
1935	 28.86	0	1996404..1996850	+	148	57865438	sarZ	SERP1979	-	MarR family transcriptional regulator
1936	 34.62	0	1997556..1998719	-	387	57865447	-	SERP1980	-	nitrite extrusion protein
1937	 32.57	0	1998976..1999632	-	218	57865448	-	SERP1981	-	transcriptional regulatory protein DegU, putative
1938	 32.56	0	1999661..2000695	-	344	57865449	-	SERP1982	-	sensor histidine kinase, putative
1939	 33.77	0	2000705..2001157	-	150	57865450	-	SERP1983	-	hypothetical protein
1940	 31.27	0	2001177..2001854	-	225	57865451	narI	SERP1984	-	respiratory nitrate reductase, gamma subunit
1941	 33.16	0	2001847..2002437	-	196	57865452	narJ	SERP1985	-	respiratory nitrate reductase, delta subunit
1942	 36.81	+1	2002415..2003968	-	517	57865453	narH	SERP1986	-	respiratory nitrate reductase, beta subunit
1943	 36.75	+1	2003958..2007641	-	1227	57865461	narG	SERP1987	-	respiratory nitrate reductase, alpha subunit
1944	 34.19	0	2007820..2008755	-	311	57865462	-	SERP1988	-	uroporphyrinogen-III methylase SirB, putative
1945	 32.06	0	2008746..2009060	-	104	57865463	nirD	SERP1989	-	nitrite reductase [NAD(P)H], small subunit
1946	 34.87	0	2009063..2011468	-	801	57865464	nirB	SERP1990	-	nitrite reductase [NAD(P)H], large subunit
1947	 26.67	-1	2011744..2011848	-	34	57865465	-	SERP1991	-	hypothetical protein
1948	 31.11	0	2011906..2012625	-	239	57865466	nirR	SERP1992	-	transcriptional regulator NirR
1949	 24.79	-2	2012615..2012731	-	38	57865467	-	SERP1993	-	hypothetical protein
1950	 31.91	0	2012875..2014350	+	491	57865477	-	SERP1994	-	ABC transporter, substrate-binding protein
1951	 32.05	0	2014631..2014786	+	51	57865478	-	SERP1995	-	truncated IS1272 transposase
1952	 35.75	+1	2015086..2015622	-	178	57865479	-	SERP1996	-	acetyltransferase
1953	 31.63	0	2016065..2016886	-	273	57865480	-	SERP1997	-	formate/nitrite transporter family protein
1954	 34.39	0	2017121..2017591	-	156	57865481	-	SERP1998	-	hypothetical protein
1955	 32.50	0	2017873..2018469	-	198	57865353	-	SERP1999	-	glutaredoxin, putative
1956	 30.58	0	2018493..2018855	-	120	57865354	-	SERP2000	-	putative lipoprotein
1957	 29.81	0	2019216..2020463	+	415	57865355	fmhA	SERP2001	-	fmhA protein
1958	 31.29	0	2020849..2020995	+	48	57865356	-	SERP2002	-	truncated IS1272 transposase
1959	 34.56	0	2021139..2021870	-	243	57865358	-	SERP2003	-	amino acid ABC transporter, ATP-binding protein
1960	 35.00	0	2021867..2022586	-	239	57865359	-	SERP2004	-	amino acid ABC transporter, permease protein
1961	 31.69	0	2022567..2023355	-	262	57865360	-	SERP2005	-	amino acid ABC transporter, amino acid-binding protein
1962	 31.43	0	2023570..2023674	+	34	57865361	-	SERP2006	-	hypothetical protein
1963	 35.81	+1	2023860..2024546	-	228	57865362	gpm	SERP2007	-	phosphoglycerate mutase
1964	 30.39	0	2024788..2025669	-	293	57865363	-	SERP2008	-	cation efflux family protein
1965	 26.87	-1	2025960..2026346	-	128	57865364	-	SERP2009	-	hypothetical protein
1966	 27.97	-1	2026367..2027839	-	490	57865365	-	SERP2010	-	hypothetical protein
1967	 36.57	+1	2028090..2029262	-	390	57865374	-	SERP2011	-	IS256-like transposase
1968	 37.15	+1	2029466..2030617	+	383	57865375	garK	SERP2012	-	glycerate kinase 2
1969	 29.77	0	2030648..2031349	+	233	57865376	-	SERP2013	-	hypothetical protein
1970	 33.50	0	2031613..2032812	+	399	57865377	bcr	SERP2014	-	bicyclomycin resistance protein
1971	 31.43	0	2033203..2033727	+	174	57865378	-	SERP2015	-	hypothetical protein
1972	 33.33	0	2033790..2034599	-	269	57865379	-	SERP2016	-	hypothetical protein
1973	 32.39	0	2034917..2036293	+	458	57865380	-	SERP2017	-	amino acid permease family protein
1974	 32.95	0	2036441..2038270	-	609	57865381	-	SERP2018	-	hypothetical protein
1975	 31.42	0	2038557..2040074	+	505	57865382	-	SERP2019	-	fmtA-like protein
1976	 26.88	-1	2040104..2040196	-	30	57865392	-	SERP2020	-	hypothetical protein
1977	 32.74	0	2040235..2041071	+	278	57865393	-	SERP2021	-	hypothetical protein
1978	 34.19	0	2041194..2042126	-	310	57865394	-	SERP2022	-	2-dehydropantoate 2-reductase
1979	 34.98	0	2042550..2043950	-	466	57865395	-	SERP2023	-	transporter, putative
1980	 34.29	0	2044375..2046150	+	591	57865396	lytS	SERP2024	-	sensor histidine kinase LytS
1981	 30.04	0	2046131..2046889	+	252	57865397	lytR	SERP2025	-	response regulator LytR
1982	 31.81	0	2047024..2047482	+	152	57865398	lrgA	SERP2026	-	murein hydrolase regulator LrgA
1983	 34.33	0	2047486..2048187	+	233	57865399	lrgB	SERP2027	-	antiholin-like protein LrgB
1984	 32.76	0	2048369..2049064	-	231	57865400	-	SERP2028	-	amino acid ABC transporter, permease protein
1985	 34.29	0	2049064..2050008	-	314	57865409	-	SERP2029	-	amino acid ABC transporter, amino acid-binding protein
1986	 32.39	0	2050025..2050660	-	211	57865410	-	SERP2030	-	amino acid ABC transporter, permease protein
1987	 33.33	0	2050663..2051919	-	418	57865411	-	SERP2031	-	amino acid ABC transporter, ATP-binding protein
1988	 38.18	+1	2052409..2053461	+	350	57865412	-	SERP2032	-	sorbitol dehydrogenase, putative
1989	 30.00	0	2053597..2053806	-	69	57865413	-	SERP2033	-	hypothetical protein
1990	 35.24	0	2054061..2055740	+	559	57865414	-	SERP2034	-	amino acid permease family protein
1991	 33.11	0	2056056..2057411	+	451	57865415	-	SERP2035	-	carboxylesterase family protein
1992	 35.62	0	2057494..2058672	-	392	57865416	-	SERP2036	-	major facilitator superfamily protein
1993	 34.49	0	2058811..2059587	-	258	57865423	-	SERP2037	-	hypothetical protein
1994	 34.39	0	2059580..2060242	-	220	57865424	-	SERP2038	-	ABC transporter, ATP-binding protein
1995	 32.79	0	2060538..2060720	-	60	57865425	-	SERP2039	-	hypothetical protein
1996	 29.50	0	2060849..2061631	-	260	57865426	-	SERP2040	-	abortive infection family protein
1997	 35.30	0	2061776..2063353	+	525	57865427	-	SERP2041	-	glutamate synthase-related protein
1998	 32.05	0	2063406..2063873	-	155	57865428	-	SERP2042	-	putative lipoprotein
1999	 37.33	+1	2064057..2065133	+	358	57865429	-	SERP2043	-	M42 family peptidase
2000	 29.63	0	2065150..2065338	+	62	57865430	-	SERP2044	-	hypothetical protein
2001	 37.85	+1	2065501..2066319	-	272	57865439	-	SERP2045	-	short chain dehydrogenase
2002	 33.33	0	2066632..2068164	+	510	57865440	-	SERP2046	-	exopolyphosphatase
2003	 33.33	0	2068227..2070392	+	721	57865441	ppk	SERP2047	-	polyphosphate kinase
2004	 38.58	+1	2070559..2071815	-	418	57865442	-	SERP2048	-	acetylornithine deacetylase
2005	 38.24	+1	2071904..2072596	-	230	57865443	-	SERP2049	-	short chain dehydrogenase/reductase family oxidoreductase
2006	 31.97	0	2072959..2073105	+	48	57865444	-	SERP2050	-	hypothetical protein
2007	 34.90	0	2073388..2073579	-	63	57865445	-	SERP2051	-	hypothetical protein
2008	 26.69	-1	2073731..2076589	-	952	57865446	-	SERP2052	-	helicase, putative
2009	 30.58	0	2076591..2076989	-	132	57865454	-	SERP2053	-	MutT/nudix family protein
2010	 29.18	0	2077256..2078746	-	496	57865455	-	SERP2054	-	glycosyl transferase, group 1 family protein
2011	 35.04	0	2078964..2080604	+	546	57865456	-	SERP2055	-	phosphoglucomutase/phosphomannomutase family protein
2012	 33.91	0	2080818..2081684	-	288	57865457	galU	SERP2056	-	UTP-glucose-1-phosphate uridylyltransferase
2013	 36.28	+1	2081933..2083291	-	452	57865458	gntP	SERP2057	-	gluconate transporter, permease protein
2014	 36.71	+1	2083341..2084882	-	513	57865459	gntK	SERP2058	-	gluconokinase
2015	 35.10	0	2084906..2085586	-	226	57865460	gntR	SERP2059	-	gluconate operon transcriptional repressor
2016	 36.13	+1	2085955..2087313	+	452	57865468	glpT	SERP2060	-	glycerol-3-phosphate transporter
2017	 32.36	0	2087471..2088187	-	238	57865469	-	SERP2061	-	MerR family transcriptional regulator
2018	 32.32	0	2088206..2088304	-	32	57865470	-	SERP2062	-	hypothetical protein
2019	 32.53	0	2088273..2089148	-	291	57865471	-	SERP2063	-	esterase, putative
2020	 28.54	0	2089454..2090371	+	305	57865472	-	SERP2064	-	PAP2 family protein
2021	 30.20	0	2090491..2091192	-	233	57865473	-	SERP2065	-	hypothetical protein
2022	 35.51	0	2091456..2091869	-	137	57865474	-	SERP2066	-	hypothetical protein
2023	 33.59	0	2091947..2093863	-	638	57865475	-	SERP2067	-	hypothetical protein
2024	 27.15	-1	2094025..2094315	-	96	57865476	-	SERP2068	-	hypothetical protein
2025	 36.31	+1	2094468..2095742	-	424	57865485	-	SERP2069	-	major facilitator superfamily protein
2026	 32.90	0	2096555..2097013	+	152	57865486	-	SERP2070	-	thiamine-phosphate pyrophosphorylase, putative
2027	 36.01	+1	2097006..2098124	+	372	57865487	-	SERP2071	-	glycine oxidase, putative
2028	 34.33	0	2098108..2098308	+	66	57865488	thiS	SERP2072	-	thiamine biosynthesis protein ThiS
32.10	MEAN

3.66	STD DEV
