IslandPathversion 1.0

IslandPath Analysis: Staphylococcus epidermidis RP62A

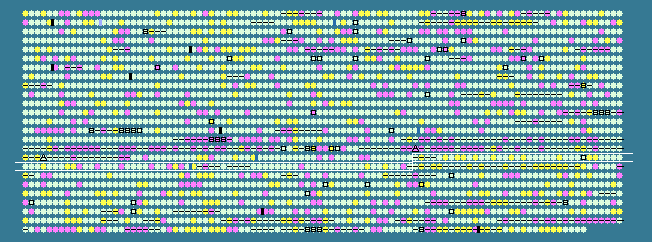

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.10 STD DEV: 3.66
Staphylococcus epidermidis RP62A, complete genome - 1..2616530
2494 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1666	 33.19	0	1743316..1744005	-	229	57867633	-	SERP1701	-	TenA family transcription regulator
1667	 37.58	+1	1744290..1744949	-	219	57867634	sceD	SERP1702	-	sceD protein
1668	 28.79	0	1745337..1745732	-	131	57867635	-	SERP1703	-	single-stranded DNA-binding protein family
1669	 30.84	0	1745923..1746363	+	146	57867636	ywpF	SERP1704	-	ywpF protein
1670	 35.16	0	1746681..1747118	-	145	57867637	fabZ	SERP1705	-	(3R)-hydroxymyristoyl-(acyl-carrier-protein) dehydratase
1671	 35.78	+1	1747152..1748417	-	421	57867646	murAA	SERP1706	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1672	 29.06	0	1748527..1748760	-	77	57867647	-	SERP1707	-	hypothetical protein
1673	 36.05	+1	1748909..1749313	-	134	57867648	atpC	SERP1708	-	F0F1 ATP synthase subunit epsilon
1674	 38.57	+1	1749333..1750745	-	470	57867649	atpD	SERP1709	-	F0F1 ATP synthase subunit beta
1675	 32.99	0	1750767..1751633	-	288	57867650	atpG	SERP1710	-	F0F1 ATP synthase subunit gamma
1676	 37.30	+1	1751718..1753229	-	503	57867651	atpA	SERP1711	-	F0F1 ATP synthase subunit alpha
1677	 29.07	0	1753252..1753791	-	179	57867652	atpH	SERP1712	-	F0F1 ATP synthase subunit delta
1678	 32.36	0	1753791..1754306	-	171	57867660	atpF	SERP1713	-	F0F1 ATP synthase subunit B
1679	 41.31	+2	1754404..1754616	-	70	57867661	atpE	SERP1714	-	F0F1 ATP synthase subunit C
1680	 35.53	0	1754659..1755387	-	242	57867662	atpB	SERP1715	-	F0F1 ATP synthase subunit A
1681	 33.94	0	1755916..1757061	-	381	57867663	-	SERP1717	-	UDP-N-acetylglucosamine 2-epimerase
1682	 37.46	+1	1757086..1757715	-	209	57867664	upp	SERP1718	-	uracil phosphoribosyltransferase
1683	 34.54	0	1757744..1758982	-	412	57867665	glyA	SERP1719	-	serine hydroxymethyltransferase
1684	 36.38	+1	1759007..1759531	-	174	57867674	-	SERP1720	-	hypothetical protein
1685	 35.00	0	1759641..1760060	-	139	57867675	-	SERP1721	-	phosphotyrosine protein phosphatase
1686	 34.10	0	1760057..1761100	-	347	57867582	-	SERP1722	-	Sua5/YciO/YrdC/YwlC family protein
1687	 32.03	0	1761076..1761228	-	50	57867583	-	SERP1723	-	hypothetical protein
1688	 32.38	0	1761263..1762099	-	278	57867592	-	SERP1724	-	HemK family modification methylase
1689	 35.00	0	1762086..1763162	-	358	57867593	prfA	SERP1725	-	peptide chain release factor 1
1690	 37.67	+1	1763162..1763761	-	199	57867594	tdk	SERP1726	-	thymidine kinase
1691	 34.50	0	1764048..1764305	-	85	57867595	rpmE2	SERP1727	-	50S ribosomal protein L31 type B
1692	 35.23	0	1764422..1765738	-	438	57867596	rho	SERP1728	-	transcription termination factor Rho
1693	 34.59	0	1766042..1767469	-	475	57867597	-	SERP1729	-	aldehyde dehydrogenase
1694	 33.33	0	1767779..1768792	-	337	57867598	-	SERP1730	-	ISSep1-like transposase
1695	 36.19	+1	1769457..1770716	-	419	57867607	murAB	SERP1731	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1696	 36.00	+1	1771077..1771937	-	286	57867608	fbaA	SERP1732	-	fructose-bisphosphate aldolase
1697	 30.84	0	1772157..1772678	+	173	57867609	-	SERP1733	-	hypothetical protein
1698	 34.39	0	1772905..1774512	-	535	57867610	pyrG	SERP1734	-	CTP synthetase
1699	 32.59	0	1774849..1775385	-	178	57867611	rpoE	SERP1735	-	DNA-directed RNA polymerase subunit delta
1700	 30.20	0	1775496..1776356	-	286	57867612	-	SERP1736	-	acetyltransferase
1701	 34.09	0	1776659..1777456	+	265	57867613	-	SERP1737	-	pantothenate kinase
1702	 30.48	0	1777677..1778342	-	221	57867622	-	SERP1738	-	hypothetical protein
1703	 31.07	0	1778516..1779706	-	396	57867623	-	SERP1739	-	hypothetical protein
1704	 36.29	+1	1779706..1780890	-	394	57867624	-	SERP1740	-	amidohydrolase family protein
1705	 35.46	0	1781118..1781588	+	156	57867625	luxS	SERP1741	-	S-ribosylhomocysteinase
1706	 30.77	0	1781739..1782089	-	116	57867626	-	SERP1742	-	hypothetical protein
1707	 35.43	0	1782086..1783276	-	396	57867627	deoB	SERP1743	-	phosphopentomutase
1708	 37.56	+1	1783289..1784590	-	433	57867628	pdp	SERP1744	-	pyrimidine-nucleoside phosphorylase
1709	 35.75	0	1784623..1785285	-	220	57867629	deoC	SERP1745	-	deoxyribose-phosphate aldolase
1710	 20.00	-2	1785278..1785397	-	39	57867638	-	SERP1746	-	hypothetical protein
1711	 35.02	0	1785492..1786202	+	236	57867639	deoD	SERP1747	-	purine nucleoside phosphorylase
1712	 32.44	0	1786326..1786772	-	148	57867640	-	SERP1748	-	Dps family protein
1713	 27.98	-1	1786960..1787370	-	136	57867641	-	SERP1749	-	hypothetical protein
1714	 31.45	0	1787551..1788927	-	458	57867642	-	SERP1750	-	hypothetical protein
1715	 33.33	0	1789160..1789387	-	75	57867643	-	SERP1751	-	hypothetical protein
1716	 32.48	0	1789442..1790380	-	312	57867644	manA-1	SERP1752	-	mannose-6-phosphate isomerase, class I
1717	 22.67	-2	1790675..1790824	-	49	57867645	-	SERP1753	-	hypothetical protein
1718	 31.66	0	1791022..1791678	-	218	57867653	-	SERP1754	-	hypothetical protein
1719	 31.29	0	1791823..1792164	+	113	57867654	czrA	SERP1755	-	transcriptional regulator CzrA
1720	 33.33	0	1792151..1793104	+	317	57867655	-	SERP1756	-	cation efflux family protein
1721	 30.46	0	1793365..1794096	-	243	57867656	-	SERP1757	-	hypothetical protein
1722	 26.48	-1	1794229..1795380	+	383	57867657	-	SERP1758	-	lytic regulatory protein, putative
1723	 32.18	0	1795685..1796554	-	289	57867658	-	SERP1759	-	HAD-superfamily cof-like hydrolase
1724	 34.00	0	1797037..1798842	-	601	57867659	glmS	SERP1760	-	D-fructose-6-phosphate amidotransferase
1725	 28.21	-1	1798883..1799038	-	51	57867666	-	SERP1761	-	hypothetical protein
1726	 36.58	+1	1799474..1800829	-	451	57867667	glmM	SERP1762	-	phosphoglucosamine mutase
1727	 28.31	-1	1800854..1801789	-	311	57867668	-	SERP1763	-	hypothetical protein
1728	 32.22	0	1801790..1802599	-	269	57867669	-	SERP1764	-	hypothetical protein
1729	 37.45	+1	1808640..1809707	-	355	57867670	-	SERP1765	-	ATP-binding Mrp/Nbp35 family protein
1730	 34.65	0	1809858..1811297	-	479	57867671	-	SERP1766	-	EmrB/QacA family drug resistance transporter
1731	 23.57	-2	1811567..1812037	-	156	57867672	-	SERP1767	-	hypothetical protein
1732	 29.52	0	1812225..1813562	-	445	57867673	-	SERP1768	-	drug transporter, putative
1733	 32.02	0	1813801..1814484	-	227	57867682	-	SERP1769	-	hemolysin III, putative
1734	 30.89	0	1814503..1815690	-	395	57867683	-	SERP1770	-	UTP-glucose-1-phosphate uridylyltransferase family protein
1735	 30.20	0	1815745..1816254	-	169	57867684	-	SERP1771	-	hypothetical protein
1736	 29.12	0	1816431..1816691	+	86	57867685	-	SERP1772	-	hypothetical protein
1737	 30.16	0	1816844..1817158	+	104	57867686	-	SERP1773	-	heme-degrading monooxygenase IsdG
1738	 31.59	0	1817337..1818710	-	457	57867687	-	SERP1774	-	hypothetical protein
1739	 33.02	0	1819007..1819972	-	321	57867688	-	SERP1775	-	iron compound ABC transporter, permease protein
1740	 33.72	0	1819969..1821000	-	343	57867689	-	SERP1776	-	iron compound ABC transporter, permease protein
1741	 31.22	0	1821012..1822007	-	331	57867699	-	SERP1777	-	iron compound ABC transporter, iron compound-binding protein
1742	 30.89	0	1822209..1823270	-	353	57867700	-	SERP1778	-	hypothetical protein
1743	 30.89	0	1823274..1825031	-	585	57867701	-	SERP1779	-	hypothetical protein
1744	 31.47	0	1825021..1826202	-	393	57867702	-	SERP1780	-	transporter, putative
1745	 30.73	0	1826305..1828266	+	653	57867703	-	SERP1781	-	hypothetical protein
1746	 31.34	0	1828323..1828823	-	166	57867704	-	SERP1782	-	alkaline shock protein 23
1747	 28.33	-1	1828897..1829136	-	79	57867705	-	SERP1783	-	hypothetical protein
1748	 31.66	0	1829149..1829685	-	178	57867706	-	SERP1784	-	hypothetical protein
1749	 33.83	0	1830481..1831491	-	336	57867716	-	SERP1785	-	alcohol dehydrogenase, zinc-containing
1750	 35.52	0	1831590..1832594	-	334	57867717	-	SERP1786	-	alcohol dehydrogenase, zinc-containing
1751	 30.91	0	1833830..1834696	-	288	57867718	-	SERP1788	-	hypothetical protein
1752	 34.47	0	1834967..1836379	-	470	57867719	lacG	SERP1789	-	6-phospho-beta-galactosidase
1753	 33.22	0	1836395..1838143	-	582	57867720	lacE	SERP1790	-	PTS system, lactose-specific IIBC components
1754	 33.97	0	1838149..1838463	-	104	57867721	lacF	SERP1791	-	PTS system, lactose-specific IIA component
1755	 34.87	0	1838483..1839460	-	325	57867731	lacD	SERP1792	-	tagatose 1,6-diphosphate aldolase
1756	 32.37	0	1839464..1840396	-	310	57867732	lacC	SERP1793	-	tagatose-6-phosphate kinase
1757	 34.50	0	1840409..1840924	-	171	57867733	lacB	SERP1794	-	galactose-6-phosphate isomerase subunit LacB
1758	 36.36	+1	1840939..1841367	-	142	57867734	lacA	SERP1795	-	galactose-6-phosphate isomerase subunit LacA
1759	 30.69	0	1841734..1842489	-	251	57867735	lacR	SERP1796	-	lactose phosphotransferase system repressor
1760	 32.79	0	1842789..1843529	+	246	57867736	-	SERP1797	-	NAD-dependent deacetylase
1761	 39.19	+1	1843791..1844183	-	130	57867737	rpsI	SERP1798	-	30S ribosomal protein S9
1762	 34.93	0	1844203..1844640	-	145	57867746	rplM	SERP1799	-	50S ribosomal protein L13
1763	 34.20	0	1844901..1845704	-	267	57867747	truA	SERP1800	-	tRNA pseudouridine synthase A
1764	 28.38	-1	1845708..1846514	-	268	57867748	-	SERP1801	-	cobalt transport family protein
1765	 31.36	0	1846504..1847364	-	286	57867749	-	SERP1802	-	cobalt transporter ATP-binding subunit
32.10	MEAN

3.66	STD DEV
