IslandPathversion 1.0

IslandPath Analysis: Staphylococcus epidermidis RP62A

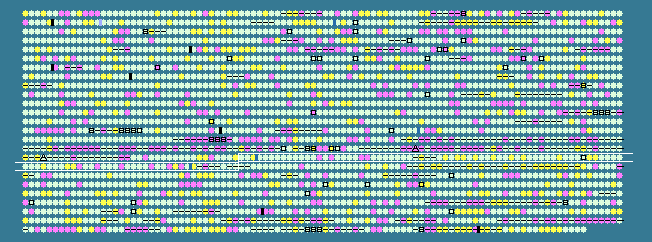

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.10 STD DEV: 3.66
Staphylococcus epidermidis RP62A, complete genome - 1..2616530
2494 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1637	 32.46	0	1711750..1712319	+	189	57867573	leuD	SERP1672	-	isopropylmalate isomerase small subunit
1638	 32.07	0	1712334..1713602	+	422	57867574	ilvA	SERP1673	-	threonine dehydratase
1639	 40.54	+2	1713700..1713810	-	36	57867584	-	SERP1674	-	hypothetical protein
1640	 32.68	0	1719919..1720374	-	151	57867585	-	SERP1675	-	hypothetical protein
1641	 31.75	0	1720367..1722517	-	716	57867586	-	SERP1676	-	S1 RNA-binding domain-containing protein
1642	 34.11	0	1722805..1723575	-	256	57867587	rpoF	SERP1677	-	RNA polymerase sigma factor SigB
1643	 32.71	0	1723550..1724029	-	159	57867588	rsbW	SERP1678	-	serine-protein kinase RsbW
1644	 33.94	0	1724031..1724357	-	108	57867589	rsbV	SERP1679	-	anti-anti-sigma factor RsbV
1645	 32.73	0	1724457..1725458	-	333	57867590	rsbU	SERP1680	-	sigma factor B regulator protein
1646	 30.03	0	1725803..1726165	-	120	57867591	-	SERP1681	-	PemK family transcriptional regulator
1647	 33.33	0	1726162..1726332	-	56	57867599	-	SERP1682	-	hypothetical protein
1648	 33.33	0	1726419..1727567	-	382	57867600	alr	SERP1683	-	alanine racemase
1649	 32.49	0	1727634..1727987	-	117	57867601	acpS	SERP1684	-	holo-(acyl-carrier-protein) synthase
1650	 25.69	-1	1728035..1728544	-	169	57867602	-	SERP1685	-	hypothetical protein
1651	 29.61	0	1728531..1730036	-	501	57867603	-	SERP1686	-	hypothetical protein
1652	 26.25	-1	1730029..1730508	-	159	57867604	-	SERP1687	-	hypothetical protein
1653	 35.42	0	1730758..1732287	-	509	57867605	-	SERP1688	-	DEAD-box ATP dependent DNA helicase
1654	 31.49	0	1732587..1733942	-	451	57867606	murF	SERP1689	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
1655	 31.19	0	1733954..1735027	-	357	57867614	ddl	SERP1690	-	D-alanyl-alanine synthetase A
1656	 30.12	0	1735418..1736629	+	403	57867615	-	SERP1691	-	cell cycle protein FtsW
1657	 26.09	-1	1736728..1736865	-	45	57867616	-	SERP1692	-	hypothetical protein
1658	 28.57	0	1737008..1737217	-	69	57867617	-	SERP1693	-	hypothetical protein
1659	 33.33	0	1737224..1737517	-	97	57867618	-	SERP1694	-	hypothetical protein
1660	 32.17	0	1737709..1739175	+	488	57867619	cls-2	SERP1695	-	cardiolipin synthetase
1661	 31.35	0	1739357..1740010	+	217	57867620	-	SERP1696	-	HD domain-containing protein
1662	 30.93	0	1740116..1740988	-	290	57867621	-	SERP1697	-	hypothetical protein
1663	 32.55	0	1741077..1741718	-	213	57867630	thiE	SERP1698	-	thiamine-phosphate pyrophosphorylase
1664	 34.22	0	1741721..1742509	-	262	57867631	thiM	SERP1699	-	hydroxyethylthiazole kinase
1665	 34.79	0	1742502..1743323	-	273	57867632	thiD-2	SERP1700	-	phosphomethylpyrimidine kinase
1666	 33.19	0	1743316..1744005	-	229	57867633	-	SERP1701	-	TenA family transcription regulator
1667	 37.58	+1	1744290..1744949	-	219	57867634	sceD	SERP1702	-	sceD protein
1668	 28.79	0	1745337..1745732	-	131	57867635	-	SERP1703	-	single-stranded DNA-binding protein family
1669	 30.84	0	1745923..1746363	+	146	57867636	ywpF	SERP1704	-	ywpF protein
1670	 35.16	0	1746681..1747118	-	145	57867637	fabZ	SERP1705	-	(3R)-hydroxymyristoyl-(acyl-carrier-protein) dehydratase
1671	 35.78	+1	1747152..1748417	-	421	57867646	murAA	SERP1706	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1672	 29.06	0	1748527..1748760	-	77	57867647	-	SERP1707	-	hypothetical protein
1673	 36.05	+1	1748909..1749313	-	134	57867648	atpC	SERP1708	-	F0F1 ATP synthase subunit epsilon
1674	 38.57	+1	1749333..1750745	-	470	57867649	atpD	SERP1709	-	F0F1 ATP synthase subunit beta
1675	 32.99	0	1750767..1751633	-	288	57867650	atpG	SERP1710	-	F0F1 ATP synthase subunit gamma
1676	 37.30	+1	1751718..1753229	-	503	57867651	atpA	SERP1711	-	F0F1 ATP synthase subunit alpha
1677	 29.07	0	1753252..1753791	-	179	57867652	atpH	SERP1712	-	F0F1 ATP synthase subunit delta
1678	 32.36	0	1753791..1754306	-	171	57867660	atpF	SERP1713	-	F0F1 ATP synthase subunit B
1679	 41.31	+2	1754404..1754616	-	70	57867661	atpE	SERP1714	-	F0F1 ATP synthase subunit C
1680	 35.53	0	1754659..1755387	-	242	57867662	atpB	SERP1715	-	F0F1 ATP synthase subunit A
1681	 33.94	0	1755916..1757061	-	381	57867663	-	SERP1717	-	UDP-N-acetylglucosamine 2-epimerase
1682	 37.46	+1	1757086..1757715	-	209	57867664	upp	SERP1718	-	uracil phosphoribosyltransferase
1683	 34.54	0	1757744..1758982	-	412	57867665	glyA	SERP1719	-	serine hydroxymethyltransferase
1684	 36.38	+1	1759007..1759531	-	174	57867674	-	SERP1720	-	hypothetical protein
1685	 35.00	0	1759641..1760060	-	139	57867675	-	SERP1721	-	phosphotyrosine protein phosphatase
1686	 34.10	0	1760057..1761100	-	347	57867582	-	SERP1722	-	Sua5/YciO/YrdC/YwlC family protein
1687	 32.03	0	1761076..1761228	-	50	57867583	-	SERP1723	-	hypothetical protein
1688	 32.38	0	1761263..1762099	-	278	57867592	-	SERP1724	-	HemK family modification methylase
1689	 35.00	0	1762086..1763162	-	358	57867593	prfA	SERP1725	-	peptide chain release factor 1
1690	 37.67	+1	1763162..1763761	-	199	57867594	tdk	SERP1726	-	thymidine kinase
1691	 34.50	0	1764048..1764305	-	85	57867595	rpmE2	SERP1727	-	50S ribosomal protein L31 type B
1692	 35.23	0	1764422..1765738	-	438	57867596	rho	SERP1728	-	transcription termination factor Rho
1693	 34.59	0	1766042..1767469	-	475	57867597	-	SERP1729	-	aldehyde dehydrogenase
1694	 33.33	0	1767779..1768792	-	337	57867598	-	SERP1730	-	ISSep1-like transposase
1695	 36.19	+1	1769457..1770716	-	419	57867607	murAB	SERP1731	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1696	 36.00	+1	1771077..1771937	-	286	57867608	fbaA	SERP1732	-	fructose-bisphosphate aldolase
1697	 30.84	0	1772157..1772678	+	173	57867609	-	SERP1733	-	hypothetical protein
1698	 34.39	0	1772905..1774512	-	535	57867610	pyrG	SERP1734	-	CTP synthetase
1699	 32.59	0	1774849..1775385	-	178	57867611	rpoE	SERP1735	-	DNA-directed RNA polymerase subunit delta
1700	 30.20	0	1775496..1776356	-	286	57867612	-	SERP1736	-	acetyltransferase
1701	 34.09	0	1776659..1777456	+	265	57867613	-	SERP1737	-	pantothenate kinase
1702	 30.48	0	1777677..1778342	-	221	57867622	-	SERP1738	-	hypothetical protein
1703	 31.07	0	1778516..1779706	-	396	57867623	-	SERP1739	-	hypothetical protein
1704	 36.29	+1	1779706..1780890	-	394	57867624	-	SERP1740	-	amidohydrolase family protein
1705	 35.46	0	1781118..1781588	+	156	57867625	luxS	SERP1741	-	S-ribosylhomocysteinase
1706	 30.77	0	1781739..1782089	-	116	57867626	-	SERP1742	-	hypothetical protein
1707	 35.43	0	1782086..1783276	-	396	57867627	deoB	SERP1743	-	phosphopentomutase
1708	 37.56	+1	1783289..1784590	-	433	57867628	pdp	SERP1744	-	pyrimidine-nucleoside phosphorylase
1709	 35.75	0	1784623..1785285	-	220	57867629	deoC	SERP1745	-	deoxyribose-phosphate aldolase
1710	 20.00	-2	1785278..1785397	-	39	57867638	-	SERP1746	-	hypothetical protein
1711	 35.02	0	1785492..1786202	+	236	57867639	deoD	SERP1747	-	purine nucleoside phosphorylase
1712	 32.44	0	1786326..1786772	-	148	57867640	-	SERP1748	-	Dps family protein
1713	 27.98	-1	1786960..1787370	-	136	57867641	-	SERP1749	-	hypothetical protein
1714	 31.45	0	1787551..1788927	-	458	57867642	-	SERP1750	-	hypothetical protein
1715	 33.33	0	1789160..1789387	-	75	57867643	-	SERP1751	-	hypothetical protein
1716	 32.48	0	1789442..1790380	-	312	57867644	manA-1	SERP1752	-	mannose-6-phosphate isomerase, class I
1717	 22.67	-2	1790675..1790824	-	49	57867645	-	SERP1753	-	hypothetical protein
1718	 31.66	0	1791022..1791678	-	218	57867653	-	SERP1754	-	hypothetical protein
1719	 31.29	0	1791823..1792164	+	113	57867654	czrA	SERP1755	-	transcriptional regulator CzrA
1720	 33.33	0	1792151..1793104	+	317	57867655	-	SERP1756	-	cation efflux family protein
1721	 30.46	0	1793365..1794096	-	243	57867656	-	SERP1757	-	hypothetical protein
1722	 26.48	-1	1794229..1795380	+	383	57867657	-	SERP1758	-	lytic regulatory protein, putative
1723	 32.18	0	1795685..1796554	-	289	57867658	-	SERP1759	-	HAD-superfamily cof-like hydrolase
1724	 34.00	0	1797037..1798842	-	601	57867659	glmS	SERP1760	-	D-fructose-6-phosphate amidotransferase
1725	 28.21	-1	1798883..1799038	-	51	57867666	-	SERP1761	-	hypothetical protein
1726	 36.58	+1	1799474..1800829	-	451	57867667	glmM	SERP1762	-	phosphoglucosamine mutase
1727	 28.31	-1	1800854..1801789	-	311	57867668	-	SERP1763	-	hypothetical protein
1728	 32.22	0	1801790..1802599	-	269	57867669	-	SERP1764	-	hypothetical protein
1729	 37.45	+1	1808640..1809707	-	355	57867670	-	SERP1765	-	ATP-binding Mrp/Nbp35 family protein
1730	 34.65	0	1809858..1811297	-	479	57867671	-	SERP1766	-	EmrB/QacA family drug resistance transporter
1731	 23.57	-2	1811567..1812037	-	156	57867672	-	SERP1767	-	hypothetical protein
1732	 29.52	0	1812225..1813562	-	445	57867673	-	SERP1768	-	drug transporter, putative
1733	 32.02	0	1813801..1814484	-	227	57867682	-	SERP1769	-	hemolysin III, putative
1734	 30.89	0	1814503..1815690	-	395	57867683	-	SERP1770	-	UTP-glucose-1-phosphate uridylyltransferase family protein
1735	 30.20	0	1815745..1816254	-	169	57867684	-	SERP1771	-	hypothetical protein
1736	 29.12	0	1816431..1816691	+	86	57867685	-	SERP1772	-	hypothetical protein
32.10	MEAN

3.66	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
