IslandPath Analysis: Staphylococcus epidermidis RP62A

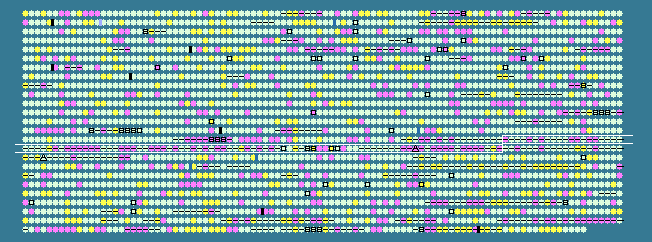

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 32.10   STD DEV: 3.66
Staphylococcus epidermidis RP62A, complete genome - 1..2616530
2494 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1481	 28.10	-1	1579399..1579551	-	50	57867423	-	SERP1516	-	hypothetical protein
1482	 32.05	0	1579570..1580271	-	233	57867424	-	SERP1517	-	hypothetical protein
1483	 30.14	0	1580283..1580783	-	166	57867425	-	SERP1518	-	hypothetical protein
1484	 28.98	0	1580918..1581514	-	198	57867426	-	SERP1519	-	hypothetical protein
1485	 28.57	0	1581514..1581744	-	76	57867427	-	SERP1520	-	hypothetical protein
1486	 30.05	0	1581758..1581940	-	60	57867435	-	SERP1521	-	hypothetical protein
1487	 25.96	-1	1581943..1582254	-	103	57867436	-	SERP1522	-	hypothetical protein
1488	 32.84	0	1582329..1583336	-	335	57867437	-	SERP1523	-	DNA-cytosine methyltransferase
1489	 29.26	0	1583342..1584028	-	228	57867438	-	SERP1524	-	methyltransferase domain-containing protein
1490	 32.81	0	1584018..1584209	-	63	57867439	-	SERP1525	-	hypothetical protein
1491	 32.52	0	1584202..1584813	-	203	57867440	-	SERP1526	-	hypothetical protein
1492	 27.87	-1	1584828..1585010	-	60	57867441	-	SERP1527	-	hypothetical protein
1493	 28.57	0	1585010..1585261	-	83	57867442	-	SERP1528	-	hypothetical protein
1494	 31.61	0	1585418..1585591	-	57	57867443	-	SERP1529	-	hypothetical protein
1495	 28.12	-1	1585572..1585859	-	95	57867453	-	SERP1530	-	hypothetical protein
1496	 28.46	0	1585852..1586118	-	88	57867454	-	SERP1531	-	hypothetical protein
1497	 31.61	0	1586130..1586303	-	57	57867455	-	SERP1532	-	hypothetical protein
1498	 30.00	0	1586417..1586806	-	129	57867456	-	SERP1533	-	hypothetical protein
1499	 30.33	0	1586894..1588192	-	432	57867457	-	SERP1534	-	DNA ligase, ATP-dependent
1500	 28.89	0	1588202..1588516	-	104	57867458	-	SERP1535	-	hypothetical protein
1501	 32.55	0	1588654..1589034	-	126	57867459	-	SERP1536	-	hypothetical protein
1502	 31.64	0	1589146..1591632	-	828	57867460	-	SERP1537	-	DNA polymerase III, alpha subunit, putative
1503	 31.33	0	1592095..1593543	-	482	57867461	-	SERP1538	-	DNA polymerase III, alpha subunit, truncation
1504	 30.93	0	1593556..1593930	-	124	57867471	-	SERP1539	-	hypothetical protein
1505	 39.39	+1	1594097..1594657	+	186	57867472	-	SERP1540	-	hypothetical protein
1506	 28.15	-1	1595010..1595414	+	134	57867473	-	SERP1541	-	hypothetical protein
1507	 34.07	0	1595497..1595631	+	44	57867474	-	SERP1542	-	hypothetical protein
1508	 25.86	-1	1595662..1596303	-	213	57867475	-	SERP1543	-	hypothetical protein
1509	 27.94	-1	1596409..1597131	-	240	57867476	-	SERP1544	-	putative lipoprotein
1510	 26.59	-1	1597240..1598040	-	266	57867477	-	SERP1545	-	hypothetical protein
1511	 25.45	-1	1598044..1598538	-	164	57867478	-	SERP1546	-	hypothetical protein
1512	 24.07	-2	1598595..1598864	-	89	57867479	-	SERP1547	-	hypothetical protein
1513	 27.78	-1	1598848..1599063	-	71	57867496	-	SERP1548	-	hypothetical protein
1514	 31.31	0	1599342..1599737	-	131	57867497	-	SERP1549	-	death-on-curing family protein
1515	 32.74	0	1599737..1599904	-	55	57867498	-	SERP1550	-	hypothetical protein
1516	 29.52	0	1599933..1600037	-	34	57867499	-	SERP1551	-	hypothetical protein
1517	 26.20	-1	1600130..1600648	-	172	57867500	-	SERP1552	-	hypothetical protein
1518	 25.65	-1	1600648..1601298	-	216	57867501	-	SERP1553	-	hypothetical protein
1519	 26.17	-1	1601298..1601618	-	106	57867429	-	SERP1554	-	hypothetical protein
1520	 31.82	0	1601608..1602333	-	241	57867430	-	SERP1555	-	serine/threonine protein phosphatase, putative
1521	 29.73	0	1602333..1602554	-	73	57867431	-	SERP1556	-	hypothetical protein
1522	 27.68	-1	1602574..1602750	-	58	57867432	-	SERP1557	-	hypothetical protein
1523	 24.49	-2	1602743..1603285	-	180	57867433	-	SERP1558	-	hypothetical protein
1524	 28.57	0	1603301..1603573	-	90	57867434	-	SERP1559	-	hypothetical protein
1525	 28.85	0	1603599..1603754	-	51	57867444	-	SERP1560	-	phage transcriptional activator-related protein
1526	 28.42	-1	1603751..1604035	-	94	57867445	-	SERP1561	-	hypothetical protein
1527	 29.03	0	1604051..1604236	-	61	57867446	-	SERP1562	-	hypothetical protein
1528	 28.89	0	1604221..1604400	-	59	57867447	-	SERP1563	-	hypothetical protein
1529	 27.12	-1	1604416..1604898	-	160	57867448	-	SERP1564	-	hypothetical protein
1530	 30.39	0	1605095..1605298	-	67	57867449	-	SERP1565	-	hypothetical protein
1531	 26.97	-1	1605303..1605569	-	88	57867450	-	SERP1566	-	hypothetical protein
1532	 33.70	0	1605591..1605866	-	91	57867451	-	SERP1567	-	hypothetical protein
1533	 26.25	-1	1605889..1606128	-	79	57867452	-	SERP1568	-	hypothetical protein
1534	 26.22	-1	1606150..1606374	-	74	57867462	-	SERP1569	-	hypothetical protein
1535	 31.61	0	1606380..1606727	-	115	57867463	-	SERP1570	-	nuclease family protein
1536	 32.85	0	1606724..1607134	-	136	57867464	-	SERP1571	-	hypothetical protein
1537	 36.36	+1	1607174..1607437	-	87	57867465	-	SERP1572	-	hypothetical protein
1538	 28.16	-1	1607440..1607748	-	102	57867466	-	SERP1573	-	hypothetical protein
1539	 28.83	0	1607754..1607864	-	36	57867467	-	SERP1574	-	hypothetical protein
1540	 26.02	-1	1607845..1607967	-	40	57867468	-	SERP1575	-	hypothetical protein
1541	 30.07	0	1608040..1608315	-	91	57867469	-	SERP1576	-	hypothetical protein
1542	 27.78	-1	1608328..1608525	-	65	57867470	-	SERP1577	-	hypothetical protein
1543	 29.64	0	1608536..1609375	-	279	57867480	-	SERP1578	-	hypothetical protein
1544	 34.67	0	1609626..1610300	+	224	57867481	-	SERP1579	-	IS431mec-like transposase
1545	 32.86	0	1610332..1610754	-	140	57867482	-	SERP1580	-	hypothetical protein
1546	 35.60	0	1610764..1611249	-	161	57867483	folA-2	SERP1581	-	dihydrofolate reductase
1547	 32.08	0	1611291..1612247	-	318	57867484	thyA	SERP1582	-	thymidylate synthase
1548	 33.64	0	1612361..1612684	+	107	57867485	-	SERP1583	-	IS431mec-like transposase
1549	 36.57	+1	1612762..1613934	+	390	57867486	-	SERP1584	-	IS256-like transposase
1550	 24.65	-2	1614064..1615503	-	479	57867487	aacA	SERP1585	-	6'-aminoglycoside N-acetyltransferase/2''-aminoglycoside phosphotransferase
1551	 24.68	-2	1615504..1615896	-	130	57867488	-	SERP1586	-	acetyltransferase
1552	 36.57	+1	1615953..1617125	-	390	57867489	-	SERP1587	-	IS256-like transposase
1553	 34.52	0	1617188..1617610	+	140	57867490	-	SERP1588	-	IS431mec-like transposase
1554	 27.24	-1	1617909..1618646	-	245	57867491	-	SERP1589	-	hypothetical protein
1555	 30.11	0	1618839..1620605	-	588	57867492	-	SERP1590	-	single-stranded-DNA-specific exonuclease RecJ, putative
1556	 29.83	0	1620608..1621720	-	370	57867493	-	SERP1591	-	hypothetical protein
1557	 32.22	0	1621737..1623269	-	510	57867494	-	SERP1592	-	hypothetical protein
1558	 29.87	0	1623291..1623809	-	172	57867495	-	SERP1593	-	hypothetical protein
1559	 31.89	0	1623886..1624854	-	322	57867505	-	SERP1594	-	hypothetical protein
1560	 31.98	0	1624978..1625937	-	319	57867506	-	SERP1595	-	hypothetical protein
1561	 33.33	0	1625981..1626661	-	226	57867507	-	SERP1596	-	hypothetical protein
1562	 32.31	0	1626679..1627167	-	162	57867508	-	SERP1597	-	hypothetical protein
1563	 31.29	0	1627183..1627476	-	97	57867509	-	SERP1598	-	hypothetical protein
1564	 27.06	-1	1627591..1628595	-	334	57867510	-	SERP1599	-	hypothetical protein
1565	 28.42	-1	1628607..1629887	-	426	57867511	-	SERP1600	-	hypothetical protein
1566	 28.07	-1	1630198..1631241	-	347	57867512	-	SERP1601	-	phage integrase family site specific recombinase
1567	 25.93	-1	1631834..1631941	-	35	57867513	-	SERP1602	-	hypothetical protein
1568	 31.00	0	1631925..1632353	-	142	57867523	-	SERP1603	-	hypothetical protein
1569	 21.07	-2	1632431..1632952	-	173	57867524	-	SERP1604	-	hypothetical protein
1570	 21.19	-2	1632952..1633404	-	150	57867525	-	SERP1605	-	hypothetical protein
1571	 24.67	-2	1633520..1634200	-	226	57867526	-	SERP1606	-	hypothetical protein
1572	 24.62	-2	1634229..1634492	-	87	57867527	-	SERP1607	-	hypothetical protein
1573	 32.72	0	1634585..1634908	-	107	57867528	-	SERP1608	-	hypothetical protein
1574	 27.58	-1	1634953..1635612	-	219	57867529	-	SERP1609	-	hypothetical protein
1575	 19.74	-2	1635765..1636154	-	129	57867530	-	SERP1610	-	hypothetical protein
1576	 24.90	-1	1636291..1636551	-	86	57867531	-	SERP1611	-	hypothetical protein
1577	 25.46	-1	1636626..1636841	-	71	57867541	-	SERP1612	-	hypothetical protein
1578	 30.70	0	1636893..1637006	-	37	57867542	-	SERP1613	-	hypothetical protein
1579	 38.25	+1	1637021..1637305	-	94	57867543	-	SERP1614	-	hypothetical protein
1580	 27.16	-1	1638658..1638819	-	53	57867544	-	SERP1615	-	hypothetical protein
32.10	MEAN

3.66	STD DEV
