IslandPath Analysis: Staphylococcus epidermidis RP62A

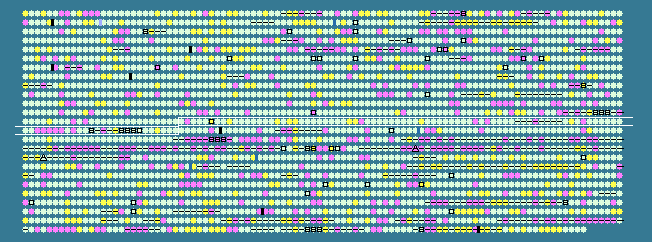

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.10 STD DEV: 3.66
Staphylococcus epidermidis RP62A, complete genome - 1..2616530
2494 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1227	 31.32	0	1290547..1293177	-	876	57867172	polA	SERP1254	-	DNA polymerase I
1228	 27.62	-1	1293472..1295169	-	565	57867173	phoR	SERP1255	-	sensory box histidine kinase PhoR
1229	 32.63	0	1295169..1295879	-	236	57867182	phoP	SERP1256	-	alkaline phosphatase synthesis transcriptional regulatory protein PhoP
1230	 34.75	0	1296195..1297463	-	422	57867183	icd	SERP1257	-	isocitrate dehydrogenase
1231	 34.05	0	1297506..1298627	-	373	57867184	gltA	SERP1258	-	methylcitrate synthase
1232	 36.57	+1	1298756..1299928	-	390	57867185	-	SERP1259	-	IS256-like transposase
1233	 34.07	0	1300307..1301665	+	452	57867186	-	SERP1260	-	amino acid permease family protein
1234	 34.19	0	1302046..1303803	-	585	57867187	pyk	SERP1261	-	pyruvate kinase
1235	 37.77	+1	1303827..1304795	-	322	57867188	pfkA	SERP1262	-	6-phosphofructokinase
1236	 34.18	0	1304973..1305917	-	314	57867189	accA	SERP1263	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
1237	 32.52	0	1305917..1306774	-	285	57867206	accD	SERP1264	-	acetyl-CoA carboxylase subunit beta
1238	 35.04	0	1306873..1308102	-	409	57867207	-	SERP1265	-	NADP-dependent malic enzyme, putative
1239	 31.61	0	1308406..1311603	-	1065	57867208	dnaE	SERP1266	-	DNA polymerase III, alpha subunit
1240	 32.16	0	1311627..1312565	-	312	57867209	-	SERP1267	-	DHH family protein
1241	 31.02	0	1312599..1313897	-	432	57867210	-	SERP1268	-	CBS domain-containing protein
1242	 33.33	0	1314095..1314508	+	137	57867211	-	SERP1269	-	universal stress protein
1243	 35.94	+1	1314809..1315498	-	229	57867212	-	SERP1270	-	hypothetical protein
1244	 33.05	0	1315670..1316725	+	351	57867213	pepQ	SERP1271	-	proline dipeptidase
1245	 35.84	+1	1316789..1317904	-	371	57867221	ald	SERP1272	-	alanine dehydrogenase
1246	 36.93	+1	1318052..1318552	+	166	57867222	-	SERP1273	-	universal stress protein
1247	 34.85	0	1319186..1320439	-	417	57867223	ackA	SERP1275	-	acetate kinase
1248	 33.44	0	1320528..1321475	-	315	57867224	-	SERP1276	-	hypothetical protein
1249	 31.11	0	1321604..1322098	-	164	57867225	-	SERP1277	-	thiol peroxidase, putative
1250	 32.42	0	1322341..1323105	-	254	57867226	-	SERP1278	-	hypothetical protein
1251	 32.11	0	1323145..1324368	-	407	57867227	thiI	SERP1279	-	thiamine biosynthesis protein ThiI
1252	 31.58	0	1324368..1325507	-	379	57867237	-	SERP1280	-	aminotransferase, class V
1253	 29.73	0	1325837..1327531	-	564	57867238	-	SERP1281	-	septation ring formation regulator EzrA
1254	 33.55	0	1327666..1328136	+	156	57867239	-	SERP1282	-	GAF domain-containing protein
1255	 35.90	+1	1328209..1328325	-	38	57867240	-	SERP1283	-	hypothetical protein
1256	 36.32	+1	1328357..1328959	+	200	57867241	rpsD	SERP1284	-	30S ribosomal protein S4
1257	 28.25	-1	1329229..1329975	-	248	57867242	-	SERP1285	-	glycerophosphoryl diester phosphodiesterase, putative
1258	 31.97	0	1330053..1330493	+	146	57867243	-	SERP1286	-	OsmC/Ohr family protein
1259	 33.93	0	1330620..1331783	+	387	57867244	-	SERP1287	-	aminotransferase, class V
1260	 34.46	0	1331773..1333368	+	531	57867245	serA	SERP1288	-	D-3-phosphoglycerate dehydrogenase
1261	 29.60	0	1333448..1334572	-	374	57867251	-	SERP1289	-	HAD superfamily hydrolase
1262	 34.08	0	1334668..1336140	-	490	57867252	-	SERP1290	-	PTS system, IIBC components
1263	 31.57	0	1336350..1336973	-	207	57867253	-	SERP1291	-	1-acyl-sn-glycerol-3-phosphate acyltransferase, putative
1264	 34.14	0	1337253..1338491	+	412	57867254	-	SERP1292	-	serine protease HtrA, putative
1265	 33.49	0	1338682..1339947	-	421	57867255	tyrS	SERP1293	-	tyrosyl-tRNA synthetase
1266	 31.68	0	1340351..1341256	+	301	57867256	-	SERP1294	-	transglycosylase domain-containing protein
1267	 36.15	+1	1341346..1343013	-	555	57867257	fhs	SERP1295	-	formate--tetrahydrofolate ligase
1268	 32.83	0	1343433..1344422	-	329	57867258	ccpA	SERP1296	-	catabolite control protein A
1269	 33.15	0	1344678..1345769	-	363	57867264	-	SERP1297	-	bifunctional 3-deoxy-7-phosphoheptulonate synthase/chorismate mutase
1270	 34.15	0	1346204..1347427	-	407	57867265	-	SERP1298	-	hypothetical protein
1271	 33.94	0	1347505..1347996	-	163	57867266	-	SERP1299	-	hypothetical protein
1272	 32.27	0	1348071..1349384	-	437	57867174	murC	SERP1300	-	UDP-N-acetylmuramate--L-alanine ligase
1273	 31.62	0	1349405..1352914	-	1169	57867175	-	SERP1301	-	FtsK/SpoIIIE family protein
1274	 32.66	0	1352935..1353531	-	198	57867176	-	SERP1302	-	hypothetical protein
1275	 31.11	0	1353554..1354408	-	284	57867177	-	SERP1303	-	hypothetical protein
1276	 27.56	-1	1354546..1354857	-	103	57867178	-	SERP1304	-	thioredoxin, putative
1277	 34.62	0	1354863..1355948	-	361	57867179	pepA	SERP1305	-	glutamyl-aminopeptidase
1278	 25.71	-1	1356033..1356347	+	104	57867180	-	SERP1306	-	hypothetical protein
1279	 31.17	0	1356510..1357157	-	215	57867181	trmB	SERP1307	-	tRNA (guanine-N(7)-)-methyltransferase
1280	 35.48	0	1357171..1357962	-	263	57867190	-	SERP1308	-	hypothetical protein
1281	 32.63	0	1358349..1359197	-	282	57867191	dat	SERP1309	-	D-alanine aminotransferase
1282	 34.68	0	1359201..1360610	-	469	57867192	-	SERP1310	-	dipeptidase PepV
1283	 28.67	0	1360918..1361346	-	142	57867193	-	SERP1311	-	hypothetical protein
1284	 30.16	0	1361364..1362056	-	230	57867194	-	SERP1312	-	pseudouridine synthase family 1 protein
1285	 32.19	0	1362053..1363714	-	553	57867195	-	SERP1313	-	polysaccharide biosynthesis protein
1286	 22.22	-2	1363803..1363901	-	32	57867196	-	SERP1314	-	hypothetical protein
1287	 32.30	0	1363987..1365249	+	420	57867197	-	SERP1315	-	hypothetical protein
1288	 31.76	0	1365621..1376699	-	3692	57867198	-	SERP1316	-	cell wall surface anchor family protein
1289	 33.65	0	1377104..1377415	-	103	57867199	-	SERP1317	-	rhodanese-like domain-containing protein
1290	 34.74	0	1377441..1379855	-	804	57867200	leuS	SERP1318	-	leucyl-tRNA synthetase
1291	 32.67	0	1380147..1381361	-	404	57867201	-	SERP1319	-	drug transporter, putative
1292	 36.69	+1	1381468..1382421	+	317	57867202	-	SERP1320	-	hypothetical protein
1293	 29.43	0	1382418..1382981	+	187	57867203	-	SERP1321	-	hypothetical protein
1294	 26.03	-1	1383215..1383625	-	136	57867204	rot	SERP1322	-	repressor of toxins
1295	 30.19	0	1384106..1384933	-	275	57867205	-	SERP1323	-	lysophospholipase, putative
1296	 30.24	0	1385177..1386178	+	333	57867214	putA	SERP1324	-	proline dehydrogenase
1297	 33.98	0	1386436..1386897	-	153	57867215	ribH	SERP1325	-	riboflavin synthase, beta subunit
1298	 34.94	0	1386910..1388091	-	393	57867216	ribBA	SERP1326	-	3,4-dihydroxy-2-butanone-4-phosphate synthase/GTP cyclohydrolase II
1299	 33.18	0	1388104..1388736	-	210	57867217	ribE	SERP1327	-	riboflavin synthase subunit alpha
1300	 33.91	0	1388743..1389786	-	347	57867218	ribD	SERP1328	-	riboflavin biosynthesis protein RibD
1301	 30.91	0	1390222..1391706	-	494	57867219	-	SERP1329	-	hypothetical protein
1302	 31.57	0	1392054..1392905	-	283	57867220	-	SERP1330	-	N-acetylmuramoyl-L-alanine amidase
1303	 27.78	-1	1393283..1393498	-	71	57867228	-	SERP1331	-	hypothetical protein
1304	 25.83	-1	1393531..1393650	+	39	57867229	-	SERP1332	-	hypothetical protein
1305	 27.08	-1	1393706..1394185	+	159	57867230	-	SERP1333	-	hypothetical protein
1306	 27.93	-1	1394191..1394634	+	147	57867231	-	SERP1334	-	hypothetical protein
1307	 27.70	-1	1394621..1395064	-	147	57867232	-	SERP1335	-	hypothetical protein
1308	 35.43	0	1395204..1395917	-	237	57867233	tal	SERP1336	-	putative translaldolase
1309	 22.65	-2	1396194..1396502	+	102	57867234	-	SERP1337	-	hypothetical protein
1310	 33.06	0	1396539..1396904	+	121	57867235	-	SERP1338	-	CrcB family protein
1311	 33.33	0	1396901..1397254	+	117	57867236	-	SERP1339	-	CrcB family protein
1312	 32.70	0	1397898..1398374	+	158	57867246	-	SERP1340	-	ISSep1-like transposase
1313	 34.39	0	1398493..1399155	-	220	57867247	-	SERP1341	-	Tn554 hypothetical protein
1314	 21.67	-2	1399547..1399606	+	19	57867845	-	SERP1342	-	Tn554, peptide L
1315	 32.51	0	1399689..1400420	+	243	57867248	ermA-2	SERP1343	-	Tn554, rRNA adenine N-6-methyltransferase
1316	 36.40	+1	1400546..1401328	-	260	57867249	spc-2	SERP1344	-	Tn554, streptomycin 3''-adenylyltransferase
1317	 29.89	0	1401479..1401856	-	125	57867250	tnpC-2	SERP1345	-	Tn554, transposase C
1318	 33.86	0	1401863..1403755	-	630	57867259	tnpB-2	SERP1346	-	Tn554, transposase B
1319	 32.14	0	1403752..1404837	-	361	57867260	tnpA-2	SERP1347	-	Tn554, transposase A
1320	 31.49	0	1405027..1405623	+	198	57867261	-	SERP1348	-	ISSep1-like transposase
1321	 33.93	0	1406293..1407129	-	278	57867262	-	SERP1350	-	aldo/keto reductase family oxidoreductase
1322	 30.69	0	1407309..1408217	-	302	57867263	-	SERP1351	-	hypothetical protein
1323	 36.08	+1	1408320..1409519	-	399	57867271	metK	SERP1352	-	S-adenosylmethionine synthetase
1324	 33.46	0	1409889..1411481	+	530	57867272	pckA	SERP1353	-	phosphoenolpyruvate carboxykinase
1325	 32.57	0	1411712..1412497	-	261	57867273	-	SERP1354	-	hypothetical protein
1326	 33.33	0	1412484..1412960	-	158	57867274	-	SERP1355	-	MutT/nudix family protein
32.10	MEAN

3.66	STD DEV
