IslandPathversion 1.0

IslandPath Analysis: Staphylococcus epidermidis RP62A

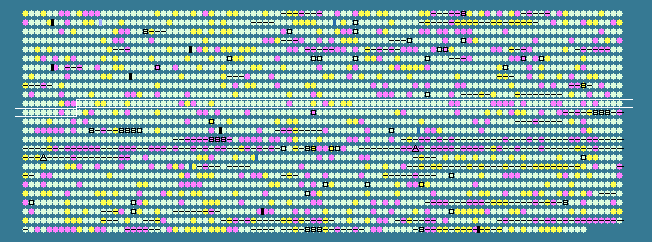

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.10 STD DEV: 3.66
Staphylococcus epidermidis RP62A, complete genome - 1..2616530
2494 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1010	 30.28	0	1077915..1079159	-	414	57866971	-	SERP1033	-	hypothetical protein
1011	 34.87	0	1079163..1080464	-	433	57866972	aroA	SERP1034	-	3-phosphoshikimate 1-carboxyvinyltransferase
1012	 29.95	0	1080474..1081538	-	354	57866980	aroB	SERP1035	-	3-dehydroquinate synthase
1013	 37.53	+1	1081566..1082732	-	388	57866981	aroC	SERP1036	-	chorismate synthase
1014	 37.33	+1	1083213..1083662	-	149	57866982	-	SERP1037	-	nucleoside diphosphate kinase
1015	 33.12	0	1083802..1084761	-	319	57866983	-	SERP1038	-	polyprenyl synthetase
1016	 34.99	0	1084763..1085488	-	241	57866984	ubiE	SERP1039	-	ubiquinone/menaquinone biosynthesis methyltransferase
1017	 30.92	0	1085481..1086059	-	192	57866985	-	SERP1040	-	hypothetical protein
1018	 35.90	+1	1086529..1086801	-	90	57866986	hup	SERP1041	-	DNA-binding protein HU
1019	 34.43	0	1086972..1087970	-	332	57866987	gpsA	SERP1042	-	glycerol-3-phosphate dehydrogenase, [NAD(P)+]
1020	 34.25	0	1087991..1089301	-	436	57867002	engA	SERP1043	-	GTP-binding protein EngA
1021	 33.67	0	1089517..1090695	-	392	57867003	rpsA	SERP1044	-	30S ribosomal protein S1
1022	 34.26	0	1091179..1091826	-	215	57867004	cmk	SERP1045	-	cytidylate kinase
1023	 33.95	0	1091905..1092873	+	322	57866942	ansA	SERP1046	-	L-asparaginase
1024	 32.32	0	1093085..1094071	-	328	57866943	-	SERP1047	-	pyridine nucleotide-disulfide oxidoreductase family protein
1025	 34.13	0	1094204..1095586	-	460	57866944	-	SERP1048	-	elastin binding protein, putative
1026	 31.45	0	1095743..1097122	-	459	57866945	recQ-2	SERP1049	-	ATP-dependent DNA helicase RecQ
1027	 26.58	-1	1097109..1098071	-	320	57866946	-	SERP1050	-	hypothetical protein
1028	 39.76	+2	1098180..1098428	+	82	57866947	fer	SERP1051	-	ferredoxin
1029	 28.57	0	1098520..1098624	-	34	57866948	-	SERP1052	-	hypothetical protein
1030	 30.00	0	1098833..1099372	-	179	57866957	-	SERP1053	-	hypothetical protein
1031	 30.96	0	1099964..1101733	-	589	57866958	srrB	SERP1054	-	sensor histidine kinase SrrB
1032	 35.95	+1	1101714..1102439	-	241	57866959	srrA	SERP1055	-	DNA-binding response regulator SrrA
1033	 32.25	0	1102573..1103310	-	245	57866960	rluB	SERP1056	-	pseudouridine synthase RluB
1034	 31.49	0	1103303..1103845	-	180	57866961	scpB	SERP1057	-	segregation and condensation protein B
1035	 30.46	0	1103838..1104569	-	243	57866962	scpA	SERP1058	-	segregation and condensation protein A
1036	 29.14	0	1104667..1105191	+	174	57866963	-	SERP1059	-	hypothetical protein
1037	 32.66	0	1105244..1106131	-	295	57866964	xerD	SERP1060	-	tyrosine recombinase XerD
1038	 33.11	0	1106174..1106623	-	149	57866973	-	SERP1061	-	FUR family transcriptional regulator
1039	 32.78	0	1106728..1107270	-	180	57866974	-	SERP1062	-	MutT/nudix family protein
1040	 31.46	0	1107353..1108261	+	302	57866975	-	SERP1063	-	aldo/keto reductase family oxidoreductase
1041	 32.15	0	1108484..1109242	-	252	57866976	-	SERP1064	-	short chain dehydrogenase/reductase family oxidoreductase
1042	 30.64	0	1109403..1110218	+	271	57866977	proC	SERP1065	-	pyrroline-5-carboxylate reductase
1043	 33.12	0	1110268..1111188	-	306	57866978	-	SERP1066	-	AtsA/ElaC family protein
1044	 33.67	0	1111612..1113096	+	494	57866979	zwf-2	SERP1067	-	glucose-6-phosphate 1-dehydrogenase
1045	 23.96	-2	1113125..1113220	+	31	57866988	-	SERP1068	-	hypothetical protein
1046	 33.22	0	1113297..1114178	+	293	57866989	-	SERP1069	-	AraC family transcriptional regulator
1047	 32.85	0	1114441..1116096	-	551	57866990	malA	SERP1070	-	alpha-glucosidase
1048	 34.61	0	1116266..1117672	-	468	57866991	gnd	SERP1071	-	6-phosphogluconate dehydrogenase
1049	 36.36	+1	1117752..1118876	-	374	57866992	-	SERP1072	-	peptidase T-like protein
1050	 29.17	0	1119107..1119202	+	31	57866993	-	SERP1073	-	hypothetical protein
1051	 27.71	-1	1119254..1120231	-	325	57866994	-	SERP1074	-	hypothetical protein
1052	 36.76	+1	1120244..1120681	-	145	57866995	-	SERP1075	-	hypothetical protein
1053	 32.88	0	1120886..1122205	-	439	57866996	-	SERP1076	-	2-oxoisovalerate dehydrogenase, E2 component, dihydrolipoamide acetyltransferase
1054	 37.09	+1	1122218..1123201	-	327	57866997	-	SERP1077	-	2-oxoisovalerate dehydrogenase, E1 component, beta subunit
1055	 37.54	+1	1123194..1124192	-	332	57866998	-	SERP1078	-	2-oxoisovalerate dehydrogenase, E1 component, alpha subunit
1056	 34.32	0	1124207..1125628	-	473	57866999	lpdA	SERP1079	-	2-oxoisovalerate dehydrogenase, E3 component, lipoamide dehydrogenase
1057	 32.38	0	1125888..1127564	-	558	57867000	recN	SERP1080	-	DNA repair protein RecN
1058	 32.23	0	1127580..1128032	-	150	57867001	argR	SERP1081	-	arginine repressor
1059	 29.59	0	1128347..1129228	-	293	57867011	ispA	SERP1082	-	geranyltranstransferase
1060	 30.30	0	1129206..1129436	-	76	57867012	xseB	SERP1083	-	exodeoxyribonuclease VII, small subunit
1061	 31.24	0	1129429..1130766	-	445	57867013	xseA	SERP1084	-	exodeoxyribonuclease VII large subunit
1062	 28.72	0	1130781..1131170	-	129	57867014	nusB	SERP1085	-	transcription antitermination protein NusB
1063	 30.30	0	1131246..1131608	-	120	57867015	-	SERP1086	-	hypothetical protein
1064	 35.10	0	1131620..1132978	-	452	57867016	accC	SERP1087	-	acetyl-CoA carboxylase biotin carboxylase subunit
1065	 30.77	0	1132978..1133445	-	155	57867017	accB	SERP1088	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
1066	 33.16	0	1133703..1134830	-	375	57867027	argD	SERP1089	-	acetylornithine aminotransferase
1067	 29.81	0	1134833..1135570	-	245	57867028	argB	SERP1090	-	acetylglutamate kinase
1068	 35.18	0	1135580..1136773	-	397	57867029	argJ	SERP1091	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1069	 31.68	0	1136791..1137816	-	341	57867030	argC	SERP1092	-	N-acetyl-gamma-glutamyl-phosphate reductase
1070	 33.87	0	1137966..1138523	-	185	57867031	efp	SERP1093	-	elongation factor P
1071	 31.73	0	1138550..1139611	-	353	57867032	-	SERP1094	-	proline dipeptidase
1072	 25.73	-1	1139714..1140292	+	192	57867033	-	SERP1095	-	putative lipoprotein
1073	 23.29	-2	1140306..1140524	+	72	57867042	-	SERP1096	-	hypothetical protein
1074	 32.85	0	1140565..1141395	-	276	57867043	-	SERP1097	-	lipoate-protein ligase A family protein
1075	 28.94	0	1141555..1141941	+	128	57867044	-	SERP1098	-	rhodanese-like domain-containing protein
1076	 33.60	0	1142833..1144341	-	502	57867045	-	SERP1100	-	glycine dehydrogenase subunit 2
1077	 32.74	0	1144334..1145680	-	448	57867046	-	SERP1101	-	glycine dehydrogenase subunit 1
1078	 33.79	0	1145700..1146791	-	363	57867047	gcvT	SERP1102	-	glycine cleavage system aminomethyltransferase T
1079	 28.51	0	1147009..1147506	-	165	57867056	aroK	SERP1103	-	shikimate kinase
1080	 24.39	-2	1147686..1148177	-	163	57867057	-	SERP1104	-	hypothetical protein
1081	 23.81	-2	1148101..1148394	-	97	57867058	-	SERP1105	-	hypothetical protein
1082	 24.22	-2	1148381..1148830	-	149	57867059	-	SERP1106	-	hypothetical protein
1083	 29.25	0	1148808..1149125	-	105	57867060	comGC	SERP1107	-	comG operon protein 3
1084	 25.94	-1	1149143..1150210	-	355	57867061	-	SERP1108	-	comG operon protein 2, putative
1085	 30.18	0	1150182..1151165	-	327	57867062	-	SERP1109	-	competence protein ComGA, putative
1086	 30.45	0	1151213..1151836	-	207	57867063	-	SERP1110	-	metallo-beta-lactamase family protein
1087	 30.28	0	1151836..1152162	-	108	57867071	-	SERP1111	-	hypothetical protein
1088	 34.45	0	1152162..1153148	-	328	57867072	glk	SERP1112	-	glucokinase
1089	 22.89	-2	1153148..1153348	-	66	57867073	-	SERP1113	-	hypothetical protein
1090	 26.28	-1	1153332..1154792	-	486	57867074	-	SERP1114	-	rhomboid family protein
1091	 32.43	0	1154793..1155344	-	183	57867075	-	SERP1115	-	5-formyltetrahydrofolate cyclo-ligase family protein
1092	 30.00	0	1155527..1155676	-	49	57867076	rpmG	SERP1116	-	50S ribosomal protein L33
1093	 32.28	0	1155781..1157871	-	696	57867077	pbp3	SERP1117	-	penicillin-binding protein 3
1094	 18.63	-2	1157913..1158014	+	33	57867078	-	SERP1118	-	hypothetical protein
1095	 32.00	0	1158272..1158871	-	199	57867086	sodA	SERP1119	-	superoxide dismutase
1096	 27.86	-1	1159276..1159695	-	139	57867087	-	SERP1120	-	FUR family transcriptional regulator
1097	 28.98	0	1159698..1160546	-	282	57867088	-	SERP1121	-	ABC transporter, permease protein
1098	 31.55	0	1160580..1161362	-	260	57867089	-	SERP1122	-	ABC transporter, ATP-binding protein
1099	 33.78	0	1161580..1162470	-	296	57867090	nfo	SERP1123	-	endonuclease IV
1100	 31.03	0	1162480..1163826	-	448	57867091	-	SERP1124	-	DEAD-box ATP dependent DNA helicase
1101	 29.61	0	1163861..1164961	-	366	57867092	-	SERP1125	-	hypothetical protein
1102	 30.87	0	1164951..1165640	-	229	57867093	-	SERP1126	-	hypothetical protein
1103	 34.15	0	1165795..1166901	-	368	57867102	rpoD	SERP1127	-	RNA polymerase sigma factor RpoD
1104	 29.33	0	1167172..1168968	-	598	57867103	dnaG	SERP1128	-	DNA primase
1105	 32.11	0	1169142..1169960	-	272	57867104	-	SERP1129	-	hypothetical protein
1106	 31.73	0	1169972..1170595	-	207	57867005	-	SERP1130	-	CBS domain-containing protein
1107	 21.21	-2	1170668..1170766	+	32	57867006	-	SERP1131	-	hypothetical protein
1108	 33.62	0	1170931..1172322	+	463	57867007	glyS	SERP1132	-	glycyl-tRNA synthetase
1109	 31.10	0	1172452..1173213	-	253	57867008	-	SERP1133	-	RecO family DNA repair protein
32.10	MEAN

3.66	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
