IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus subsp. aureus USA300_TCH1516

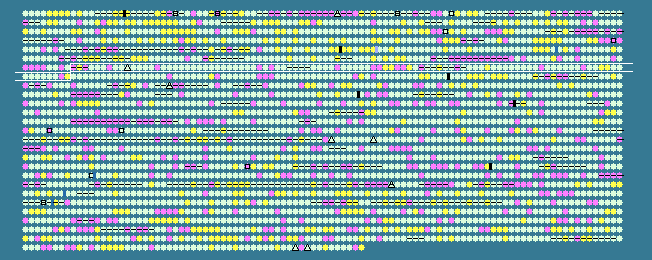

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.63 STD DEV: 3.73
Staphylococcus aureus subsp. aureus USA300_TCH1516, complete genome - 1..2872915
2657 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
609	 24.48	-2	690106..690489	-	127	161508875	-	USA300HOU_0632	-	hypothetical protein
610	 36.40	+1	690501..690761	-	86	161508876	-	USA300HOU_0633	-	hypothetical protein
611	 26.52	-1	690766..691821	-	351	161508877	-	USA300HOU_0634	-	hypothetical protein
612	 32.97	0	691882..692973	-	363	161508878	-	USA300HOU_0635	-	replication initiation protein
613	 32.01	0	693148..693450	-	100	161508879	-	USA300HOU_0636	-	hypothetical protein
614	 30.53	0	693464..693784	-	106	161508880	-	USA300HOU_0637	-	hypothetical protein
615	 23.16	-2	693935..694219	-	94	161508881	-	USA300HOU_0638	-	hypothetical protein
616	 29.78	0	694851..695075	-	74	161508882	-	USA300HOU_0640	-	hypothetical protein
617	 32.35	0	695092..695295	-	67	161508883	-	USA300HOU_0641	-	hypothetical protein
618	 30.12	0	695454..696014	+	186	161508884	-	USA300HOU_0642	-	bacteriophage integrase
619	 32.04	0	696033..698435	+	800	161508885	mnhA1	USA300HOU_0643	-	putative monovalent cation/H+ antiporter subunit A
620	 32.39	0	698422..698847	+	141	161508886	mnhB1	USA300HOU_0644	-	putative monovalent cation/H+ antiporter subunit B
621	 30.72	0	698844..699188	+	114	161508887	mnhC1	USA300HOU_0645	-	putative monovalent cation/H+ antiporter subunit C
622	 33.33	0	699178..700674	+	498	161508888	mnhD1	USA300HOU_0646	-	putative monovalent cation/H+ antiporter subunit D
623	 26.09	-1	700675..701157	+	160	161508889	mnhE1	USA300HOU_0647	-	putative monovalent cation/H+ antiporter subunit E
624	 33.00	0	701154..701456	+	100	161508890	mnhF1	USA300HOU_0648	-	putative monovalent cation/H+ antiporter subunit F
625	 34.02	0	701431..701868	+	145	161508891	mnhG1	USA300HOU_0649	-	putative monovalent cation/H+ antiporter subunit G
626	 31.96	0	702208..704250	+	680	161508892	-	USA300HOU_0650	-	CPA1 family monovalent cation (K+ or Na+):proton (H+) antiporter-1
627	 31.72	0	705410..706339	-	309	161508893	-	USA300HOU_0651	-	ABC transporter ATP-binding protein
628	 32.14	0	706336..707172	-	278	161508894	-	USA300HOU_0652	-	ABC transporter ATP-binding protein
629	 33.47	0	707166..707909	-	247	161508895	-	USA300HOU_0653	-	ABC transporter ATP-binding protein
630	 30.39	0	708031..708675	+	214	161508896	-	USA300HOU_0654	-	metal-dependent transcriptional regulator
631	 30.81	0	708755..709507	-	250	161508897	-	USA300HOU_0655	-	hypothetical protein
632	 33.86	0	709743..710507	+	254	161508898	tagA	USA300HOU_0656	-	teichoic acid biosynthesis protein
633	 33.84	0	710568..711362	-	264	161508899	tagH	USA300HOU_0657	-	teichoic acids export protein ATP-binding subunit
634	 31.18	0	711688..712521	+	277	161508900	tagG	USA300HOU_0658	-	teichoic acid ABC transporter ATP-binding/membrane protein
635	 32.52	0	712620..713723	+	367	161508901	tagB3	USA300HOU_0659	-	teichoic acid biosynthesis protein B
636	 32.20	0	713720..714781	+	353	161508902	tagX	USA300HOU_0660	-	teichoic acid biosynthesis protein X
637	 32.33	0	714844..715242	+	132	161508903	tagD	USA300HOU_0661	-	glycerol-3-phosphate cytidylyltransferase
638	 34.41	0	715359..716654	-	431	161508904	pbp4	USA300HOU_0662	-	penicillin-binding protein 4
639	 33.16	0	717075..718802	+	575	161508905	-	USA300HOU_0663	-	ABC transporter ATP-binding protein
640	 23.46	-2	718873..718953	+	26	161508906	-	USA300HOU_0664	-	hypothetical protein
641	 34.23	0	719161..720390	+	409	161508907	nupC2	USA300HOU_0665	-	CNT family concentrative nucleoside transporter
642	 23.66	-2	720645..720737	+	30	161508908	-	USA300HOU_0666	-	hypothetical protein
643	 34.05	0	720915..721748	+	277	161508909	-	USA300HOU_0667	-	hypothetical protein
644	 35.09	0	722030..722827	+	265	161508910	fhuC	USA300HOU_0668	-	iron (Fe3+) ABC transporter ATP-binding protein
645	 35.92	0	722863..723867	+	334	161508911	fhuB	USA300HOU_0669	-	iron (Fe3+) ABC transporter membrane protein
646	 35.50	0	723864..724880	+	338	161508912	fhuG	USA300HOU_0670	-	iron (Fe3+) ABC transporter membrane protein
647	 35.71	0	725114..726082	+	322	161508913	-	USA300HOU_0671	-	glycerone kinase
648	 35.38	0	726124..726708	+	194	161508914	-	USA300HOU_0672	-	glycerone kinase
649	 34.71	0	726701..727063	+	120	161508915	-	USA300HOU_0673	-	hypothetical protein
650	 32.53	0	727179..727676	+	165	161508916	-	USA300HOU_0674	-	hypothetical protein
651	 32.21	0	728219..729199	+	326	161508917	-	USA300HOU_0675	-	hypothetical protein
652	 31.03	0	729350..730393	+	347	161508918	-	USA300HOU_0676	-	peptidase
653	 27.97	-1	730722..731150	+	142	161508919	-	USA300HOU_0677	-	hypothetical protein
654	 34.91	0	731359..731865	-	168	161508920	-	USA300HOU_0678	-	hypothetical protein
655	 31.49	0	731978..732901	+	307	161508921	-	USA300HOU_0679	-	hypothetical protein
656	 31.11	0	732917..733591	+	224	161508922	-	USA300HOU_0680	-	response regulator
657	 30.26	0	733584..734624	+	346	161508923	-	USA300HOU_0681	-	sensor histidine kinase
658	 31.50	0	734768..735529	+	253	161508924	vraF	USA300HOU_0682	-	ABC transporter ATP-binding protein
659	 28.68	-1	735519..737408	+	629	161508925	vraE	USA300HOU_0683	-	ABC transporter ATP-binding protein
660	 28.16	-1	738133..738750	+	205	161508926	-	USA300HOU_0684	-	hypothetical protein
661	 37.00	+1	738766..739773	+	335	161508927	-	USA300HOU_0685	-	inorganic phosphate transporter
662	 37.97	+1	740361..741158	-	265	161508928	-	USA300HOU_0686	-	LysM domain-containing protein
663	 29.15	0	741519..742163	+	214	161508929	-	USA300HOU_0687	-	hypothetical protein
664	 24.65	-2	745089..745514	+	141	161508930	sarX	USA300HOU_0689	-	hypothetical protein
665	 36.12	0	745704..746420	+	238	161508931	-	USA300HOU_0690	-	hypothetical protein
666	 33.97	0	746420..746893	+	157	161508932	-	USA300HOU_0691	-	hypothetical protein
667	 23.33	-2	746982..747101	+	39	161508933	-	USA300HOU_0692	-	hypothetical protein
668	 29.46	0	747246..747890	+	214	161508934	-	USA300HOU_0693	-	hypothetical protein
669	 32.06	0	748006..748872	+	288	161508935	-	USA300HOU_0694	-	LysR family transcriptional regulator
670	 39.58	+1	748932..749027	+	31	161508936	-	USA300HOU_0695	-	hypothetical protein
671	 32.35	0	749073..750293	+	406	161508937	-	USA300HOU_0696	-	major facilitator superfamily sugar:cation symporter
672	 30.27	0	750290..750778	+	162	161508938	-	USA300HOU_0697	-	hypothetical protein
673	 27.97	-1	750877..751566	-	229	161508939	-	USA300HOU_0698	-	hypothetical protein
674	 29.28	0	751693..752136	+	147	161508940	-	USA300HOU_0699	-	GNAT family acetyltransferase
675	 29.29	0	752203..752598	+	131	161508941	-	USA300HOU_0700	-	hypothetical protein
676	 32.00	0	752736..753035	+	99	161508942	-	USA300HOU_0701	-	hypothetical protein
677	 33.70	0	753115..753657	+	180	161508943	-	USA300HOU_0702	-	GNAT family acetyltransferase
678	 36.33	0	753753..754319	-	188	161508944	-	USA300HOU_0703	-	hypothetical protein
679	 33.77	0	754321..754779	-	152	161508945	-	USA300HOU_0704	-	hypothetical protein
680	 30.70	0	754782..755465	-	227	161508946	-	USA300HOU_0705	-	hypothetical protein
681	 33.33	0	755637..756512	-	291	161508947	bacA	USA300HOU_0706	-	undecaprenyl pyrophosphate phosphatase
682	 32.35	0	756725..758356	+	543	161508948	-	USA300HOU_0707	-	ABC transporter ATP-binding protein
683	 32.44	0	758353..760026	+	557	161508949	-	USA300HOU_0708	-	ABC transporter ATP-binding protein
684	 33.11	0	760153..760596	-	147	161508950	-	USA300HOU_0709	-	MarR family transcriptional regulator
685	 31.07	0	760823..761749	+	308	161508951	cobW2	USA300HOU_0710	-	cobalamin (vitamin B12) biosynthesis protein
686	 33.66	0	761852..762760	+	302	161508952	-	USA300HOU_0711	-	aldo/keto reductase
687	 27.08	-1	762795..763082	+	95	161508953	-	USA300HOU_0712	-	hypothetical protein
688	 35.52	0	763365..764918	+	517	161508954	-	USA300HOU_0713	-	DASS family divalent anion:sodium (Na+) symporter
689	 33.92	0	765004..766377	+	457	161508955	phrB	USA300HOU_0714	-	deoxyribodipyrimidine photo-lyase
690	 30.53	0	766532..766816	-	94	161508956	-	USA300HOU_0715	-	hypothetical protein
691	 29.45	0	766813..767430	-	205	161508957	-	USA300HOU_0716	-	hypothetical protein
692	 34.52	0	767616..768038	-	140	161508958	-	USA300HOU_0717	-	hypothetical protein
693	 33.42	0	768247..769413	+	388	161508959	norA	USA300HOU_0718	-	major facilitator transporter
694	 27.59	-1	769706..770158	+	150	161508960	-	USA300HOU_0719	-	hypothetical protein
695	 35.82	0	770332..770814	+	160	161508961	-	USA300HOU_0720	-	transcriptional regulator
696	 31.89	0	771067..771828	+	253	161508962	-	USA300HOU_0721	-	DeoR family transcriptional regulator
697	 36.92	+1	771825..772745	+	306	161508963	fruK	USA300HOU_0722	-	1-phosphofructokinase
698	 37.72	+1	772751..774709	+	652	161508964	fruA	USA300HOU_0723	-	PTS family fructose/mannitol (fru) porter component IIABC
699	 35.96	0	775017..776198	+	393	161508965	nagA	USA300HOU_0724	-	N-acetylglucosamine-6-phosphate deacetylase
700	 32.30	0	776419..777768	+	449	161508966	-	USA300HOU_0725	-	CBS domain-containing protein
701	 31.79	0	777990..778829	+	279	161508967	-	USA300HOU_0726	-	dehydrogenase
702	 31.30	0	778961..779944	+	327	161508968	-	USA300HOU_0727	-	glycosyltransferase
703	 30.49	0	780016..781071	-	351	161508969	saeS	USA300HOU_0728	-	sensor histidine kinase SaeS
704	 32.75	0	781071..781757	-	228	161508970	saeR	USA300HOU_0729	-	response regulator SaeR
705	 33.97	0	781732..782205	-	157	161508971	-	USA300HOU_0730	-	hypothetical protein
706	 31.07	0	782547..782987	-	146	161508972	-	USA300HOU_0731	-	hypothetical protein
707	 25.98	-1	783267..783851	-	194	161508973	-	USA300HOU_0732	-	hypothetical protein
708	 36.13	0	783950..784663	-	237	161508974	exsD	USA300HOU_0733	-	organic radical-activating protein
32.63	MEAN

3.73	STD DEV
