IslandPath Analysis: Staphylococcus aureus subsp. aureus USA300_TCH1516

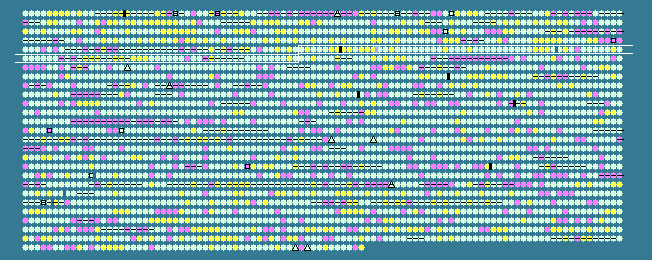

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.63 STD DEV: 3.73
Staphylococcus aureus subsp. aureus USA300_TCH1516, complete genome - 1..2872915
2657 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
447	 34.81	0	493172..493576	+	134	161508713	-	USA300HOU_0467	-	hypothetical protein
448	 36.21	0	493566..494051	+	161	161508714	-	USA300HOU_0468	-	GNAT family acetyltransferase
449	 32.69	0	494220..495002	-	260	161508715	-	USA300HOU_0469	-	hypothetical protein
450	 33.33	0	494999..496117	-	372	161508716	-	USA300HOU_0470	-	hypothetical protein
451	 32.99	0	496232..497116	-	294	161508717	gltC	USA300HOU_0471	-	glutamate synthase operon transcriptional regulator
452	 37.62	+1	497297..501796	+	1499	161508718	gltB1	USA300HOU_0472	-	glutamate synthase (NADPH), large subunit
453	 38.32	+1	501814..503277	+	487	161508719	gltD	USA300HOU_0473	-	glutamate synthase subunit beta
454	 37.54	+1	504109..505536	+	475	161508720	treP	USA300HOU_0474	-	PTS family trehalose (tre) porter component IIBC
455	 36.20	0	505600..507240	+	546	161508721	amyA	USA300HOU_0475	-	alpha, alpha-phosphotrehalase
456	 33.14	0	508632..509156	+	174	161508722	-	USA300HOU_0476	-	GNAT family acetyltransferase
457	 36.20	0	509249..510922	+	557	161508723	dnaZX	USA300HOU_0477	-	DNA-directed DNA polymerase III gamma and tau subunits
458	 39.94	+1	511012..511329	+	105	161508724	-	USA300HOU_0478	-	hypothetical protein
459	 36.35	0	511336..511932	+	198	161508725	recR	USA300HOU_0479	-	recombination protein RecR
460	 33.03	0	518695..520032	+	445	161508726	-	USA300HOU_0480	-	lysine decarboxylase
461	 32.70	0	520025..520651	+	208	161508727	tmk	USA300HOU_0481	-	dTMP kinase
462	 37.58	+1	520679..521008	+	109	161508728	-	USA300HOU_0482	-	hypothetical protein
463	 30.53	0	521222..522148	+	308	161508729	holB	USA300HOU_0483	-	DNA-directed DNA polymerase III delta' subunit
464	 32.71	0	522149..522952	+	267	161508730	-	USA300HOU_0484	-	hypothetical protein
465	 32.70	0	522999..523316	+	105	161508731	-	USA300HOU_0485	-	DNA replication intiation control protein YabA
466	 29.29	0	523309..523407	+	32	161508732	-	USA300HOU_0486	-	hypothetical protein
467	 33.61	0	523590..524315	+	241	161508733	-	USA300HOU_0487	-	hypothetical protein
468	 33.73	0	524308..524556	+	82	161508734	-	USA300HOU_0488	-	hypothetical protein
469	 35.12	0	524558..525397	+	279	161508735	-	USA300HOU_0489	-	tetrapyrrole (corrin/porphyrin) methyltransferase
470	 33.99	0	525682..527655	+	657	161508736	metS	USA300HOU_0490	-	methionyl-tRNA synthetase
471	 36.56	+1	527686..528459	+	257	161508737	-	USA300HOU_0491	-	TatD family deoxyribonuclease
472	 34.82	0	528626..529162	+	178	161508738	-	USA300HOU_0492	-	hypothetical protein
473	 32.89	0	529173..530066	+	297	161508739	ksgA	USA300HOU_0493	-	dimethyladenosine transferase
474	 32.20	0	530166..530429	+	87	161508740	-	USA300HOU_0494	-	hypothetical protein
475	 37.61	+1	536154..536807	+	217	161508741	rplY	USA300HOU_0495	-	50S ribosomal protein L25/general stress protein Ctc
476	 32.98	0	537118..537690	+	190	161508742	pth	USA300HOU_0496	-	peptidyl-tRNA hydrolase
477	 34.25	0	537690..541196	+	1168	161508743	mfd	USA300HOU_0497	-	transcription-repair coupling factor
478	 32.87	0	541186..542712	+	508	161508744	-	USA300HOU_0498	-	MOP superfamily PST family polysaccharide transporter
479	 35.09	0	542712..543905	+	397	161508745	-	USA300HOU_0499	-	tetrapyrrole methyltransferase
480	 34.47	0	543902..544165	+	87	161508746	-	USA300HOU_0500	-	RNA-binding S4 domain-containing heat shock protein
481	 33.33	0	544183..544575	+	130	161508747	-	USA300HOU_0501	-	septum formation initiator
482	 34.33	0	544680..545081	+	133	161508748	-	USA300HOU_0502	-	hypothetical protein
483	 30.79	0	545261..546556	+	431	161508749	-	USA300HOU_0503	-	hypothetical protein
484	 30.65	0	546543..547100	+	185	161508750	hpt	USA300HOU_0504	-	hypoxanthine phosphoribosyltransferase
485	 35.58	0	547357..549450	+	697	161508751	ftsH	USA300HOU_0505	-	cell division protein FtsH
486	 36.62	+1	549679..550560	+	293	161508752	-	USA300HOU_0506	-	heat shock protein Hsp33
487	 38.05	+1	550739..551671	+	310	161508753	cysK	USA300HOU_0507	-	cysteine synthase
488	 36.19	0	551887..552690	+	267	161508754	sul	USA300HOU_0508	-	dihydropteroate synthase
489	 35.75	0	552662..553033	+	123	161508755	folB	USA300HOU_0509	-	dihydroneopterin aldolase
490	 29.43	0	562589..563971	-	460	161508756	-	USA300HOU_0510	-	GntR family transcriptional regulator
491	 38.74	+1	564075..564962	+	295	161508757	-	USA300HOU_0511	-	pyridoxine biosynthesis protein
492	 33.51	0	564966..565526	+	186	161508758	-	USA300HOU_0512	-	glutamine amidotransferase subunit PdxT
493	 24.84	-2	565535..565687	+	50	161508759	-	USA300HOU_0513	-	hypothetical protein
494	 33.42	0	565734..566948	-	404	161508760	nupC1	USA300HOU_0514	-	CNT family concentrative nucleoside transporter
495	 31.17	0	567106..567567	+	153	161508761	ctsR	USA300HOU_0515	-	CtsR family transcriptional regulator
496	 33.69	0	567586..568152	+	188	161508762	-	USA300HOU_0516	-	hypothetical protein
497	 32.64	0	568139..569149	+	336	161508763	-	USA300HOU_0517	-	ATP:guanido phosphotransferase
498	 34.27	0	569163..571619	+	818	161508764	-	USA300HOU_0518	-	AAA family ATP-binding protein
499	 36.78	+1	572104..573468	+	454	161508765	radA	USA300HOU_0519	-	DNA repair protein RadA
500	 30.45	0	573493..574566	+	357	161508766	-	USA300HOU_0520	-	hypothetical protein
501	 34.30	0	575123..576577	+	484	161508767	gltX	USA300HOU_0521	-	glutamyl-tRNA synthetase
502	 34.97	0	576916..577647	+	243	161508768	cysE	USA300HOU_0522	-	serine O-acetyltransferase
503	 33.12	0	577601..579031	+	476	161508769	cysS	USA300HOU_0523	-	cysteinyl-tRNA synthetase
504	 32.10	0	579024..579428	+	134	161508770	-	USA300HOU_0524	-	hypothetical protein
505	 35.21	0	579436..580182	+	248	161508771	-	USA300HOU_0525	-	RNA methyltransferase
506	 32.57	0	580182..580706	+	174	161508772	-	USA300HOU_0526	-	hypothetical protein
507	 27.72	-1	580787..581356	+	189	161508773	-	USA300HOU_0527	-	hypothetical protein
508	 32.64	0	581471..581614	+	47	161508774	rpmG1	USA300HOU_0528	-	50S ribosomal protein L33
509	 28.96	0	581670..581852	+	60	161508775	secE	USA300HOU_0529	-	preprotein translocase subunit SecE
510	 35.52	0	581865..582413	+	182	161508776	nusG	USA300HOU_0530	-	transcription antitermination protein
511	 38.77	+1	582594..583016	+	140	161508777	rplK	USA300HOU_0531	-	50S ribosomal protein L11
512	 36.36	+1	583224..583916	+	230	161508778	rplA	USA300HOU_0532	-	50S ribosomal protein L1
513	 37.33	+1	584188..584688	+	166	161508779	rplJ	USA300HOU_0533	-	50S ribosomal protein L10
514	 35.77	0	584731..585099	+	122	161508780	rplL1	USA300HOU_0534	-	50S ribosomal protein L7/L12
515	 33.83	0	585274..585882	+	202	161508781	-	USA300HOU_0535	-	hypothetical protein
516	 37.56	+1	586097..589648	+	1183	161508782	rpoB	USA300HOU_0536	-	DNA-directed RNA polymerase subunit beta
517	 36.12	0	589785..593408	+	1207	161508783	rpoC	USA300HOU_0537	-	DNA-directed RNA polymerase subunit beta'
518	 31.41	0	593488..593799	+	103	161508784	-	USA300HOU_0538	-	putative ribosomal protein L7Ae-like
519	 37.44	+1	593897..594310	+	137	161508785	rpsL	USA300HOU_0539	-	30S ribosomal protein S12
520	 38.64	+1	594376..594846	+	156	161508786	rpsG	USA300HOU_0540	-	30S ribosomal protein S7
521	 40.68	+2	597267..598451	+	394	161508787	tufA	USA300HOU_0541	-	elongation factor Tu
522	 35.03	0	598733..599908	-	391	161508788	-	USA300HOU_0542	-	M20D subfamily peptidase
523	 33.84	0	600079..601266	+	395	161508789	kbl	USA300HOU_0543	-	2-amino-3-ketobutyrate coenzyme A ligase
524	 34.47	0	601532..602410	+	292	161508790	-	USA300HOU_0544	-	chaperone protein HchA
525	 33.03	0	602567..604207	+	546	161508791	araB	USA300HOU_0545	-	ribulokinase
526	 35.40	0	604421..605386	+	321	161508792	-	USA300HOU_0546	-	UDP-glucose 4-epimerase
527	 35.00	0	605721..606797	+	358	161508793	ilvE	USA300HOU_0547	-	branched-chain amino acid aminotransferase
528	 24.71	-2	606770..606943	+	57	161508794	-	USA300HOU_0548	-	hypothetical protein
529	 34.80	0	607047..607730	+	227	161508795	-	USA300HOU_0549	-	hydrolase
530	 32.13	0	607846..608508	-	220	161508796	-	USA300HOU_0550	-	deoxynucleoside kinase
531	 26.70	-1	608501..609163	-	220	161508797	-	USA300HOU_0551	-	deoxynucleoside kinase
532	 36.31	0	609185..609655	+	156	161508798	-	USA300HOU_0552	-	deaminase
533	 33.56	0	609802..610671	+	289	161508799	-	USA300HOU_0553	-	hydrolase
534	 30.86	0	610692..611258	+	188	161508800	-	USA300HOU_0554	-	hypothetical protein
535	 34.85	0	611689..614532	+	947	161508801	sdrC	USA300HOU_0555	-	Ser-Asp rich fibrinogen/bone sialoprotein-binding protein SdrC
536	 34.06	0	614899..619044	+	1381	161508802	sdrD	USA300HOU_0556	-	Ser-Asp rich fibrinogen/bone sialoprotein-binding protein SdrD
537	 34.95	0	619438..622902	+	1154	161508803	sdrE	USA300HOU_0557	-	Ser-Asp rich fibrinogen/bone sialoprotein-binding protein SdrE
538	 30.07	0	623021..624493	+	490	161508804	-	USA300HOU_0558	-	glycosyltransferase
539	 30.52	0	624617..626107	-	496	161508805	-	USA300HOU_0559	-	glycosyltransferase
540	 34.81	0	626389..627267	-	292	161508806	-	USA300HOU_0560	-	putative GTP cyclohydrolase
541	 35.89	0	627280..627945	-	221	161508807	-	USA300HOU_0561	-	hypothetical protein
542	 35.50	0	627959..628327	-	122	161508808	-	USA300HOU_0562	-	hypothetical protein
543	 33.73	0	628597..629355	+	252	161508809	nagB	USA300HOU_0563	-	glucosamine-6-phosphate deaminase
544	 34.60	0	629432..630064	+	210	161508810	-	USA300HOU_0564	-	3-hexulose-6-phosphate synthase
545	 36.61	+1	630066..630614	+	182	161508811	-	USA300HOU_0565	-	glucose-6-phosphate isomerase
546	 34.88	0	630727..631374	+	215	161508812	-	USA300HOU_0566	-	phosphatase
32.63	MEAN

3.73	STD DEV
