IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus subsp. aureus USA300_TCH1516

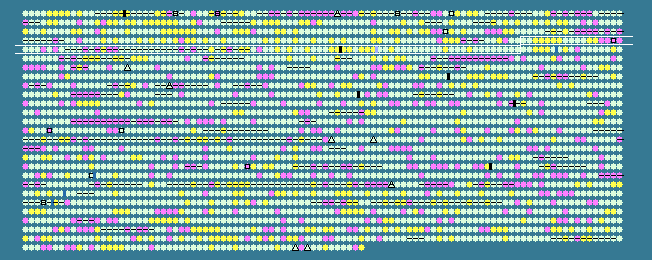

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.63 STD DEV: 3.73
Staphylococcus aureus subsp. aureus USA300_TCH1516, complete genome - 1..2872915
2657 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
384	 30.30	0	426696..427322	-	208	161508650	-	USA300HOU_0401	-	hypothetical protein
385	 31.29	0	427395..427688	-	97	161508651	-	USA300HOU_0402	-	hypothetical protein
386	 37.93	+1	427767..429290	-	507	161508652	ahpF	USA300HOU_0403	-	alkyl hydroperoxide reductase subunit F
387	 37.19	+1	429306..429875	-	189	161508653	ahpC1	USA300HOU_0404	-	alkyl hydroperoxide reductase subunit C
388	 37.55	+1	430316..431122	+	268	161508654	-	USA300HOU_0405	-	FMN reductase
389	 39.16	+1	431203..432591	-	462	161508655	-	USA300HOU_0406	-	DAACS family dicarboxylate/amino acid:sodium or proton symporter
390	 37.72	+1	433568..434524	-	318	161508656	-	USA300HOU_0408	-	hypothetical protein
391	 30.62	0	434642..435304	-	220	161508657	-	USA300HOU_0409	-	hypothetical protein
392	 33.09	0	435447..435854	-	135	161508658	-	USA300HOU_0410	-	hypothetical protein
393	 35.75	0	436367..436945	+	192	161508659	xprT	USA300HOU_0411	-	xanthine phosphoribosyltransferase
394	 35.78	0	436945..438213	+	422	161508660	pbuX	USA300HOU_0412	-	NCS2 family nucleobase:cation symporter-2
395	 37.42	+1	438251..439717	+	488	161508661	guaB	USA300HOU_0413	-	IMP dehydrogenase
396	 37.16	+1	439742..441283	+	513	161508662	guaA	USA300HOU_0414	-	bifunctional GMP synthase/glutamine amidotransferase protein
397	 27.93	-1	441396..441932	-	178	161508663	-	USA300HOU_0415	-	hypothetical protein
398	 28.09	-1	442325..443029	-	234	161508664	-	USA300HOU_0416	-	hypothetical protein
399	 25.27	-1	443428..443700	-	90	161508665	-	USA300HOU_0417	-	transposase
400	 26.80	-1	443961..444113	-	50	161508666	-	USA300HOU_0419	-	hypothetical protein
401	 32.78	0	444637..444996	-	119	161508667	-	USA300HOU_0420	-	hypothetical protein
402	 35.70	0	445015..445860	-	281	161508668	-	USA300HOU_0421	-	hypothetical protein
403	 31.28	0	446332..447012	+	226	161508669	set3	USA300HOU_0422	-	superantigen-like protein
404	 28.59	-1	447298..447993	+	231	161508670	set1	USA300HOU_0423	-	superantigen-like protein
405	 34.37	0	448284..449342	+	352	161508671	set18	USA300HOU_0424	-	superantigen-like protein
406	 27.54	-1	449461..449598	+	45	161508672	-	USA300HOU_0425	-	hypothetical protein
407	 33.76	0	449707..450633	+	308	161508673	set19	USA300HOU_0426	-	superantigen-like protein
408	 31.67	0	450982..451701	+	239	161508674	set20	USA300HOU_0427	-	superantigen-like protein 5
409	 29.89	0	452147..452842	+	231	161508675	set21	USA300HOU_0428	-	superantigen-like protein
410	 29.89	0	453263..453958	+	231	161508676	set22	USA300HOU_0429	-	superantigen-like protein 7
411	 28.04	-1	454302..455000	+	232	161508677	set23	USA300HOU_0430	-	superantigen-like protein
412	 29.33	0	455380..456078	+	232	161508678	set24	USA300HOU_0431	-	superantigen-like protein
413	 29.09	0	456444..457127	+	227	161508679	set25	USA300HOU_0432	-	superantigen-like protein
414	 38.41	+1	457391..458947	+	518	161508680	hsdM1	USA300HOU_0433	-	type I site-specific deoxyribonuclease methyltransferase subunit
415	 29.13	0	458940..460151	+	403	161508681	hsdS1	USA300HOU_0434	-	type I site-specific deoxyribonuclease specificity subunit
416	 28.32	-1	460534..461211	+	225	161508682	set	USA300HOU_0435	-	superantigen-like protein
417	 32.14	0	461233..462741	+	502	161508683	-	USA300HOU_0436	-	hypothetical protein
418	 33.33	0	462844..463152	-	102	161508684	-	USA300HOU_0437	-	hypothetical protein
419	 29.85	0	463490..464293	+	267	161508685	lpl11	USA300HOU_0438	-	lipoprotein
420	 29.71	0	464324..465124	+	266	161508686	-	USA300HOU_0439	-	hypothetical protein
421	 29.84	0	465999..466799	+	266	161508687	lpl7	USA300HOU_0441	-	hypothetical protein
422	 29.57	0	466818..467588	+	256	161508688	-	USA300HOU_0442	-	lipoprotein
423	 29.17	0	467620..468411	+	263	161508689	-	USA300HOU_0443	-	lipoprotein
424	 29.86	0	468481..469257	+	258	161508690	-	USA300HOU_0444	-	hypothetical protein
425	 29.41	0	469433..470248	+	271	161508691	-	USA300HOU_0445	-	hypothetical protein
426	 30.66	0	470267..471052	+	261	161508692	-	USA300HOU_0446	-	lipoprotein
427	 26.96	-1	471232..472047	+	271	161508693	-	USA300HOU_0447	-	lipoprotein
428	 30.32	0	472037..473365	+	442	161508694	-	USA300HOU_0448	-	hypothetical protein
429	 28.09	-1	473362..473685	+	107	161508695	-	USA300HOU_0449	-	hypothetical protein
430	 33.02	0	473704..474018	+	104	161508696	-	USA300HOU_0450	-	hypothetical protein
431	 30.77	0	474308..474502	-	64	161508697	-	USA300HOU_0451	-	hypothetical protein
432	 37.07	+1	474687..475889	+	400	161508698	cobW1	USA300HOU_0452	-	cobalamin (vitamin B12) biosynthesis protein
433	 32.64	0	475992..476135	-	47	161508699	-	USA300HOU_0453	-	hypothetical protein
434	 39.53	+1	476158..476286	+	42	161508700	-	USA300HOU_0454	-	hypothetical protein
435	 28.79	-1	476794..476859	-	21	161508701	-	USA300HOU_0455	-	hypothetical protein
436	 33.33	0	476891..476956	-	21	161508702	-	USA300HOU_0456	-	hypothetical protein
437	 37.31	+1	477477..478961	+	494	161508703	-	USA300HOU_0457	-	NADH dehydrogenase subunit 5
438	 38.73	+1	478974..481679	+	901	161508704	-	USA300HOU_0458	-	hypothetical protein
439	 33.06	0	481841..482203	+	120	161508705	-	USA300HOU_0459	-	hypothetical protein
440	 26.38	-1	482432..482848	-	138	161508706	-	USA300HOU_0460	-	hypothetical protein
441	 34.52	0	482886..483560	+	224	161508707	-	USA300HOU_0461	-	hypothetical protein
442	 33.88	0	483597..484331	+	244	161508708	-	USA300HOU_0462	-	peptidase
443	 43.86	+2	484509..484622	+	37	161508709	-	USA300HOU_0463	-	hypothetical protein
444	 32.86	0	490400..491242	+	280	161508710	-	USA300HOU_0464	-	ABC transporter ATP-binding protein
445	 36.52	+1	491574..492578	+	334	161508711	-	USA300HOU_0465	-	LysM family autolysin
446	 32.59	0	492763..493032	-	89	161508712	-	USA300HOU_0466	-	hypothetical protein
447	 34.81	0	493172..493576	+	134	161508713	-	USA300HOU_0467	-	hypothetical protein
448	 36.21	0	493566..494051	+	161	161508714	-	USA300HOU_0468	-	GNAT family acetyltransferase
449	 32.69	0	494220..495002	-	260	161508715	-	USA300HOU_0469	-	hypothetical protein
450	 33.33	0	494999..496117	-	372	161508716	-	USA300HOU_0470	-	hypothetical protein
451	 32.99	0	496232..497116	-	294	161508717	gltC	USA300HOU_0471	-	glutamate synthase operon transcriptional regulator
452	 37.62	+1	497297..501796	+	1499	161508718	gltB1	USA300HOU_0472	-	glutamate synthase (NADPH), large subunit
453	 38.32	+1	501814..503277	+	487	161508719	gltD	USA300HOU_0473	-	glutamate synthase subunit beta
454	 37.54	+1	504109..505536	+	475	161508720	treP	USA300HOU_0474	-	PTS family trehalose (tre) porter component IIBC
455	 36.20	0	505600..507240	+	546	161508721	amyA	USA300HOU_0475	-	alpha, alpha-phosphotrehalase
456	 33.14	0	508632..509156	+	174	161508722	-	USA300HOU_0476	-	GNAT family acetyltransferase
457	 36.20	0	509249..510922	+	557	161508723	dnaZX	USA300HOU_0477	-	DNA-directed DNA polymerase III gamma and tau subunits
458	 39.94	+1	511012..511329	+	105	161508724	-	USA300HOU_0478	-	hypothetical protein
459	 36.35	0	511336..511932	+	198	161508725	recR	USA300HOU_0479	-	recombination protein RecR
460	 33.03	0	518695..520032	+	445	161508726	-	USA300HOU_0480	-	lysine decarboxylase
461	 32.70	0	520025..520651	+	208	161508727	tmk	USA300HOU_0481	-	dTMP kinase
462	 37.58	+1	520679..521008	+	109	161508728	-	USA300HOU_0482	-	hypothetical protein
463	 30.53	0	521222..522148	+	308	161508729	holB	USA300HOU_0483	-	DNA-directed DNA polymerase III delta' subunit
464	 32.71	0	522149..522952	+	267	161508730	-	USA300HOU_0484	-	hypothetical protein
465	 32.70	0	522999..523316	+	105	161508731	-	USA300HOU_0485	-	DNA replication intiation control protein YabA
466	 29.29	0	523309..523407	+	32	161508732	-	USA300HOU_0486	-	hypothetical protein
467	 33.61	0	523590..524315	+	241	161508733	-	USA300HOU_0487	-	hypothetical protein
468	 33.73	0	524308..524556	+	82	161508734	-	USA300HOU_0488	-	hypothetical protein
469	 35.12	0	524558..525397	+	279	161508735	-	USA300HOU_0489	-	tetrapyrrole (corrin/porphyrin) methyltransferase
470	 33.99	0	525682..527655	+	657	161508736	metS	USA300HOU_0490	-	methionyl-tRNA synthetase
471	 36.56	+1	527686..528459	+	257	161508737	-	USA300HOU_0491	-	TatD family deoxyribonuclease
472	 34.82	0	528626..529162	+	178	161508738	-	USA300HOU_0492	-	hypothetical protein
473	 32.89	0	529173..530066	+	297	161508739	ksgA	USA300HOU_0493	-	dimethyladenosine transferase
474	 32.20	0	530166..530429	+	87	161508740	-	USA300HOU_0494	-	hypothetical protein
475	 37.61	+1	536154..536807	+	217	161508741	rplY	USA300HOU_0495	-	50S ribosomal protein L25/general stress protein Ctc
476	 32.98	0	537118..537690	+	190	161508742	pth	USA300HOU_0496	-	peptidyl-tRNA hydrolase
477	 34.25	0	537690..541196	+	1168	161508743	mfd	USA300HOU_0497	-	transcription-repair coupling factor
478	 32.87	0	541186..542712	+	508	161508744	-	USA300HOU_0498	-	MOP superfamily PST family polysaccharide transporter
479	 35.09	0	542712..543905	+	397	161508745	-	USA300HOU_0499	-	tetrapyrrole methyltransferase
480	 34.47	0	543902..544165	+	87	161508746	-	USA300HOU_0500	-	RNA-binding S4 domain-containing heat shock protein
481	 33.33	0	544183..544575	+	130	161508747	-	USA300HOU_0501	-	septum formation initiator
482	 34.33	0	544680..545081	+	133	161508748	-	USA300HOU_0502	-	hypothetical protein
483	 30.79	0	545261..546556	+	431	161508749	-	USA300HOU_0503	-	hypothetical protein
32.63	MEAN

3.73	STD DEV
