IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus subsp. aureus USA300_TCH1516

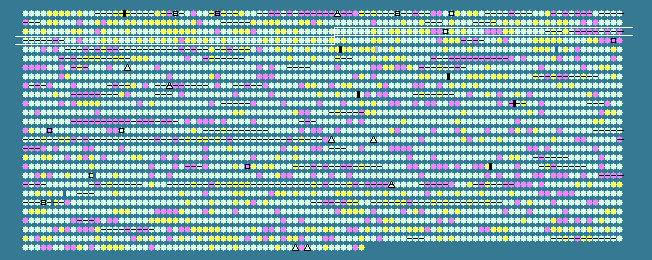

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.63 STD DEV: 3.73
Staphylococcus aureus subsp. aureus USA300_TCH1516, complete genome - 1..2872915
2657 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
253	 31.91	0	301490..303178	+	562	161508519	tagB2	USA300HOU_0268	-	glycosyl/glycerophosphate transferase
254	 31.94	0	303211..304935	+	574	161508520	-	USA300HOU_0269	-	glycosyltransferase
255	 32.74	0	305075..305749	+	224	161508521	scdA	USA300HOU_0270	-	cell wall biosynthesis protein ScdA
256	 35.56	0	305996..307750	+	584	161508522	lytS	USA300HOU_0271	-	sensor histidine kinase LytS
257	 32.25	0	307753..308493	+	246	161508523	lytR	USA300HOU_0272	-	response regulator LytR
258	 34.46	0	308606..309049	+	147	161508524	lrgA	USA300HOU_0273	-	murein hydrolase regulator LrgA
259	 36.61	+1	309042..309743	+	233	161508525	lrgB	USA300HOU_0274	-	antiholin-like protein LrgB
260	 33.48	0	309851..310555	-	234	161508526	-	USA300HOU_0275	-	GntR family transcriptional regulator
261	 34.85	0	310704..311495	+	263	161508527	-	USA300HOU_0276	-	PTS family glucose/glucoside (glc) porter component IIABC
262	 36.81	+1	311511..312947	+	478	161508528	bglA	USA300HOU_0277	-	6-phospho-beta-glucosidase
263	 37.50	+1	313019..313210	+	63	161508529	-	USA300HOU_0278	-	hypothetical protein
264	 34.38	0	313381..314142	-	253	161508530	-	USA300HOU_0279	-	hypothetical protein
265	 37.60	+1	314393..315307	-	304	161508531	rbsK	USA300HOU_0280	-	ribokinase
266	 31.85	0	315335..315739	-	134	161508532	rbsD	USA300HOU_0281	-	D-ribose pyranase
267	 38.32	+1	315754..316635	-	293	161508533	-	USA300HOU_0282	-	DMT superfamily drug/metabolite transporter
268	 37.34	+1	316867..317865	-	332	161508534	-	USA300HOU_0283	-	ribose operon repressor
269	 19.44	-2	318016..318195	+	59	161508535	-	USA300HOU_0284	-	hypothetical protein
270	 26.72	-1	318245..318637	+	130	161508536	-	USA300HOU_0285	-	hypothetical protein
271	 30.37	0	318865..319269	+	134	161508537	-	USA300HOU_0286	-	transposase
272	 37.52	+1	319310..320695	-	461	161508538	-	USA300HOU_0287	-	major facilitator transporter
273	 35.35	0	320920..321912	+	330	161508539	-	USA300HOU_0288	-	C59 family penicillin amidase
274	 39.73	+1	322220..323188	+	322	161508540	lytM	USA300HOU_0289	-	peptidoglycan hydrolase
275	 31.36	0	323240..323899	-	219	161508541	-	USA300HOU_0290	-	ABC transporter ATP-binding protein
276	 31.60	0	323913..324833	-	306	161508542	-	USA300HOU_0291	-	hypothetical protein
277	 31.88	0	324830..325996	-	388	161508543	-	USA300HOU_0292	-	hypothetical protein
278	 28.41	-1	326064..327587	-	507	161508544	-	USA300HOU_0293	-	hypothetical protein
279	 27.83	-1	327858..328511	+	217	161508545	-	USA300HOU_0294	-	hypothetical protein
280	 28.06	-1	328545..329132	+	195	161508546	-	USA300HOU_0295	-	hypothetical protein
281	 37.32	+1	329275..330177	-	300	161508547	-	USA300HOU_0296	-	hypothetical protein
282	 37.76	+1	330416..330709	+	97	161508548	esxA	USA300HOU_0297	-	hypothetical protein
283	 30.89	0	330793..333822	+	1009	161508549	esaA	USA300HOU_0298	-	hypothetical protein
284	 32.68	0	333822..334280	+	152	161508550	essA	USA300HOU_0299	-	virulence protein EssA
285	 29.63	0	334252..334494	+	80	161508551	esaB	USA300HOU_0300	-	virulence protein EsaB
286	 29.89	0	334507..335841	+	444	161508552	essB	USA300HOU_0301	-	hypothetical protein
287	 34.01	0	335863..340302	+	1479	161508553	essC	USA300HOU_0302	-	virulence protein EssC
288	 31.04	0	340332..340724	+	130	161508554	esaC	USA300HOU_0303	-	virulence protein EsaC
289	 39.05	+1	340740..341054	+	104	161508555	esxB	USA300HOU_0304	-	virulence protein EsxB
290	 29.50	0	341051..341728	+	225	161508556	-	USA300HOU_0305	-	hypothetical protein
291	 37.11	+1	341728..342045	+	105	161508557	-	USA300HOU_0306	-	hypothetical protein
292	 35.72	0	342055..343899	+	614	161508558	-	USA300HOU_0307	-	hypothetical protein
293	 28.66	-1	343910..344401	+	163	161508559	-	USA300HOU_0308	-	hypothetical protein
294	 26.90	-1	344609..345292	+	227	161508560	-	USA300HOU_0309	-	hypothetical protein
295	 28.10	-1	345439..346050	+	203	161508561	-	USA300HOU_0310	-	hypothetical protein
296	 26.94	-1	346186..346404	+	72	161508562	-	USA300HOU_0311	-	hypothetical protein
297	 30.54	0	346536..347036	+	166	161508563	-	USA300HOU_0312	-	hypothetical protein
298	 28.34	-1	347047..347547	+	166	161508564	-	USA300HOU_0313	-	hypothetical protein
299	 29.88	0	348064..348555	+	163	161508565	-	USA300HOU_0315	-	hypothetical protein
300	 28.36	-1	348765..349448	+	227	161508566	-	USA300HOU_0316	-	hypothetical protein
301	 29.94	0	350034..350534	+	166	161508567	-	USA300HOU_0317	-	hypothetical protein
302	 30.34	0	350546..351046	+	166	161508568	-	USA300HOU_0318	-	hypothetical protein
303	 29.74	0	351568..352068	+	166	161508569	-	USA300HOU_0319	-	hypothetical protein
304	 29.86	0	352079..352567	+	162	161508570	-	USA300HOU_0320	-	hypothetical protein
305	 30.70	0	352588..352701	+	37	161508571	-	USA300HOU_0321	-	hypothetical protein
306	 26.46	-1	353187..353564	+	125	161508572	-	USA300HOU_0322	-	hypothetical protein
307	 31.58	0	353717..354115	+	132	161508573	-	USA300HOU_0323	-	hypothetical protein
308	 33.33	0	354331..355176	-	281	161508574	-	USA300HOU_0324	-	FNT family formate-nitrite transporter
309	 35.86	0	355392..356699	-	435	161508575	brnQ1	USA300HOU_0325	-	LIVCS family branched chain amino acid:cation symporter
310	 24.58	-2	356620..356859	+	79	161508576	-	USA300HOU_0326	-	hypothetical protein
311	 33.11	0	357283..358173	+	296	161508577	-	USA300HOU_0327	-	acid phosphatase
312	 33.43	0	358422..359471	+	349	161508578	-	USA300HOU_0328	-	ABC transporter ATP-binding protein
313	 33.48	0	359484..360161	+	225	161508579	-	USA300HOU_0329	-	ABC transporter ATP-binding protein
314	 38.57	+1	360369..361400	+	343	161508580	-	USA300HOU_0330	-	PfoR family transcriptional regulator
315	 34.05	0	361743..362861	+	372	161508581	-	USA300HOU_0331	-	PfkB family carbohydrate kinase
316	 38.10	+1	362836..363759	+	307	161508582	-	USA300HOU_0332	-	hypothetical protein
317	 32.68	0	363770..364990	+	406	161508583	-	USA300HOU_0333	-	nucleoside transporter
318	 36.01	0	365095..366627	-	510	161508584	-	USA300HOU_0334	-	SSS family solute/sodium (Na+) symporter
319	 35.03	0	366667..367548	-	293	161508585	nanA	USA300HOU_0335	-	N-acetylneuraminate lyase
320	 37.10	+1	367664..368566	+	300	161508586	-	USA300HOU_0336	-	transcriptional regulator
321	 33.33	0	368844..369644	-	266	161508587	-	USA300HOU_0337	-	transcriptional regulator
322	 37.67	+1	369784..370452	+	222	161508588	nanE	USA300HOU_0338	-	N-acetylmannosamine-6-phosphate 2-epimerase
323	 36.05	0	370579..371940	-	453	161508589	-	USA300HOU_0339	-	hypothetical protein
324	 37.43	+1	372310..374382	+	690	161508590	lip1	USA300HOU_0340	-	triacylglycerol lipase
325	 34.18	0	374624..375451	-	275	161508591	-	USA300HOU_0341	-	hypothetical protein
326	 39.42	+1	375524..376723	-	399	161508592	-	USA300HOU_0342	-	FMN reductase
327	 22.58	-2	376819..376911	+	30	161508593	-	USA300HOU_0343	-	hypothetical protein
328	 37.43	+1	377025..378026	+	333	161508594	-	USA300HOU_0344	-	alkanal monooxygenase (FMN-linked)
329	 36.34	0	378060..378392	+	110	161508595	-	USA300HOU_0345	-	glycine cleavage system H-protein
330	 35.96	0	378393..379193	+	266	161508596	-	USA300HOU_0346	-	hypothetical protein
331	 37.88	+1	379183..380127	+	314	161508597	-	USA300HOU_0347	-	Sir2 silent information regulator family NAD-dependent deacetylase
332	 34.41	0	380105..381127	+	340	161508598	lplA1	USA300HOU_0348	-	lipoate--protein ligase A
333	 35.58	0	381442..382467	+	341	161508599	-	USA300HOU_0349	-	dehydrogenase
334	 37.86	+1	382560..383906	-	448	161508600	-	USA300HOU_0350	-	ascorbate-specific PTS system enzyme IIC
335	 34.35	0	383921..384214	-	97	161508601	-	USA300HOU_0351	-	PTS family porter component IIB
336	 35.36	0	384207..384650	-	147	161508602	-	USA300HOU_0352	-	PTS family porter component IIA
337	 34.36	0	384655..386610	-	651	161508603	-	USA300HOU_0353	-	transcription antiterminator
338	 33.57	0	386822..387241	+	139	161508604	-	USA300HOU_0354	-	transcriptional regulator
339	 33.04	0	387348..388703	+	451	161508605	-	USA300HOU_0355	-	MATE family multi-antimicrobial extrusion protein
340	 30.39	0	388807..389247	+	146	161508606	-	USA300HOU_0356	-	hypothetical protein
341	 37.09	+1	389330..390688	-	452	161508607	glpT	USA300HOU_0357	-	MOP superfamily multidrug/oligosaccharidyl-lipid/polysaccharide flippase transporter
342	 34.41	0	390996..391922	+	308	161508608	-	USA300HOU_0358	-	lactoylglutathione lyase
343	 37.01	+1	391936..392997	+	353	161508609	-	USA300HOU_0359	-	alkanal monooxygenase
344	 33.69	0	393011..393577	+	188	161508610	-	USA300HOU_0360	-	FMN reductase
345	 35.34	0	393637..394632	-	331	161508611	-	USA300HOU_0361	-	hypothetical protein
346	 39.14	+1	394631..395026	+	131	161508612	-	USA300HOU_0362	-	hypothetical protein
347	 35.35	0	395106..395651	+	181	161508613	-	USA300HOU_0363	-	N-acetyltransferase
348	 30.99	0	395919..396773	+	284	161508614	-	USA300HOU_0364	-	lipoprotein
349	 37.40	+1	396770..397999	+	409	161508615	-	USA300HOU_0365	-	iron (Fe2+)-dependent Dyp family peroxidase
350	 33.68	0	397980..399692	+	570	161508616	-	USA300HOU_0366	-	OFeT family oxidase-dependent iron (Fe2+) transporter
351	 33.49	0	399784..400440	-	218	161508617	-	USA300HOU_0367	-	Tat family twin arginine targeting transporter TatC
352	 36.57	+1	400502..400717	-	71	161508618	-	USA300HOU_0368	-	Tat family twin arginine targeting transporter
32.63	MEAN

3.73	STD DEV
