IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus subsp. aureus USA300_TCH1516

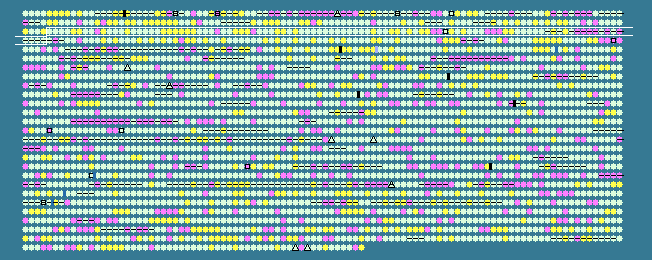

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.63 STD DEV: 3.73
Staphylococcus aureus subsp. aureus USA300_TCH1516, complete genome - 1..2872915
2657 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
205	 35.06	0	246056..247153	+	365	161508471	-	USA300HOU_0220	-	maltose/maltodextrin ABC transporter ATP-binding protein
206	 33.96	0	247166..248437	+	423	161508472	-	USA300HOU_0221	-	ABC transporter substrate-binding protein
207	 35.54	0	248440..249708	+	422	161508473	-	USA300HOU_0222	-	maltose/maltodextrin ABC transporter membrane protein
208	 33.93	0	249710..250549	+	279	161508474	-	USA300HOU_0223	-	maltose/maltodextrin ABC transporter membrane protein
209	 38.89	+1	250620..251699	+	359	161508475	-	USA300HOU_0224	-	dehydrogenase
210	 39.39	+1	251724..252764	+	346	161508476	-	USA300HOU_0225	-	dehydrogenase
211	 35.91	0	252819..253787	+	322	161508477	-	USA300HOU_0226	-	hypothetical protein
212	 30.39	0	253975..254076	+	33	161508478	-	USA300HOU_0227	-	hypothetical protein
213	 27.05	-1	254149..254721	-	190	161508479	-	USA300HOU_0228	-	hypothetical protein
214	 36.34	0	254858..256255	+	465	161508480	-	USA300HOU_0229	-	sugar phosphate antiporter
215	 32.67	0	256614..257372	-	252	161508481	-	USA300HOU_0230	-	response regulator
216	 32.76	0	257365..258921	-	518	161508482	-	USA300HOU_0231	-	sensor histidine kinase
217	 34.16	0	258918..259886	-	322	161508483	-	USA300HOU_0232	-	iron (Fe3+) ABC transporter membrane/binding protein
218	 36.73	+1	260459..262723	+	754	161508484	pfl	USA300HOU_0233	-	formate acetyltransferase
219	 36.11	0	262746..263501	+	251	161508485	pflA	USA300HOU_0234	-	[formate-C-acetyltransferase]-activating enzyme
220	 31.79	0	263605..263799	+	64	161508486	-	USA300HOU_0235	-	hypothetical protein
221	 30.85	0	263786..265600	+	604	161508487	glpQ1	USA300HOU_0236	-	hypothetical protein
222	 31.88	0	265764..266108	-	114	161508488	-	USA300HOU_0237	-	hypothetical protein
223	 34.10	0	266298..268127	+	609	161508489	-	USA300HOU_0238	-	staphylocoagulase precursor
224	 37.04	+1	268309..268416	-	35	161508490	-	USA300HOU_0239	-	hypothetical protein
225	 43.22	+2	268730..269923	-	397	161508491	-	USA300HOU_0240	-	acetyl-CoA C-acetyltransferase
226	 37.36	+1	269944..272205	-	753	161508492	-	USA300HOU_0241	-	3-hydroxyacyl-CoA dehydrogenase
227	 38.74	+1	272391..273647	-	418	161508493	-	USA300HOU_0242	-	acyl-CoA dehydrogenase
228	 37.32	+1	273714..275219	-	501	161508494	-	USA300HOU_0243	-	long-chain-fatty-acid--CoA ligase
229	 36.82	+1	275245..276822	-	525	161508495	-	USA300HOU_0244	-	3-oxoacid CoA-transferase
230	 34.23	0	277176..278405	+	409	161508496	-	USA300HOU_0245	-	hypothetical protein
231	 31.03	0	278719..280194	-	491	161508497	-	USA300HOU_0246	-	ABC transporter ATP-binding protein
232	 35.29	0	280392..280748	-	118	161508498	-	USA300HOU_0247	-	hypothetical protein
233	 25.86	-1	280905..281078	-	57	161508499	-	USA300HOU_0248	-	hypothetical protein
234	 34.82	0	281104..282249	-	381	161508500	hmp	USA300HOU_0249	-	nitric oxide dioxygenase
235	 29.63	0	282404..282511	+	35	161508501	-	USA300HOU_0250	-	hypothetical protein
236	 37.32	+1	282822..283775	+	317	161508502	ldh	USA300HOU_0251	-	L-lactate dehydrogenase
237	 39.28	+1	284095..285624	-	509	161508503	-	USA300HOU_0252	-	PTS family glucose/glucoside (glc) porter component IIABC
238	 39.64	+1	285986..286921	+	311	161508504	-	USA300HOU_0253	-	purine nucleosidase
239	 18.18	-2	287031..287129	+	32	161508505	-	USA300HOU_0254	-	hypothetical protein
240	 33.09	0	287260..289356	+	698	161508506	-	USA300HOU_0255	-	transcription antiterminator
241	 34.83	0	289341..289808	+	155	161508507	-	USA300HOU_0256	-	PTS family porter component IIA
242	 30.47	0	289831..290109	+	92	161508508	-	USA300HOU_0257	-	PTS family galactitol (gat) porter component IIB
243	 36.83	+1	290336..291595	+	419	161508509	gatC1	USA300HOU_0258	-	PTS family galactitol (gat) porter component IIC
244	 36.54	+1	291610..292668	+	352	161508510	gutB	USA300HOU_0259	-	L-iditol 2-dehydrogenase
245	 29.93	0	292670..292816	+	48	161508511	-	USA300HOU_0260	-	hypothetical protein
246	 38.03	+1	292840..293883	+	347	161508512	-	USA300HOU_0261	-	zinc (Zn2+)-binding dehydrogenase
247	 32.91	0	294411..295127	+	238	161508513	ispD2	USA300HOU_0262	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
248	 34.80	0	295120..296145	+	341	161508514	-	USA300HOU_0263	-	alcohol dehydrogenase
249	 32.86	0	296167..297861	+	564	161508515	tagB1	USA300HOU_0264	-	glycosyl/glycerophosphate transferase
250	 33.42	0	298289..299458	+	389	161508516	tagF	USA300HOU_0265	-	CDP-glycerol glycerophosphotransferase
251	 32.22	0	299734..300450	+	238	161508517	-	USA300HOU_0266	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
252	 33.53	0	300443..301468	+	341	161508518	-	USA300HOU_0267	-	zinc (Zn2+)-binding dehydrogenase
253	 31.91	0	301490..303178	+	562	161508519	tagB2	USA300HOU_0268	-	glycosyl/glycerophosphate transferase
254	 31.94	0	303211..304935	+	574	161508520	-	USA300HOU_0269	-	glycosyltransferase
255	 32.74	0	305075..305749	+	224	161508521	scdA	USA300HOU_0270	-	cell wall biosynthesis protein ScdA
256	 35.56	0	305996..307750	+	584	161508522	lytS	USA300HOU_0271	-	sensor histidine kinase LytS
257	 32.25	0	307753..308493	+	246	161508523	lytR	USA300HOU_0272	-	response regulator LytR
258	 34.46	0	308606..309049	+	147	161508524	lrgA	USA300HOU_0273	-	murein hydrolase regulator LrgA
259	 36.61	+1	309042..309743	+	233	161508525	lrgB	USA300HOU_0274	-	antiholin-like protein LrgB
260	 33.48	0	309851..310555	-	234	161508526	-	USA300HOU_0275	-	GntR family transcriptional regulator
261	 34.85	0	310704..311495	+	263	161508527	-	USA300HOU_0276	-	PTS family glucose/glucoside (glc) porter component IIABC
262	 36.81	+1	311511..312947	+	478	161508528	bglA	USA300HOU_0277	-	6-phospho-beta-glucosidase
263	 37.50	+1	313019..313210	+	63	161508529	-	USA300HOU_0278	-	hypothetical protein
264	 34.38	0	313381..314142	-	253	161508530	-	USA300HOU_0279	-	hypothetical protein
265	 37.60	+1	314393..315307	-	304	161508531	rbsK	USA300HOU_0280	-	ribokinase
266	 31.85	0	315335..315739	-	134	161508532	rbsD	USA300HOU_0281	-	D-ribose pyranase
267	 38.32	+1	315754..316635	-	293	161508533	-	USA300HOU_0282	-	DMT superfamily drug/metabolite transporter
268	 37.34	+1	316867..317865	-	332	161508534	-	USA300HOU_0283	-	ribose operon repressor
269	 19.44	-2	318016..318195	+	59	161508535	-	USA300HOU_0284	-	hypothetical protein
270	 26.72	-1	318245..318637	+	130	161508536	-	USA300HOU_0285	-	hypothetical protein
271	 30.37	0	318865..319269	+	134	161508537	-	USA300HOU_0286	-	transposase
272	 37.52	+1	319310..320695	-	461	161508538	-	USA300HOU_0287	-	major facilitator transporter
273	 35.35	0	320920..321912	+	330	161508539	-	USA300HOU_0288	-	C59 family penicillin amidase
274	 39.73	+1	322220..323188	+	322	161508540	lytM	USA300HOU_0289	-	peptidoglycan hydrolase
275	 31.36	0	323240..323899	-	219	161508541	-	USA300HOU_0290	-	ABC transporter ATP-binding protein
276	 31.60	0	323913..324833	-	306	161508542	-	USA300HOU_0291	-	hypothetical protein
277	 31.88	0	324830..325996	-	388	161508543	-	USA300HOU_0292	-	hypothetical protein
278	 28.41	-1	326064..327587	-	507	161508544	-	USA300HOU_0293	-	hypothetical protein
279	 27.83	-1	327858..328511	+	217	161508545	-	USA300HOU_0294	-	hypothetical protein
280	 28.06	-1	328545..329132	+	195	161508546	-	USA300HOU_0295	-	hypothetical protein
281	 37.32	+1	329275..330177	-	300	161508547	-	USA300HOU_0296	-	hypothetical protein
282	 37.76	+1	330416..330709	+	97	161508548	esxA	USA300HOU_0297	-	hypothetical protein
283	 30.89	0	330793..333822	+	1009	161508549	esaA	USA300HOU_0298	-	hypothetical protein
284	 32.68	0	333822..334280	+	152	161508550	essA	USA300HOU_0299	-	virulence protein EssA
285	 29.63	0	334252..334494	+	80	161508551	esaB	USA300HOU_0300	-	virulence protein EsaB
286	 29.89	0	334507..335841	+	444	161508552	essB	USA300HOU_0301	-	hypothetical protein
287	 34.01	0	335863..340302	+	1479	161508553	essC	USA300HOU_0302	-	virulence protein EssC
288	 31.04	0	340332..340724	+	130	161508554	esaC	USA300HOU_0303	-	virulence protein EsaC
289	 39.05	+1	340740..341054	+	104	161508555	esxB	USA300HOU_0304	-	virulence protein EsxB
290	 29.50	0	341051..341728	+	225	161508556	-	USA300HOU_0305	-	hypothetical protein
291	 37.11	+1	341728..342045	+	105	161508557	-	USA300HOU_0306	-	hypothetical protein
292	 35.72	0	342055..343899	+	614	161508558	-	USA300HOU_0307	-	hypothetical protein
293	 28.66	-1	343910..344401	+	163	161508559	-	USA300HOU_0308	-	hypothetical protein
294	 26.90	-1	344609..345292	+	227	161508560	-	USA300HOU_0309	-	hypothetical protein
295	 28.10	-1	345439..346050	+	203	161508561	-	USA300HOU_0310	-	hypothetical protein
296	 26.94	-1	346186..346404	+	72	161508562	-	USA300HOU_0311	-	hypothetical protein
297	 30.54	0	346536..347036	+	166	161508563	-	USA300HOU_0312	-	hypothetical protein
298	 28.34	-1	347047..347547	+	166	161508564	-	USA300HOU_0313	-	hypothetical protein
299	 29.88	0	348064..348555	+	163	161508565	-	USA300HOU_0315	-	hypothetical protein
300	 28.36	-1	348765..349448	+	227	161508566	-	USA300HOU_0316	-	hypothetical protein
301	 29.94	0	350034..350534	+	166	161508567	-	USA300HOU_0317	-	hypothetical protein
302	 30.34	0	350546..351046	+	166	161508568	-	USA300HOU_0318	-	hypothetical protein
303	 29.74	0	351568..352068	+	166	161508569	-	USA300HOU_0319	-	hypothetical protein
304	 29.86	0	352079..352567	+	162	161508570	-	USA300HOU_0320	-	hypothetical protein
32.63	MEAN

3.73	STD DEV
