IslandPath Analysis: Staphylococcus aureus subsp. aureus USA300_TCH1516

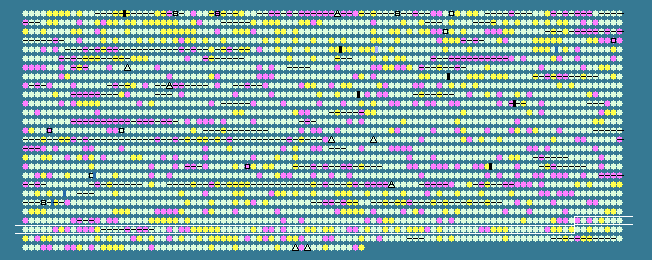

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.63 STD DEV: 3.73
Staphylococcus aureus subsp. aureus USA300_TCH1516, complete genome - 1..2872915
2657 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2393	 28.29	-1	2587962..2588417	+	151	161510659	-	USA300HOU_2449	-	hypothetical protein
2394	 35.74	0	2588585..2590162	-	525	161510660	gltB2	USA300HOU_2450	-	glutamate synthase (NADPH)
2395	 21.51	-2	2590199..2590291	+	30	161510661	-	USA300HOU_2451	-	hypothetical protein
2396	 30.80	0	2590357..2591106	+	249	161510662	-	USA300HOU_2452	-	hypothetical protein
2397	 37.10	+1	2591330..2592523	-	397	161510663	-	USA300HOU_2453	-	major facilitator transporter
2398	 35.07	0	2592535..2593284	-	249	161510664	-	USA300HOU_2454	-	ABC transporter ATP-binding protein
2399	 35.17	0	2593277..2594092	-	271	161510665	-	USA300HOU_2455	-	oligopeptide ABC transporter ATP-binding protein
2400	 35.75	0	2594089..2594958	-	289	161510666	-	USA300HOU_2456	-	oligopeptide ABC transporter membrane protein
2401	 33.87	0	2594955..2595890	-	311	161510667	-	USA300HOU_2457	-	oligopeptide ABC transporter membrane protein
2402	 34.83	0	2595903..2597501	-	532	161510668	-	USA300HOU_2458	-	oligopeptide ABC transporter substrate-binding protein
2403	 36.10	0	2597644..2598945	-	433	161510669	-	USA300HOU_2459	-	hypothetical protein
2404	 33.82	0	2598938..2599756	-	272	161510670	-	USA300HOU_2460	-	hypothetical protein
2405	 35.64	0	2599767..2600588	-	273	161510671	-	USA300HOU_2461	-	hypothetical protein
2406	 25.68	-1	2601455..2601820	-	121	161510672	-	USA300HOU_2462	-	hypothetical protein
2407	 36.32	0	2603134..2604672	+	512	161510673	-	USA300HOU_2464	-	p-aminobenzoyl-glutamate transporter
2408	 27.90	-1	2604784..2605206	-	140	161510674	-	USA300HOU_2465	-	hypothetical protein
2409	 30.24	0	2605658..2606077	-	139	161510675	-	USA300HOU_2466	-	hypothetical protein
2410	 29.05	0	2606095..2606514	-	139	161510676	-	USA300HOU_2467	-	hypothetical protein
2411	 27.48	-1	2606468..2606689	+	73	161510677	-	USA300HOU_2468	-	hypothetical protein
2412	 29.08	0	2606781..2607203	-	140	161510678	-	USA300HOU_2469	-	hypothetical protein
2413	 37.07	+1	2607454..2608149	-	231	161510679	-	USA300HOU_2470	-	dehydrogenase
2414	 35.94	0	2608979..2609170	-	63	161510680	-	USA300HOU_2471	-	hypothetical protein
2415	 29.27	0	2609605..2609727	+	40	161510681	-	USA300HOU_2472	-	hypothetical protein
2416	 31.45	0	2609731..2610525	-	264	161510682	-	USA300HOU_2473	-	lipoprotein
2417	 31.94	0	2611061..2611348	-	95	161510683	-	USA300HOU_2474	-	hypothetical protein
2418	 28.75	-1	2611351..2611677	-	108	161510684	-	USA300HOU_2475	-	hypothetical protein
2419	 31.40	0	2613894..2614670	-	258	161510685	-	USA300HOU_2478	-	lipoprotein
2420	 21.88	-2	2614770..2614865	+	31	161510686	-	USA300HOU_2479	-	hypothetical protein
2421	 28.06	-1	2614973..2617834	-	953	161510687	-	USA300HOU_2480	-	helicase
2422	 31.55	0	2617836..2618228	-	130	161510688	-	USA300HOU_2481	-	hydrolase
2423	 34.00	0	2618345..2620153	+	602	161510689	-	USA300HOU_2482	-	bifunctional phosphoglucomutase/phosphomannomutase
2424	 31.46	0	2620437..2620703	+	88	161510690	-	USA300HOU_2483	-	hypothetical protein
2425	 28.16	-1	2620847..2621155	+	102	161510691	-	USA300HOU_2484	-	hypothetical protein
2426	 29.82	0	2621477..2622670	-	397	161510692	-	USA300HOU_2485	-	major facilitator superfamily cation symporter
2427	 22.78	-2	2626706..2627065	-	119	161510693	sarT	USA300HOU_2487	-	staphylococcal accessory regulator T
2428	 24.87	-2	2627387..2628130	+	247	161510694	sarU	USA300HOU_2488	-	staphylococcal accessory regulator U
2429	 36.56	+1	2628341..2629207	-	288	161510695	galU	USA300HOU_2489	-	UTP--glucose-1-phosphate uridylyltransferase
2430	 36.34	0	2629387..2632209	-	940	161510696	fnbB	USA300HOU_2490	-	fibronectin-binding protein B
2431	 36.31	0	2632891..2635947	-	1018	161510697	fnbA	USA300HOU_2491	-	fibronectin-binding protein A
2432	 36.42	+1	2636416..2637774	-	452	161510698	gntP	USA300HOU_2492	-	GntP family gluconate:proton (H+) symporter
2433	 37.71	+1	2637891..2639444	-	517	161510699	gntK	USA300HOU_2493	-	gluconokinase
2434	 35.54	0	2639468..2640148	-	226	161510700	gntR	USA300HOU_2494	-	gluconate operon transcriptional repressor
2435	 34.12	0	2640302..2641066	-	254	161510701	-	USA300HOU_2495	-	MerR family transcriptional regulator
2436	 32.32	0	2641231..2641923	-	230	161510702	-	USA300HOU_2496	-	hypothetical protein
2437	 34.15	0	2642154..2642642	-	162	161510703	-	USA300HOU_2497	-	hypothetical protein
2438	 32.73	0	2642709..2644532	-	607	161510704	-	USA300HOU_2498	-	hypothetical protein
2439	 36.15	0	2645010..2646287	-	425	161510705	-	USA300HOU_2499	-	major facilitator superfamily glucarate:cation symporter
2440	 32.52	0	2646834..2647445	+	203	161510706	-	USA300HOU_2500	-	alkaline phosphatase
2441	 28.78	-1	2647542..2648705	-	387	161510707	-	USA300HOU_2501	-	major facilitator transporter
2442	 24.52	-2	2648698..2649162	-	154	161510708	-	USA300HOU_2502	-	MarR family transcriptional regulator
2443	 31.18	0	2649590..2650285	+	231	161510709	-	USA300HOU_2503	-	ABC transporter ATP-binding protein
2444	 26.46	-1	2650287..2651057	+	256	161510710	-	USA300HOU_2504	-	ABC transporter ATP-binding protein
2445	 33.59	0	2651430..2653394	+	654	161510711	-	USA300HOU_2505	-	fructose-bisphosphatase
2446	 33.33	0	2653467..2653619	+	50	161510712	-	USA300HOU_2506	-	hypothetical protein
2447	 35.74	0	2653738..2654817	+	359	161510713	-	USA300HOU_2507	-	hypothetical protein
2448	 36.70	+1	2654922..2655515	-	197	161510714	-	USA300HOU_2508	-	hydrolase
2449	 36.12	0	2655537..2656505	-	322	161510715	-	USA300HOU_2509	-	lactoylglutatione lyase
2450	 35.17	0	2656583..2657017	-	144	161510716	-	USA300HOU_2510	-	MarR family transcriptional regulator
2451	 37.55	+1	2657699..2658505	+	268	161510717	-	USA300HOU_2511	-	dioxygenase
2452	 37.25	+1	2658625..2659287	-	220	161510718	-	USA300HOU_2512	-	FMN reductase
2453	 34.54	0	2659566..2660558	+	330	161510719	ddh	USA300HOU_2513	-	D-lactate dehydrogenase
2454	 34.21	0	2660807..2661607	-	266	161510720	-	USA300HOU_2514	-	HAD family phosphatase
2455	 24.84	-2	2661928..2662563	+	211	161510721	-	USA300HOU_2515	-	ABC transporter ATP-binding protein
2456	 28.01	-1	2662569..2663300	+	243	161510722	-	USA300HOU_2516	-	hypothetical protein
2457	 32.85	0	2663460..2664080	-	206	161510723	srtA	USA300HOU_2517	-	sortase
2458	 36.99	+1	2664274..2664765	+	163	161510724	-	USA300HOU_2518	-	acetyltransferase
2459	 33.33	0	2665243..2665434	+	63	161510725	-	USA300HOU_2519	-	hypothetical protein
2460	 30.30	0	2665435..2665533	-	32	161510726	-	USA300HOU_2520	-	hypothetical protein
2461	 41.11	+2	2665552..2666451	-	299	161510727	sdhA2	USA300HOU_2521	-	L-serine ammonia-lyase alpha subunit
2462	 32.75	0	2666465..2667145	-	226	161510728	sdhB2	USA300HOU_2522	-	L-serine ammonia-lyase beta subunit
2463	 37.45	+1	2667148..2668191	-	347	161510729	-	USA300HOU_2523	-	transcriptional regulator
2464	 34.68	0	2669101..2670063	+	320	161510730	-	USA300HOU_2524	-	hypothetical protein
2465	 37.25	+1	2670145..2671113	-	322	161510731	-	USA300HOU_2525	-	hypothetical protein
2466	 36.23	0	2671246..2671590	-	114	161510732	-	USA300HOU_2526	-	hypothetical protein
2467	 36.98	+1	2671632..2672042	-	136	161510733	-	USA300HOU_2527	-	hypothetical protein
2468	 28.43	-1	2672107..2672208	+	33	161510734	-	USA300HOU_2528	-	hypothetical protein
2469	 31.88	0	2672354..2672422	-	22	161510735	-	USA300HOU_2529	-	hypothetical protein
2470	 36.57	+1	2672422..2674521	-	699	161510736	ptsG	USA300HOU_2530	-	PTS family glucose/glucoside (glc) porter component IIABC
2471	 34.43	0	2674789..2676528	-	579	161510737	ilvB2	USA300HOU_2531	-	pyruvate oxidase
2472	 34.06	0	2676575..2677264	-	229	161510738	-	USA300HOU_2532	-	hypothetical protein
2473	 32.32	0	2677257..2677652	-	131	161510739	-	USA300HOU_2533	-	hypothetical protein
2474	 33.22	0	2677865..2678752	-	295	161510740	-	USA300HOU_2534	-	LysR family transcriptional regulator
2475	 35.16	0	2678910..2679128	+	72	161510741	-	USA300HOU_2535	-	hypothetical protein
2476	 34.72	0	2679517..2679948	+	143	161510742	-	USA300HOU_2536	-	secretory antigen
2477	 25.93	-1	2680480..2680614	-	44	161510743	-	USA300HOU_2537	-	hypothetical protein
2478	 25.19	-1	2680708..2680965	-	85	161510744	-	USA300HOU_2538	-	hypothetical protein
2479	 38.89	+1	2681544..2682821	-	425	161510745	-	USA300HOU_2539	-	hydroxymethylglutaryl-CoA reductase
2480	 36.93	+1	2683075..2684241	+	388	161510746	mvaS	USA300HOU_2540	-	hydroxymethylglutaryl-CoA synthase
2481	 40.42	+2	2684411..2684932	-	173	161510747	ogt	USA300HOU_2541	-	methylated-DNA--[protein]-cysteine S-methyltransferase
2482	 34.71	0	2685341..2687446	+	701	161510748	clp	USA300HOU_2542	-	endopeptidase Clp
2483	 32.22	0	2687515..2687694	-	59	161510749	-	USA300HOU_2543	-	hypothetical protein
2484	 34.64	0	2687698..2689692	-	664	161510750	-	USA300HOU_2544	-	FeoB family ferrous iron (Fe2+) uptake protein
2485	 30.70	0	2689704..2689931	-	75	161510751	-	USA300HOU_2545	-	hypothetical protein
2486	 33.57	0	2690147..2692636	-	829	161510752	-	USA300HOU_2546	-	resistance-nodulation-cell division acriflavin:proton (H+) antiporter
2487	 30.60	0	2692781..2693329	+	182	161510753	-	USA300HOU_2547	-	TetR family transcriptional regulator
2488	 27.98	-1	2693406..2693573	-	55	161510754	-	USA300HOU_2548	-	hypothetical protein
2489	 36.31	0	2693685..2695229	-	514	161510755	-	USA300HOU_2549	-	1-pyrroline-5-carboxylate dehydrogenase
2490	 36.50	+1	2695419..2696018	-	199	161510756	-	USA300HOU_2550	-	galactoside O-acetyltransferase
2491	 31.84	0	2696248..2696448	+	66	161510757	-	USA300HOU_2551	-	hypothetical protein
2492	 37.65	+1	2696688..2699096	+	802	161510758	copA	USA300HOU_2552	-	P-ATPase superfamily P-type ATPase copper (Cu2+) transporter
32.63	MEAN

3.73	STD DEV
