IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus subsp. aureus USA300_TCH1516

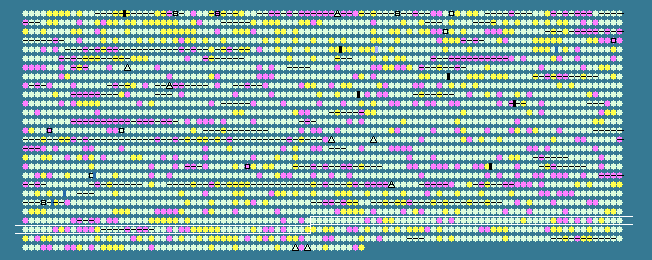

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.63 STD DEV: 3.73
Staphylococcus aureus subsp. aureus USA300_TCH1516, complete genome - 1..2872915
2657 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2349	 31.90	0	2544722..2545699	+	325	161510615	hlgB	USA300HOU_2405	-	gamma hemolysin component B
2350	 29.49	0	2545751..2546218	-	155	161510616	-	USA300HOU_2406	-	hypothetical protein
2351	 33.63	0	2546229..2546906	-	225	161510617	bioW	USA300HOU_2407	-	6-carboxyhexanoate--CoA ligase
2352	 30.38	0	2546932..2548047	-	371	161510618	bioF	USA300HOU_2408	-	8-amino-7-oxononanoate synthase
2353	 33.23	0	2548025..2549032	-	335	161510619	bioB	USA300HOU_2409	-	biotin synthase
2354	 33.70	0	2549034..2550392	-	452	161510620	bioA	USA300HOU_2410	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
2355	 32.02	0	2550370..2551056	-	228	161510621	bioD	USA300HOU_2411	-	dethiobiotin synthase
2356	 29.93	0	2551508..2553241	-	577	161510622	-	USA300HOU_2412	-	ABC transporter ATP-binding protein
2357	 31.29	0	2553266..2555029	-	587	161510623	-	USA300HOU_2413	-	ABC transporter ATP-binding protein
2358	 28.70	-1	2555523..2555630	-	35	161510624	-	USA300HOU_2414	-	hypothetical protein
2359	 34.26	0	2555657..2555764	-	35	161510625	-	USA300HOU_2415	-	hypothetical protein
2360	 27.91	-1	2555898..2556284	-	128	161510626	-	USA300HOU_2416	-	hypothetical protein
2361	 38.33	+1	2556381..2556440	-	19	161510627	-	USA300HOU_2417	-	hypothetical protein
2362	 38.50	+1	2556552..2557694	+	380	161510628	glxK	USA300HOU_2418	-	glycerate kinase
2363	 31.52	0	2557754..2558413	+	219	161510629	-	USA300HOU_2419	-	hypothetical protein
2364	 34.98	0	2558595..2559806	+	403	161510630	bcr	USA300HOU_2420	-	major facilitator superfamily bicyclomycin:cation symporter
2365	 35.65	0	2559929..2560402	-	157	161510631	-	USA300HOU_2421	-	hypothetical protein
2366	 35.92	0	2560515..2561171	+	218	161510632	-	USA300HOU_2422	-	hypothetical protein
2367	 34.45	0	2561234..2562040	-	268	161510633	-	USA300HOU_2423	-	hypothetical protein
2368	 34.96	0	2562326..2563735	+	469	161510634	-	USA300HOU_2424	-	APC family amino acid-polyamine-organocation transporter
2369	 32.37	0	2563873..2565951	+	692	161510635	-	USA300HOU_2425	-	CPA1 family monovalent cation:proton (H+) antiporter-1
2370	 23.53	-2	2566030..2566131	-	33	161510636	-	USA300HOU_2426	-	hypothetical protein
2371	 34.48	0	2566091..2567920	-	609	161510637	-	USA300HOU_2427	-	APC family amino acid-polyamine-organocation transporter
2372	 22.86	-2	2568014..2568118	-	34	161510638	-	USA300HOU_2428	-	hypothetical protein
2373	 31.53	0	2568152..2569648	+	498	161510639	fmtA	USA300HOU_2429	-	FmtA protein
2374	 36.03	0	2569740..2570591	-	283	161510640	-	USA300HOU_2430	-	epimerase/dehydratase
2375	 32.32	0	2570747..2570944	+	65	161510641	-	USA300HOU_2431	-	hypothetical protein
2376	 35.58	0	2570913..2571848	-	311	161510642	panE1	USA300HOU_2432	-	2-dehydropantoate 2-reductase
2377	 34.33	0	2572074..2573474	-	466	161510643	-	USA300HOU_2433	-	major facilitator transporter
2378	 35.49	0	2573768..2574463	-	231	161510644	opuCD	USA300HOU_2434	-	glycine betaine/L-proline ABC transporter membrane protein
2379	 35.35	0	2574463..2575404	-	313	161510645	opuBC	USA300HOU_2435	-	glycine betaine/L-proline ABC transporter binding protein
2380	 36.01	0	2575421..2576056	-	211	161510646	-	USA300HOU_2436	-	glycine betaine/choline ABC transporter membrane protein
2381	 36.10	0	2576053..2577279	-	408	161510647	-	USA300HOU_2437	-	glycine betaine/choline ABC transporter ATP-binding protein
2382	 34.17	0	2577606..2577725	-	39	161510648	-	USA300HOU_2438	-	hypothetical protein
2383	 32.17	0	2577949..2578548	-	199	161510649	-	USA300HOU_2439	-	hypothetical protein
2384	 36.26	0	2578728..2580365	+	545	161510650	-	USA300HOU_2440	-	APC family amino acid-polyamine-organocation transporter
2385	 34.81	0	2580973..2582325	+	450	161510651	pnbA	USA300HOU_2441	-	carboxylesterase
2386	 34.86	0	2582387..2583565	-	392	161510652	-	USA300HOU_2442	-	major facilitator superfamily chloramphenicol:cation symporter
2387	 35.26	0	2583970..2584746	-	258	161510653	-	USA300HOU_2443	-	ABC transporter ATP-binding protein
2388	 34.69	0	2584739..2585401	-	220	161510654	-	USA300HOU_2444	-	ABC transporter ATP-binding protein
2389	 37.70	+1	2585649..2586725	-	358	161510655	pepA	USA300HOU_2445	-	M42 family glutamyl aminopeptidase
2390	 28.09	-1	2587080..2587346	-	88	161510656	-	USA300HOU_2446	-	hypothetical protein
2391	 28.29	-1	2587346..2587603	-	85	161510657	-	USA300HOU_2447	-	hypothetical protein
2392	 29.74	0	2587709..2587903	-	64	161510658	-	USA300HOU_2448	-	hypothetical protein
2393	 28.29	-1	2587962..2588417	+	151	161510659	-	USA300HOU_2449	-	hypothetical protein
2394	 35.74	0	2588585..2590162	-	525	161510660	gltB2	USA300HOU_2450	-	glutamate synthase (NADPH)
2395	 21.51	-2	2590199..2590291	+	30	161510661	-	USA300HOU_2451	-	hypothetical protein
2396	 30.80	0	2590357..2591106	+	249	161510662	-	USA300HOU_2452	-	hypothetical protein
2397	 37.10	+1	2591330..2592523	-	397	161510663	-	USA300HOU_2453	-	major facilitator transporter
2398	 35.07	0	2592535..2593284	-	249	161510664	-	USA300HOU_2454	-	ABC transporter ATP-binding protein
2399	 35.17	0	2593277..2594092	-	271	161510665	-	USA300HOU_2455	-	oligopeptide ABC transporter ATP-binding protein
2400	 35.75	0	2594089..2594958	-	289	161510666	-	USA300HOU_2456	-	oligopeptide ABC transporter membrane protein
2401	 33.87	0	2594955..2595890	-	311	161510667	-	USA300HOU_2457	-	oligopeptide ABC transporter membrane protein
2402	 34.83	0	2595903..2597501	-	532	161510668	-	USA300HOU_2458	-	oligopeptide ABC transporter substrate-binding protein
2403	 36.10	0	2597644..2598945	-	433	161510669	-	USA300HOU_2459	-	hypothetical protein
2404	 33.82	0	2598938..2599756	-	272	161510670	-	USA300HOU_2460	-	hypothetical protein
2405	 35.64	0	2599767..2600588	-	273	161510671	-	USA300HOU_2461	-	hypothetical protein
2406	 25.68	-1	2601455..2601820	-	121	161510672	-	USA300HOU_2462	-	hypothetical protein
2407	 36.32	0	2603134..2604672	+	512	161510673	-	USA300HOU_2464	-	p-aminobenzoyl-glutamate transporter
2408	 27.90	-1	2604784..2605206	-	140	161510674	-	USA300HOU_2465	-	hypothetical protein
2409	 30.24	0	2605658..2606077	-	139	161510675	-	USA300HOU_2466	-	hypothetical protein
2410	 29.05	0	2606095..2606514	-	139	161510676	-	USA300HOU_2467	-	hypothetical protein
2411	 27.48	-1	2606468..2606689	+	73	161510677	-	USA300HOU_2468	-	hypothetical protein
2412	 29.08	0	2606781..2607203	-	140	161510678	-	USA300HOU_2469	-	hypothetical protein
2413	 37.07	+1	2607454..2608149	-	231	161510679	-	USA300HOU_2470	-	dehydrogenase
2414	 35.94	0	2608979..2609170	-	63	161510680	-	USA300HOU_2471	-	hypothetical protein
2415	 29.27	0	2609605..2609727	+	40	161510681	-	USA300HOU_2472	-	hypothetical protein
2416	 31.45	0	2609731..2610525	-	264	161510682	-	USA300HOU_2473	-	lipoprotein
2417	 31.94	0	2611061..2611348	-	95	161510683	-	USA300HOU_2474	-	hypothetical protein
2418	 28.75	-1	2611351..2611677	-	108	161510684	-	USA300HOU_2475	-	hypothetical protein
2419	 31.40	0	2613894..2614670	-	258	161510685	-	USA300HOU_2478	-	lipoprotein
2420	 21.88	-2	2614770..2614865	+	31	161510686	-	USA300HOU_2479	-	hypothetical protein
2421	 28.06	-1	2614973..2617834	-	953	161510687	-	USA300HOU_2480	-	helicase
2422	 31.55	0	2617836..2618228	-	130	161510688	-	USA300HOU_2481	-	hydrolase
2423	 34.00	0	2618345..2620153	+	602	161510689	-	USA300HOU_2482	-	bifunctional phosphoglucomutase/phosphomannomutase
2424	 31.46	0	2620437..2620703	+	88	161510690	-	USA300HOU_2483	-	hypothetical protein
2425	 28.16	-1	2620847..2621155	+	102	161510691	-	USA300HOU_2484	-	hypothetical protein
2426	 29.82	0	2621477..2622670	-	397	161510692	-	USA300HOU_2485	-	major facilitator superfamily cation symporter
2427	 22.78	-2	2626706..2627065	-	119	161510693	sarT	USA300HOU_2487	-	staphylococcal accessory regulator T
2428	 24.87	-2	2627387..2628130	+	247	161510694	sarU	USA300HOU_2488	-	staphylococcal accessory regulator U
2429	 36.56	+1	2628341..2629207	-	288	161510695	galU	USA300HOU_2489	-	UTP--glucose-1-phosphate uridylyltransferase
2430	 36.34	0	2629387..2632209	-	940	161510696	fnbB	USA300HOU_2490	-	fibronectin-binding protein B
2431	 36.31	0	2632891..2635947	-	1018	161510697	fnbA	USA300HOU_2491	-	fibronectin-binding protein A
2432	 36.42	+1	2636416..2637774	-	452	161510698	gntP	USA300HOU_2492	-	GntP family gluconate:proton (H+) symporter
2433	 37.71	+1	2637891..2639444	-	517	161510699	gntK	USA300HOU_2493	-	gluconokinase
2434	 35.54	0	2639468..2640148	-	226	161510700	gntR	USA300HOU_2494	-	gluconate operon transcriptional repressor
2435	 34.12	0	2640302..2641066	-	254	161510701	-	USA300HOU_2495	-	MerR family transcriptional regulator
2436	 32.32	0	2641231..2641923	-	230	161510702	-	USA300HOU_2496	-	hypothetical protein
2437	 34.15	0	2642154..2642642	-	162	161510703	-	USA300HOU_2497	-	hypothetical protein
2438	 32.73	0	2642709..2644532	-	607	161510704	-	USA300HOU_2498	-	hypothetical protein
2439	 36.15	0	2645010..2646287	-	425	161510705	-	USA300HOU_2499	-	major facilitator superfamily glucarate:cation symporter
2440	 32.52	0	2646834..2647445	+	203	161510706	-	USA300HOU_2500	-	alkaline phosphatase
2441	 28.78	-1	2647542..2648705	-	387	161510707	-	USA300HOU_2501	-	major facilitator transporter
2442	 24.52	-2	2648698..2649162	-	154	161510708	-	USA300HOU_2502	-	MarR family transcriptional regulator
2443	 31.18	0	2649590..2650285	+	231	161510709	-	USA300HOU_2503	-	ABC transporter ATP-binding protein
2444	 26.46	-1	2650287..2651057	+	256	161510710	-	USA300HOU_2504	-	ABC transporter ATP-binding protein
2445	 33.59	0	2651430..2653394	+	654	161510711	-	USA300HOU_2505	-	fructose-bisphosphatase
2446	 33.33	0	2653467..2653619	+	50	161510712	-	USA300HOU_2506	-	hypothetical protein
2447	 35.74	0	2653738..2654817	+	359	161510713	-	USA300HOU_2507	-	hypothetical protein
2448	 36.70	+1	2654922..2655515	-	197	161510714	-	USA300HOU_2508	-	hydrolase
32.63	MEAN

3.73	STD DEV
