IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus subsp. aureus USA300_TCH1516

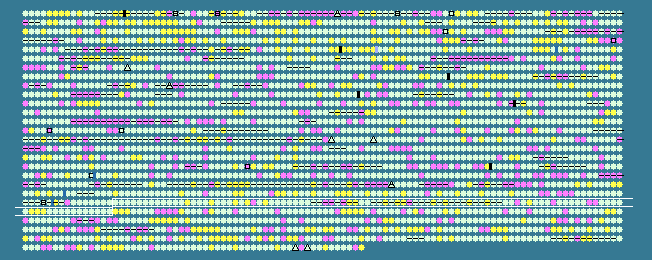

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.63 STD DEV: 3.73
Staphylococcus aureus subsp. aureus USA300_TCH1516, complete genome - 1..2872915
2657 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2116	 33.54	0	2307872..2308840	-	322	161510382	-	USA300HOU_2167	-	iron (Fe3+) ABC transporter membrane protein
2117	 34.30	0	2308837..2309868	-	343	161510383	-	USA300HOU_2168	-	iron (Fe3+) ABC transporter membrane protein
2118	 30.79	0	2309880..2310863	-	327	161510384	-	USA300HOU_2169	-	iron (Fe3+) ABC transporter binding protein
2119	 31.09	0	2311255..2312325	-	356	161510385	-	USA300HOU_2170	-	hypothetical protein
2120	 32.59	0	2312332..2314089	-	585	161510386	-	USA300HOU_2171	-	hypothetical protein
2121	 31.99	0	2314076..2315269	-	397	161510387	-	USA300HOU_2172	-	major facilitator transporter
2122	 32.68	0	2315371..2317347	+	658	161510388	-	USA300HOU_2173	-	hypothetical protein
2123	 32.75	0	2319463..2319972	-	169	161510389	asp23	USA300HOU_2175	-	alkaline shock protein 23
2124	 30.42	0	2320035..2320274	-	79	161510390	-	USA300HOU_2176	-	hypothetical protein
2125	 33.33	0	2320287..2320835	-	182	161510391	-	USA300HOU_2177	-	hypothetical protein
2126	 35.89	0	2320998..2322560	-	520	161510392	-	USA300HOU_2178	-	BCCT family betaine/carnitine/choline transporter
2127	 34.63	0	2322867..2323868	-	333	161510393	-	USA300HOU_2179	-	alcohol dehydrogenase
2128	 38.01	+1	2324102..2325106	-	334	161510394	-	USA300HOU_2180	-	alcohol dehydrogenase
2129	 33.68	0	2325386..2326255	-	289	161510395	-	USA300HOU_2181	-	hypothetical protein
2130	 34.75	0	2326521..2327933	-	470	161510396	lacG	USA300HOU_2182	-	6-phospho-beta-galactosidase
2131	 35.83	0	2327951..2329669	-	572	161510397	lacE	USA300HOU_2183	-	PTS family lactose-N,N-diacetylchitobiose-beta-glucoside (lac) porter component IIBC
2132	 36.54	+1	2329669..2329980	-	103	161510398	lacF	USA300HOU_2184	-	PTS system, lactose-specific IIA component
2133	 35.07	0	2330002..2330982	-	326	161510399	lacD	USA300HOU_2185	-	tagatose 1,6-diphosphate aldolase
2134	 34.94	0	2330986..2331918	-	310	161510400	lacC	USA300HOU_2186	-	tagatose-6-phosphate kinase
2135	 34.69	0	2331931..2332446	-	171	161510401	lacB	USA300HOU_2187	-	galactose-6-phosphate isomerase subunit LacB
2136	 36.60	+1	2332462..2332890	-	142	161510402	lacA	USA300HOU_2188	-	galactose-6-phosphate isomerase subunit LacA
2137	 34.22	0	2333258..2334049	-	263	161510403	lacR	USA300HOU_2189	-	lactose phosphotransferase system repressor
2138	 36.17	0	2334255..2334995	+	246	161510404	-	USA300HOU_2190	-	NAD-dependent deacetylase
2139	 25.40	-1	2336155..2336280	-	41	161510405	-	USA300HOU_2192	-	hypothetical protein
2140	 33.33	0	2336500..2337348	-	282	161510406	-	USA300HOU_2193	-	aldo/keto reductase
2141	 36.36	+1	2337335..2337433	-	32	161510407	-	USA300HOU_2194	-	hypothetical protein
2142	 29.74	0	2337418..2337834	-	138	161510408	-	USA300HOU_2195	-	MerR family transcriptional regulator
2143	 32.74	0	2338078..2338245	+	55	161510409	-	USA300HOU_2196	-	hypothetical protein
2144	 33.00	0	2338236..2340665	+	809	161510410	hysA	USA300HOU_2197	-	hyaluronate lyase
2145	 30.99	0	2340725..2341579	-	284	161510411	-	USA300HOU_2198	-	M23B subfamily peptidase
2146	 30.17	0	2341790..2342611	-	273	161510412	-	USA300HOU_2199	-	HAD family phosphatase
2147	 32.16	0	2342899..2343324	+	141	161510413	-	USA300HOU_2200	-	hypothetical protein
2148	 33.19	0	2343688..2344392	-	234	161510414	alsD	USA300HOU_2201	-	acetolactate decarboxylase
2149	 34.83	0	2344429..2346093	-	554	161510415	alsS	USA300HOU_2202	-	acetolactate synthase
2150	 36.00	0	2346341..2346565	+	74	161510416	-	USA300HOU_2203	-	hypothetical protein
2151	 22.60	-2	2347283..2348689	-	468	161510417	-	USA300HOU_2204	-	hypothetical protein
2152	 25.95	-1	2348818..2349954	-	378	161510418	clpA	USA300HOU_2205	-	endopeptidase ClpA
2153	 30.56	0	2349955..2350746	-	263	161510419	-	USA300HOU_2206	-	hypothetical protein
2154	 27.78	-1	2351049..2352146	-	365	161510420	-	USA300HOU_2207	-	hypothetical protein
2155	 40.60	+2	2352691..2353089	-	132	161510421	rpsI	USA300HOU_2208	-	30S ribosomal protein S9
2156	 36.53	+1	2353103..2353540	-	145	161510422	rplM	USA300HOU_2209	-	50S ribosomal protein L13
2157	 34.33	0	2353780..2354583	-	267	161510423	truA2	USA300HOU_2210	-	tRNA pseudouridine synthase A
2158	 31.85	0	2354588..2355394	-	268	161510424	-	USA300HOU_2211	-	cobalt ABC transporter
2159	 34.15	0	2355384..2356244	-	286	161510425	-	USA300HOU_2212	-	cobalt transporter ATP-binding subunit
2160	 34.57	0	2356241..2357050	-	269	161510426	-	USA300HOU_2213	-	cobalt transporter ATP-binding subunit
2161	 37.40	+1	2357588..2357956	-	122	161510427	rplQ	USA300HOU_2214	-	50S ribosomal protein L17
2162	 33.76	0	2357973..2358917	-	314	161510428	rpoA	USA300HOU_2215	-	DNA-directed RNA polymerase subunit alpha
2163	 40.00	+1	2358992..2359381	-	129	161510429	rpsK	USA300HOU_2216	-	30S ribosomal protein S11
2164	 39.07	+1	2359405..2359770	-	121	161510430	rpsM	USA300HOU_2217	-	30S ribosomal protein S13
2165	 28.95	0	2359793..2359906	-	37	161510431	rmpJ	USA300HOU_2218	-	50S ribosomal protein L36
2166	 33.33	0	2359938..2360156	-	72	161510432	infA	USA300HOU_2219	-	translation initiation factor IF-1
2167	 35.65	0	2360349..2360996	-	215	161510433	adk	USA300HOU_2220	-	adenylate kinase
2168	 34.57	0	2361013..2362305	-	430	161510434	secY1	USA300HOU_2221	-	preprotein translocase subunit SecY
2169	 38.78	+1	2362305..2362745	-	146	161510435	rplO	USA300HOU_2222	-	50S ribosomal protein L15
2170	 35.56	0	2362762..2362941	-	59	161510436	rpmD	USA300HOU_2223	-	50S ribosomal protein L30
2171	 40.72	+2	2362958..2363458	-	166	161510437	rpsE	USA300HOU_2224	-	30S ribosomal protein S5
2172	 35.56	0	2363479..2363838	-	119	161510438	rplR	USA300HOU_2225	-	50S ribosomal protein L18
2173	 35.20	0	2363869..2364405	-	178	161510439	rplF	USA300HOU_2226	-	50S ribosomal protein L6
2174	 34.09	0	2364430..2364828	-	132	161510440	rpsH	USA300HOU_2227	-	30S ribosomal protein S8
2175	 38.71	+1	2364860..2365045	-	61	161510441	-	USA300HOU_2228	-	30S ribosomal protein S14
2176	 34.26	0	2365068..2365607	-	179	161510442	rplE	USA300HOU_2229	-	50S ribosomal protein L5
2177	 33.65	0	2365634..2365951	-	105	161510443	rplX	USA300HOU_2230	-	50S ribosomal protein L24
2178	 40.92	+2	2365987..2366355	-	122	161510444	rplN	USA300HOU_2231	-	50S ribosomal protein L14
2179	 30.30	0	2366387..2366650	-	87	161510445	rpsQ	USA300HOU_2232	-	30S ribosomal protein S17
2180	 34.29	0	2366674..2366883	-	69	161510446	rpmC	USA300HOU_2233	-	50S ribosomal protein L29
2181	 35.73	0	2372441..2373775	-	444	161510447	-	USA300HOU_2234	-	NCS2 family nucleobase:cation symporter-2
2182	 33.10	0	2373888..2376023	-	711	161510448	topB	USA300HOU_2235	-	DNA topoisomerase III
2183	 27.08	-1	2376049..2376144	-	31	161510449	-	USA300HOU_2236	-	hypothetical protein
2184	 30.98	0	2376120..2377097	+	325	161510450	-	USA300HOU_2237	-	acetyltransferase
2185	 36.23	0	2377278..2378141	+	287	161510451	glcU	USA300HOU_2238	-	DMT superfamily drug/metabolite transporter
2186	 30.30	0	2378258..2378389	-	43	161510452	-	USA300HOU_2239	-	hypothetical protein
2187	 32.25	0	2378560..2379486	-	308	161510453	-	USA300HOU_2240	-	malonate efflux carrier
2188	 32.73	0	2379601..2379765	+	54	161510454	-	USA300HOU_2241	-	hypothetical protein
2189	 27.67	-1	2380010..2380327	+	105	161510455	-	USA300HOU_2242	-	hypothetical protein
2190	 33.87	0	2380514..2383681	-	1055	161510456	-	USA300HOU_2243	-	resistance-nodulation-cell division acriflavin:proton (H+) antiporter
2191	 33.97	0	2383798..2385063	-	421	161510457	fmhB	USA300HOU_2244	-	peptidoglycan pentaglycine interpeptide biosynthesis protein FmhB
2192	 29.93	0	2385695..2386459	-	254	161510458	-	USA300HOU_2245	-	hypothetical protein
2193	 32.20	0	2386621..2387061	+	146	161510459	marR	USA300HOU_2246	-	MarR family transcriptional regulator
2194	 34.16	0	2387054..2388265	+	403	161510460	-	USA300HOU_2247	-	major facilitator transporter
2195	 29.06	0	2388367..2388717	-	116	161510461	-	USA300HOU_2248	-	hypothetical protein
2196	 27.49	-1	2388843..2389013	+	56	161510462	-	USA300HOU_2249	-	hypothetical protein
2197	 33.43	0	2389408..2390430	-	340	161510463	moaA	USA300HOU_2250	-	molybdenum cofactor biosynthesis protein A
2198	 32.17	0	2390450..2391049	-	199	161510464	mobA	USA300HOU_2251	-	molybdopterin-guanine dinucleotide biosynthesis protein A
2199	 31.62	0	2391056..2391289	-	77	161510465	moaD	USA300HOU_2252	-	molybdopterin synthase small subunit
2200	 36.02	0	2391295..2391741	-	148	161510466	moaE	USA300HOU_2253	-	molybdopterin synthase large subunit
2201	 31.69	0	2391755..2392240	-	161	161510467	mobB	USA300HOU_2254	-	molybdopterin-guanine dinucleotide biosynthesis protein B
2202	 37.62	+1	2392237..2393496	-	419	161510468	moeA	USA300HOU_2255	-	molybdopterin biosynthesis protein MoeA
2203	 38.38	+1	2393559..2394053	+	164	161510469	moaC	USA300HOU_2256	-	molybdenum cofactor biosynthesis protein C
2204	 37.87	+1	2394055..2394561	-	168	161510470	moaB	USA300HOU_2257	-	molybdopterin cofactor biosynthesis protein MoaB
2205	 34.73	0	2394592..2395596	-	334	161510471	moeB	USA300HOU_2258	-	molybdopterin biosynthesis protein MoeB
2206	 32.67	0	2395766..2396371	-	201	161510472	modC	USA300HOU_2259	-	molybdenum ABC transporter ATP-binding protein
2207	 34.97	0	2396372..2397043	-	223	161510473	modB	USA300HOU_2260	-	molybdenum ABC transporter membrane protein
2208	 29.89	0	2397057..2397839	-	260	161510474	modA	USA300HOU_2261	-	molybdenum ABC transporter ATP-binding protein
2209	 34.09	0	2398129..2398926	+	265	161510475	fdhD	USA300HOU_2262	-	formate dehydrogenase accessory protein
2210	 33.98	0	2399098..2399868	-	256	161510476	-	USA300HOU_2263	-	acetyltransferase
2211	 34.23	0	2399940..2400494	-	184	161510477	-	USA300HOU_2264	-	biotin biosynthesis protein
2212	 34.08	0	2400615..2401556	-	313	161510478	-	USA300HOU_2265	-	purine nucleosidase
2213	 32.23	0	2401955..2402863	-	302	161510479	-	USA300HOU_2266	-	iron (Fe+3) ABC transporter binding protein
2214	 34.46	0	2403077..2404231	-	384	161510480	-	USA300HOU_2267	-	acyl-CoA dehydrogenase
2215	 33.22	0	2404448..2405362	-	304	161510481	-	USA300HOU_2268	-	UT family urea transporter
32.63	MEAN

3.73	STD DEV
