IslandPath Analysis: Staphylococcus aureus subsp. aureus USA300_TCH1516

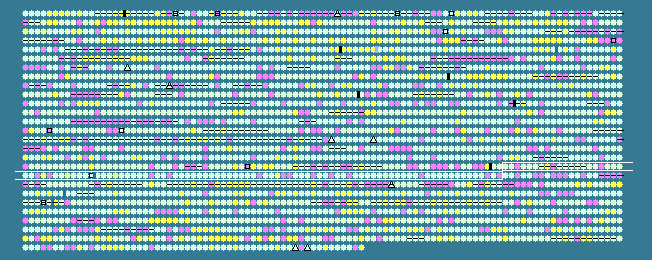

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.63 STD DEV: 3.73
Staphylococcus aureus subsp. aureus USA300_TCH1516, complete genome - 1..2872915
2657 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1781	 33.55	0	1964884..1965807	-	307	161510047	hemH	USA300HOU_1824	-	ferrochelatase
1782	 34.87	0	1965865..1966902	-	345	161510048	hemE	USA300HOU_1825	-	uroporphyrinogen decarboxylase
1783	 26.13	-1	1966892..1967002	-	36	161510049	-	USA300HOU_1826	-	hypothetical protein
1784	 31.75	0	1967165..1967668	+	167	161510050	-	USA300HOU_1827	-	RNAIII-activating protein TRAP
1785	 29.66	0	1967792..1969015	-	407	161510051	-	USA300HOU_1828	-	ABC transporter ATP-binding protein
1786	 35.09	0	1969008..1969748	-	246	161510052	-	USA300HOU_1829	-	ABC transporter ATP-binding protein
1787	 30.50	0	1969882..1970304	+	140	161510053	-	USA300HOU_1830	-	HIT histidine triad cell-cycle regulator
1788	 36.61	+1	1970446..1970811	+	121	161510054	-	USA300HOU_1831	-	hypothetical protein
1789	 24.19	-2	1971544..1972101	+	185	161510055	-	USA300HOU_1832	-	hypothetical protein
1790	 30.94	0	1972306..1973268	+	320	161510056	prsA2	USA300HOU_1833	-	peptidylprolyl isomerase
1791	 33.33	0	1973389..1974330	-	313	161510057	-	USA300HOU_1834	-	3'-5' exoribonuclease YhaM
1792	 30.71	0	1974327..1977263	-	978	161510058	-	USA300HOU_1835	-	hypothetical protein
1793	 29.91	0	1977253..1978449	-	398	161510059	sbcD	USA300HOU_1836	-	DNA repair exonuclease
1794	 31.31	0	1978740..1978838	-	32	161510060	-	USA300HOU_1837	-	hypothetical protein
1795	 32.17	0	1979221..1979565	-	114	161510061	-	USA300HOU_1838	-	hypothetical protein
1796	 29.78	0	1979634..1980758	-	374	161510062	-	USA300HOU_1839	-	hypothetical protein
1797	 21.33	-2	1980755..1980829	-	24	161510063	-	USA300HOU_1840	-	hypothetical protein
1798	 31.83	0	1980937..1981401	-	154	161510064	-	USA300HOU_1841	-	transcriptional regulator
1799	 31.57	0	1981757..1982380	-	207	161510065	-	USA300HOU_1842	-	response regulator
1800	 34.41	0	1982402..1983514	-	370	161510066	-	USA300HOU_1843	-	sensor histidine kinase
1801	 32.97	0	1983677..1984498	+	273	161510067	rluA2	USA300HOU_1844	-	pseudouridylate synthase
1802	 34.56	0	1984961..1986346	-	461	161510068	fumC	USA300HOU_1845	-	fumarate hydratase
1803	 28.03	-1	1986542..1986937	-	131	161510069	-	USA300HOU_1846	-	hypothetical protein
1804	 36.36	+1	1987056..1987418	+	120	161510070	-	USA300HOU_1847	-	hypothetical protein
1805	 28.10	-1	1987714..1987866	-	50	161510071	-	USA300HOU_1848	-	hypothetical protein
1806	 31.83	0	1987891..1988490	-	199	161510072	-	USA300HOU_1849	-	hypothetical protein
1807	 31.21	0	1988649..1989119	-	156	161510073	-	USA300HOU_1850	-	TrmH family RNA methyltransferase
1808	 37.27	+1	1989124..1990266	-	380	161510074	-	USA300HOU_1851	-	iron-sulfur (Fe-S) cluster-binding protein
1809	 33.06	0	1990402..1991130	-	242	161510075	glnQ	USA300HOU_1852	-	glutamate ABC transporter ATP-binding protein
1810	 31.55	0	1991117..1992574	-	485	161510076	-	USA300HOU_1853	-	amino acid ABC transporter ATP-binding protein
1811	 31.17	0	1992832..1993893	-	353	161510077	-	USA300HOU_1854	-	hypothetical protein
1812	 30.76	0	1994386..1995747	+	453	161510078	-	USA300HOU_1855	-	IS1181 transposase
1813	 30.43	0	2004161..2004607	-	148	161510079	-	USA300HOU_1856	-	Fur family transcriptional regulator
1814	 30.70	0	2004704..2005654	-	316	161510080	-	USA300HOU_1857	-	D-3-phosphoglycerate dehydrogenase
1815	 29.17	0	2005660..2006115	-	151	161510081	bcp	USA300HOU_1858	-	peroxiredoxin
1816	 36.67	+1	2006196..2007485	+	429	161510082	hemL2	USA300HOU_1859	-	glutamate-1-semialdehyde aminotransferase
1817	 30.89	0	2007727..2008872	+	381	161510083	-	USA300HOU_1860	-	hypothetical protein
1818	 32.87	0	2009063..2010799	-	578	161510084	-	USA300HOU_1861	-	ABC transporter ATP-binding protein
1819	 32.78	0	2011090..2011632	-	180	161510085	-	USA300HOU_1862	-	hypothetical protein
1820	 34.01	0	2011934..2012971	-	345	161510086	mutY	USA300HOU_1863	-	A/G-specific DNA glycosylase
1821	 35.17	0	2013123..2014100	+	325	161510087	-	USA300HOU_1864	-	hypothetical protein
1822	 28.67	-1	2014361..2015197	-	278	161510088	-	USA300HOU_1865	-	teichoic acid ABC transporter ATP-binding/membrane protein
1823	 30.17	0	2015206..2016723	-	505	161510089	-	USA300HOU_1866	-	teichoic acid ABC transporter ATP-binding protein
1824	 30.48	0	2016738..2017052	-	104	161510090	-	USA300HOU_1867	-	hypothetical protein
1825	 28.45	-1	2017030..2017848	-	272	161510091	-	USA300HOU_1868	-	recombination regulator RecX
1826	 30.74	0	2018109..2018918	-	269	161510092	-	USA300HOU_1869	-	glycosyltransferase
1827	 34.88	0	2019259..2019774	-	171	161510093	-	USA300HOU_1870	-	C56 family endopeptidase PfpI
1828	 30.86	0	2019905..2020066	-	53	161510094	-	USA300HOU_1871	-	hypothetical protein
1829	 33.68	0	2020290..2021441	+	383	161510095	-	USA300HOU_1872	-	hypothetical protein
1830	 35.97	0	2021701..2022231	-	176	161510096	-	USA300HOU_1873	-	hypothetical protein
1831	 33.73	0	2022321..2023577	-	418	161510097	pepS	USA300HOU_1874	-	M29 family aminopeptidase
1832	 31.94	0	2023580..2023795	-	71	161510098	-	USA300HOU_1875	-	hypothetical protein
1833	 34.96	0	2023869..2023991	-	40	161510099	-	USA300HOU_1876	-	hypothetical protein
1834	 33.33	0	2023975..2024391	+	138	161510100	-	USA300HOU_1877	-	protein-tyrosine-phosphatase
1835	 32.97	0	2024398..2024673	+	91	161510101	-	USA300HOU_1878	-	hypothetical protein
1836	 32.35	0	2024951..2026168	+	405	161510102	-	USA300HOU_1879	-	ribonuclease BN
1837	 33.81	0	2026284..2026913	-	209	161510103	vraR	USA300HOU_1880	-	response regulator VraR
1838	 31.70	0	2026903..2027946	-	347	161510104	vraS	USA300HOU_1881	-	sensor histidine kinase VraS
1839	 30.20	0	2027943..2028644	-	233	161510105	-	USA300HOU_1882	-	hypothetical protein
1840	 26.10	-1	2028659..2029045	-	128	161510106	-	USA300HOU_1883	-	hypothetical protein
1841	 35.84	0	2029262..2030020	-	252	161510107	map	USA300HOU_1884	-	methionine aminopeptidase
1842	 32.12	0	2030548..2031534	+	328	161510108	-	USA300HOU_1885	-	hypothetical protein
1843	 42.61	+2	2031545..2031835	-	96	161510109	-	USA300HOU_1886	-	hypothetical protein
1844	 26.93	-1	2032024..2032476	-	150	161510110	-	USA300HOU_1887	-	hypothetical protein
1845	 27.93	-1	2032466..2032576	-	36	161510111	-	USA300HOU_1888	-	hypothetical protein
1846	 30.87	0	2032662..2033393	-	243	161510112	-	USA300HOU_1889	-	adenosylcobyric acid synthase (glutamine-hydrolyzing)
1847	 34.25	0	2033395..2034708	-	437	161510113	murE2	USA300HOU_1890	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1848	 34.53	0	2035000..2035500	+	166	161510114	-	USA300HOU_1891	-	ferritin
1849	 27.96	-1	2035582..2035674	-	30	161510115	-	USA300HOU_1892	-	hypothetical protein
1850	 31.71	0	2035889..2036443	+	184	161510116	-	USA300HOU_1893	-	DNA-directed DNA polymerase III
1851	 34.58	0	2036511..2037551	-	346	161510117	-	USA300HOU_1894	-	DNA-directed DNA polymerase IV
1852	 29.00	0	2037828..2038358	-	176	161510118	-	USA300HOU_1895	-	hypothetical protein
1853	 33.11	0	2038528..2039889	-	453	161510119	-	USA300HOU_1896	-	TrmA family RNA methyltransferase
1854	 33.76	0	2039970..2040917	-	315	161510120	-	USA300HOU_1897	-	putative lipid kinase
1855	 23.81	-2	2041500..2041646	-	48	161510121	-	USA300HOU_1899	-	hypothetical protein
1856	 34.73	0	2041686..2043113	-	475	161510122	gatB2	USA300HOU_1900	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
1857	 34.09	0	2043126..2044583	-	485	161510123	gatA2	USA300HOU_1901	-	glutamyl-tRNA(Gln) amidotransferase subunit A
1858	 35.64	0	2044585..2044887	-	100	161510124	gatC2	USA300HOU_1902	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
1859	 35.87	0	2045254..2046792	+	512	161510125	putP	USA300HOU_1903	-	SSS family major sodium/proline symporter
1860	 30.68	0	2046881..2048086	-	401	161510126	camS	USA300HOU_1904	-	pheromone lipoprotein CamS
1861	 34.08	0	2048093..2050096	-	667	161510127	-	USA300HOU_1905	-	DNA ligase (NAD(+))
1862	 34.15	0	2050100..2052292	-	730	161510128	pcrA	USA300HOU_1906	-	ATP-dependent DNA helicase PcrA
1863	 33.48	0	2052289..2052981	-	230	161510129	pcrB	USA300HOU_1907	-	geranylgeranylglyceryl phosphate synthase-like protein
1864	 32.34	0	2053153..2053455	-	100	161510130	-	USA300HOU_1908	-	hypothetical protein
1865	 35.65	0	2053564..2054859	-	431	161510131	purB	USA300HOU_1909	-	adenylosuccinate lyase
1866	 31.28	0	2055720..2056886	+	388	161510132	-	USA300HOU_1910	-	C47 family staphopain protease
1867	 25.99	-1	2056917..2057243	+	108	161510133	-	USA300HOU_1911	-	hypothetical protein
1868	 33.91	0	2057535..2057708	-	57	161510134	-	USA300HOU_1912	-	hypothetical protein
1869	 32.17	0	2057689..2058291	-	200	161510135	-	USA300HOU_1913	-	hypothetical protein
1870	 34.31	0	2058562..2059383	-	273	161510136	nadE	USA300HOU_1914	-	NAD synthetase
1871	 33.40	0	2059376..2060845	-	489	161510137	-	USA300HOU_1915	-	nicotinate phosphoribosyltransferase
1872	 33.52	0	2061029..2062105	+	358	161510138	-	USA300HOU_1916	-	nitric-oxide synthase, oxygenase subunit
1873	 32.83	0	2062125..2062919	+	264	161510139	pheA	USA300HOU_1917	-	prephenate dehydratase
1874	 34.23	0	2063109..2064671	-	520	161510140	-	USA300HOU_1918	-	DASS family divalent anion:sodium (Na+) symporter
1875	 33.06	0	2064876..2065973	-	365	161510141	-	USA300HOU_1919	-	hypothetical protein
1876	 34.58	0	2066345..2066905	+	186	161510142	-	USA300HOU_1920	-	nicotinamidase
1877	 33.87	0	2066958..2067887	+	309	161510143	ppaC	USA300HOU_1921	-	putative manganese-dependent inorganic pyrophosphatase
1878	 25.29	-1	2068082..2068255	-	57	161510144	-	USA300HOU_1922	-	hypothetical protein
1879	 33.84	0	2068307..2069686	+	459	161510145	aldH1	USA300HOU_1923	-	aldehyde dehydrogenase
1880	 22.22	-2	2069676..2069792	-	38	161510146	-	USA300HOU_1924	-	hypothetical protein
32.63	MEAN

3.73	STD DEV
