IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus subsp. aureus USA300_TCH1516

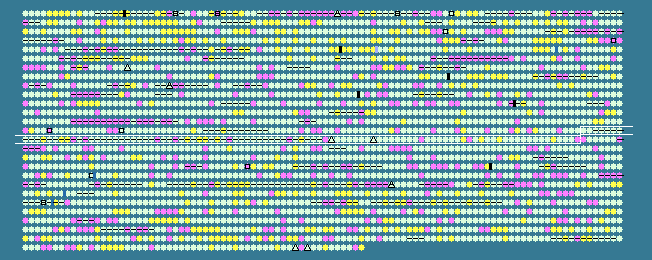

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.63 STD DEV: 3.73
Staphylococcus aureus subsp. aureus USA300_TCH1516, complete genome - 1..2872915
2657 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1394	 31.10	0	1561096..1562034	-	312	161509660	lukS-PV	USA300HOU_1431	-	Panton-Valentine leukocidin subunit S
1395	 35.53	0	1562424..1563878	-	484	161509661	-	USA300HOU_1432	-	bacteriophage amidase
1396	 32.01	0	1563889..1564191	-	100	161509662	-	USA300HOU_1433	-	holin
1397	 31.00	0	1564327..1564626	-	99	161509663	-	USA300HOU_1434	-	hypothetical protein
1398	 31.79	0	1564829..1565218	-	129	161509664	-	USA300HOU_1435	-	hypothetical protein
1399	 33.40	0	1565218..1566684	-	488	161509665	-	USA300HOU_1436	-	hypothetical protein
1400	 35.69	0	1566684..1568594	-	636	161509666	-	USA300HOU_1437	-	hypothetical protein
1401	 35.05	0	1568610..1568900	-	96	161509667	-	USA300HOU_1438	-	hypothetical protein
1402	 30.43	0	1568900..1570483	-	527	161509668	-	USA300HOU_1439	-	hypothetical protein
1403	 30.67	0	1570492..1571316	-	274	161509669	-	USA300HOU_1440	-	hypothetical protein
1404	 36.25	0	1571316..1577516	-	2066	161509670	-	USA300HOU_1441	-	bacteriophage tail protein
1405	 33.33	0	1577530..1577688	-	52	161509671	-	USA300HOU_1442	-	hypothetical protein
1406	 31.05	0	1577730..1578080	-	116	161509672	-	USA300HOU_1443	-	hypothetical protein
1407	 36.62	+1	1578138..1578593	-	151	161509673	-	USA300HOU_1444	-	major tail protein
1408	 36.45	+1	1578685..1579326	-	213	161509674	-	USA300HOU_1445	-	major tail protein
1409	 28.54	-1	1579361..1579756	-	131	161509675	-	USA300HOU_1446	-	hypothetical protein
1410	 34.08	0	1579757..1580158	-	133	161509676	-	USA300HOU_1447	-	hypothetical protein
1411	 27.33	-1	1580155..1580487	-	110	161509677	-	USA300HOU_1448	-	hypothetical protein
1412	 31.18	0	1580499..1580777	-	92	161509678	-	USA300HOU_1449	-	DNA packaging protein
1413	 32.59	0	1580846..1582054	-	402	161509679	-	USA300HOU_1450	-	bacteriophage capsid protein
1414	 31.14	0	1582021..1582794	-	257	161509680	-	USA300HOU_1451	-	bacteriophage protease
1415	 32.69	0	1582778..1584016	-	412	161509681	-	USA300HOU_1452	-	portal protein
1416	 33.57	0	1584021..1585712	-	563	161509682	-	USA300HOU_1453	-	terminase large subunit
1417	 29.94	0	1585702..1586025	-	107	161509683	-	USA300HOU_1454	-	terminase small subunit
1418	 32.19	0	1586605..1587042	-	145	161509684	-	USA300HOU_1455	-	bacteriophage transcriptional regulator
1419	 32.68	0	1587055..1588422	-	455	161509685	-	USA300HOU_1456	-	helicase
1420	 30.58	0	1588403..1588693	-	96	161509686	-	USA300HOU_1457	-	hypothetical protein
1421	 34.96	0	1588888..1589010	+	40	161509687	-	USA300HOU_1458	-	hypothetical protein
1422	 34.80	0	1589034..1591481	-	815	161509688	-	USA300HOU_1459	-	hypothetical protein
1423	 27.36	-1	1591769..1591969	-	66	161509689	-	USA300HOU_1460	-	hypothetical protein
1424	 33.99	0	1592037..1592189	-	50	161509690	-	USA300HOU_1461	-	bacteriophage transcriptional regulator
1425	 29.97	0	1592186..1592572	-	128	161509691	-	USA300HOU_1462	-	hypothetical protein
1426	 27.43	-1	1592565..1592801	-	78	161509692	-	USA300HOU_1463	-	hypothetical protein
1427	 30.88	0	1592794..1592997	-	67	161509693	-	USA300HOU_1464	-	hypothetical protein
1428	 38.16	+1	1592994..1593200	-	68	161509694	-	USA300HOU_1465	-	hypothetical protein
1429	 34.08	0	1593237..1593773	-	178	161509695	-	USA300HOU_1466	-	hypothetical protein
1430	 38.37	+1	1593766..1594023	-	85	161509696	-	USA300HOU_1467	-	hypothetical protein
1431	 38.64	+1	1594029..1594292	-	87	161509697	-	USA300HOU_1468	-	hypothetical protein
1432	 34.83	0	1594286..1594486	-	66	161509698	-	USA300HOU_1469	-	hypothetical protein
1433	 38.37	+1	1594489..1594746	-	85	161509699	-	USA300HOU_1470	-	hypothetical protein
1434	 33.83	0	1594746..1595147	-	133	161509700	-	USA300HOU_1471	-	hypothetical protein
1435	 29.03	0	1595147..1595332	-	61	161509701	-	USA300HOU_1472	-	hypothetical protein
1436	 35.18	0	1595345..1597297	-	650	161509702	-	USA300HOU_1473	-	bacterophage DNA-directed DNA polymerase
1437	 34.41	0	1597365..1597922	-	185	161509703	-	USA300HOU_1474	-	hypothetical protein
1438	 34.62	0	1597948..1599114	-	388	161509704	-	USA300HOU_1475	-	hypothetical protein
1439	 29.20	0	1599111..1599473	-	120	161509705	-	USA300HOU_1476	-	hypothetical protein
1440	 31.80	0	1599487..1599747	-	86	161509706	-	USA300HOU_1477	-	hypothetical protein
1441	 32.34	0	1599752..1600054	-	100	161509707	-	USA300HOU_1478	-	hypothetical protein
1442	 29.25	0	1600047..1600364	-	105	161509708	-	USA300HOU_1479	-	hypothetical protein
1443	 31.44	0	1600630..1600893	-	87	161509709	-	USA300HOU_1481	-	hypothetical protein
1444	 30.09	0	1600918..1601133	-	71	161509710	-	USA300HOU_1482	-	hypothetical protein
1445	 28.33	-1	1601180..1601419	+	79	161509711	-	USA300HOU_1483	-	hypothetical protein
1446	 31.64	0	1601416..1601592	-	58	161509712	-	USA300HOU_1484	-	hypothetical protein
1447	 36.98	+1	1601676..1601867	-	63	161509713	-	USA300HOU_1485	-	bacteriophage transcriptional regulator
1448	 30.00	0	1602028..1602357	+	109	161509714	-	USA300HOU_1486	-	bacteriophage transcriptional regulator
1449	 33.77	0	1602370..1602831	+	153	161509715	-	USA300HOU_1487	-	hypothetical protein
1450	 31.26	0	1602849..1603283	+	144	161509716	-	USA300HOU_1488	-	lipoprotein
1451	 25.85	-1	1603940..1604554	-	204	161509717	-	USA300HOU_1489	-	hypothetical protein
1452	 29.77	0	1604680..1605885	+	401	161509718	-	USA300HOU_1490	-	integrase
1453	 31.40	0	1607947..1608876	-	309	161509719	-	USA300HOU_1492	-	lipoprotein
1454	 33.22	0	1609121..1610815	-	564	161509720	srrB	USA300HOU_1493	-	sensor histidine kinase SrrB
1455	 34.44	0	1610853..1611578	-	241	161509721	srrA	USA300HOU_1494	-	response regulator SrrA
1456	 33.88	0	1611711..1612448	-	245	161509722	rluB	USA300HOU_1495	-	ribosomal large subunit pseudouridine synthase B
1457	 30.56	0	1612976..1613731	-	251	161509723	scpA	USA300HOU_1496	-	hypothetical protein
1458	 32.94	0	1613799..1614305	+	168	161509724	-	USA300HOU_1497	-	hypothetical protein
1459	 33.33	0	1614383..1615270	-	295	161509725	xerD	USA300HOU_1498	-	integrase/recombinase XerD
1460	 36.00	0	1615319..1615768	-	149	161509726	-	USA300HOU_1499	-	Fur family transcriptional regulator
1461	 31.86	0	1615873..1616415	-	180	161509727	nudF	USA300HOU_1500	-	ADP-ribose diphosphatase
1462	 31.68	0	1616497..1617405	+	302	161509728	-	USA300HOU_1501	-	dehydrogenase
1463	 32.93	0	1617621..1617869	-	82	161509729	-	USA300HOU_1502	-	hypothetical protein
1464	 33.86	0	1617885..1618640	-	251	161509730	-	USA300HOU_1503	-	dehydrogenase
1465	 33.33	0	1618782..1619597	+	271	161509731	-	USA300HOU_1504	-	pyrroline-5-carboxylate reductase
1466	 33.33	0	1619702..1620622	-	306	161509732	-	USA300HOU_1505	-	ribonuclease Z
1467	 20.00	-2	1620679..1620813	-	44	161509733	-	USA300HOU_1506	-	hypothetical protein
1468	 33.54	0	1620935..1622419	+	494	161509734	-	USA300HOU_1507	-	glucose-6-phosphate 1-dehydrogenase
1469	 33.45	0	1622622..1623515	+	297	161509735	-	USA300HOU_1508	-	AraC family transcription regulator
1470	 34.79	0	1623598..1625247	-	549	161509736	malA	USA300HOU_1509	-	alpha-D-1,4-glucosidase
1471	 31.37	0	1625263..1626282	-	339	161509737	malR	USA300HOU_1510	-	maltose operon transcriptional repressor
1472	 33.33	0	1626476..1626847	-	123	161509738	-	USA300HOU_1511	-	lactoylglutathione lysase
1473	 34.33	0	1627066..1628472	-	468	161509739	pgd	USA300HOU_1512	-	6-phosphogluconate dehydrogenase
1474	 36.33	0	1628540..1629673	-	377	161509740	-	USA300HOU_1513	-	M20 family peptidase
1475	 25.56	-1	1629936..1630115	+	59	161509741	-	USA300HOU_1514	-	hypothetical protein
1476	 29.97	0	1630242..1631222	-	326	161509742	-	USA300HOU_1515	-	hypothetical protein
1477	 36.30	0	1631236..1631673	-	145	161509743	-	USA300HOU_1516	-	hypothetical protein
1478	 33.18	0	1632024..1633298	-	424	161509744	bmfBB	USA300HOU_1517	-	dihydrolipoyllysine-residue acetyltransferase
1479	 35.47	0	1633311..1634294	-	327	161509745	-	USA300HOU_1518	-	2-oxoisovalerate dehydrogenase (acylating) beta subunit
1480	 38.27	+1	1634294..1635286	-	330	161509746	odpA	USA300HOU_1519	-	pyruvate dehydrogenase (acetyl-transferring) alpha subunit
1481	 34.81	0	1635302..1636723	-	473	161509747	lpdA	USA300HOU_1520	-	dihydrolipoamide dehydrogenase
1482	 30.65	0	1636874..1638553	-	559	161509748	recN	USA300HOU_1521	-	DNA repair protein RecN
1483	 29.87	0	1638569..1639030	-	153	161509749	argR	USA300HOU_1522	-	arginine repressor
1484	 34.13	0	1639453..1640334	-	293	161509750	ispA	USA300HOU_1523	-	geranyltranstransferase
1485	 30.30	0	1640312..1640542	-	76	161509751	xseB	USA300HOU_1524	-	exodeoxyribonuclease VII small subunit
1486	 31.17	0	1640535..1641872	-	445	161509752	xseA	USA300HOU_1525	-	exodeoxyribonuclease VII large subunit
1487	 30.26	0	1641889..1642278	-	129	161509753	nusB	USA300HOU_1526	-	transcription antitermination protein NusB
1488	 29.20	0	1642338..1642700	-	120	161509754	-	USA300HOU_1527	-	hypothetical protein
1489	 36.36	0	1642715..1644070	-	451	161509755	accC	USA300HOU_1528	-	acetyl-CoA carboxylase biotin carboxylase subunit
1490	 35.05	0	1644070..1644534	-	154	161509756	accB	USA300HOU_1529	-	biotin carboxyl carrier subunit
1491	 33.15	0	1645008..1645565	-	185	161509757	efp	USA300HOU_1530	-	elongation factor P
1492	 32.39	0	1645591..1646652	-	353	161509758	-	USA300HOU_1531	-	M24B family Xaa-Pro dipeptidase
1493	 27.49	-1	1646757..1647338	+	193	161509759	-	USA300HOU_1532	-	hypothetical protein
32.63	MEAN

3.73	STD DEV
