IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus subsp. aureus USA300_TCH1516

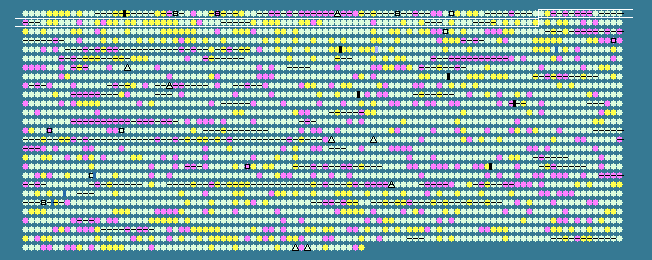

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.63 STD DEV: 3.73
Staphylococcus aureus subsp. aureus USA300_TCH1516, complete genome - 1..2872915
2657 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
87	 31.37	0	96963..97064	-	33	161508353	-	USA300HOU_0095	-	hypothetical protein
88	 38.91	+1	97363..98349	-	328	161508354	-	USA300HOU_0096	-	hypothetical protein
89	 26.47	-1	98658..98861	+	67	161508355	-	USA300HOU_0097	-	hypothetical protein
90	 31.65	0	98910..99206	+	98	161508356	-	USA300HOU_0098	-	hypothetical protein
91	 29.07	0	99278..100498	-	406	161508357	-	USA300HOU_0099	-	major facilitator transporter
92	 32.32	0	100927..101025	-	32	161508358	-	USA300HOU_0101	-	hypothetical protein
93	 27.64	-1	101154..102014	+	286	161508359	-	USA300HOU_0102	-	transcriptional regulator
94	 26.22	-1	102369..102902	-	177	161508360	-	USA300HOU_0103	-	hypothetical protein
95	 26.21	-1	102993..103736	+	247	161508361	-	USA300HOU_0104	-	transcriptional regulator
96	 30.18	0	104170..104772	+	200	161508362	-	USA300HOU_0105	-	hypothetical protein
97	 31.30	0	105039..108191	+	1050	161508363	-	USA300HOU_0106	-	hypothetical protein
98	 32.09	0	108248..108730	+	160	161508364	-	USA300HOU_0107	-	hypothetical protein
99	 33.33	0	108935..109921	+	328	161508365	plc	USA300HOU_0108	-	phosphatidylinositol diacylglycerol-lyase
100	 29.57	0	110142..110912	+	256	161508366	-	USA300HOU_0109	-	staphylococcal tandem lipoprotein
101	 28.48	-1	110931..111734	+	267	161508367	-	USA300HOU_0110	-	tandem lipoprotein
102	 29.96	0	111798..112568	+	256	161508368	-	USA300HOU_0111	-	tandem lipoprotein
103	 31.12	0	112635..113402	+	255	161508369	-	USA300HOU_0112	-	staphylococcal tandem lipoprotein
104	 33.65	0	113496..115733	+	745	161508370	-	USA300HOU_0113	-	xylan 1,4-beta-xylosidase
105	 37.15	+1	115884..117062	+	392	161508371	-	USA300HOU_0114	-	M20 family peptidase
106	 36.79	+1	117064..118452	+	462	161508372	-	USA300HOU_0115	-	major facilitator transporter
107	 36.09	0	118945..120612	-	555	161508373	-	USA300HOU_0116	-	PnaS family phosphate:sodium (Na+) symporter
108	 35.53	0	120932..122707	-	591	161508374	-	USA300HOU_0117	-	myosin-cross-reactive antigen
109	 30.61	0	122881..123762	-	293	161508375	-	USA300HOU_0118	-	DMT family permease
110	 29.04	0	123866..125263	+	465	161508376	-	USA300HOU_0119	-	transcription regulator GntR
111	 29.96	0	125453..125926	+	157	161508377	-	USA300HOU_0120	-	hypothetical protein
112	 34.59	0	126188..127780	+	530	161508378	lctP	USA300HOU_0121	-	LctP family L-lactate permease
113	 37.89	+1	128109..129623	-	504	161508379	spa	USA300HOU_0122	-	immunoglobulin G binding protein A
114	 27.36	-1	130008..130760	-	250	161508380	sarH1	USA300HOU_0123	-	staphylococcal accessory regulator H1
115	 36.74	+1	131129..132127	-	332	161508381	sirC	USA300HOU_0124	-	iron (Fe3+) ABC transporter membrane protein
116	 38.55	+1	132124..133119	-	331	161508382	sirB	USA300HOU_0125	-	iron (Fe3+) ABC transporter membrane protein
117	 32.62	0	133135..134109	-	324	161508383	sirA	USA300HOU_0126	-	iron (Fe3+) ABC transporter binding protein
118	 36.80	+1	134358..135338	+	326	161508384	-	USA300HOU_0127	-	pyridoxal-phosphate dependent enzyme
119	 37.39	+1	135335..136345	+	336	161508385	ocd	USA300HOU_0128	-	ornithine cyclodeaminase
120	 35.90	0	136366..138120	+	584	161508386	-	USA300HOU_0129	-	IucA/IucC family siderophore biosynthesis protein
121	 39.14	+1	138113..139369	+	418	161508387	-	USA300HOU_0130	-	major facilitator transporter
122	 36.61	+1	139359..141095	+	578	161508388	-	USA300HOU_0131	-	IucA/IucC family siderophore biosynthesis protein
123	 36.14	0	141076..142854	+	592	161508389	-	USA300HOU_0132	-	IucA/IucC family siderophore biosynthesis protein
124	 40.13	+2	142826..143605	+	259	161508390	-	USA300HOU_0133	-	HpcH/HpaI family aldolase
125	 36.66	+1	143605..144807	+	400	161508391	lysA1	USA300HOU_0134	-	diaminopimelate decarboxylase
126	 36.73	+1	144811..145575	+	254	161508392	-	USA300HOU_0135	-	hypothetical protein
127	 29.66	0	145771..146178	+	135	161508393	-	USA300HOU_0136	-	hypothetical protein
128	 31.58	0	146228..146854	+	208	161508394	-	USA300HOU_0137	-	hypothetical protein
129	 40.93	+2	147066..147842	+	258	161508395	-	USA300HOU_0138	-	acetoin reductase
130	 23.58	-2	147986..148108	+	40	161508396	-	USA300HOU_0139	-	hypothetical protein
131	 31.91	0	148178..149158	+	326	161508397	galE	USA300HOU_0140	-	UDP-glucose 4-epimerase
132	 34.78	0	149121..149813	+	230	161508398	-	USA300HOU_0141	-	glycosyltransferase
133	 33.25	0	150023..151189	+	388	161508399	-	USA300HOU_0142	-	glycosyltransferase
134	 30.51	0	151170..152408	+	412	161508400	-	USA300HOU_0143	-	hypothetical protein
135	 31.38	0	152398..153828	+	476	161508401	-	USA300HOU_0144	-	MOP superfamily multidrug/oligosaccharidyl-lipid/polysaccharide flippase transporter
136	 35.67	0	154096..154695	+	199	161508402	sodM	USA300HOU_0145	-	superoxide dismutase
137	 35.40	0	155063..155788	+	241	161508403	sasD	USA300HOU_0146	-	cell wall surface anchor protein
138	 35.71	0	155980..156735	-	251	161508404	-	USA300HOU_0147	-	transcriptional regulator
139	 37.57	+1	156971..157678	+	235	161508405	deoD1	USA300HOU_0148	-	purine nucleoside phosphorylase
140	 32.00	0	157685..159037	+	450	161508406	-	USA300HOU_0149	-	major facilitator superfamily tetracycline:cation symporter
141	 39.82	+1	159118..159780	+	220	161508407	deoC1	USA300HOU_0150	-	deoxyribose-phosphate aldolase
142	 36.81	+1	159808..160986	+	392	161508408	deoB1	USA300HOU_0151	-	phosphopentomutase
143	 37.01	+1	161117..161932	-	271	161508409	-	USA300HOU_0152	-	ABC transporter ATP-binding protein
144	 34.71	0	161929..162654	-	241	161508410	-	USA300HOU_0153	-	ABC transporter ATP-binding protein
145	 34.88	0	162731..163504	-	257	161508411	-	USA300HOU_0154	-	ABC transporter ATP-binding protein
146	 31.03	0	163718..164674	-	318	161508412	-	USA300HOU_0155	-	ABC transporter ATP-binding protein
147	 36.83	+1	164903..166447	+	514	161508413	-	USA300HOU_0156	-	hypothetical protein
148	 36.33	0	166498..168033	+	511	161508414	-	USA300HOU_0157	-	nucleotidase
149	 22.32	-2	169537..169863	+	108	161508415	-	USA300HOU_0160	-	hypothetical protein
150	 36.13	0	171101..173710	+	869	161508416	-	USA300HOU_0162	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
151	 29.90	0	174055..174723	+	222	161508417	cap5A	USA300HOU_0163	-	capsular polysaccharide biosynthesis protein Cap5A
152	 33.62	0	174739..175425	+	228	161508418	cap5B	USA300HOU_0164	-	capsular polysaccharide biosynthesis protein Cap5B
153	 31.76	0	175428..176192	+	254	161508419	cap5C	USA300HOU_0165	-	capsular polysaccharide biosynthesis protein Cap5C
154	 33.92	0	178026..179054	+	342	161508420	cap5E	USA300HOU_0167	-	capsular polysaccharide biosynthesis protein Cap5E
155	 34.86	0	179061..180176	+	371	161508421	cap5F	USA300HOU_0168	-	capsular polysaccharide biosynthesis protein Cap5F
156	 32.54	0	181307..181933	+	208	161508422	cap5H	USA300HOU_0170	-	capsular polysaccharide biosynthesis protein Cap5H
157	 29.19	0	181938..183047	+	369	161508423	cap5I	USA300HOU_0171	-	capsular polysaccharide biosynthesis protein Cap5I
158	 29.31	0	183061..184227	+	388	161508424	cap5J	USA300HOU_0172	-	capsular polysaccharide biosynthesis protein Cap5J
159	 26.78	-1	184220..185425	+	401	161508425	cap5K	USA300HOU_0173	-	capsular polysaccharide synthesis protein Cap5K
160	 35.07	0	185426..186631	+	401	161508426	cap5L	USA300HOU_0174	-	capsular polysaccharide biosynthesis protein Cap5L
161	 32.62	0	186642..187199	+	185	161508427	cap5M	USA300HOU_0175	-	capsular polysaccharide biosynthesis protein Cap5M
162	 33.56	0	187199..188086	+	295	161508428	cap5N	USA300HOU_0176	-	capsular polysaccharide biosynthesis protein Cap5N
163	 34.36	0	188140..189402	+	420	161508429	cap5O	USA300HOU_0177	-	capsular polysaccharide biosynthesis protein Cap5O
164	 36.14	0	189449..190624	+	391	161508430	cap5P	USA300HOU_0178	-	capsular polysaccharide biosynthesis protein Cap5P
165	 30.53	0	190689..191009	-	106	161508431	isdG1	USA300HOU_0179	-	heme-degrading monooxygenase IsdI
166	 32.03	0	191022..191405	-	127	161508432	-	USA300HOU_0180	-	hypothetical protein
167	 36.29	0	191832..193319	+	495	161508433	aldH2	USA300HOU_0181	-	aldehyde dehydrogenase (NAD(+))
168	 31.98	0	193965..194924	+	319	161508434	-	USA300HOU_0182	-	CDF family cation diffusion facilitator
169	 31.37	0	194986..195189	-	67	161508435	-	USA300HOU_0183	-	hypothetical protein
170	 34.11	0	195368..195880	+	170	161508436	-	USA300HOU_0184	-	hypothetical protein
171	 35.36	0	196222..196962	+	246	161508437	-	USA300HOU_0185	-	nitrite/nitrate ABC transporter ATP-binding protein
172	 36.82	+1	196976..197950	+	324	161508438	-	USA300HOU_0186	-	ABC transporter ATP-binding protein
173	 35.30	0	197947..198708	+	253	161508439	-	USA300HOU_0187	-	ABC transporter ATP-binding protein
174	 32.50	0	199970..200329	+	119	161508440	-	USA300HOU_0189	-	hypothetical protein
175	 34.98	0	200496..201527	+	343	161508441	fdh	USA300HOU_0190	-	formate dehydrogenase
176	 32.37	0	201913..203163	+	416	161508442	-	USA300HOU_0191	-	major facilitator superfamily multidrug cation symporter or antiporter
177	 35.20	0	203592..210785	+	2397	161508443	-	USA300HOU_0192	-	non-ribosomal peptide synthetase
178	 33.64	0	210798..211442	+	214	161508444	-	USA300HOU_0193	-	holo-[acyl-carrier-protein] synthase
179	 36.57	+1	211770..212264	-	164	161508445	-	USA300HOU_0194	-	hypothetical protein
180	 34.64	0	212519..213283	-	254	161508446	argB	USA300HOU_0195	-	acetylglutamate kinase
181	 38.00	+1	213299..214540	-	413	161508447	argJ	USA300HOU_0196	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
182	 35.46	0	214552..215586	-	344	161508448	argC	USA300HOU_0197	-	N-acetyl-gamma-glutamyl-phosphate reductase
183	 37.79	+1	215622..216833	-	403	161508449	argD	USA300HOU_0198	-	ornithine aminotransferase
184	 33.04	0	217059..218414	-	451	161508450	-	USA300HOU_0199	-	LIVCS family branched chain amino acid:cation symporter
185	 35.13	0	218690..219247	-	185	161508451	-	USA300HOU_0200	-	isochorismatase
186	 36.50	+1	219314..220954	-	546	161508452	-	USA300HOU_0201	-	indolepyruvate decarboxylase
32.63	MEAN

3.73	STD DEV
