IslandPath Analysis: Staphylococcus aureus subsp. aureus JH1

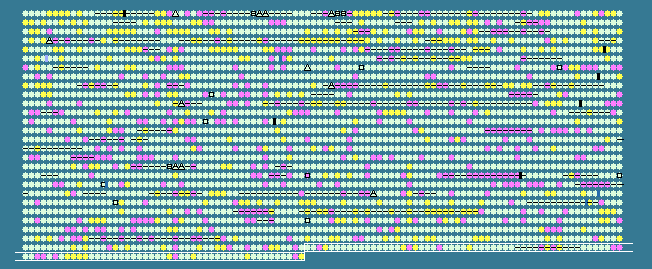

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.01 STD DEV: 3.38
Staphylococcus aureus subsp. aureus JH1, complete genome - 1..2906507
2747 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2648	 34.58	0	2793215..2795065	-	616	150395128	-	SaurJH1_2694	-	anaerobic ribonucleoside triphosphate reductase
2649	 36.32	0	2795255..2796625	-	456	150395129	-	SaurJH1_2695	-	CitMHS family citrate/H+ symporter
2650	 29.17	-1	2796947..2797042	-	31	150395130	-	SaurJH1_2696	-	hypothetical protein
2651	 37.29	+1	2797118..2797723	-	201	150395131	-	SaurJH1_2697	-	precorrin-2 dehydrogenase
2652	 34.88	0	2797786..2799666	-	626	150395132	-	SaurJH1_2698	-	sulfite reductase (NADPH) flavoprotein, alpha chain
2653	 31.12	0	2800060..2800557	-	165	150395133	-	SaurJH1_2699	-	peroxiredoxin
2654	 31.80	0	2800567..2800827	-	86	150395134	-	SaurJH1_2700	-	hypothetical protein
2655	 31.48	0	2801981..2803981	-	666	150395135	-	SaurJH1_2701	-	hypothetical protein
2656	 34.92	0	2803978..2804733	-	251	150395136	-	SaurJH1_2702	-	ABC transporter related
2657	 29.95	0	2804841..2805728	-	295	150395137	-	SaurJH1_2703	-	ATPase domain-containing protein
2658	 29.88	0	2805739..2806404	-	221	150395138	-	SaurJH1_2704	-	response regulator receiver
2659	 31.34	0	2806430..2806630	-	66	150395139	-	SaurJH1_2705	-	hypothetical protein
2660	 35.09	0	2806828..2808252	+	474	150395140	-	SaurJH1_2706	-	alkaline phosphatase
2661	 30.48	0	2808312..2808416	-	34	150395141	-	SaurJH1_2707	-	hypothetical protein
2662	 32.24	0	2808535..2808990	-	151	150395142	-	SaurJH1_2708	-	regulatory protein MarR
2663	 32.94	0	2809235..2809996	-	253	150395143	-	SaurJH1_2709	-	putative esterase
2664	 38.69	+1	2810112..2812745	-	877	150395144	-	SaurJH1_2710	-	cell wall anchor domain-containing protein
2665	 29.22	-1	2813095..2813799	-	234	150395145	-	SaurJH1_2711	-	cyclic nucleotide-binding protein
2666	 37.05	+1	2813898..2814866	-	322	150395146	-	SaurJH1_2712	-	carbamate kinase
2667	 35.15	0	2814856..2816286	-	476	150395147	-	SaurJH1_2713	-	arginine/ornithine antiporter
2668	 33.14	0	2816377..2817387	-	336	150395148	-	SaurJH1_2714	-	ornithine carbamoyltransferase
2669	 34.55	0	2817420..2818655	-	411	150395149	-	SaurJH1_2715	-	arginine deiminase
2670	 29.33	-1	2819002..2819451	-	149	150395150	-	SaurJH1_2716	-	arginine repressor
2671	 35.82	0	2819818..2821347	-	509	150395151	-	SaurJH1_2717	-	zinc metalloproteinase aureolysin
2672	 30.87	0	2821771..2822298	-	175	150395152	-	SaurJH1_2718	-	immunodominant antigen B
2673	 33.55	0	2822556..2823014	+	152	150395153	-	SaurJH1_2719	-	hypothetical protein
2674	 30.99	0	2823254..2825128	+	624	150395154	-	SaurJH1_2720	-	PRD domain-containing protein
2675	 38.30	+1	2825204..2827156	+	650	150395155	-	SaurJH1_2721	-	PTS system, fructose subfamily, IIC subunit
2676	 35.46	0	2827170..2828108	+	312	150395156	-	SaurJH1_2722	-	mannose-6-phosphate isomerase
2677	 34.88	0	2828220..2831201	-	993	150395157	-	SaurJH1_2723	-	ABC-2 type transporter
2678	 32.74	0	2831412..2833271	+	619	150395158	-	SaurJH1_2724	-	N-acetylmuramoyl-L-alanine amidase
2679	 34.94	0	2833536..2834096	-	186	150395159	-	SaurJH1_2725	-	isochorismatase hydrolase
2680	 32.18	0	2834265..2836172	-	635	150395160	-	SaurJH1_2726	-	cell wall anchor domain-containing protein
2681	 33.26	0	2836413..2837771	-	452	150395161	-	SaurJH1_2727	-	hypothetical protein
2682	 34.46	0	2837764..2839272	-	502	150395162	-	SaurJH1_2728	-	hypothetical protein
2683	 34.13	0	2839290..2841680	-	796	150395163	-	SaurJH1_2729	-	preprotein translocase subunit SecA
2684	 32.60	0	2841670..2842629	-	319	150395164	-	SaurJH1_2730	-	hypothetical protein
2685	 36.01	0	2842607..2844175	-	522	150395165	-	SaurJH1_2731	-	hypothetical protein
2686	 34.04	0	2844165..2845718	-	517	150395166	-	SaurJH1_2732	-	hypothetical protein
2687	 28.63	-1	2845729..2846940	-	403	150395167	secY	SaurJH1_2733	-	preprotein translocase subunit SecY
2688	 38.51	+1	2847070..2853885	-	2271	150395168	-	SaurJH1_2734	-	cell wall anchor domain-containing protein
2689	 20.72	-2	2854238..2854348	-	36	150395169	-	SaurJH1_2735	-	hypothetical protein
2690	 38.10	+1	2854429..2855121	-	230	150395170	-	SaurJH1_2736	-	hypothetical protein
2691	 30.54	0	2855387..2855815	+	142	150395171	-	SaurJH1_2737	-	hypothetical protein
2692	 32.68	0	2855799..2856104	+	101	150395172	-	SaurJH1_2738	-	hypothetical protein
2693	 34.72	0	2856258..2856617	+	119	150395173	-	SaurJH1_2739	-	hypothetical protein
2694	 34.97	0	2856702..2857313	-	203	150395174	-	SaurJH1_2740	-	hypothetical protein
2695	 35.22	0	2857392..2857868	-	158	150395175	-	SaurJH1_2741	-	methionine sulfoxide reductase A
2696	 32.93	0	2857871..2858371	-	166	150395176	-	SaurJH1_2742	-	GCN5-related N-acetyltransferase
2697	 32.16	0	2858606..2859373	-	255	150395177	-	SaurJH1_2743	-	protein-tyrosine-phosphatase
2698	 35.79	0	2859370..2860062	-	230	150395178	-	SaurJH1_2744	-	exopolysaccharide tyrosine-protein kinase
2699	 28.96	-1	2860079..2860741	-	220	150395179	-	SaurJH1_2745	-	lipopolysaccharide biosynthesis protein
2700	 27.63	-1	2861590..2862150	-	186	150395180	-	SaurJH1_2746	-	regulatory protein TetR
2701	 34.75	0	2862353..2863552	+	399	150395181	-	SaurJH1_2747	-	N-glycosyltransferase PgaC
2702	 31.70	0	2863516..2863821	+	101	150395182	-	SaurJH1_2748	-	hypothetical protein
2703	 29.21	-1	2863818..2864690	+	290	150395183	-	SaurJH1_2749	-	intercellular adhesion protein B
2704	 27.16	-1	2864677..2865729	+	350	150395184	-	SaurJH1_2750	-	intercellular adhesion protein C, putative
2705	 34.36	0	2866062..2868107	-	681	150395185	-	SaurJH1_2751	-	triacylglycerol lipase
2706	 27.70	-1	2868825..2869037	-	70	150395186	-	SaurJH1_2752	-	hypothetical protein
2707	 34.12	0	2869197..2869829	-	210	150395187	-	SaurJH1_2753	-	bifunctional phosphoribosyl-AMP cyclohydrolase/phosphoribosyl-ATP pyrophosphatase protein
2708	 36.89	+1	2869826..2870584	-	252	150395188	-	SaurJH1_2754	-	imidazoleglycerol phosphate synthase, cyclase subunit
2709	 38.87	+1	2870581..2871285	-	234	150395189	-	SaurJH1_2755	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
2710	 36.79	+1	2871278..2871856	-	192	150395190	hisH	SaurJH1_2756	-	imidazole glycerol phosphate synthase subunit HisH
2711	 36.79	+1	2871853..2872431	-	192	150395191	-	SaurJH1_2757	-	imidazoleglycerol-phosphate dehydratase
2712	 34.71	0	2872400..2873413	-	337	150395192	-	SaurJH1_2758	-	aminotransferase class I and II
2713	 36.05	0	2873429..2874679	-	416	150395193	-	SaurJH1_2759	-	histidinol dehydrogenase
2714	 33.66	0	2874672..2875286	-	204	150395194	hisG	SaurJH1_2760	-	ATP phosphoribosyltransferase catalytic subunit
2715	 35.29	0	2875304..2876122	-	272	150395195	hisZ	SaurJH1_2761	-	ATP phosphoribosyltransferase regulatory subunit
2716	 32.36	0	2876426..2877550	-	374	150395196	-	SaurJH1_2762	-	hypothetical protein
2717	 29.72	0	2877668..2878165	-	165	150395197	-	SaurJH1_2763	-	hypothetical protein
2718	 29.74	0	2878212..2879045	-	277	150395198	-	SaurJH1_2764	-	cobalt transport protein
2719	 33.45	0	2879042..2880754	-	570	150395199	-	SaurJH1_2765	-	ABC transporter related
2720	 32.25	0	2880807..2881361	-	184	150395200	-	SaurJH1_2766	-	hypothetical protein
2721	 34.86	0	2881390..2882238	-	282	150395201	-	SaurJH1_2767	-	hypothetical protein
2722	 33.33	0	2882617..2883132	+	171	150395202	-	SaurJH1_2768	-	hypothetical protein
2723	 35.69	0	2883283..2884257	-	324	150395203	-	SaurJH1_2769	-	SMP-30/gluconolaconase/LRE domain-containing protein
2724	 35.21	0	2884498..2885454	+	318	150395204	-	SaurJH1_2770	-	hypothetical protein
2725	 37.25	+1	2885606..2886244	+	212	150395205	-	SaurJH1_2771	-	pyrrolidone-carboxylate peptidase
2726	 28.65	-1	2886363..2887130	-	255	150395206	-	SaurJH1_2772	-	hypothetical protein
2727	 35.99	0	2887120..2887458	-	112	150395207	-	SaurJH1_2773	-	transcriptional regulator PadR family protein
2728	 32.26	0	2887625..2888089	+	154	150395208	-	SaurJH1_2774	-	hypothetical protein
2729	 38.27	+1	2888327..2889745	+	472	150395209	-	SaurJH1_2775	-	anion transporter
2730	 33.99	0	2890159..2891067	-	302	150395210	-	SaurJH1_2776	-	transporter DMT superfamily protein
2731	 34.72	0	2891289..2891864	+	191	150395211	-	SaurJH1_2777	-	hypothetical protein
2732	 34.19	0	2891990..2893042	+	350	150395212	-	SaurJH1_2778	-	high-affinity nickel-transporter
2733	 30.34	0	2893279..2894079	+	266	150395213	-	SaurJH1_2779	-	N-acetyltransferase
2734	 30.99	0	2894213..2894725	-	170	150395214	-	SaurJH1_2780	-	hypothetical protein
2735	 36.10	0	2895008..2895766	+	252	150395215	-	SaurJH1_2781	-	ABC transporter related
2736	 31.37	0	2895756..2897636	+	626	150395216	-	SaurJH1_2782	-	hypothetical protein
2737	 30.73	0	2897728..2897919	+	63	150395217	-	SaurJH1_2783	-	hypothetical protein
2738	 38.31	+1	2898311..2898511	+	66	150395218	-	SaurJH1_2784	-	cold-shock protein DNA-binding
2739	 31.58	0	2898629..2899198	-	189	150395219	-	SaurJH1_2785	-	helix-turn-helix domain-containing protein
2740	 34.60	0	2899458..2899853	-	131	150395220	-	SaurJH1_2786	-	hypothetical protein
2741	 36.44	+1	2899921..2900274	-	117	150395221	-	SaurJH1_2787	-	hypothetical protein
2742	 35.36	0	2900725..2901564	-	279	150395222	-	SaurJH1_2788	-	parB-like partition protein
2743	 33.61	0	2901607..2902326	-	239	150395223	gidB	SaurJH1_2789	-	glucose-inhibited division protein B
2744	 35.41	0	2902326..2904203	-	625	150395224	-	SaurJH1_2790	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
2745	 34.20	0	2904270..2905649	-	459	150395225	trmE	SaurJH1_2791	-	tRNA modification GTPase TrmE
2746	 29.10	-1	2905806..2906159	-	117	150395226	rnpA	SaurJH1_2792	-	ribonuclease P
2747	 37.68	+1	2906280..2906417	-	45	150395227	rpmH	SaurJH1_2793	-	50S ribosomal protein L34
33.01	MEAN

3.38	STD DEV
