IslandPath Analysis: Staphylococcus aureus subsp. aureus JH1

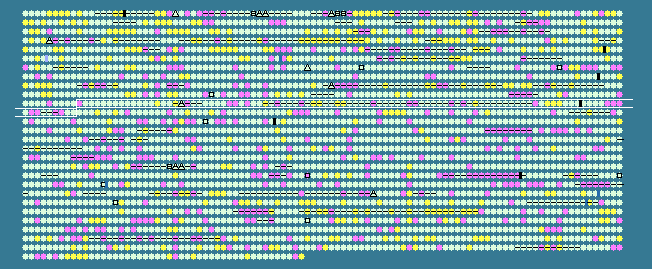

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.01 STD DEV: 3.38
Staphylococcus aureus subsp. aureus JH1, complete genome - 1..2906507
2747 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1010	 29.02	-1	1056833..1057180	+	115	150393490	-	SaurJH1_1022	-	hypothetical protein
1011	 33.81	0	1057197..1057832	+	211	150393491	-	SaurJH1_1023	-	RelA/SpoT domain-containing protein
1012	 35.19	0	1057849..1058658	+	269	150393492	ppnK	SaurJH1_1024	-	inorganic polyphosphate/ATP-NAD kinase
1013	 30.88	0	1058655..1059509	+	284	150393493	-	SaurJH1_1025	-	RluA family pseudouridine synthase
1014	 33.41	0	1059530..1060915	+	461	150393494	-	SaurJH1_1026	-	magnesium transporter
1015	 31.65	0	1060925..1062769	+	614	150393495	-	SaurJH1_1027	-	sodium/hydrogen exchanger
1016	 35.41	0	1063047..1063817	+	256	150393496	-	SaurJH1_1028	-	enoyl-(acyl carrier protein) reductase
1017	 31.22	0	1064014..1065099	-	361	150393497	-	SaurJH1_1029	-	hypothetical protein
1018	 35.69	0	1065441..1067009	+	522	150393498	-	SaurJH1_1030	-	amino acid carrier protein
1019	 31.88	0	1067154..1067912	+	252	150393499	-	SaurJH1_1031	-	hypothetical protein
1020	 34.31	0	1068106..1068615	+	169	150393500	-	SaurJH1_1032	-	hypothetical protein
1021	 32.41	0	1068728..1069918	-	396	150393501	-	SaurJH1_1033	-	major facilitator transporter
1022	 32.65	0	1069896..1071071	-	391	150393502	-	SaurJH1_1034	-	diacylglycerol glucosyltransferase
1023	 36.84	+1	1071504..1072988	+	494	150393503	-	SaurJH1_1035	-	UDP-N-acetylmuramyl-tripeptide synthetase
1024	 30.16	0	1072978..1073229	+	83	150393504	-	SaurJH1_1036	-	hypothetical protein
1025	 34.04	0	1073229..1074791	+	520	150393505	prfC	SaurJH1_1037	-	peptide chain release factor 3
1026	 36.82	+1	1075093..1075896	+	267	150393506	-	SaurJH1_1038	-	integral membrane protein TerC
1027	 29.60	-1	1076185..1077390	-	401	150393507	-	SaurJH1_1039	-	phage integrase family protein
1028	 26.34	-1	1077516..1078130	+	204	150393508	-	SaurJH1_1040	-	phi PVL ORF 30-like protein
1029	 33.33	0	1078127..1078273	-	48	150393509	-	SaurJH1_1041	-	hypothetical protein
1030	 34.19	0	1078503..1079087	-	194	150393510	-	SaurJH1_1042	-	hypothetical protein
1031	 34.20	0	1079105..1079566	-	153	150393511	-	SaurJH1_1043	-	hypothetical protein
1032	 33.65	0	1079579..1079893	-	104	150393512	-	SaurJH1_1044	-	helix-turn-helix domain-containing protein
1033	 31.65	0	1080045..1080281	+	78	150393513	-	SaurJH1_1045	-	hypothetical protein
1034	 35.26	0	1080295..1081071	+	258	150393514	-	SaurJH1_1046	-	Rha family phage regulatory protein
1035	 29.17	-1	1081100..1081243	+	47	150393515	-	SaurJH1_1047	-	hypothetical protein
1036	 28.77	-1	1081233..1081451	-	72	150393516	-	SaurJH1_1048	-	hypothetical protein
1037	 35.66	0	1081486..1081743	+	85	150393517	-	SaurJH1_1049	-	hypothetical protein
1038	 28.96	-1	1081712..1082077	-	121	150393518	-	SaurJH1_1050	-	hypothetical protein
1039	 34.26	0	1082132..1082347	+	71	150393519	-	SaurJH1_1051	-	SLT orf 71-like protein-related protein
1040	 30.68	0	1082372..1082635	+	87	150393520	-	SaurJH1_1052	-	PVL orf 37-like protein
1041	 37.65	+1	1082648..1082809	+	53	150393521	-	SaurJH1_1053	-	hypothetical protein
1042	 32.41	0	1082888..1083211	+	107	150393522	-	SaurJH1_1054	-	hypothetical protein
1043	 29.48	-1	1083226..1083588	+	120	150393523	-	SaurJH1_1055	-	hypothetical protein
1044	 34.88	0	1083585..1084751	+	388	150393524	-	SaurJH1_1056	-	hypothetical protein
1045	 34.41	0	1084777..1085334	+	185	150393525	-	SaurJH1_1057	-	hypothetical protein
1046	 35.22	0	1085394..1087355	+	653	150393526	-	SaurJH1_1058	-	DNA-directed DNA polymerase
1047	 29.03	-1	1087368..1087553	+	61	150393527	-	SaurJH1_1059	-	ETA orf 26-like protein-related protein
1048	 33.58	0	1087553..1087954	+	133	150393528	-	SaurJH1_1060	-	PVL ORF-50 family protein
1049	 38.04	+1	1087954..1088208	+	84	150393529	-	SaurJH1_1061	-	hypothetical protein
1050	 36.63	+1	1088214..1088456	+	80	150393530	-	SaurJH1_1062	-	phage conserved Open Reading Frame 51
1051	 31.40	0	1088470..1088676	+	68	150393531	-	SaurJH1_1063	-	hypothetical protein
1052	 30.76	0	1088679..1089416	+	245	150393532	-	SaurJH1_1064	-	hypothetical protein
1053	 36.67	+1	1089413..1089802	+	129	150393533	-	SaurJH1_1065	-	PV83 orf 27-like protein
1054	 38.15	+1	1089795..1090043	+	82	150393534	-	SaurJH1_1066	-	hypothetical protein
1055	 31.84	0	1090036..1090572	+	178	150393535	-	SaurJH1_1067	-	dUTPase
1056	 36.23	0	1090609..1090815	+	68	150393536	-	SaurJH1_1068	-	hypothetical protein
1057	 32.04	0	1090812..1091198	+	128	150393537	-	SaurJH1_1069	-	hypothetical protein
1058	 33.33	0	1091195..1091347	+	50	150393538	-	SaurJH1_1070	-	transcriptional activator RinB
1059	 29.06	-1	1091382..1091615	+	77	150393539	-	SaurJH1_1071	-	hypothetical protein
1060	 35.13	0	1091903..1094350	+	815	150393540	-	SaurJH1_1072	-	virulence-associated E family protein
1061	 29.85	0	1094296..1094496	-	66	150393541	-	SaurJH1_1073	-	hypothetical protein
1062	 30.58	0	1094691..1094981	+	96	150393542	-	SaurJH1_1074	-	VRR-NUC domain-containing protein
1063	 32.74	0	1094971..1096329	+	452	150393543	-	SaurJH1_1075	-	SNF2-related protein
1064	 32.88	0	1096342..1096779	+	145	150393544	-	SaurJH1_1076	-	RinA family phage transcriptional regulator
1065	 27.94	-1	1096936..1097250	+	104	150393545	-	SaurJH1_1077	-	HNH endonuclease
1066	 28.43	-1	1097379..1097684	+	101	150393546	-	SaurJH1_1078	-	phage terminase small subunit putative P27
1067	 33.75	0	1097674..1099365	+	563	150393547	-	SaurJH1_1079	-	phage terminase
1068	 32.69	0	1099370..1100608	+	412	150393548	-	SaurJH1_1080	-	HK97 family phage portal protein
1069	 31.01	0	1100592..1101365	+	257	150393549	-	SaurJH1_1081	-	peptidase S14 ClpP
1070	 32.82	0	1101377..1102540	+	387	150393550	-	SaurJH1_1082	-	phage major capsid protein HK97
1071	 32.26	0	1102609..1102887	+	92	150393551	-	SaurJH1_1083	-	uncharacterized phage protein
1072	 27.63	-1	1102899..1103231	+	110	150393552	-	SaurJH1_1084	-	hypothetical protein
1073	 32.84	0	1103228..1103629	+	133	150393553	-	SaurJH1_1085	-	SLT orf 123-like protein
1074	 26.52	-1	1103630..1104025	+	131	150393554	-	SaurJH1_1086	-	hypothetical protein
1075	 36.45	+1	1104060..1104701	+	213	150393555	-	SaurJH1_1087	-	phi13 family phage major tail protein
1076	 36.62	+1	1104793..1105248	+	151	150393556	-	SaurJH1_1088	-	Ig domain-containing protein
1077	 31.05	0	1105306..1105656	+	116	150393557	-	SaurJH1_1089	-	hypothetical protein
1078	 33.33	0	1105698..1105856	+	52	150393558	-	SaurJH1_1090	-	hypothetical protein
1079	 36.25	0	1105870..1112070	+	2066	150393559	-	SaurJH1_1091	-	TP901 family phage tail tape measure protein
1080	 30.67	0	1112070..1112894	+	274	150393560	-	SaurJH1_1092	-	hypothetical protein
1081	 29.86	0	1112903..1114486	+	527	150393561	-	SaurJH1_1093	-	hypothetical protein
1082	 34.71	0	1114486..1114776	+	96	150393562	-	SaurJH1_1094	-	hypothetical protein
1083	 35.27	0	1114792..1116702	+	636	150393563	-	SaurJH1_1095	-	hypothetical protein
1084	 33.81	0	1116702..1118168	+	488	150393564	-	SaurJH1_1096	-	phiSLT ORF488-like protein
1085	 31.54	0	1118168..1118557	+	129	150393565	-	SaurJH1_1097	-	SLT orf 129-like protein
1086	 28.48	-1	1118550..1118714	+	54	150393566	-	SaurJH1_1098	-	hypothetical protein
1087	 31.00	0	1118760..1119059	+	99	150393567	-	SaurJH1_1099	-	hypothetical protein
1088	 38.58	+1	1119195..1119632	+	145	150393568	-	SaurJH1_1100	-	phage phi LC3 family holin
1089	 40.59	+2	1119613..1121058	+	481	150393569	-	SaurJH1_1101	-	N-acetylmuramoyl-L-alanine amidase
1090	 43.14	+2	1121234..1121335	-	33	150393570	-	SaurJH1_1102	-	hypothetical protein
1091	 31.35	0	1121618..1123942	+	774	150393571	-	SaurJH1_1103	-	peptidase S1 and S6 chymotrypsin/Hap
1092	 31.94	0	1123959..1125317	+	452	150393572	-	SaurJH1_1104	-	H(+)-transporting two-sector ATPase
1093	 32.34	0	1125453..1126967	+	504	150393573	-	SaurJH1_1105	-	5'-nucleotidase domain-containing protein
1094	 30.18	0	1127454..1128023	-	189	150393574	-	SaurJH1_1106	-	ComK family protein
1095	 33.33	0	1128233..1128451	+	72	150393575	-	SaurJH1_1107	-	hypothetical protein
1096	 30.29	0	1128532..1129518	-	328	150393576	-	SaurJH1_1108	-	lipoyltransferase and lipoate-protein ligase
1097	 30.51	0	1129717..1129893	+	58	150393577	-	SaurJH1_1109	-	hypothetical protein
1098	 27.53	-1	1129908..1130510	+	200	150393578	-	SaurJH1_1110	-	abortive infection protein
1099	 25.93	-2	1130780..1130887	+	35	150393579	-	SaurJH1_1111	-	hypothetical protein
1100	 26.87	-1	1131853..1133817	+	654	150393580	-	SaurJH1_1113	-	bacteriocin-associated integral membrane protein
1101	 30.53	0	1133820..1134140	+	106	150393581	-	SaurJH1_1114	-	hypothetical protein
1102	 27.88	-1	1134137..1134778	+	213	150393582	-	SaurJH1_1115	-	ABC transporter related
1103	 26.46	-1	1134866..1135156	-	96	150393583	-	SaurJH1_1116	-	hypothetical protein
1104	 31.65	0	1135523..1135879	-	118	150393584	-	SaurJH1_1118	-	DoxX family protein
1105	 33.85	0	1136367..1137326	+	319	150393585	-	SaurJH1_1119	-	periplasmic binding protein
1106	 28.79	-1	1137372..1137503	-	43	150393586	-	SaurJH1_1120	-	hypothetical protein
1107	 26.85	-1	1137567..1137782	-	71	150393587	-	SaurJH1_1121	-	TM2 domain-containing protein
1108	 32.25	0	1137947..1138498	+	183	150393588	-	SaurJH1_1122	-	hypothetical protein
1109	 34.93	0	1138550..1139488	-	312	150393589	-	SaurJH1_1123	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
33.01	MEAN

3.38	STD DEV
