IslandPath Analysis: Staphylococcus aureus subsp. aureus JH9

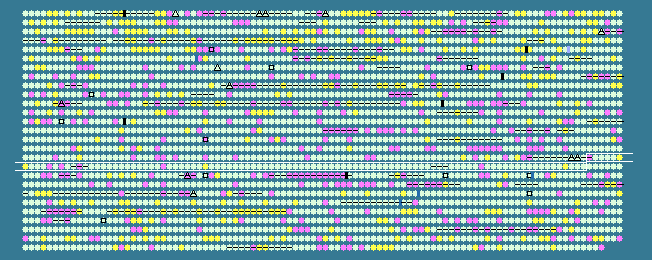

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.08 STD DEV: 3.28
Staphylococcus aureus subsp. aureus JH9, complete genome - 1..2906700
2697 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1695	 28.53	-1	1816438..1817145	-	235	148268142	-	SaurJH9_1719	-	peptidase A24A domain-containing protein
1696	 32.78	0	1817415..1818686	-	423	148268143	-	SaurJH9_1720	-	FolC bifunctional protein
1697	 34.44	0	1818699..1821329	-	876	148268144	valS	SaurJH9_1721	-	valyl-tRNA synthetase
1698	 32.98	0	1821732..1822292	+	186	148268145	-	SaurJH9_1722	-	DNA-3-methyladenine glycosylase I
1699	 29.98	0	1822515..1823588	-	357	148268146	-	SaurJH9_1723	-	putative ammonia monooxygenase
1700	 40.20	+2	1823622..1823723	-	33	148268147	-	SaurJH9_1724	-	hypothetical protein
1701	 36.75	+1	1823784..1825070	-	428	148268148	-	SaurJH9_1725	-	glutamate-1-semialdehyde aminotransferase
1702	 35.59	0	1825118..1826092	-	324	148268149	-	SaurJH9_1726	-	delta-aminolevulinic acid dehydratase
1703	 30.49	0	1826095..1826763	-	222	148268150	-	SaurJH9_1727	-	uroporphyrinogen III synthase
1704	 34.41	0	1826785..1827711	-	308	148268151	hemC	SaurJH9_1728	-	porphobilinogen deaminase
1705	 28.31	-1	1827753..1828568	-	271	148268152	-	SaurJH9_1729	-	cytochrome c assembly protein
1706	 33.78	0	1828590..1829936	-	448	148268153	hemA	SaurJH9_1730	-	glutamyl-tRNA reductase
1707	 28.93	-1	1830153..1830743	-	196	148268154	-	SaurJH9_1731	-	GTPase EngB
1708	 34.05	0	1830897..1832159	-	420	148268155	clpX	SaurJH9_1732	-	ATP-dependent protease ATP-binding subunit
1709	 33.64	0	1832310..1833611	-	433	148268156	tig	SaurJH9_1733	-	trigger factor
1710	 29.25	-1	1833774..1834703	-	309	148268157	-	SaurJH9_1734	-	hypothetical protein
1711	 33.33	0	1834722..1835330	-	202	148268158	-	SaurJH9_1735	-	NUDIX hydrolase
1712	 36.41	+1	1835472..1835828	-	118	148268159	rplT	SaurJH9_1736	-	50S ribosomal protein L20
1713	 34.83	0	1835875..1836075	-	66	148268160	rpmI	SaurJH9_1737	-	50S ribosomal protein L35
1714	 34.99	0	1836104..1836706	-	200	148268161	infC	SaurJH9_1738	-	translation initiation factor IF-3
1715	 34.34	0	1836860..1838353	-	497	148268162	-	SaurJH9_1739	-	amino acid permease-associated region
1716	 35.19	0	1838779..1840716	-	645	148268163	-	SaurJH9_1740	-	threonyl-tRNA synthetase
1717	 34.42	0	1841129..1842049	-	306	148268164	-	SaurJH9_1741	-	primosomal protein DnaI
1718	 32.76	0	1842049..1843449	-	466	148268165	-	SaurJH9_1742	-	replication initiation and membrane attachment family protein
1719	 35.46	0	1843450..1843920	-	156	148268166	-	SaurJH9_1743	-	transcriptional regulator NrdR
1720	 32.75	0	1844131..1845156	-	341	148268167	-	SaurJH9_1744	-	glyceraldehyde 3-phosphate dehydrogenase 2
1721	 34.46	0	1845326..1845949	-	207	148268168	-	SaurJH9_1745	-	dephospho-CoA kinase
1722	 32.30	0	1845965..1846837	-	290	148268169	-	SaurJH9_1746	-	formamidopyrimidine-DNA glycosylase
1723	 32.12	0	1846853..1849483	-	876	148268170	-	SaurJH9_1747	-	DNA polymerase I
1724	 28.49	-1	1849777..1851264	-	495	148268171	-	SaurJH9_1748	-	hypothetical protein
1725	 31.11	0	1851763..1853427	-	554	148268172	-	SaurJH9_1749	-	multi-sensor signal transduction histidine kinase
1726	 34.04	0	1853424..1854128	-	234	148268173	-	SaurJH9_1750	-	two component transcriptional regulator
1727	 34.99	0	1854518..1855786	-	422	148268174	-	SaurJH9_1751	-	isocitrate dehydrogenase
1728	 36.19	0	1855835..1856956	-	373	148268175	-	SaurJH9_1752	-	methylcitrate synthase
1729	 34.65	0	1857304..1858665	+	453	148268176	-	SaurJH9_1753	-	amino acid permease-associated region
1730	 34.53	0	1859013..1860770	-	585	148268177	-	SaurJH9_1754	-	pyruvate kinase
1731	 37.25	+1	1860792..1861760	-	322	148268178	-	SaurJH9_1755	-	6-phosphofructokinase
1732	 34.29	0	1862029..1862973	-	314	148268179	-	SaurJH9_1756	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
1733	 34.38	0	1862973..1863830	-	285	148268180	-	SaurJH9_1757	-	acetyl-CoA carboxylase subunit beta
1734	 35.77	0	1864025..1865254	-	409	148268181	-	SaurJH9_1758	-	malate dehydrogenase
1735	 31.61	0	1865704..1868901	-	1065	148268182	-	SaurJH9_1759	-	DNA polymerase III, alpha subunit
1736	 35.35	0	1868922..1869863	-	313	148268183	-	SaurJH9_1760	-	phosphoesterase domain-containing protein
1737	 33.64	0	1870175..1871473	-	432	148268184	-	SaurJH9_1761	-	DRTGG domain-containing protein
1738	 33.33	0	1871678..1872091	+	137	148268185	-	SaurJH9_1762	-	UspA domain-containing protein
1739	 33.62	0	1872396..1873085	-	229	148268186	-	SaurJH9_1763	-	beta-lactamase domain-containing protein
1740	 33.05	0	1873260..1874315	+	351	148268187	-	SaurJH9_1764	-	peptidase M24
1741	 36.10	0	1874631..1875749	-	372	148268188	-	SaurJH9_1765	-	alanine dehydrogenase
1742	 35.53	0	1875890..1876390	+	166	148268189	-	SaurJH9_1766	-	UspA domain-containing protein
1743	 35.08	0	1876636..1877838	-	400	148268190	-	SaurJH9_1767	-	acetate kinase
1744	 31.86	0	1877926..1878873	-	315	148268191	-	SaurJH9_1768	-	hypothetical protein
1745	 34.95	0	1878996..1879490	-	164	148268192	-	SaurJH9_1769	-	redoxin domain-containing protein
1746	 32.30	0	1879588..1880358	-	256	148268193	-	SaurJH9_1770	-	hypothetical protein
1747	 33.01	0	1880402..1881625	-	407	148268194	-	SaurJH9_1771	-	thiamine biosynthesis/tRNA modification protein ThiI
1748	 31.53	0	1881625..1882791	-	388	148268195	-	SaurJH9_1772	-	aminotransferase, class V
1749	 31.09	0	1883137..1884831	-	564	148268196	-	SaurJH9_1773	-	septation ring formation regulator EzrA
1750	 35.91	0	1884968..1885432	+	154	148268197	-	SaurJH9_1774	-	hypothetical protein
1751	 35.66	0	1885676..1886278	+	200	148268198	rpsD	SaurJH9_1775	-	30S ribosomal protein S4
1752	 32.12	0	1886494..1887237	-	247	148268199	-	SaurJH9_1776	-	glycerophosphoryl diester phosphodiesterase
1753	 34.68	0	1887317..1887763	+	148	148268200	-	SaurJH9_1777	-	OsmC family protein
1754	 34.28	0	1887878..1889035	+	385	148268201	-	SaurJH9_1778	-	aminotransferase, class V
1755	 34.45	0	1889022..1890626	+	534	148268202	-	SaurJH9_1779	-	D-3-phosphoglycerate dehydrogenase
1756	 31.65	0	1890776..1891906	-	376	148268203	-	SaurJH9_1780	-	hypothetical protein
1757	 34.70	0	1892013..1893479	-	488	148268204	-	SaurJH9_1781	-	PTS system, N-acetylglucosamine-specific IIBC subunit
1758	 31.07	0	1893607..1894224	-	205	148268205	-	SaurJH9_1782	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
1759	 34.27	0	1894396..1895670	+	424	148268206	-	SaurJH9_1783	-	2-alkenal reductase
1760	 33.41	0	1895764..1897026	-	420	148268207	-	SaurJH9_1784	-	tyrosyl-tRNA synthetase
1761	 30.13	0	1897408..1898313	+	301	148268208	-	SaurJH9_1785	-	glycosyl transferase family protein
1762	 33.74	0	1898516..1901191	-	891	148268209	-	SaurJH9_1786	-	cell wall anchor domain-containing protein
1763	 36.27	0	1901524..1903191	-	555	148268210	-	SaurJH9_1787	-	formate--tetrahydrofolate ligase
1764	 36.32	0	1903631..1905337	-	568	148268211	-	SaurJH9_1788	-	acetyl-CoA synthetase
1765	 34.28	0	1905506..1906138	+	210	148268212	-	SaurJH9_1789	-	hypothetical protein
1766	 34.70	0	1906163..1907332	+	389	148268213	-	SaurJH9_1790	-	histone deacetylase superfamily protein
1767	 33.03	0	1907430..1908419	-	329	148268214	-	SaurJH9_1791	-	catabolite control protein A
1768	 33.97	0	1908959..1910050	-	363	148268215	-	SaurJH9_1792	-	bifunctional 3-deoxy-7-phosphoheptulonate synthase/chorismate mutase
1769	 33.26	0	1910744..1912102	-	452	148268216	-	SaurJH9_1793	-	hypothetical protein
1770	 33.54	0	1912176..1912667	-	163	148268217	-	SaurJH9_1794	-	hypothetical protein
1771	 31.28	0	1912741..1914054	-	437	148268218	murC	SaurJH9_1795	-	UDP-N-acetylmuramate--L-alanine ligase
1772	 33.80	0	1914078..1917902	-	1274	148268219	-	SaurJH9_1796	-	cell divisionFtsK/SpoIIIE
1773	 31.32	0	1917923..1918519	-	198	148268220	-	SaurJH9_1797	-	tRNA-binding domain-containing protein
1774	 30.89	0	1918548..1919405	-	285	148268221	-	SaurJH9_1798	-	hypothetical protein
1775	 33.33	0	1919505..1919816	-	103	148268222	-	SaurJH9_1799	-	thioredoxin domain-containing protein
1776	 33.98	0	1919881..1920957	-	358	148268223	-	SaurJH9_1800	-	glutamyl aminopeptidase
1777	 28.25	-1	1921041..1921355	+	104	148268224	-	SaurJH9_1801	-	hypothetical protein
1778	 34.52	0	1921480..1922322	-	280	148268225	-	SaurJH9_1802	-	beta-lactamase domain-containing protein
1779	 31.78	0	1922793..1923437	-	214	148268226	-	SaurJH9_1803	-	tRNA (guanine-N(7)-)-methyltransferase
1780	 34.47	0	1923452..1924243	-	263	148268227	-	SaurJH9_1804	-	hypothetical protein
1781	 32.74	0	1924793..1925641	-	282	148268228	-	SaurJH9_1805	-	D-alanine aminotransferase
1782	 34.61	0	1925645..1927054	-	469	148268229	-	SaurJH9_1806	-	dipeptidase PepV
1783	 30.02	0	1927498..1927920	-	140	148268230	-	SaurJH9_1807	-	hypothetical protein
1784	 29.89	0	1927937..1928632	-	231	148268231	-	SaurJH9_1808	-	pseudouridine synthase
1785	 32.13	0	1928629..1930290	-	553	148268232	-	SaurJH9_1809	-	polysaccharide biosynthesis protein
1786	 35.46	0	1930697..1931965	+	422	148268233	-	SaurJH9_1810	-	hypothetical protein
1787	 34.80	0	1932082..1938642	-	2186	148268234	-	SaurJH9_1811	-	cell wall anchor domain-containing protein
1788	 33.65	0	1938968..1939279	-	103	148268235	-	SaurJH9_1812	-	rhodanese domain-containing protein
1789	 34.41	0	1939301..1941718	-	805	148268236	leuS	SaurJH9_1813	-	leucyl-tRNA synthetase
1790	 35.19	0	1942006..1943187	-	393	148268237	-	SaurJH9_1814	-	major facilitator transporter
1791	 36.90	+1	1943297..1944250	+	317	148268238	-	SaurJH9_1815	-	hypothetical protein
1792	 32.80	0	1944247..1944810	+	187	148268239	-	SaurJH9_1816	-	hypothetical protein
1793	 31.74	0	1944933..1945433	-	166	148268240	-	SaurJH9_1817	-	accessory regulator A-like protein
1794	 32.37	0	1945906..1946733	-	275	148268241	-	SaurJH9_1818	-	alpha/beta hydrolase fold
33.08	MEAN

3.28	STD DEV
