IslandPath Analysis: Staphylococcus aureus subsp. aureus JH9

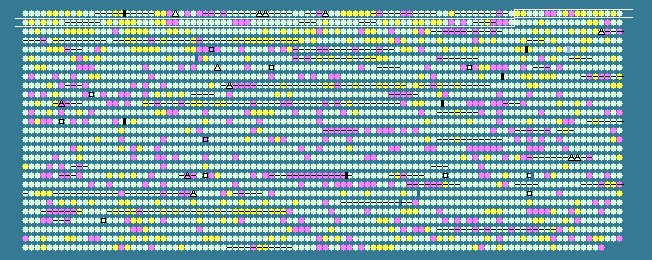

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.08 STD DEV: 3.28
Staphylococcus aureus subsp. aureus JH9, complete genome - 1..2906700
2697 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
83	 37.23	+1	104103..105281	+	392	148266530	-	SaurJH9_0090	-	amidohydrolase
84	 36.79	+1	105283..106671	+	462	148266531	-	SaurJH9_0091	-	major facilitator transporter
85	 36.09	0	107155..108822	-	555	148266532	-	SaurJH9_0092	-	Na/Pi-cotransporter II-related protein
86	 35.81	0	109141..110916	-	591	148266533	-	SaurJH9_0093	-	67 kDa myosin-cross-reactive antigen family protein
87	 30.81	0	111090..111962	-	290	148266534	-	SaurJH9_0094	-	hypothetical protein
88	 29.42	-1	112144..113472	+	442	148266535	-	SaurJH9_0095	-	GntR family transcriptional regulator
89	 29.54	-1	113662..114135	+	157	148266536	-	SaurJH9_0096	-	hypothetical protein
90	 34.59	0	114397..115989	+	530	148266537	-	SaurJH9_0097	-	L-lactate transport
91	 38.20	+1	116318..117880	-	520	148266538	-	SaurJH9_0098	-	cell wall anchor domain-containing protein
92	 27.49	-1	118265..119017	-	250	148266539	-	SaurJH9_0099	-	SarA family transcriptional regulator
93	 36.74	+1	119386..120384	-	332	148266540	-	SaurJH9_0100	-	transport system permease protein
94	 38.45	+1	120381..121376	-	331	148266541	-	SaurJH9_0101	-	transport system permease protein
95	 32.23	0	121392..122384	-	330	148266542	-	SaurJH9_0102	-	periplasmic binding protein
96	 36.90	+1	122615..123595	+	326	148266543	-	SaurJH9_0103	-	pyridoxal-5'-phosphate-dependent enzyme, beta subunit
97	 37.19	+1	123592..124602	+	336	148266544	-	SaurJH9_0104	-	ornithine cyclodeaminase
98	 35.95	0	124623..126377	+	584	148266545	-	SaurJH9_0105	-	IucA/IucC family protein
99	 39.14	+1	126370..127626	+	418	148266546	-	SaurJH9_0106	-	major facilitator transporter
100	 36.33	0	127616..129352	+	578	148266547	-	SaurJH9_0107	-	IucA/IucC family protein
101	 35.92	0	129333..131111	+	592	148266548	-	SaurJH9_0108	-	IucA/IucC family protein
102	 40.13	+2	131083..131862	+	259	148266549	-	SaurJH9_0109	-	HpcH/HpaI aldolase
103	 36.33	0	131862..133064	+	400	148266550	-	SaurJH9_0110	-	Orn/DAP/Arg decarboxylase 2
104	 36.86	+1	133068..133832	+	254	148266551	-	SaurJH9_0111	-	nuclease
105	 31.74	0	134028..134654	+	208	148266552	-	SaurJH9_0112	-	hypothetical protein
106	 40.93	+2	134866..135642	+	258	148266553	-	SaurJH9_0113	-	acetoin reductase
107	 31.89	0	135987..136958	+	323	148266554	-	SaurJH9_0114	-	NAD-dependent epimerase/dehydratase
108	 35.21	0	137029..137613	+	194	148266555	-	SaurJH9_0115	-	sugar transferase
109	 33.68	0	137823..138989	+	388	148266556	-	SaurJH9_0116	-	glycosyl transferase, group 1
110	 30.51	0	138970..140208	+	412	148266557	-	SaurJH9_0117	-	hypothetical protein
111	 31.45	0	140198..141628	+	476	148266558	-	SaurJH9_0118	-	polysaccharide biosynthesis protein
112	 35.33	0	141896..142495	+	199	148266559	-	SaurJH9_0119	-	superoxide dismutase
113	 35.26	0	142862..143587	+	241	148266560	-	SaurJH9_0120	-	cell wall anchor domain-containing protein
114	 35.85	0	143778..144533	-	251	148266561	-	SaurJH9_0121	-	regulatory protein GntR, HTH
115	 37.57	+1	144769..145476	+	235	148266562	-	SaurJH9_0122	-	purine nucleoside phosphorylase
116	 31.86	0	145483..146835	+	450	148266563	-	SaurJH9_0123	-	major facilitator transporter
117	 40.27	+2	146916..147578	+	220	148266564	-	SaurJH9_0124	-	deoxyribose-phosphate aldolase
118	 36.81	+1	147606..148784	+	392	148266565	-	SaurJH9_0125	-	phosphopentomutase
119	 36.89	+1	148913..149728	-	271	148266566	-	SaurJH9_0126	-	phosphonate ABC transporter, inner membrane subunit
120	 34.33	0	149725..150525	-	266	148266567	-	SaurJH9_0127	-	phosphonate ABC transporter, inner membrane subunit
121	 35.14	0	150527..151300	-	257	148266568	-	SaurJH9_0128	-	phosphonate ABC transporter, ATPase subunit
122	 30.83	0	151495..152451	-	318	148266569	-	SaurJH9_0129	-	phosphonate ABC transporter, periplasmic phosphonate-binding protein
123	 37.02	+1	152680..154224	+	514	148266570	-	SaurJH9_0130	-	hypothetical protein
124	 36.59	+1	154275..155810	+	511	148266571	-	SaurJH9_0131	-	5'-nucleotidase domain-containing protein
125	 29.17	-1	155967..156734	+	255	148266572	-	SaurJH9_0132	-	hypothetical protein
126	 28.74	-1	156740..157915	+	391	148266573	-	SaurJH9_0133	-	hypothetical protein
127	 36.09	0	158300..160909	+	869	148266574	-	SaurJH9_0134	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
128	 29.90	0	161252..161920	+	222	148266575	-	SaurJH9_0135	-	MPA1 family polysaccharide export protein
129	 33.62	0	161936..162622	+	228	148266576	-	SaurJH9_0136	-	exopolysaccharide tyrosine-protein kinase
130	 31.90	0	162625..163389	+	254	148266577	-	SaurJH9_0137	-	protein-tyrosine-phosphatase
131	 34.98	0	163409..165232	+	607	148266578	-	SaurJH9_0138	-	polysaccharide biosynthesis protein CapD
132	 34.11	0	165222..166250	+	342	148266579	-	SaurJH9_0139	-	polysaccharide biosynthesis protein CapD
133	 34.77	0	166263..167372	+	369	148266580	-	SaurJH9_0140	-	NAD-dependent epimerase/dehydratase
134	 33.69	0	167376..168500	+	374	148266581	-	SaurJH9_0141	-	UDP-N-acetylglucosamine 2-epimerase
135	 32.70	0	168503..169129	+	208	148266582	-	SaurJH9_0142	-	acetyltransferase
136	 29.01	-1	169134..170243	+	369	148266583	-	SaurJH9_0143	-	hypothetical protein
137	 29.22	-1	170257..171423	+	388	148266584	-	SaurJH9_0144	-	O-antigen polymerase
138	 26.70	-1	171416..172621	+	401	148266585	-	SaurJH9_0145	-	hypothetical protein
139	 35.16	0	172622..173827	+	401	148266586	-	SaurJH9_0146	-	glycosyl transferase, group 1
140	 32.44	0	173838..174395	+	185	148266587	-	SaurJH9_0147	-	sugar transferase
141	 33.90	0	174395..175282	+	295	148266588	-	SaurJH9_0148	-	NAD-dependent epimerase/dehydratase
142	 34.28	0	175336..176598	+	420	148266589	-	SaurJH9_0149	-	UDP-glucose/GDP-mannose dehydrogenase
143	 36.30	0	176675..177820	+	381	148266590	-	SaurJH9_0150	-	UDP-N-acetylglucosamine 2-epimerase
144	 30.58	0	177885..178211	-	108	148266591	-	SaurJH9_0151	-	heme-degrading monooxygenase IsdI
145	 31.77	0	178218..178601	-	127	148266592	-	SaurJH9_0152	-	hypothetical protein
146	 36.22	0	179028..180515	+	495	148266593	-	SaurJH9_0153	-	aldehyde dehydrogenase
147	 31.56	0	181162..182121	+	319	148266594	-	SaurJH9_0154	-	cation diffusion facilitator family transporter
148	 30.88	0	182357..182560	-	67	148266595	-	SaurJH9_0155	-	hypothetical protein
149	 33.92	0	182739..183251	+	170	148266596	-	SaurJH9_0156	-	hypothetical protein
150	 35.36	0	183593..184333	+	246	148266597	-	SaurJH9_0157	-	ABC transporter related
151	 36.93	+1	184347..185318	+	323	148266598	-	SaurJH9_0158	-	NLPA lipoprotein
152	 35.17	0	185315..186076	+	253	148266599	-	SaurJH9_0159	-	binding-protein-dependent transport systems inner membrane component
153	 35.94	0	186086..187120	+	344	148266600	-	SaurJH9_0160	-	Acyl-CoA dehydrogenase-like protein
154	 32.22	0	187337..187696	+	119	148266601	-	SaurJH9_0161	-	hypothetical protein
155	 35.08	0	187863..188894	+	343	148266602	-	SaurJH9_0162	-	formate dehydrogenase
156	 32.53	0	189280..190530	+	416	148266603	-	SaurJH9_0163	-	major facilitator transporter
157	 35.27	0	190977..198152	+	2391	148266604	-	SaurJH9_0164	-	thioester reductase domain-containing protein
158	 33.64	0	198165..198809	+	214	148266605	-	SaurJH9_0165	-	4'-phosphopantetheinyl transferase
159	 36.36	+1	199137..199631	-	164	148266606	-	SaurJH9_0166	-	hypothetical protein
160	 34.64	0	199886..200650	-	254	148266607	-	SaurJH9_0167	-	acetylglutamate kinase
161	 37.84	+1	200666..201907	-	413	148266608	argJ	SaurJH9_0168	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
162	 35.07	0	201919..202953	-	344	148266609	argC	SaurJH9_0169	-	N-acetyl-gamma-glutamyl-phosphate reductase
163	 37.55	+1	202989..204173	-	394	148266610	-	SaurJH9_0170	-	ornithine aminotransferase
164	 33.04	0	204432..205781	-	449	148266611	-	SaurJH9_0171	-	branched-chain amino acid transport system II carrier protein
165	 35.30	0	206060..206617	-	185	148266612	-	SaurJH9_0172	-	isochorismatase hydrolase
166	 36.68	+1	206684..208324	-	546	148266613	-	SaurJH9_0173	-	thiamine pyrophosphate binding domain-containing protein
167	 37.59	+1	208597..210642	-	681	148266614	-	SaurJH9_0174	-	PTS system, glucose-specific IIBC subunit
168	 35.32	0	211227..212282	+	351	148266615	-	SaurJH9_0175	-	hypothetical protein
169	 38.02	+1	212282..213178	+	298	148266616	murQ	SaurJH9_0176	-	N-acetylmuramic acid-6-phosphate etherase
170	 37.87	+1	213190..214644	+	484	148266617	-	SaurJH9_0177	-	phosphotransferase system, EIIC
171	 34.36	0	214647..215522	+	291	148266618	-	SaurJH9_0178	-	RpiR family transcriptional regulator
172	 28.72	-1	215716..215997	-	93	148266619	-	SaurJH9_0179	-	hypothetical protein
173	 33.15	0	216210..218999	+	929	148266620	-	SaurJH9_0180	-	HsdR family type I site-specific deoxyribonuclease
174	 29.17	-1	219146..219745	-	199	148266621	-	SaurJH9_0181	-	hypothetical protein
175	 30.46	0	219870..220982	+	370	148266622	-	SaurJH9_0182	-	membrane-fusion protein-like protein
176	 31.42	0	220979..221659	+	226	148266623	-	SaurJH9_0183	-	ABC transporter related
177	 30.70	0	221656..222834	+	392	148266624	-	SaurJH9_0184	-	hypothetical protein
178	 41.44	+2	223041..223262	+	73	148266625	-	SaurJH9_0185	-	hypothetical protein
179	 23.37	-2	223333..225018	+	561	148266626	-	SaurJH9_0186	-	hypothetical protein
180	 25.59	-2	225056..225520	+	154	148266627	-	SaurJH9_0187	-	hypothetical protein
181	 26.56	-1	225532..226254	+	240	148266628	-	SaurJH9_0188	-	ABC transporter related
182	 30.81	0	226420..226617	+	65	148266629	-	SaurJH9_0189	-	XRE family transcriptional regulator
33.08	MEAN

3.28	STD DEV
