IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus subsp. aureus JH9

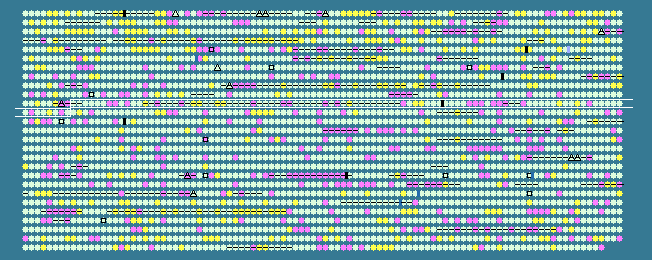

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.08 STD DEV: 3.28
Staphylococcus aureus subsp. aureus JH9, complete genome - 1..2906700
2697 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1009	 33.33	0	1078253..1078399	-	48	148267456	-	SaurJH9_1022	-	hypothetical protein
1010	 34.19	0	1078629..1079213	-	194	148267457	-	SaurJH9_1023	-	hypothetical protein
1011	 34.20	0	1079231..1079692	-	153	148267458	-	SaurJH9_1024	-	hypothetical protein
1012	 33.65	0	1079705..1080019	-	104	148267459	-	SaurJH9_1025	-	XRE family transcriptional regulator
1013	 31.65	0	1080171..1080407	+	78	148267460	-	SaurJH9_1026	-	hypothetical protein
1014	 35.26	0	1080421..1081197	+	258	148267461	-	SaurJH9_1027	-	Rha family phage regulatory protein
1015	 29.17	-1	1081226..1081369	+	47	148267462	-	SaurJH9_1028	-	hypothetical protein
1016	 28.77	-1	1081359..1081577	-	72	148267463	-	SaurJH9_1029	-	hypothetical protein
1017	 35.66	0	1081612..1081869	+	85	148267464	-	SaurJH9_1030	-	hypothetical protein
1018	 28.96	-1	1081838..1082203	-	121	148267465	-	SaurJH9_1031	-	hypothetical protein
1019	 34.26	0	1082258..1082473	+	71	148267466	-	SaurJH9_1032	-	hypothetical protein
1020	 30.68	0	1082498..1082761	+	87	148267467	-	SaurJH9_1033	-	hypothetical protein
1021	 37.65	+1	1082774..1082935	+	53	148267468	-	SaurJH9_1034	-	hypothetical protein
1022	 32.41	0	1083014..1083337	+	107	148267469	-	SaurJH9_1035	-	hypothetical protein
1023	 29.48	-1	1083352..1083714	+	120	148267470	-	SaurJH9_1036	-	hypothetical protein
1024	 34.88	0	1083711..1084877	+	388	148267471	-	SaurJH9_1037	-	hypothetical protein
1025	 34.41	0	1084903..1085460	+	185	148267472	-	SaurJH9_1038	-	hypothetical protein
1026	 35.22	0	1085520..1087481	+	653	148267473	-	SaurJH9_1039	-	DNA-directed DNA polymerase
1027	 29.03	-1	1087494..1087679	+	61	148267474	-	SaurJH9_1040	-	hypothetical protein
1028	 33.58	0	1087679..1088080	+	133	148267475	-	SaurJH9_1041	-	PVL ORF-50 family protein
1029	 38.04	+1	1088080..1088334	+	84	148267476	-	SaurJH9_1042	-	hypothetical protein
1030	 36.63	+1	1088340..1088582	+	80	148267477	-	SaurJH9_1043	-	phage conserved Open Reading Frame 51
1031	 31.40	0	1088596..1088802	+	68	148267478	-	SaurJH9_1044	-	hypothetical protein
1032	 30.76	0	1088805..1089542	+	245	148267479	-	SaurJH9_1045	-	hypothetical protein
1033	 36.67	+1	1089539..1089928	+	129	148267480	-	SaurJH9_1046	-	hypothetical protein
1034	 38.15	+1	1089921..1090169	+	82	148267481	-	SaurJH9_1047	-	hypothetical protein
1035	 31.84	0	1090162..1090698	+	178	148267482	-	SaurJH9_1048	-	dUTPase
1036	 36.23	0	1090735..1090941	+	68	148267483	-	SaurJH9_1049	-	hypothetical protein
1037	 32.04	0	1090938..1091324	+	128	148267484	-	SaurJH9_1050	-	hypothetical protein
1038	 33.33	0	1091321..1091473	+	50	148267485	-	SaurJH9_1051	-	transcriptional activator RinB
1039	 29.06	-1	1091508..1091741	+	77	148267486	-	SaurJH9_1052	-	hypothetical protein
1040	 35.13	0	1092029..1094476	+	815	148267487	-	SaurJH9_1053	-	virulence-associated E family protein
1041	 30.58	0	1094817..1095107	+	96	148267488	-	SaurJH9_1054	-	VRR-NUC
1042	 32.74	0	1095097..1096455	+	452	148267489	-	SaurJH9_1055	-	SNF2-related protein
1043	 32.88	0	1096468..1096905	+	145	148267490	-	SaurJH9_1056	-	RinA family phage transcriptional regulator
1044	 27.94	-1	1097062..1097376	+	104	148267491	-	SaurJH9_1057	-	HNH endonuclease
1045	 28.43	-1	1097505..1097810	+	101	148267492	-	SaurJH9_1058	-	phage terminase, small subunit, putative, P27
1046	 33.75	0	1097800..1099491	+	563	148267493	-	SaurJH9_1059	-	phage terminase
1047	 32.69	0	1099496..1100734	+	412	148267494	-	SaurJH9_1060	-	HK97 family phage portal protein
1048	 31.01	0	1100718..1101491	+	257	148267495	-	SaurJH9_1061	-	peptidase S14, ClpP
1049	 32.82	0	1101503..1102666	+	387	148267496	-	SaurJH9_1062	-	phage major capsid protein, HK97
1050	 32.26	0	1102735..1103013	+	92	148267497	-	SaurJH9_1063	-	phage protein DNA packaging protein
1051	 27.63	-1	1103025..1103357	+	110	148267498	-	SaurJH9_1064	-	hypothetical protein
1052	 32.84	0	1103354..1103755	+	133	148267499	-	SaurJH9_1065	-	hypothetical protein
1053	 26.52	-2	1103756..1104151	+	131	148267500	-	SaurJH9_1066	-	hypothetical protein
1054	 36.45	+1	1104186..1104827	+	213	148267501	-	SaurJH9_1067	-	phi13 family phage major tail protein
1055	 36.62	+1	1104919..1105374	+	151	148267502	-	SaurJH9_1068	-	Ig domain-containing protein
1056	 31.05	0	1105432..1105782	+	116	148267503	-	SaurJH9_1069	-	hypothetical protein
1057	 36.25	0	1105996..1112196	+	2066	148267504	-	SaurJH9_1070	-	TP901 family phage tail tape measure protein
1058	 30.67	0	1112196..1113020	+	274	148267505	-	SaurJH9_1071	-	hypothetical protein
1059	 29.86	0	1113029..1114612	+	527	148267506	-	SaurJH9_1072	-	hypothetical protein
1060	 34.71	0	1114612..1114902	+	96	148267507	-	SaurJH9_1073	-	hypothetical protein
1061	 35.27	0	1114918..1116828	+	636	148267508	-	SaurJH9_1074	-	hypothetical protein
1062	 33.81	0	1116828..1118294	+	488	148267509	-	SaurJH9_1075	-	hypothetical protein
1063	 31.54	0	1118294..1118683	+	129	148267510	-	SaurJH9_1076	-	hypothetical protein
1064	 28.48	-1	1118676..1118840	+	54	148267511	-	SaurJH9_1077	-	hypothetical protein
1065	 31.00	0	1118886..1119185	+	99	148267512	-	SaurJH9_1078	-	hypothetical protein
1066	 38.58	+1	1119321..1119758	+	145	148267513	-	SaurJH9_1079	-	phage phi LC3 family holin
1067	 40.59	+2	1119739..1121184	+	481	148267514	-	SaurJH9_1080	-	N-acetylmuramoyl-L-alanine amidase
1068	 31.35	0	1121744..1124068	+	774	148267515	-	SaurJH9_1081	-	peptidase S1 and S6, chymotrypsin/Hap
1069	 31.94	0	1124085..1125443	+	452	148267516	-	SaurJH9_1082	-	H(+)-transporting two-sector ATPase
1070	 32.34	0	1125579..1127093	+	504	148267517	-	SaurJH9_1083	-	5'-nucleotidase domain-containing protein
1071	 30.18	0	1127580..1128149	-	189	148267518	-	SaurJH9_1084	-	ComK family protein
1072	 33.33	0	1128359..1128577	+	72	148267519	-	SaurJH9_1085	-	hypothetical protein
1073	 30.29	0	1128658..1129644	-	328	148267520	-	SaurJH9_1086	-	lipoyltransferase and lipoate-protein ligase
1074	 30.51	0	1129843..1130019	+	58	148267521	-	SaurJH9_1087	-	hypothetical protein
1075	 27.36	-1	1130034..1130636	+	200	148267522	-	SaurJH9_1088	-	abortive infection protein
1076	 25.93	-2	1130906..1131013	+	35	148267523	-	SaurJH9_1089	-	hypothetical protein
1077	 26.87	-1	1131979..1133943	+	654	148267524	-	SaurJH9_1091	-	bacteriocin-associated integral membrane protein
1078	 30.53	0	1133946..1134266	+	106	148267525	-	SaurJH9_1092	-	hypothetical protein
1079	 27.88	-1	1134263..1134904	+	213	148267526	-	SaurJH9_1093	-	ABC transporter related
1080	 26.46	-2	1134992..1135282	-	96	148267527	-	SaurJH9_1094	-	hypothetical protein
1081	 28.26	-1	1135423..1135560	+	45	148267528	-	SaurJH9_1095	-	hypothetical protein
1082	 31.65	0	1135649..1136005	-	118	148267529	-	SaurJH9_1096	-	DoxX family protein
1083	 33.85	0	1136493..1137452	+	319	148267530	-	SaurJH9_1097	-	periplasmic binding protein
1084	 26.85	-1	1137693..1137908	-	71	148267531	-	SaurJH9_1098	-	TM2 domain-containing protein
1085	 32.25	0	1138073..1138624	+	183	148267532	-	SaurJH9_1099	-	hypothetical protein
1086	 34.93	0	1138676..1139614	-	312	148267533	-	SaurJH9_1100	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
1087	 31.94	0	1139796..1141157	+	453	148267534	-	SaurJH9_1101	-	isochorismate synthase
1088	 33.69	0	1141144..1142817	+	557	148267535	-	SaurJH9_1102	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylic acid synthase/2-oxoglutarate decarboxylase
1089	 32.84	0	1142804..1143607	+	267	148267536	-	SaurJH9_1103	-	alpha/beta hydrolase fold
1090	 38.56	+1	1143600..1144421	+	273	148267537	-	SaurJH9_1104	-	naphthoate synthase
1091	 31.52	0	1144659..1144988	-	109	148267538	-	SaurJH9_1105	-	hypothetical protein
1092	 30.37	0	1145026..1146207	-	393	148267539	-	SaurJH9_1106	-	hypothetical protein
1093	 37.12	+1	1146289..1147317	-	342	148267540	-	SaurJH9_1107	-	glutamyl endopeptidase
1094	 32.12	0	1147845..1148999	-	384	148267541	-	SaurJH9_1108	-	aminotransferase, class I and II
1095	 27.30	-1	1149195..1150205	-	336	148267542	-	SaurJH9_1109	-	acyltransferase 3
1096	 31.43	0	1150358..1150777	+	139	148267543	-	SaurJH9_1110	-	MarR family transcriptional regulator
1097	 32.43	0	1150804..1150914	+	36	148267544	-	SaurJH9_1111	-	hypothetical protein
1098	 34.93	0	1150984..1154730	-	1248	148267545	-	SaurJH9_1112	-	N-acetylmuramoyl-L-alanine amidase., mannosyl-glycoprotein endo-beta-N-acetylglucosaminidase
1099	 34.71	0	1154958..1155392	-	144	148267546	-	SaurJH9_1113	-	GCN5-related N-acetyltransferase
1100	 30.79	0	1155547..1156017	-	156	148267547	-	SaurJH9_1114	-	hypothetical protein
1101	 32.59	0	1156065..1157282	-	405	148267548	-	SaurJH9_1115	-	hypothetical protein
1102	 28.39	-1	1157733..1158926	+	397	148267549	-	SaurJH9_1116	-	beta-lactamase
1103	 35.40	0	1159463..1159753	-	96	148267550	-	SaurJH9_1117	-	cytochrome aa3 quinol oxidase, subunit IV
1104	 35.97	0	1159750..1160355	-	201	148267551	-	SaurJH9_1118	-	cytochrome aa3 quinol oxidase, subunit III
1105	 36.90	+1	1160345..1162333	-	662	148267552	-	SaurJH9_1119	-	cytochrome aa3 quinol oxidase, subunit I
1106	 34.42	0	1162333..1163433	-	366	148267553	-	SaurJH9_1120	-	quinol oxidase AA3, subunit II
1107	 25.64	-2	1163679..1163795	+	38	148267554	-	SaurJH9_1121	-	hypothetical protein
1108	 32.39	0	1164004..1164321	-	105	148267555	-	SaurJH9_1122	-	hypothetical protein
33.08	MEAN

3.28	STD DEV
