IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus RF122

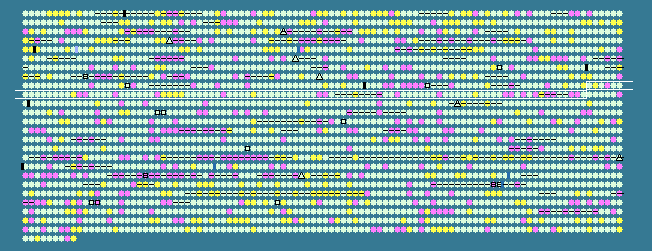

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
895	 34.49	0	1009864..1010724	-	286	82750674	folD	SAB0930c	-	bifunctional methylenetetrahydrofolate dehydrogenase and methenyltetrahydrofolate
896	 38.30	+1	1010925..1011407	+	160	82750675	purE	SAB0931	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
897	 32.98	0	1011394..1012518	+	374	82750676	purK	SAB0932	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
898	 29.08	-1	1012522..1013226	+	234	82750677	purC	SAB0933	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
899	 32.20	0	1013226..1013489	+	87	82750678	-	SAB0934	-	hypothetical protein
900	 34.38	0	1013491..1014162	+	223	82750679	purQ	SAB0935	-	phosphoribosylformylglycinamidine synthase I
901	 35.02	0	1014155..1016344	+	729	82750680	purL	SAB0936	-	phosphoribosylformylglycinamidine synthase II
902	 35.76	0	1016323..1017807	+	494	82750681	purF	SAB0937	-	amidophosphoribosyltransferase
903	 35.76	0	1017800..1018828	+	342	82750682	purM	SAB0938	-	phosphoribosylaminoimidazole synthetase
904	 31.92	0	1018831..1019397	+	188	82750683	purN	SAB0939	-	phosphoribosylformylglycinamidine formyltransferase
905	 34.69	0	1019412..1020890	+	492	82750684	purH	SAB0940	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
906	 35.82	0	1020912..1022159	+	415	82750685	purD	SAB0941	-	phosphoribosylamine--glycine ligase
907	 31.10	0	1022425..1023231	-	268	82750686	-	SAB0942c	-	membrane transporter
908	 33.12	0	1023224..1024624	-	466	82750687	-	SAB0943c	-	cation ATP-binding ABC transporter protein
909	 36.98	+1	1024639..1025214	-	191	82750688	-	SAB0944c	-	hypothetical protein
910	 29.17	-1	1026020..1027315	+	431	82750689	-	SAB0945	-	hypothetical protein
911	 25.49	-2	1027336..1027539	-	67	82750690	-	SAB0946c	-	hypothetical protein
912	 31.46	0	1027740..1028912	+	390	82750691	-	SAB0947	-	hypothetical protein
913	 29.83	0	1028966..1029508	+	180	82750692	-	SAB0948	-	hypothetical protein
914	 34.83	0	1029662..1029928	+	88	82750693	ptsH	SAB0949	-	phosphocarrier protein HPr
915	 35.14	0	1029931..1031649	+	572	82750694	ptsI	SAB0950	-	phosphoenolpyruvate-protein phosphatase
916	 28.21	-1	1031884..1032117	-	77	82750695	-	SAB0951c	-	hypothetical protein
917	 34.07	0	1032314..1033675	+	453	82750696	-	SAB0952	-	cytochrome d ubiquinol oxidase subunit I
918	 30.29	0	1033672..1034691	+	339	82750697	-	SAB0953	-	cytochrome d ubiquinol oxidase subunit II
919	 34.99	0	1034824..1035486	+	220	82750698	-	SAB0954	-	potassium uptake protein
920	 34.04	0	1035600..1037297	-	565	82750699	-	SAB0955c	-	hypothetical protein
921	 31.05	0	1037297..1037515	-	72	82750700	-	SAB0956c	-	hypothetical protein
922	 35.87	0	1037997..1038548	-	183	82750701	def	SAB0957c	-	peptide deformylase
923	 27.75	-1	1038913..1039539	+	208	82750702	-	SAB0958	-	hypothetical protein
924	 37.20	+1	1039710..1040822	+	370	82750703	pdhA	SAB0959	-	pyruvate dehydrogenase E1 component alpha subunit
925	 38.34	+1	1040826..1041803	+	325	82750704	pdhB	SAB0960	-	pyruvate dehydrogenase E1 component beta subunit
926	 38.05	+1	1041894..1043186	+	430	82750705	pdhC	SAB0961	-	branched-chain alpha-keto acid dehydrogenase subunit E2
927	 37.03	+1	1043190..1044596	+	468	82750706	pdhD	SAB0962	-	dihydrolipoamide dehydrogenase
928	 31.16	0	1044764..1045039	+	91	82750707	-	SAB0963	-	hypothetical protein
929	 30.00	0	1045183..1045722	+	179	82750708	-	SAB0964	-	transcriptional regulator
930	 31.51	0	1045734..1046828	+	364	82750709	-	SAB0965	-	spermidine/putrescine ATP-binding ABC transporter protein
931	 30.25	0	1047625..1048434	+	269	82750710	-	SAB0967	-	spermidine/putrescine ABC transporter permease protein
932	 31.75	0	1048434..1049507	+	357	82750711	-	SAB0968	-	spermidine/putrescine-binding periplasmic protein precursor
933	 31.46	0	1049581..1050594	+	337	82750712	-	SAB0969	-	hypothetical protein
934	 29.05	-1	1050877..1051296	+	139	82750713	-	SAB0970	-	hypothetical protein
935	 32.59	0	1051378..1052730	-	450	82750714	-	SAB0971c	-	Mn2+/Fe2+ transporter
936	 32.68	0	1052914..1053528	-	204	82750715	-	SAB0972c	-	hypothetical protein
937	 34.42	0	1053685..1054512	+	275	82750716	-	SAB0973	-	inositol-1-monophosphatase
938	 35.28	0	1054959..1056806	+	615	82750717	-	SAB0974	-	GTP-binding elongation factor protein
939	 37.50	+1	1056946..1057113	-	55	82750718	-	SAB0975c	-	hypothetical protein
940	 32.09	0	1057115..1057597	-	160	82750719	-	SAB0976c	-	hypothetical protein
941	 31.52	0	1057738..1058013	+	91	82750720	-	SAB0977	-	hypothetical protein
942	 31.70	0	1058327..1059553	+	408	82750721	-	SAB0978	-	cell division protein
943	 35.42	0	1060107..1063559	+	1150	82750722	-	SAB0979	-	pyruvate carboxylase
944	 33.89	0	1063699..1064769	-	356	82750723	ctaA	SAB0980c	-	heme O-oxygenase
945	 32.24	0	1065050..1065961	+	303	82750724	ctaB	SAB0981	-	protoheme IX farnesyltransferase
946	 32.47	0	1065986..1066447	+	153	82750725	-	SAB0982	-	hypothetical protein
947	 29.58	-1	1066773..1067810	+	345	82750726	-	SAB0983	-	hypothetical protein
948	 35.17	0	1067826..1068260	+	144	82750727	-	SAB0984	-	hypothetical protein
949	 36.03	0	1068323..1069249	-	308	82750728	-	SAB0985c	-	hypothetical protein
950	 27.06	-1	1069489..1069743	+	84	82750729	-	SAB0986	-	hypothetical protein
951	 29.49	-1	1069746..1070135	-	129	82750730	-	SAB0987c	-	hypothetical protein
952	 31.68	0	1070205..1070747	+	180	82750731	-	SAB0988	-	methyltransferase
953	 30.85	0	1070749..1071231	+	160	82750732	coaD	SAB0989	-	phosphopantetheine adenylyltransferase
954	 32.63	0	1071293..1072432	-	379	82750733	-	SAB0990c	-	hypothetical protein
955	 34.05	0	1072559..1073116	+	185	82750734	-	SAB0991	-	hypothetical protein
956	 36.78	+1	1073196..1073369	+	57	82750735	rpmF	SAB0992	-	50S ribosomal protein L32
957	 32.75	0	1073523..1075412	-	629	82750736	isdA	SAB0993c	-	iron-regulated cell wall-anchored protein
958	 33.62	0	1075615..1076667	-	350	82750737	isdB	SAB0994c	-	cell surface transferrin-binding protein
959	 32.46	0	1076876..1077559	+	227	82750738	isdC	SAB0995	-	iron-regulated cell surface protein
960	 28.69	-1	1077559..1078635	+	358	82750739	isdD	SAB0996	-	hypothetical protein
961	 30.72	0	1078632..1079510	+	292	82750740	isdE	SAB0997	-	iron transport lipoprotein
962	 32.92	0	1079520..1080488	+	322	82750741	isdF	SAB0998	-	iron transport permease protein
963	 27.48	-1	1080550..1081284	+	244	82750742	srtB	SAB0999	-	NPQTN specific sortase B
964	 29.94	0	1081303..1081626	+	107	82750743	-	SAB1000	-	heme-degrading monooxygenase IsdG
965	 34.95	0	1082010..1082750	+	246	82750744	-	SAB1001	-	rRNA methyltransferase
966	 34.84	0	1083131..1084189	+	352	82750745	pheS	SAB1002	-	phenylalanyl-tRNA synthetase subunit alpha
967	 34.58	0	1084189..1086591	+	800	82750746	pheT	SAB1003	-	phenylalanyl-tRNA synthetase beta chain
968	 32.91	0	1086900..1087838	-	312	161777620	-	SAB1004c	-	ribonuclease HIII
969	 32.58	0	1088213..1088479	+	88	82750748	-	SAB1005	-	hypothetical protein
970	 28.16	-1	1088480..1089001	+	173	82750749	-	SAB1006	-	hypothetical protein
971	 32.11	0	1089074..1090786	+	570	82750750	-	SAB1007	-	hypothetical protein
972	 32.78	0	1090796..1093144	+	782	82750751	-	SAB1008	-	recombination and DNA strand exchange inhibitor protein
973	 33.97	0	1093317..1093631	+	104	82750752	trxA	SAB1009	-	thioredoxin
974	 33.16	0	1093955..1095736	+	593	82750753	uvrC	SAB1010	-	excinuclease ABC subunit C
975	 32.20	0	1096060..1096674	+	204	82750754	sdhC	SAB1011	-	succinate dehydrogenase cytochrome b-558
976	 38.43	+1	1096726..1098492	+	588	82750755	sdhA	SAB1012	-	succinate dehydrogenase flavoprotein subunit
977	 35.54	0	1098492..1099307	+	271	82750756	sdhB	SAB1013	-	succinate dehydrogenase iron-sulfur subunit
978	 36.45	+1	1099548..1100348	+	266	82750757	murI	SAB1014	-	glutamate racemase
979	 33.33	0	1100360..1100947	+	195	82750758	-	SAB1015	-	hypothetical protein
980	 31.35	0	1100940..1101443	+	167	82750759	-	SAB1016	-	hypothetical protein
981	 25.00	-2	1101572..1101739	+	55	82750760	-	SAB1017	-	hypothetical protein
982	 29.09	-1	1101933..1102262	+	109	82750761	-	SAB1018	-	hypothetical protein
983	 31.59	0	1102631..1103032	-	133	82750762	-	SAB1019c	-	formyl peptide receptor-like 1 inhibitory protein
984	 26.04	-2	1103705..1104211	+	168	82750763	-	SAB1020	-	hypothetical protein
985	 30.72	0	1104470..1104967	+	165	82750764	fib	SAB1021	-	fibrinogen-binding protein
986	 29.06	-1	1105122..1105472	+	116	82750765	-	SAB1022	-	fibrinogen-binding protein precursor
987	 40.51	+2	1105724..1105918	-	64	82750766	-	SAB1023c	-	hypothetical protein
988	 28.49	-1	1106075..1106260	-	61	82750767	-	SAB1024c	-	hypothetical protein
989	 25.70	-2	1106470..1106718	-	82	82750768	-	SAB1025c	-	hypothetical protein
990	 30.34	0	1106882..1107115	-	77	82750769	-	SAB1026c	-	hypothetical protein
991	 34.06	0	1107592..1108551	-	319	82750770	hla	SAB1027c	-	alpha-hemolysin precursor
992	 23.81	-2	1109224..1109370	+	48	82750771	-	SAB1028	-	hypothetical protein
993	 28.28	-1	1109354..1109551	+	65	82750772	-	SAB1029	-	hypothetical protein
994	 29.99	0	1109995..1110711	-	238	82750773	-	SAB1030c	-	superantigen-like protein
33.03	MEAN

3.30	STD DEV
